How to Wire a 3 Wire Crank Position Sensor Step by Step Guide

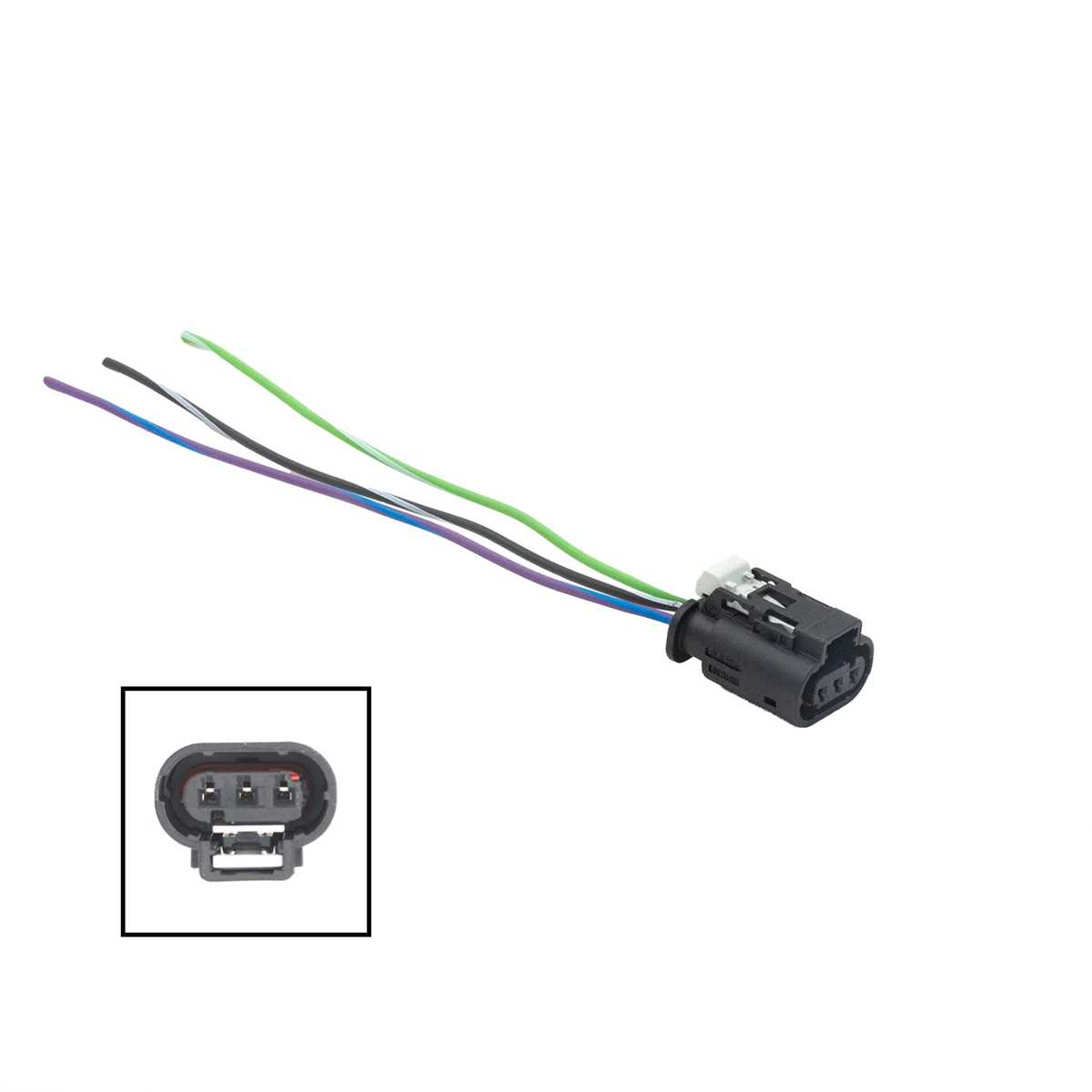

Begin by identifying the signal, ground, and power terminals on the device. The power line typically requires 5V or 12V–consult the manufacturer’s specifications for exact voltage. Use a multimeter to verify the correct terminal if labeling is unclear. The signal terminal outputs a fluctuating voltage pulse corresponding to rotational reference marks. Connect this directly to the engine control module’s input pin, avoiding interference-prone routes near high-current components.

Route the ground terminal to a clean chassis ground or a designated ECU ground point. Avoid stacking grounds with ignition coils or fuel injectors to prevent signal distortion. For vehicles with interference issues, use shielded cabling: tie the shield to ground at one end only, preferably near the ECU. If symptoms like misfires or erroneous RPM readings persist, test for voltage drop across the ground path–any reading above 0.1V indicates a poor connection.

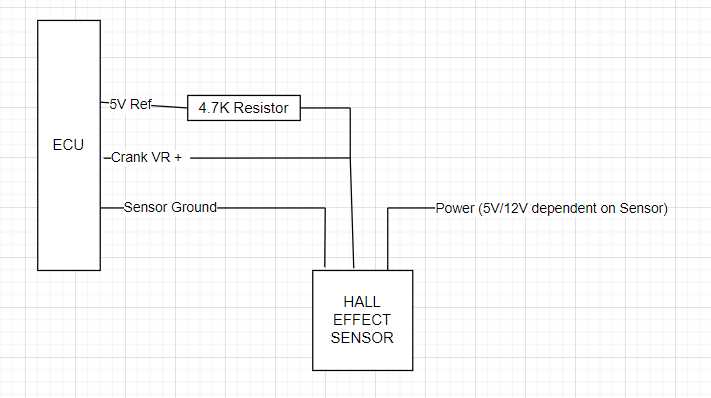

For Hall-effect variants, the signal output is a square wave, while inductive types generate an AC sine wave. Hall-effect configurations often include an internal pull-up resistor; if absent, add a 1kΩ resistor between the power and signal lines to stabilize the output. When probing with an oscilloscope, set the trigger threshold to 50% of the peak voltage to avoid false readings from noise. Replace damaged components if the signal amplitude drops below 70% of the expected range or if waveform distortion exceeds 15%.

If retrofitting an aftermarket unit, match the pulse-per-revolution count to the original setup–mismatches cause timing errors. For GM’s 24X/7X systems, ensure the reluctor ring teeth align precisely with the pickup; a 0.5mm misalignment can introduce a 3° timing error. Always secure connections with heat-shrink tubing rather than electrical tape to prevent moisture ingress. Verify functionality by monitoring live data via OBD-II after reassembly–erratic readings suggest reversed polarity or a faulty terminal.

Connecting a Three-Terminal Engine Timing Detection Module

Identify the terminals before making connections: the power input typically accepts 5–12 volts, the signal output sends pulses to the ECU, and the ground completes the circuit. Use a multimeter to verify each terminal’s function–measure voltage between the power and ground pins, then check for a fluctuating signal at the output when rotating the flywheel. Incorrect polarity risks permanent damage to the module, especially in inductive models with built-in electronics.

Route the harness away from high-current lines like ignition coils or alternator cables to prevent electromagnetic interference. Shielded twisted-pair cabling works best for signal integrity, with the shield grounded at the ECU end only. Secure connections with solder and heat-shrink tubing instead of crimped terminals–vibration can loosen crimps over time, causing intermittent failures. For Hall-effect variants, ensure a clean 5-volt reference; noise on this line can corrupt timing readings.

After installation, monitor the ECU’s live data stream for consistent pulse width and frequency. A missing or erratic pulse train suggests incorrect pin assignment, loose connections, or a faulty module. For troubleshooting, simulate rotation with a function generator–set it to mimic the expected waveform (e.g., 60-2 missing tooth pattern for many engines) and verify the ECU responds accordingly.

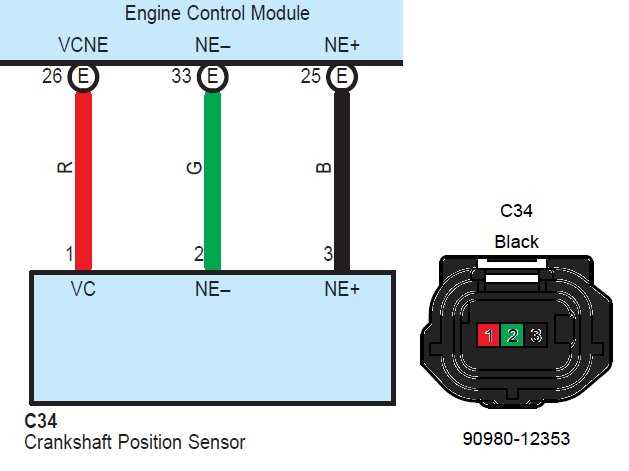

Determining the Leads of a Three-Terminal Engine Timing Pickup

Begin by locating the signal output using a multimeter set to AC millivolts. Probe the terminals while rotating the reluctor–typically the reluctor ring behind the harmonic balancer or flywheel–at a slow, consistent speed. The lead generating a fluctuating voltage (usually 50–500 mV AC) is the pulse-generating conductor. Ground is often the black or brown terminal, identifiable by measuring low resistance (under 5 ohms) to the engine block. The remaining conductor supplies reference voltage, which is usually 5V or 12V DC; confirm by checking voltage against chassis ground while the ignition is on.

Confirming Connections Without Factory Documentation

If OEM specs are unavailable, use a scope to visualize the signal pattern. A clean, repeating sine or square wave sequence indicates correct pulse identification. For Hall-effect variants, expect a distinct on-off pattern, while inductive types produce an alternating waveform. Trace the harness to the ECM–snip a small section of conduit if necessary–to identify the power input and return paths. Cross-reference the connector pinout with a known-valid arrangement from the same manufacturer for similar powertrains if discrepancies persist.

How to Check Engine Signal Leads Using a Multimeter

Set the multimeter to DC voltage (20V range) and connect the black probe to a clean ground point on the engine block. Probe the power lead–typically a 5V or 12V supply–with the red tip while the ignition is on (engine off). A reading outside 4.5V–5.5V or 11V–14V indicates a fault in the feed circuit or ECU output.

• Ignition on, attach the red probe to the signal output terminal.
• Expected voltage swing: 0.5V–4.5V (Hall-effect) or near battery voltage (inductive).
• Rotate the pulley by hand–the reading must toggle sharply; a flat line confirms an open circuit or dead unit.

Switch the meter to Ω (200 Ω range). Probe the signal pin against chassis ground. A Hall-type device should show infinite resistance; inductive units read 200–1000 Ω. Values below 150 Ω suggest internal shorting.

1. Disconnect the connector.
2. Measure across the outer terminals: 50 Ω–1 kΩ (inductive), OL (Hall-effect).
3. Cross-check against manufacturer specs–tolerance ±10 %.

Clamp a 10 Ω resistor in series with the power lead. Voltage drop exceeding 0.3V under load reveals corroded terminals or undersized supply traces. Scrape connectors with a stainless brush, then apply dielectric grease before reassembly.

Use an oscilloscope for definitive diagnosis: attach probes to power, signal, and ground pins. Crank the engine; Hall-effect units must display clean square waves, inductive types sine waves peaking ±5V. Noise spikes above 0.8V indicate shielding compromise–reroute the loom away from ignition coils.

Reinstall the connector once values align with specifications. Start the engine and verify runtime voltage on the signal pin stabilizes within 2.5V–3.5V (multipoint injection) or 1.5V–2.5V (single-point). Persistent stalling after confirmation points to ECU calibration mismatch–flash with updated firmware.

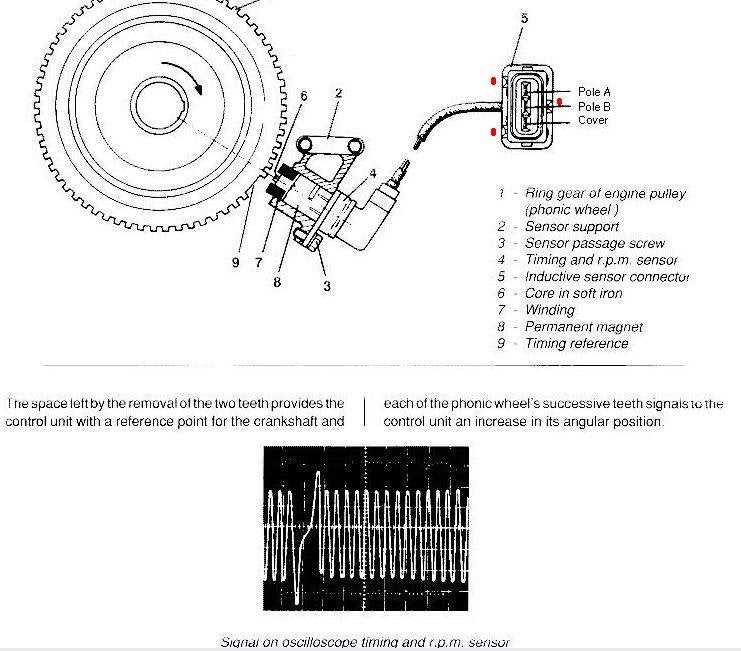

Integrating a Tri-Pin Reluctor Pickup with Engine Control Modules

Locate the signal pin on the engine management connector–typically identified by a 5V reference (VRef) or sensor supply label–and connect it to the corresponding terminal on the pickup’s harness. Use a multimeter to verify the voltage range: idle readings should sit between 1.5V and 3.5V AC, rising to 4V–6V AC under load. If values deviate, inspect the ground path; a corroded chassis ground can introduce 0.3V–0.7V noise, skewing timing accuracy. Route the supply lead directly from the ECU’s 5V output, bypassing fusible links that may drop voltage under transient loads.

Signal Validation & Shielding Guidelines

Pickup Type	Signal Wire Gauge (AWG)	Recommended Shield	Maximum Length (m)
VR (Variable Reluctance)	20–22	Braided copper, 90% coverage	2.5
Hall-Effect	18	Foil + braid, dual-layer	1.8
Optical	24 (twisted pair)	Foil only, grounded at ECU end	1.2

Terminate the shield exclusively at the ECU connector shell; grounding at both ends creates a ground loop, amplifying 10 kHz–100 kHz interference. For Hall-effect units, twist the signal and return leads at 12 turns per meter to cancel inductive noise. Confirm phase alignment by spinning the engine manually–rising edge on the oscilloscope should coincide with the missing tooth window (±0.2°). If the ECU software expects a 60-2 pattern but receives a 36-1, reflash the controller or substitute a matching trigger wheel.

Common Wiring Errors and How to Prevent Them

Reverse the signal and ground leads first–this is the most frequent mistake. On Hall-effect devices, crossing these two causes erratic voltage spikes or a dead signal. Check the connector pinout against the manufacturer’s schematic before securing connections. A multimeter in diode mode will verify polarity; the output terminal typically reads 0.5–0.7 V when probed positive-to-negative.

Route harnesses away from high-current starter cables and ignition coils. Inductive coupling induces false pulses, making the ECU see phantom teeth. Maintain a minimum 10 cm separation and use twisted pair for the signal and return lines–3 twists per 25 mm reduces noise pickup by 70 % versus parallel runs.

Insulate every joint with heat-shrink tubing rated at least 600 V. Unprotected splices corrode within weeks, creating high-resistance paths that drop voltage below the digital threshold (usually 0.8 V). Crimp first with a ratcheting tool, solder only if vibration is extreme, then apply shrink that overlaps the insulation by 5 mm on each side.

Avoid daisy-chaining the power feed through multiple connectors. Each contact adds 20–50 mΩ; six junctions can lower system voltage below the 4.8 V minimum for most modules. Instead, tap the ignition-switched 12 V directly from the fuse block via a dedicated 18 AWG branch.

Secure the harness with adhesive-lined clips every 15 cm; vibrating loops fatigue copper strands in as little as 50 operating hours. Use sleeve made of cross-linked polyolefin over T intersections–standard spiral wrap fails at 90 °C, while XLPO maintains integrity up to 125 °C.

Common sensor-reference missteps:

• Hall devices need a 5 V reference; connecting to 12 V fries the IC.
• Variable reluctance units require a 2 kΩ pull-up resistor; omitting it leaves the signal floating at VDD/2.
• Inductive pickups generate negative-going pulses; flipping polarity confuses tooth-sync algorithms.

Test continuity with the engine off–unplug the module, probe between the signal pin on the harness side and chassis ground. A reading above 5 Ω indicates a false ground somewhere. Look for loose exhaust manifold bolts or rusted engine mounts that raise the reference potential.

Quick Verification Steps

1. Set scope to 5 V/division, 5 ms/division, AC coupling.
2. Crank engine; healthy Hall signal shows 5 V square wave with 50 % duty cycle.
3. Variable reluctance output should peak >2 V and return to zero between teeth.
4. If amplitude is
