How to Wire a 30 Amp 4-Prong Outlet Step-by-Step Guide

Start by identifying the four conductor slots in your heavy-duty receptacle: two live terminals (L1, L2), a neutral slot, and a ground connection. The 400-series configuration demands precise placement–L1 and L2 must carry the 240-volt split-phase current, while the neutral acts as a return path for 120-volt loads. Grounding is non-negotiable; attach it directly to the metal chassis or dedicated ground bus to prevent hazardous voltage leaks.

Use 10 AWG copper wire for the hot leads and neutral–this gauge safely handles the 30-unit load without overheating. For grounding, 8 AWG is ideal but 10 AWG is acceptable in most residential setups. Strip the insulation back exactly 0.625 inches–too little risks poor contact, too much exposes conductive material. Twist the strands tightly before inserting them into the terminal screws, then torque to 15–20 inch-pounds to avoid loose connections.

Verify polarity before energizing the circuit. A multimeter set to AC voltage should read 240V between L1 and L2, 120V between either hot lead and neutral, and 0V between ground and neutral. If readings deviate, double-check wire placement–crossing hot and neutral will damage equipment. Always de-energize the panel before handling wires; even a 30-unit circuit can deliver fatal current.

Label the breaker with its purpose (e.g., “Dryer Circuit”) and test under load. Appliances like ovens, welders, or RV hookups demand this setup–monitor for unusual heat or flickering lights, which signal incorrect wiring. If the device doesn’t power on, recheck connections rather than increasing wire gauge; improper routing is the culprit 90% of the time.

Connecting a 30-Amp 4-Pin Connector: Step-by-Step Configuration

Begin by verifying the voltage and phase requirements of your device–common configurations include 120/240V single-phase or 208V three-phase systems. For a 30-unit, four-contact setup, the terminal assignments are standardized but must match the equipment’s specifications exactly. Mistakes here risk overheating or equipment failure.

Use a UL-listed 10-gauge copper cable for the full 30-unit load; aluminum requires one size larger (8-gauge). Strip the outer jacket 6 inches, exposing the conductors without nicking the insulation. Twist the bare ends of stranded wires tightly to prevent fraying when inserting into terminals.

Terminal	Color Code	Function
X	Green/yellow stripe	Ground
Y	White	Neutral (if applicable)
L1	Black	Hot leg 1
L2	Red	Hot leg 2

Secure each conductor with a torque screwdriver set to 12–15 inch-pounds–over-tightening crushes strands, while under-tightening causes arcing. For three-phase applications, the white conductor is often repurposed as a third hot leg (blue), eliminating neutral. Confirm compatibility with your device’s manual before proceeding.

After securing the contacts, fold excess cable neatly into the housing, ensuring no exposed wires touch the casing. Slide the retaining clamp over the jacket, tightening until the cable is immobilized but not deformed. Use a continuity tester to verify no shorts between terminals before energizing.

For mobile installations (RVs, generators), include a surge protector rated for 30 units upstream of the connection block. This safeguards against voltage spikes that can damage sensitive electronics. Test ground integrity with a megohmmeter–readings below 1 megohm indicate potential corrosion or poor bonding.

Common pitfalls include reversed polarity (black/red swap) and loose terminals, both of which can trip breakers or melt insulation. Double-check phase rotation with a phase meter if motors spin backward or equipment fails to start. Replace any connector showing charring or pitted contacts immediately.

Label the cable with a permanent marker: “30@120/240V” or “30@208V 3Φ” to prevent future misapplication. Store spare connectors in a moisture-proof container to prevent oxidation–copper contacts develop resistance when exposed to humidity.

Tools and Materials Required for Installing a 30-Amp 4-Terminal Receptacle

Select a heavy-duty 30-ampere outlet box rated for outdoor use if mounting outside; choose a 4-inch square or single-gang weatherproof model with covers. Gather 10-gauge copper THHN/THWN-2 wire in three colors–black for hot (L1), red for hot (L2), white for neutral, and green or bare for ground–and verify the conductors are UL-listed for 75°C wet locations. Include a 30-amp two-pole, single-throw breaker compatible with your service panel, ensuring it matches the brand (e.g., Siemens QP, Square D Homeline).

• Strippers: Klein Katapult (10-18 AWG) or Ideal T-Stripper (self-adjusting jaws).
• Crimper: Ancor non-insulated butt splice crimper (blue die set) or Paladin Hex Crimp for ring terminals.
• Drivers: Klein No. 2 Phillips and 1/4-inch nut driver; Milwaukee Shockwave Impact Duty bits.
• Multimeter: Fluke 117 (CAT III 600V) or Klein MM700 (min. 600V AC/DC, CAT IV).
• Fish tape: Klein 65-foot steel fish tape with swivel end; avoid nylon–kinks in conduit.
• Bushings: Arlington FLBC1 (plastic) or Bridgeport ENT25 (metal) for 1/2-inch EMT/Liquid-Tite.
• Connectors: Ilsco PK-30 or Morris 97010 (aluminum/copper mechanical lugs, UL486B).
• Terminals: Ilsco R30-3N ring terminal (tin-plated, #10 stud).
• Conduit: 1/2-inch EMT or 3/4-inch Liquid-Tite (flex) for 10-gauge; schedule 40 PVC if burial depth ≥18 inches.
• Fasteners: Hillman #12-14 x 1-1/4-inch SST wafer head lags (wood studs); Tapcon 3/16 x 1-3/4-inch (masonry).

Step-by-Step Guide to Identifying the Wires in a 30-Unit 4-Conductor Connector

Begin by examining the cable’s insulation colors–these follow a standardized pattern in North American electrical codes. The green or bare copper wire is always the grounding conductor, critical for safety. Next, locate the white wire, which serves as the neutral return path. The remaining two conductors will typically be black and red, carrying 120 volts each in a split-phase system, combining to deliver 240 volts. Verify these colors match the terminal markings on the device or outlet, as incorrect connections risk equipment damage or fire hazards.

Use a multimeter to confirm wire functions before handling. Set it to measure AC voltage and test between the black and white conductors–this should read 120V. Repeat the test between red and white, ensuring another 120V reading. Finally, check black to red; this pair must show 240V to confirm proper configuration. If readings deviate, inspect the upstream breaker or panel for miswiring. Never assume wiring based on color alone–meter verification prevents costly errors.

Terminal Labeling and Secure Attachment

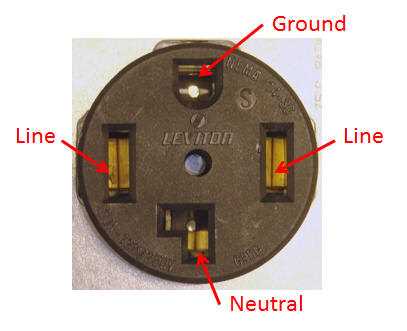

Identify the connector’s terminal screws, often labeled X, Y, W, and G (or L1, L2, N, G). The G (Ground) terminal connects to the green/bare wire, while W (Neutral) accepts the white wire. Attach the black wire to X (L1) and the red to Y (L2). Ensure strands are tightly twisted and inserted fully into terminal clamps, then torque screws to the manufacturer’s specified inch-pounds–typically 10-15 lb-in for this setup. Loose connections create resistance, risking overheating.

After securing wires, wrap each terminal with high-quality electrical tape to prevent accidental contact or shorting. Avoid using generic tape; opt for ASTM-rated vinyl or rubber splicing tape with a minimum 600V rating. Wrap with 50% overlap, extending ¼ inch beyond the terminal edges to seal exposed copper. Recheck torque values once more–vibration or thermal cycling can loosen connections over time. For outdoor or high-moisture installations, apply dielectric grease to terminals before final assembly to inhibit corrosion.

Before energizing, perform a final continuity test with the multimeter in resistance mode. Probe between the connector’s ground pin and each hot terminal (black/red) while the device is unplugged–these should show infinite ohms. Test between neutral (white) and ground; this must read near-zero ohms, confirming a solid ground path. If any deviation appears, re-examine connections for crossed wires or stray strands. Only proceed once all tests pass, ensuring compliance with NEC Article 551 (for recreational vehicles) or Article 427 (for industrial equipment).

How to Strip and Prepare Conductors for a 30 Unit 4-Terminal Connector

Select a cutting implement with precision markings for 10-12 AWG conductors. Adjust the blade to expose approximately 0.75 inches (19 mm) of copper core–excess length risks loose strands, while insufficient stripping causes poor contact. For stranded cores, twist the exposed strands clockwise in one smooth motion to prevent fraying.

Use a calibrated wire gauge tool to verify conductor thickness matches the terminal’s specifications. For 30 unit circuits, 10 AWG copper is standard; deviations require derating. Inspect the stripped section under direct light–nicks or cuts deeper than 10% of the conductor’s diameter weaken structural integrity and necessitate trimming.

Conditioning the Conductor Surface

Remove oxidation from stripped copper using a fine abrasive pad or dedicated wire brush. Rub in linear strokes parallel to the conductor’s axis to avoid cross-contamination from insulation fragments. For tinned conductors, ensure the abrasive action preserves the tin layer–it prevents future corrosion at connection points.

After cleaning, apply a thin coat of antioxidant compound to the exposed copper if the connector will experience prolonged exposure to moisture or temperature fluctuations above 50°C. Avoid excessive application; a film no thicker than 0.1 mm ensures conductivity remains optimal while protecting against tarnish.

Securing Loose Strands

For stranded conductors, secure loose strands with a crimp sleeve before insertion. Position the sleeve so its midpoint aligns with the insulation edge, then compress using a ratcheting crimper calibrated for 10 AWG. Verify the crimp’s integrity by tugging with 10 lbs of force–any slippage indicates improper compression and requires rework.

Alternatively, solder the strand ends if crimp sleeves are unavailable. Heat the conductor evenly with a temperature-controlled iron (350°C) and apply solder sparingly–excess solder creates brittle joints. Allow the joint to cool undisturbed for 60 seconds before handling to prevent micro-fractures.
