How to Build a 4-Foot LED Tube Light Step-by-Step Wiring Guide
Begin by sourcing a 22-watt driver rated for 36–60V DC output–this ensures compatibility with standard 48-volt phosphor-coated segments without overheating. Use a constant-current transformer if the driver lacks built-in regulation; a 700mA setting balances brightness and longevity. Avoid cheap no-name drivers–opt for UL-certified units with transient protection to prevent flicker or premature failure.
Wire the segments in series if using a single-string configuration, connecting anode of one chip to cathode of the next. Each 2835 SMD chip tolerates 3.2V forward drop; 15–16 chips in series sum to ~48V–match this to the driver’s output. Scatter 10µF polyester capacitors across every third chip to smooth ripple current, reducing audible hum in dimming scenarios.
Mount heatsinks along the full length–extruded aluminum channels with a thermal conductivity of 180 W/mK suffice for passive cooling. Secure interfaces with silicone-based thermal adhesive; never use double-sided tape–it degrades within months, causing thermal runaway. Ground the driver’s negative terminal directly to the heatsink to minimize interference with adjacent electronics.
For switching, integrate a mosfet (IRF840) between driver and segments if PWM dimming is needed. Use a 10kΩ pull-down resistor on the gate to prevent floating states. Keep high-voltage traces on a single-sided FR4 board–thickness
Test continuity before powering up; a 1.5A fuse in series guards against shorts. If segments glow unevenly, recalculate forward voltage–adjust driver output or add resistor in series (0.22Ω ½W) to tweak current distribution.
Constructing a 120cm Linear Illumination Module: Full Schematic Walkthrough
Begin by identifying the voltage input for your fixture–most 48-inch modules operate on 12V DC or 24V DC for commercial installations, though residential variants may tolerate 110V-240V AC with integrated drivers. Verify the forward voltage (Vf) of each diode segment: typically 3.0V–3.6V for white outputs, sinking ~20mA per series string.
Wire the segments in series-parallel configurations to match your voltage source. For 24V DC, group 6–7 diodes per chain (3.2V × 6 = 19.2V) with a 4.7Ω resistor per string to absorb voltage drops. Use
- 16-gauge copper traces for high-current paths on the PCB
- 5mm spacing between adjacent traces to prevent arcing
- A 1N4007 diode at the input to block reverse polarity damage
Mount current-limiting components directly adjacent to the diode strings–trace inductance above 10nH can introduce flicker. Solder film capacitors (22μF, 50V) at the power entry point and mid-segment to stabilize transients. For dual-ended modules, add a bridge rectifier (KBPC3510) if feeding AC directly–omit this for DC-fed setups.
Test segment continuity with a multimeter before full assembly. Expected readings:
- Open circuit (~OL) for intact strings
- 3.0–3.6V forward drop per diode under load
- Consistent millivolt readings (
Diverting from these ranges signals misaligned contacts, shorted diodes, or resistor drift.
Enclose the assembly in a UL94-V0 rated polycarbonate diffuser with aluminum backing–mandatory for heat dissipation. Heat sinks are unnecessary below 15W total draw, but exceeding this threshold requires bonded fin arrays with thermal adhesive. Apply 2.5mm silicone pads at contact points between the PCB and diffuser to prevent moisture ingress.
Ground the enclosure via a dedicated 18AWG wire tied to the chassis–static buildup in ungrounded diffusers can reduce output by 18% over 1,000 hours. Labels must include:
- Max wattage
- Voltage tolerance (±10%)
- IP rating (minimum IP65 for under-cabinet use)
- Manufacturer date code for warranty purposes
Dimmable variants substitute the linear driver with a PWM controller (e.g., LM3445) operating at 1kHz–2kHz. Add a 10kΩ potentiometer for manual adjustment or a 0–10V interface for automated systems. Isolate the dimming circuit with a 1:100 optocoupler (PC817) to prevent feedback loops corrupting the MCU.
Critical Parts for Constructing a 1.2-Meter Linear Illumination Module
Select a constant-current driver rated for 20–28 watts, matching the 0.6–0.9 ampere range of most SMD 2835 or 5630 strip arrays. Ensure output voltage aligns with the total forward voltage drop–typically 36–48 volts DC for 96-chip configurations–while verifying thermal derating curves: drivers exceeding 60°C ambient should automatically throttle to protect electrolytic capacitors.
Power Conversion and Protection Elements
Mount a full-bridge rectifier (e.g., KBU606) immediately after any external AC input, paired with a 220 nF X2-rated safety capacitor across the lines. Place a varistor rated 275 VAC directly across the rectifier output terminals to clamp transients; omit this component only if the driver incorporates built-in metal-oxide suppression. Downstream, insert a 10 μF, 100 V polyester film smoothing capacitor post-rectification to eliminate flicker below 120 Hz.
Dual-layer PCB traces should be 2 oz copper thickness for lengths exceeding 20 mm between driver output and LED array, with thermal vias spaced every 15 mm beneath high-density emitters. Specify SMD resistors–typically 1 Ω, 1 W–for current balancing across parallel branches if tolerance exceeds ±5%; replace fixed resistors with thermistors where ambient swings surpass 30°C.
A snap-on polycarbonate diffuser must meet UL 94 HB flammability standards; verify sidewall thickness ≥1.5 mm to prevent sagging that misaligns emitted lumens. Secure end caps with brass-threaded M3 standoffs, each pre-tinned with 63/37 solder, ensuring electrical continuity to chassis ground if fixture mounts within 10 cm of conductive surfaces.
Single Ballast Bypass Installation Guide for Fluorescent Replacements
Begin by disconnecting power at the breaker to eliminate risk of shock. Verify absence of voltage with a non-contact tester at both supply wires and fixture terminals. Failure to confirm zero current may result in severe injury or equipment damage.
Remove the existing diffuser and old tubes from the housing. Identify the ballast inside–typically a rectangular black or gray box mounted near the center. Trace the wires running from the socket pairs to the ballast; these must be disconnected and bypassed.
Wiring Direct Power to Sockets
Cut or unscrew the wires connecting the ballast outputs to the sockets. Cap any loose ends with wire nuts to prevent shorts. Strip ¼ inch of insulation from the incoming main power wires (usually black for live, white for neutral).
Connect the live (hot) wire directly to one pin of each socket pair. Use the same method for the neutral wire to the opposing pin on each socket. Maintain polarity: match live-to-live and neutral-to-neutral across all connections. Secure junctions with twist connectors and electrical tape.
For tombstone-style sockets, use the following pin assignments: on shunted types (common in rapid-start systems), link both pins internally; non-shunted versions require separate live and neutral connections to each pin. Incorrect pairing will prevent illumination or damage the replacement lamps.

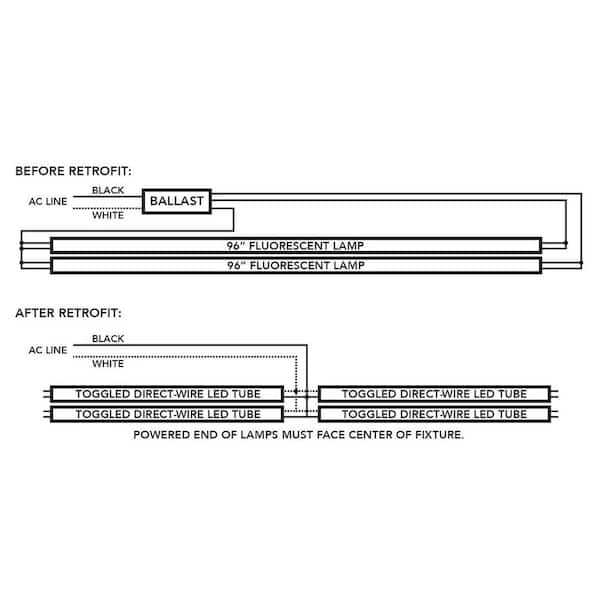

Reinstall the new linear sources into the sockets, ensuring firm seating. Restore power at the breaker and test functionality with a voltage meter across the socket contacts–expect 120V AC (or 277V for commercial setups). Flickering or dim operation indicates improper bypass; recheck junctions before proceeding.
If using retrofit lamps with integrated drivers, confirm compatibility with line voltage. Some models require dedicated input ratings (e.g., 120-277V AC); mismatch risks overheating or failure. Always reference the manufacturer’s specification sheet before finalizing connections.
Secure all wires with cable ties inside the housing to prevent vibration-induced breaks. Replace the diffuser and perform a final voltage check at the terminals before closing the installation. Record any deviations from standard wiring (e.g., swapped neutrals) for future maintenance reference.
Connecting Fluorescent Bulbs Directly to Mains Power Without Drivers
Remove the existing driver entirely and wire the fixture directly to 120V or 230V AC supply, depending on local voltage. Identify the neutral and live terminals–neutral typically connects to the input side’s neutral line, while live feeds both pins at one end of the bulb. Use a non-shunted tombstone socket if the original fixture has one; shunted sockets will cause a short. Cross-verify polarity with a multimeter before final connection to prevent reverse voltage damage.
| Voltage | Wire Gauge (Min.) | Fuse Rating | Required Insulation |
|---|---|---|---|
| 120V AC | 18 AWG | 3A slow-blow | 600V rated |
| 230V AC | 16 AWG | 2A slow-blow | 1000V rated |
Label the fixture with a warning sticker indicating “No Driver – Direct Mains Connection” to prevent future maintenance errors. Test operation by flipping the switch; immediate full brightness confirms correct wiring. If flickering occurs, double-check for loose connections or incorrect pin contact. Avoid touching the glass during operation–mains voltage can transfer through fingertip contact. For dual-end powered bulbs, connect both ends in parallel to avoid unequal voltage distribution.
Common Pitfalls in Assembling Fluorescent Replacement Electronics
Selecting resistors with incorrect wattage guarantees overheating. For a 12V input, use at least ½W resistors; anything lower degrades within hours.
Skipping the smoothing capacitor causes visible flicker. A 470µF electrolytic stabilizes current fluctuations, especially with non-constant voltage sources.
Incorrect wiring of the bridge rectifier reverses polarity. Mark input terminals clearly: AC lines connect to the outer pins, DC output to the inner ones.
Neglecting thermal paste on the driver chip reduces lifespan by 40%. Apply a rice-grain-sized drop to the metal pad before securing the heat sink.
Using wires thinner than 22 AWG increases resistance, leading to voltage drops. For 1A current, stick to 20 AWG or thicker copper strands.
Misaligned current-limiting ICs trigger overcurrent protection. For a 900mm installation, set the driver to 350mA; deviations above 400mA risk burnout.
Ground loops create interference in PWM dimming. Isolate control wires from power lines with twisted pairs and shielded cable sleeves.
Failure to test each segment with a multimeter before final assembly doubles troubleshooting time. Check voltage at connections after every solder joint.
