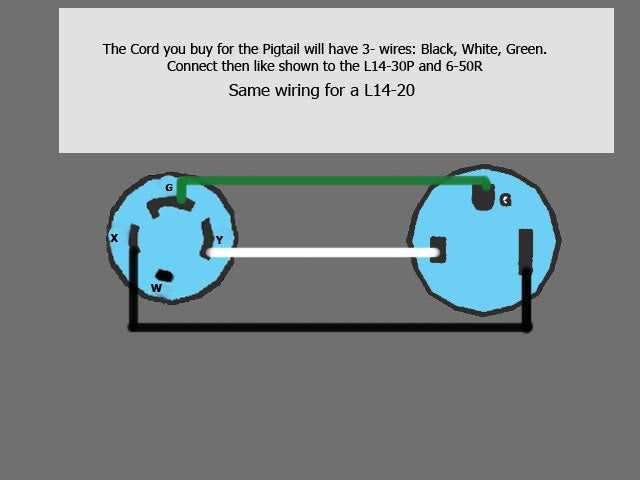

How to Wire a 4-Prong 240V Plug Step-by-Step Guide
For appliances requiring a 30-amp or 50-amp high-voltage connection, the NEMA 14-30 or NEMA 14-50 configuration is the standard in residential and workshop setups. Start by verifying the circuit breaker rating–it must match the amperage of the outlet (30A for NEMA 14-30, 50A for NEMA 14-50). Misalignment risks overheating or tripping the breaker.
Safety first: Before handling any electrical work, shut off power at the main panel. Use a non-contact voltage tester to confirm the circuit is dead. Improper handling can cause severe injury or fire hazards. For installations in metal junction boxes, ensure the ground wire is firmly secured to the box itself–this step is often overlooked but critical for preventing stray currents.
The four conductors in the cable serve distinct roles: two hot wires (L1 and L2), a neutral, and a ground. Strip each wire carefully–excess exposed copper can lead to short circuits. Connect the hot wires to the brass screws on the outlet (typically labeled X and Y), the neutral to the silver screw, and the ground to the green screw. For NEMA 14-50, the neutral may be omitted if the appliance doesn’t require it, but never skip the ground.
After securing the connections, double-check polarity with a multimeter. The voltage between L1 and L2 should read ~240V, while L1/neutral and L2/neutral should each show ~120V. If readings deviate, revisit the wiring–reversed or loose connections are common culprits. Once verified, mount the outlet into the junction box, restore power, and test with a load (e.g., an electric dryer or EV charger).
For older homes with outdated wiring, avoid mixing wire gauges. A 30-amp circuit requires 10 AWG copper, while 50-amp needs 6 AWG. Aluminum wiring, if present, demands specialized connectors (CO/ALR-rated) to prevent oxidation. When in doubt, consult the appliance manual–some high-power devices mandate dedicated circuits without shared loads.
Connecting a Four-Pin Power Connector: Step-by-Step Guide
Identify the terminal assignments before making any connections. In a standard NEMA 14-50 outlet, the upper horizontal terminals (X and Y) carry the 120V legs, while the U-shaped grounding post sits below. The vertical post opposite the ground is neutral. Verify these positions with a multimeter–each live leg should read 240V against ground and 120V against neutral. Label wires with tape to prevent misplacement during installation.
- Secure the green or bare conductor to the grounding terminal first–this prevents accidental shock.
- Attach the white neutral wire to its dedicated post; torque to 15 in-lbs minimum.
- Connect red and black conductors to the live terminals; order doesn’t matter but maintain consistency for future troubleshooting.
Testing and Safety Protocols
After securing all conductors, use a non-contact voltage tester to confirm no exposed metal carries current. Energize the circuit and measure:
- 240V between the live terminals.
- 120V from each live terminal to neutral and ground.
- 0V from neutral to ground.
Enclose the outlet in a weatherproof box if outdoor use is intended–check IP65 rating for wet locations.
Identifying the Correct Conductors for a Four-Pin 220V Outlet
Begin by confirming the terminal layout on the appliance’s power inlet. Most four-terminal connectors follow a standardized color scheme: red and black (hot legs), white (neutral), and green or bare (ground). The red and black wires should measure 110V to ground each and 220V between them when tested with a multimeter. If colors deviate–common in older installations–label the wires based on voltage readings before disconnection to prevent miswiring. Note that some industrial equipment may use blue for neutral and brown/black for hot legs, but consistency within the circuit is critical.
Verify the cable’s gauge matches the device’s amperage rating–typically 10 AWG for 30A and 6 AWG for 50A circuits. Thinner wires risk overheating, while thicker ones may not seat properly in terminal screws. For split-phase systems, the neutral conductor (white) carries imbalance current but should never be used as a substitute for ground. If the outlet lacks a neutral slot (e.g., three-terminal configurations), cap the neutral wire with a wire nut and confirm the device operates without it–some motors or pumps only require two hot legs and ground.
Handling Non-Standard Configurations
In rare cases, terminals may be unmarked or colors swapped. Use a continuity tester to trace wires from the outlet to the breaker panel: red and black wires should connect to separate double-pole breakers, white to the neutral bus bar, and green/bare to the ground bus. If rewiring an existing setup, photograph connections before disconnecting. For twist-lock outlets (e.g., NEMA L14-30), note that terminal screws may rotate clockwise–aluminum wires require anti-oxidant compound. Avoid backstab terminals; loop wires around screws for reliable contact.
Step-by-Step Guide to Stripping and Preparing Conductors for Termination
Use calibrated wire strippers matched to the conductor’s gauge–refer to the chart below for precise settings. Position the jaws perpendicular to the insulation, ensuring no nicking of the metal strands. Apply steady pressure: too little leaves insulation; too much severs strands, reducing current capacity. For 10 AWG copper, set the stripper to 0.35″ (8.9 mm); for 6 AWG, 0.5″ (12.7 mm). Twist multi-strand cores clockwise three rotations to compact filaments before termination.
| Conductor Size (AWG) | Strip Length (Inches) | Strip Length (Millimeters) | Strand Diameter (mm) |
|---|---|---|---|
| 14 | 0.28 | 7.1 | 0.16 |
| 12 | 0.32 | 8.1 | 0.21 |
| 10 | 0.35 | 8.9 | 0.26 |
| 8 | 0.40 | 10.2 | 0.32 |
| 6 | 0.50 | 12.7 | 0.41 |
Inspect stripped ends under a magnifying lens or macro camera. Any frayed strands must be trimmed with flush-cutting nippers–leave no protrusion beyond the insulation boundary. Oxidation on copper can be removed using 220-grit emery cloth wrapped around a dowel; aluminum conductors require a specialized oxide inhibitor paste applied within five minutes of stripping to prevent re-oxidation. Never use steel wool–residual particles will cause hotspots.
Termination-Specific Preparation
For screw-terminal connections, bend the stripped end into a U-shape around the screw’s direction of travel. The loop diameter should match the screw’s shank to minimize air gaps–use needle-nose pliers for precision. For crimp terminals, select a barrel appropriate to the conductor size: red for 18-16 AWG, blue for 14-12 AWG, yellow for 10 AWG. Insert the stripped end fully into the terminal until insulation butts against the ferrule; crimp with a ratcheting tool at the nearest colored mark.
When preparing pigtails for splicing, pre-tin the ends with 60/40 rosin-core solder using a temperature-controlled iron set to 375°C (707°F). Apply solder sparingly–excess solder creates brittle joints prone to fracture. Verify continuity with a multimeter after cooling; resistance should not exceed 0.1 ohms. If bundling multiple conductors, stagger splice points by at least 6 inches to prevent thermal buildup and simplify troubleshooting.
How to Connect Conductors to Terminal Screws in a Heavy-Duty Appliance Connector
Attach the green or bare copper wire strictly to the grounding terminal–this is non-negotiable. The terminal is typically marked with a grounding symbol (⏚) or labeled “G,” “GR,” or “Ground.” Ensure the screw is tightened to at least 12 in-lbs of torque to prevent loosening under vibration or thermal cycling. Failure to secure this connection properly can lead to shock hazards or equipment malfunction.
Live Conductor Assignments Follow Regional Standards
In North American configurations (NEMA 6-15, 6-20, 10-30, or 14-30), pair black to the brass-colored terminal marked “X” or “L1” and red to the silver-colored terminal marked “Y” or “L2.” For split-phase setups, these two hot leads carry 120V each relative to neutral but 240V between them. In European-style connectors (IEC 60309), brown connects to L1, black to L2, and blue to neutral if present. Double-check the appliance’s data plate for voltage requirements–mismatches will damage motors or heaters.
For four-wire configurations (neutral included), the white or gray conductor attaches to the terminal marked “W,” “N,” or colored light blue. Strip no more than 5/8 inch of insulation–excessive length risks shorting against adjacent terminals. Twist stranded wire strands clockwise before inserting under the screw to prevent fraying. Use crimp ferrules on finer gauges (14-12 AWG) to improve contact reliability.
Avoid Common Pitfalls During Assembly
Verify polarity with a multimeter before energizing: between hot terminals, expect 208-250V AC; between any hot and neutral, 120V AC; between hot and ground, 120-250V AC; neutral to ground should read 0V. If values deviate, recheck connections–reversed phases will cause erratic operation or damage capacitors in compressors and variable-speed drives. Never substitute terminal screws with smaller hardware–original screws are rated for torque and thread engagement.
After tightening, tug each conductor to confirm mechanical integrity. Apply a thin layer of anti-oxidant compound to aluminum wires to prevent corrosion. Secure the cable clamp to prevent strain on terminals–the clamp should compress the outer jacket, not the insulation. Label the cable at both ends for future maintenance, noting function (e.g., “Feed to Subpanel”) and date of installation.
