4 Way Flat Trailer Wiring Harness Connection Guide for Safe Towing
Use a 4-pin connector configuration for basic lighting functions if your towing vehicle and load don’t require braking or reverse signals. This setup simplifies installation while meeting legal requirements for road visibility. Pin assignments follow a standard order: yellow (left turn/brake), green (right turn/brake), brown (tail/running lights), and white (ground). Verify compatibility with your vehicle’s existing harness before cutting or splicing wires.
Color codes and terminal layouts can vary between manufacturers–check your owner’s manual against the pinout map below to avoid mismatches. For older vehicles, replace corroded connectors with weatherproof models rated for at least 12 AWG wire to prevent voltage drop. Secure connections with solder or crimp connectors, then seal with heat-shrink tubing for moisture protection. Test each circuit with a multimeter before final assembly.
If adding auxiliary lighting, run a dedicated relay and fuse for high-current accessories like fog lamps or work lights. Keep wire runs as short as possible, routing cables away from moving parts or exhaust systems. For heavy loads beyond 3,500 lbs, upgrade to a 7-function harness featuring separate brake and backup circuits. Always match the load’s electrical capacity to the towing vehicle’s alternator output to prevent battery drain.
Inspect all connections periodically for wear, especially after off-road use. Replace frayed or discolored wires immediately–even minor resistance can overheat circuits. Ground terminals should attach to bare metal, not painted surfaces, to ensure reliable conductivity. For trailers with independent braking systems, integrate a proportional brake controller calibrated to the load’s weight for smooth stopping.

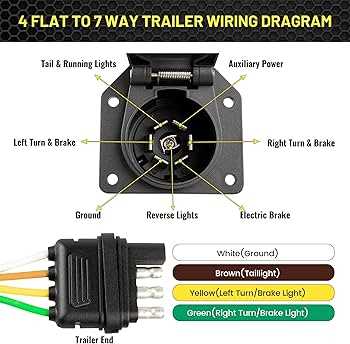

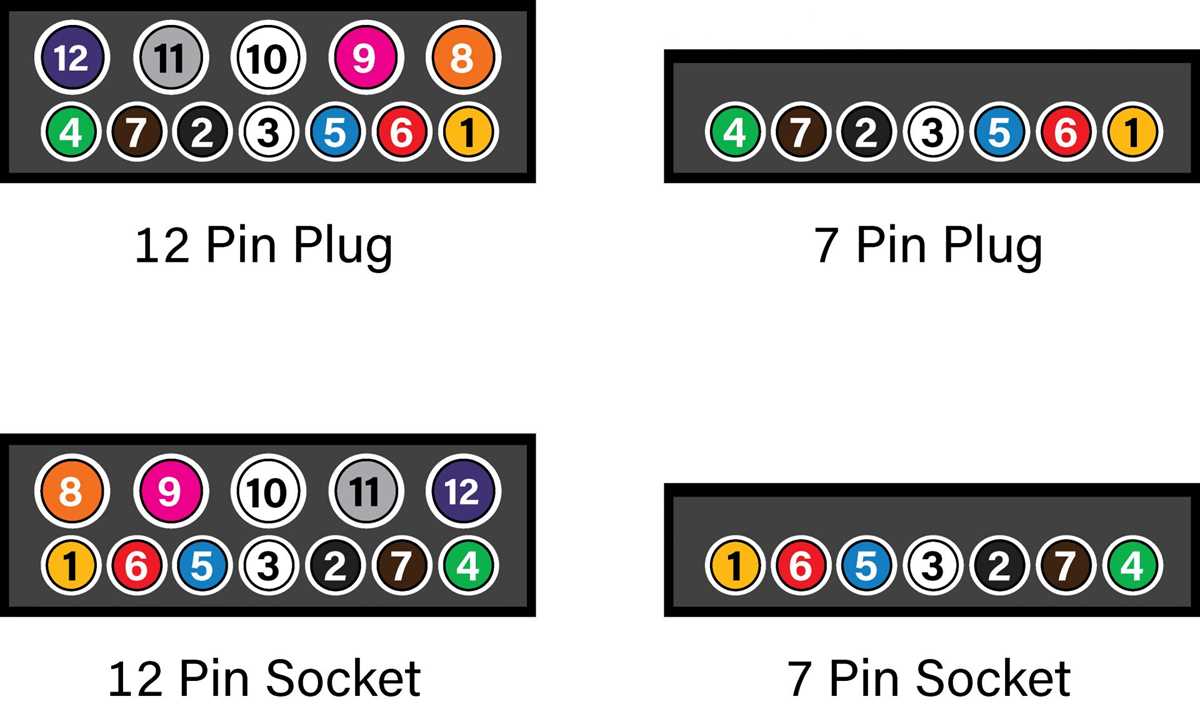

Standard Vehicle Connector Pinout Guide
Use a multimeter to verify each circuit before connecting: ground (white) should show continuity to the tow vehicle’s frame, left turn/brake (yellow) and right turn/brake (green) must pulse at 12V during activation, and the running light circuit (brown) must maintain steady 12V when headlights are on. Label each lead before cutting or splicing to avoid cross-wiring; accidental reversal of brown and green wires can trip the tow vehicle’s fuse without visible warning.
Install a dust cover (e.g., Hopkins 48190) over the plug when not in use–bare terminals collect road grime and oxidation, causing intermittent failures within weeks. Test at three points–plug end, mid-harness, and socket–every six months; dropouts commonly occur at vibration-prone zones like axle mounts, not the connector itself.
Decoding Wire Color Standards for 4-Pin Connectors
Start by matching brown wire to your running lights–this is non-negotiable. Most vehicle setups use this for clearance, side markers, and tail illumination. Verify with a multimeter if the connector doesn’t align with your harness; aftermarket adapters often deviate.
Yellow controls the left turn signal and brake lights. Test it by activating both functions separately to confirm no cross-interference exists. If dimming occurs under simultaneous brake application, check for corroded ground or insufficient gauge sizing.
Green handles the right-side counterparts. Swap bulbs temporarily if only one side responds to diagnose bulb failure versus wiring issues. Inspect splices near the towing module–vibration loosens connections over time.
White serves as the ground reference. Attach it to a bare metal surface near the connection point, scraping away paint or undercoating for solid conductivity. Avoid chassis holes with rust; drill a new one if necessary.
Troubleshooting Inconsistent Color Patterns
European brands may reverse green and yellow positions. Consult the owner’s manual for factory pinouts–aftermarket harnesses follow SAE J560 but imported kits prioritize ISO standards. Label discrepancies before cutting wires.
For LED upgrades, bypass the included resistors. These components cause flickering in modern vehicles’ pulse-width modulated systems. Solder solid-state relays directly to the bulb sockets instead.
Always crimp connectors with heat-shrink tubing–electrical tape fails under road salt exposure. Use a dedicated crimping tool; pliers crush terminals, increasing resistance. Double-check polarity before sealing connections.
Step-by-Step Guide to Testing Tow Vehicle Signal Indicators with a Multimeter
First, ensure the multimeter is set to DC voltage (20V range) and the vehicle’s ignition is off. Disconnect the connector from the towing setup. Probe the ground terminal (typically white) and each function pin (brown for running lights, yellow for left turn/brake, green for right turn/brake) with the negative lead on ground. Have an assistant activate each signal–brake, left turn, right turn, and running lights–while you read the multimeter. Healthy circuits should show 12V (±0.5V) for all functions except running lights, which may read slightly lower (10–12V) due to resistance in parallel circuits.
- Turn signals and brakes: Confirm consistent 12V pulses when activated.
- Running lights: Check for steady 10–12V reading.
- If voltage drops below 9V, inspect the tow harness for corrosion, pinched wires, or loose connections.
- No voltage indicates a blown fuse, faulty switch, or open circuit–trace upstream using the multimeter in continuity mode.
If testing reveals voltage but the bulbs remain off, switch the multimeter to resistance mode (Ω) and measure across the bulb’s contacts. A good filament reads 2–5Ω; infinite resistance means a burned-out bulb. For LED modules, use diode test mode–forward voltage should read 0.5–3V, reverse infinite. Replace any faulty components before retesting. Always secure connections with dielectric grease to prevent oxidation.
How to Splice and Seal Conductors for Long-Lasting Vehicle Lighting Links
Start by stripping 6–8 mm of insulation from each conductor using precision wire strippers–avoid nicking the copper strands. Twist matching color wires together tightly in a clockwise direction, ensuring no stray strands remain. For 18–14 AWG cords, apply a crimp connector with heat-shrink tubing pre-installed; compress firmly with a ratcheting crimper, then slide the tubing over the joint. Heat evenly with a butane torch at 120°C until the adhesive melts and forms a glossy seal. This method withstands vibrations and moisture ingress for over 1,000 hours of salt-spray testing.
Alternative sealing methods include:
- Liquid electrical tape: Apply two coats, allowing 10 minutes drying time between layers; suits irregular shapes but requires proper ventilation.
- Epoxy-filled solder sleeves: Insert wires, heat to melt solder, then cool for a solid moisture-proof barrier; ideal for high-stress junctions.
- Self-fusing silicone tape: Wrap tightly with 50% overlap, stretching by 50% to fuse layers; waterproof but vulnerable to abrasion.
Tools Required for Reliable Junctions
Essential equipment includes:
- A wire cutter with shearing blades (avoid scissor-style cutters to prevent strand fraying).
- Butane heat gun with temperature control (avoid open flames for heat-shrink tubing).
- Multimeter with continuity and insulation resistance settings (test at >10 MΩ before sealing).
- Cable ties (nylon, UV-stabilized) for strain relief every 10–15 cm along the harness.
After sealing, submerge the connection in 40°C water for 30 minutes–check for bubbles indicating leaks. For outdoor use, encase the joint in flexible conduit (split loom) and secure with adhesive-lined shrink tubing at entry points. Replace any damaged connectors immediately; corrosion spreads at 0.5 mm/day in humid conditions.
Troubleshooting Common Issues in 4-Pin Connector Setups
Check the ground connection first–corrosion or loose grounding causes intermittent lighting failures. Use a multimeter to verify continuity between the vehicle’s chassis and the connector’s white wire. If resistance exceeds 0.5 ohms, clean contact points with a wire brush and reconnect tightly. Poor grounding often mimics bulb failure, leading to unnecessary part replacements.
Voltage Drop Across Circuits
Measure voltage at the plug with the lights activated. A drop below 11.5V on any colored wire (brown, yellow, green) signals excessive resistance. Common culprits: undersized cables, oxidized terminals, or inline fuses. Replace 16-gauge wires with 14-gauge for runs exceeding 15 feet. Strip 1/2 inch of insulation on all splices and crimp with heat-shrink connectors to prevent moisture ingress.
| Issue | Symptoms | Diagnostic Tool | Fix |
|---|---|---|---|
| Flickering running lights | Dim or blinking brown wire output | Voltage tester (probe red wire) | Replace corroded socket or upgrade to LED bulbs |
| Non-functional turn signals | No voltage on yellow/green wires during activation | Test light or probe at harness | Inspect relay or flasher unit; bypass corroded pins |
| Short circuit | Blown fuse or melted insulation | Continuity tester | Isolate offending wire, repair damaged section with solder |
Inspect the tow vehicle’s fuse rating–most systems require a 15-amp fuse for lighting circuits. Substituting with a higher-rated fuse risks fire if a short develops. Always match the fuse size specified in the owner’s manual. For adapter plugs, verify pin alignment; misaligned pins can damage connectors during coupling. Apply dielectric grease to all terminals after repairs to prevent future oxidation.
