Complete Guide to Wiring 4 Way Switches with Step-by-Step Diagrams
Use a 4-terminal control setup when you need to operate a single load–such as a ceiling light–from three or more separate locations. Each toggle between the first and last control points must be a crossover unit (often called a 4-way), while the endpoints require standard 3-terminal controls (3-position). This structure eliminates confusion in polarity and maintains consistent current flow regardless of which toggle is flipped.
Start by identifying the feed line (typically the black wire) and connect it to the common terminal (usually marked or darker) of the first 3-position control. Run a 3-conductor cable (plus ground) from this first control to the first crossover unit, then continue with another 3-conductor cable to each subsequent crossover before reaching the final 3-position control. The final common terminal connects to the load. Use red and black conductors for travelers between all controls, keeping white neutral continuous and capped in unused junction boxes.
Label every traveler wire before disconnecting existing connections. Test each segment with a multimeter set to continuity mode–travelers between two crossovers should show zero ohms when toggled correctly. If readings fluctuate, inspect screw tightness (torque to 12–15 lb-in) and verify no loose strands bridge terminals. Neutral wires must remain isolated from switches; only connect them directly to the load or upstream power source.
Use 12 AWG copper wire for 20-amp circuits and 14 AWG for 15-amp; never mix gauges in the same run. Secure all cables with strain relief clamps within 12 inches of boxes and maintain minimum conductor length (6 inches inside boxes per NEC 314.16). Ground all metal components, including switch plates, with a dedicated bare or green wire pigtailed to each device.
Verify circuit polarity before energizing: line voltage should feed only the first control’s common terminal, and load voltage should appear only on the final common terminal. Any voltage on traveler wires during operation indicates a miswired crossover. Restore power only after confirming all caps are secure and no bare conductors are exposed.
Mastering Multi-Location Control Circuit Layouts
Install a neutral conductor at every junction between mechanisms to comply with NEC 2023 Section 300.15, even if the existing configuration omits it–future-proofing outweighs minimal upfront savings. Strip 8 mm of insulation from each terminal connection to prevent arcing; verify torque with a calibrated screwdriver matching the manufacturer’s specifications (±0.2 Nm). Route traveler cables through conduit with a minimum 12 mm internal diameter to reduce voltage drop across 20+ meter runs.
Map terminal assignments in advance: common screws (brass) carry current from the source or load, while silver screws toggle between travelers. Label each cable with heat-resistant sleeves–color-coding travelers red and black eliminates guesswork during troubleshooting. For dual-voltage fixtures, splice the neutral wire to the white conductor inside the first gang box, ensuring continuity to the final device without intermediate splices to avoid overloading.
Use 12 AWG copper for circuits exceeding 10 A; aluminum requires antioxidant paste at every joint per UL 486A-B. Test polarity before energizing–attach a multimeter to the travelers and verify 0 V difference when toggling between positions, confirming proper continuity. Replace aged toggle levers exceeding 20,000 cycles; manufacturer-rated specifications (e.g., Lutron MA-PRO) indicate sustained performance under inductive loads.
Isolate the circuit breaker before modifications–double-check with a non-contact tester penetrating the sheath. Secure bypass loops with strain-relief clamps (NEMA 4X) if ceiling mounts introduce mechanical stress. For dimmable setups, pair compatible modules (e.g., Eaton DH121 compared to Leviton IPHS5) to prevent flicker at low intensities.
Essential Gear for Multi-Point Electrical Control Setup
Begin with a voltage tester rated for 120–277 volts AC–the non-contact type eliminates direct conductor exposure risks. Verify the tool’s CAT III or IV safety rating for residential panels. Insulated screwdrivers with 4mm and 6mm shafts prevent accidental shorts; magnetic tips secure loose screws during installation. Wire strippers calibrated for 14–12 AWG solid copper conductors ensure clean cuts without nicking filaments.
Circuit-Specific Components
Terminal connectors with screw-type fasteners outperform push-in types for high-vibration areas. Choose brass over aluminum for 15–20 amp circuits to resist oxidation. Three-way and intermediate control mechanisms require compatible traveler cables–match the conductor count to the circuit’s phase configuration. Ground pigtails must be at least 6 inches long for proper bonding to metal boxes.
Clamp meters measure current draw during load testing; select models with a minimum 200-amp range. Cable clamps sized for 14/2 or 12/3 NM-B must grip sheathing firmly to prevent slippage. Junction enclosures–minimum 4×4 inches–must accommodate additional connections without overcrowding. Plastic boxes require internal grounding clips; metal variants need direct conduit bonding.
Precision and Safety Add-Ons
Fish tape made of tempered steel withstands sharp conduit edges; lubricant reduces friction in long pulls. Circuit finders with dedicated faceplate sensors locate live circuits behind drywall. Heat-shrink tubing (1/4-inch diameter, polyolefin) seals splices exposed to moisture. Arc-fault interrupters replace standard breakers in areas with motor-driven appliances.
Locking pliers hold backstab connections steady during torque application. Insulated gloves rated for 600 volts protect when handling live conductors. Labeling tags (self-laminating) mark each circuit path; use UV-resistant ink for outdoor installations. Installation time drops by 30% when pre-grouping terminal screws and traveler pairs before mounting devices.
Installing a Multi-Location Control Circuit: Practical Steps
Begin by confirming the circuit is de-energized at the breaker panel–verify with a non-contact voltage detector. Identify the two 3-terminal intermediate controllers and pair of end-point devices; label their common terminals (typically darker or marked differently). Connect the incoming power line’s hot conductor to the first end-point’s common terminal–this establishes the primary feed. Route the outgoing conductor from its matching terminal to the nearest intermediate unit’s common, forming the first bridge between control points.
Intermediate Link Configuration
Attach traveler conductors between each adjacent control point: use a dedicated pair for every connection between intermediates and end-points. Ensure color consistency–yellow for one traveler, red for the other–across all junctions to prevent misalignment. At the second intermediate, loop the travelers directly to their corresponding terminals, maintaining the same sequence (input-output, output-input). Ground all metal housings with 12-gauge bare copper, securing to designated screws or green grounding clips.
Test continuity at each stage: toggle any control point and verify all others respond without delay. If a controller fails to toggle lamps, recheck traveler pairs for swapped connections–transposing red and yellow disrupts the entire sequence. Complete the circuit by connecting the neutral conductor–if present–to the load terminal on the final end-point, ensuring compatibility with dimmable or smart fixtures that require a neutral path.

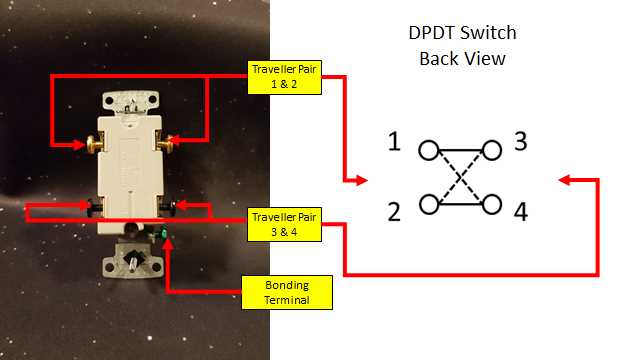

Mapping Traveler Conductors in Multi-Point Control Setups
Label each traveler conductor at every control point with masking tape before disconnecting anything–use the same identifier (e.g., T1, T2) consistently across all junction boxes to prevent confusion. Verify continuity with a multimeter set to ohms; probes should register near zero resistance when touching matching traveler terminals at opposite ends of the circuit. If readings fluctuate, suspect a broken conductor or loose terminal connection–retrace the path before proceeding.
Terminal Pairing Across Devices
- Common brass screw terminals (typically two per device) always host travelers–ignore dark-colored screws reserved for power input/output.
- Single-pole devices use one traveler pair; intermediate units require two pairs, mirrored across the circuit.
- Invert polarity on one pair if lights flicker or fail to toggle properly–mix-ups cause loss of functionality.
Strip precisely 5/8″ of insulation from traveler ends–excess length risks shorting against grounded boxes, while insufficient exposure invites loose connections. Secure strands with lineman’s pliers before wrapping clockwise around terminal screws; torque to 12 in-lbs to prevent loosening from vibration or thermal cycling. For back-wired devices, insert stripped ends fully until the wire bottoms out–partial insertion creates intermittent failures.
- Power off the circuit at the breaker panel–confirm absence of voltage with a non-contact tester.
- Disconnect all conductors, grouping travelers together physically at each box.
- Reconnect matching traveler IDs across successive devices, maintaining sequence from upstream to downstream.
- Energize the circuit and toggle each control point–observe for smooth operation without buzzing or arcing sounds.
Troubleshooting Common Issues with Multi-Position Circuit Configurations
Check for loose connections at all terminals before proceeding. Remove each cover plate and inspect screws for proper torque–industry standards specify 12–18 in-lbs for secure contact. Corroded or oxidized terminals should be cleaned with a wire brush or replaced if pitting exceeds 0.5mm depth. Use a multimeter in continuity mode: probe incoming and outgoing hot leads at each device while toggling intermediate mechanisms to isolate breaks.
Verify power supply polarity consistency across all junction points. At the source, measure voltage between hot (black/red) and neutral (white) to confirm 120V±5%. Intermediate devices must maintain this potential–drops below 114V indicate high-resistance joints or undersized conductors, typically resolved by upsizing from 14AWG to 12AWG. For three-conductor setups, ensure travelers (red) alternate voltage states between positions; if both read 120V or 0V simultaneously, misrouting is confirmed.
| Symptom | Likely Cause | Resolution Steps |
|---|---|---|
| Inconsistent operation (lights flicker, some positions fail) | Crossed travelers, loose terminal | 1. Label wires before disconnecting 2. Test with multimeter at each terminal 3. Re-secure or re-route as needed |
| All mechanisms work but dimmer/fan controls fail | Shared neutral overload, incompatible load type | 1. Separate circuits for resistive/inductive loads 2. Add dedicated neutral run for auxiliary devices |
| Humming/buzzing from fixtures | Voltage drop >3% or oscillating travelers | 1. Tighten all connections 2. Replace terminals if discoloration present 3. Install snubber capacitor across load |
Isolate ground faults systematically. Disconnect all hot leads and test continuity between ground and neutral at every junction box. Readings above 1Ω suggest improper bonding–in residential setups, this must not exceed 0.1Ω per NEC 250.148. For aluminum conductors, apply anti-oxidant paste (like Burndy Penetrox) at splices and retorque to 20 in-lbs; copper-only systems require standard copper lugs with no paste.
Address thermal issues using infrared scans. Hotspots above 60°C indicate undersized conductors (increase by one gauge size) or overloaded circuits (split loads into separate runs). For frequent toggling (e.g., stairwell circuits), use silver-plated contacts rated for 10,000+ cycles; standard brass degrades after ~5,000 cycles, causing intermittent failures.
For smart-enabled controls, verify bypass configurations. Most models require a neutral bypass (connect load directly to neutral at one mechanism) when integrating with multi-point systems–omitting this causes erratic behavior like partial power or failure to switch. Refer to manufacturer specs for minimum conductor sizes; common smart relays need 12AWG minimum, unlike standard setups which allow 14AWG.
Document all changes with annotated photos for future reference. Use permanent markers to label each conductor at both ends (e.g., “T1-L3” for traveler one from location three) and retain these records. For EU/UK systems (230V, single-phase), ensure compliance with local derating factors–conductors must handle 1.25× the load current for parallel paths per IEC 60364-5-52.
