Step-by-Step Guide to Wiring a 4-Wire Ceiling Fan with Light
Begin by identifying the four color-coded leads on your airflow device’s mounting bracket. The black conductor typically carries the live feed to the motor, while the blue supplies power to the attached luminaire. The white serves as the neutral return path, and the green or bare copper grounds the assembly. Verify these assignments against the schematic provided in the manufacturer’s documentation–mislabeling risks damage to components or flickering illumination.
Install a dual-switch wall control to manage rotation speed and light output independently. Route the incoming supply cable through the electrical enclosure downrod, ensuring the neutral connects to both the central fixture and the lamp assembly. Join the ground lead to the metal housing using an approved connector; a loose connection can create a safety hazard during operation.
Test each circuit before securing the decorative cover. Activate the switches sequentially to confirm smooth rotation and steady illumination. If the motor hums but fails to spin, check the capacitor’s capacitance rating–values below 4 microfarads often require replacement. Dimmed lighting may indicate insufficient voltage; measure at the luminaire terminals to rule out under-voltage conditions.
Seal all splices with heat-shrink tubing rated for 125°C to prevent oxidation in humid environments. Label each lead inside the junction box for future maintenance. Store the original schematic taped inside the canopy–this simplifies troubleshooting if repairs become necessary within the fixture’s lifespan.
Electrical Connection Guide for Multi-Speed Rotary Ventilator with Illuminated Fixture
Identify the function of each conductor color before making terminal connections. Standard rotary ventilator kits include these core cables:
- Black: Powers the rotating mechanism
- Blue: Supplies current to the illumination assembly
- White: Common return path (neutral)
- Green or bare copper: Grounding conductor
- Red (optional in some models): Alternative switch leg for independent control
Connect the rotary mechanism’s black lead to the black supply conductor at the termination point. Ensure the connection is secure with a UL-listed twist-on connector or terminal block rated for 15A circuits. Verify the fixture’s ampacity matches the breaker’s trip value; most household installations use 14-12 AWG conductors protected by 15-20A breakers.
For simultaneous or separate operation of the lighting element, link the fixture’s blue lead to the corresponding supply cable. In three-way switching configurations, route these conductors through traveller terminals before reaching the final lamp connection. Use a dedicated 18 AWG minimum for low-voltage LED assemblies where applicable.
Secure the white conductors with a marette connector, ensuring no exposed strands remain outside the connection. Verify continuity with a multimeter set to resistance mode (
Label each connection clearly before closing the termination point. Mark supply cables at both ends to prevent future misidentification. Test operation in all speed settings and lighting modes before finalizing installation. Replace any connectors showing heat discoloration or brittleness immediately.

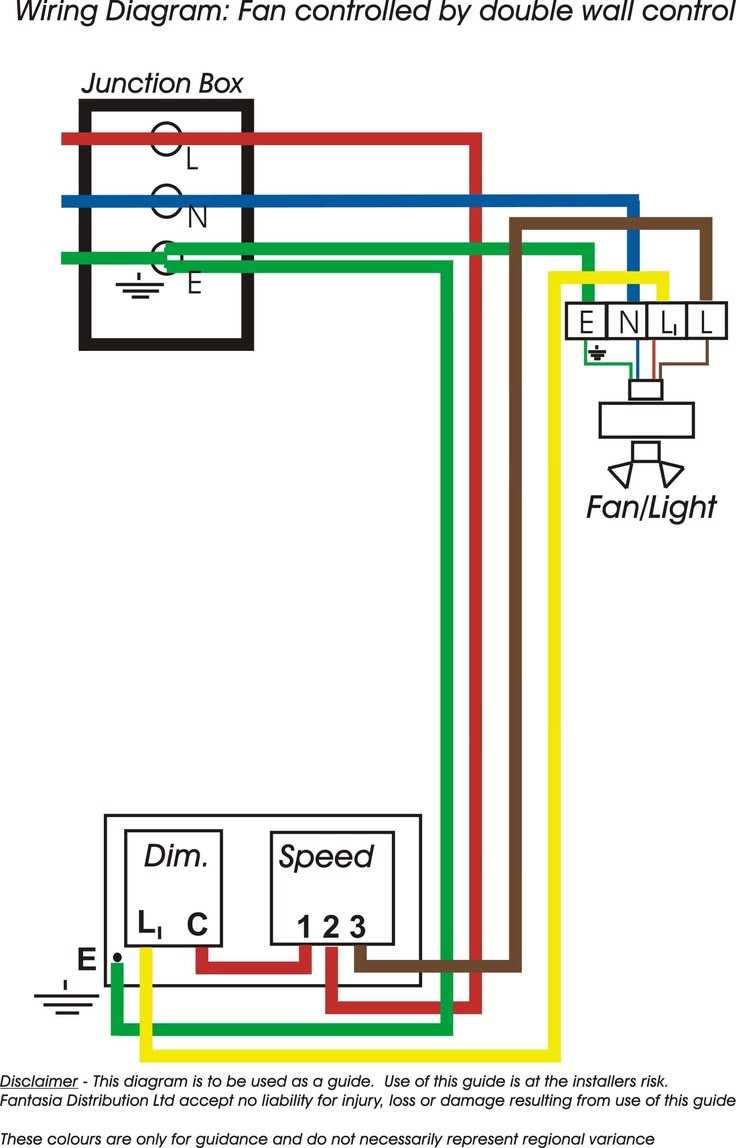

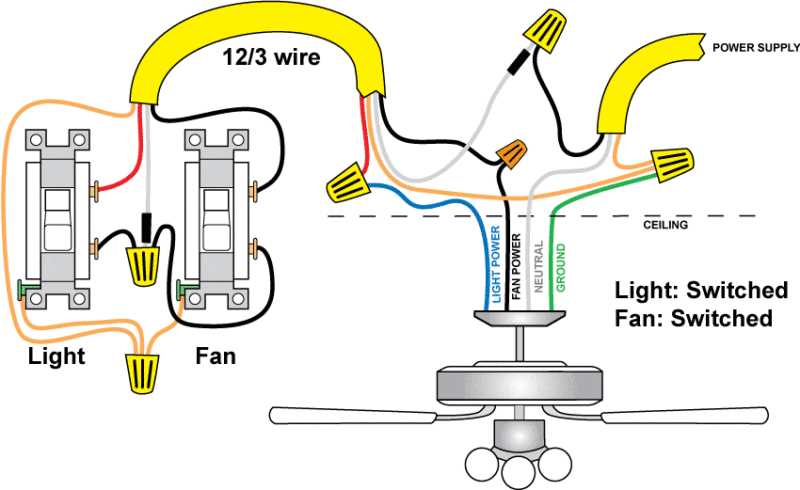

For dual-control installations (separate switches), utilize a four-conductor cable between the ventilator and power source. Terminate as follows:
- Black: Rotary mechanism hot (live)
- Red: Lighting element hot
- White: Neutral return
- Green: Earth ground
Avoid mixing control methods unless the fixture documentation specifically permits combined switching. Verify torque specifications for terminal screws (typically 12-15 in-lbs for #8-10 AWG conductors) using an insulated torque screwdriver.
Determining Conductor Colors in Your Overhead Rotator and Lamp Assembly
First, locate the color-coded leads extending from the hub motor and illumination module–these will typically consist of two supply lines (one hot, one neutral), a ground, and an auxiliary lead for the luminaire. The primary energized conductor is almost always black, while its neutral counterpart is white; verify this by checking for a smooth sheath without ridges or printing. The grounding strand is green or bare copper, often coiled separately at the junction box. The remaining conductor–usually blue, red, or striped–controls the lamp circuit and may feed directly from a wall switch or share the overhead rotor’s power source.
Use a non-contact voltage tester to confirm function before handling: energize the circuit, then isolate each strand at the mounting bracket. The black lead should register 120V against the white; the blue or red lead will show voltage only when the dedicated illuminator switch is activated. If the luminaire lead remains inactive, trace the supply path back to the switch loop–some configurations splice an additional hot strand directly from the wall control, bypassing the rotor’s internal connections. Below is a quick reference for common color assignments:
| Conductor Hue | Typical Purpose | Testing Notes |
|---|---|---|
| Black | Main energized input for rotor | Should register 120V against white |
| White | Neutral return path | No voltage reading against ground |
| Blue/Red/Striped | Auxiliary circuit for lamp | Voltage only when illuminator switch is ON |
| Green/Bare | Safety grounding | No voltage; continuity to metal housing |
If colors deviate from this scheme–particularly in older models–refer to the accompanying schematic or manufacturer markings on the stator housing. Some units use grey or yellow for the lamp lead, while imported assemblies may follow European standards (brown for hot, blue for neutral). Never assume function based solely on color; cross-check with a multimeter by measuring resistance between the luminaire terminals and the identified hot line–an open circuit indicates a broken filament or separate switching circuit, while a closed loop confirms direct power delivery.

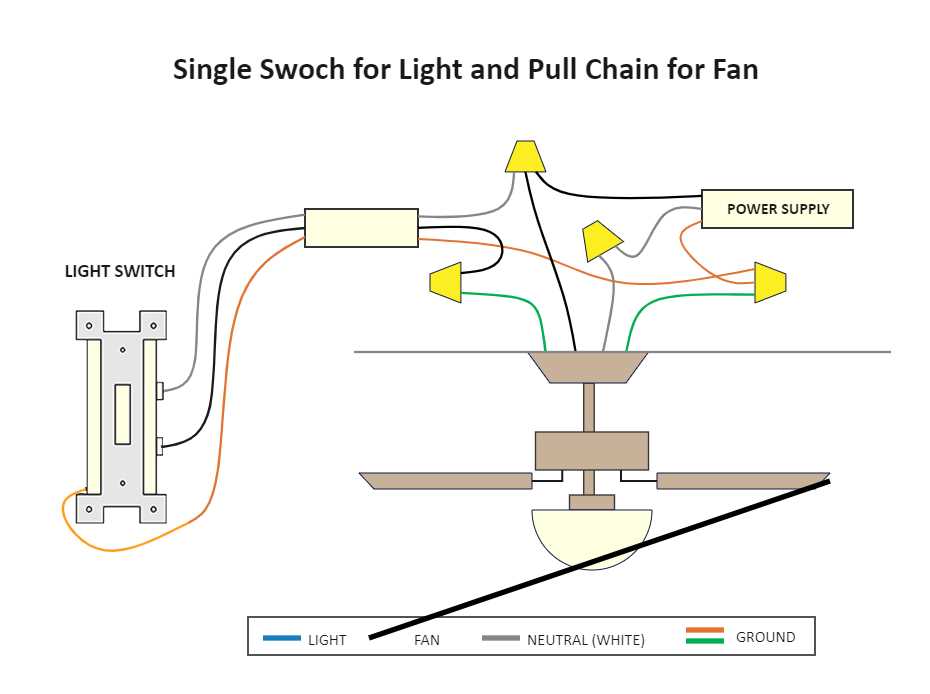

When splicing during installation, pigtail the auxiliary lead to its corresponding switch leg using insulated connectors–never combine it with the rotor’s circuit unless the control unit explicitly requires shared power. For dual-switch applications (separate controls for rotor and lamp), route the auxiliary lead through its own wall switch; if only one switch is present, split the incoming hot line to feed both the rotor and lamp circuits simultaneously. Secure all joints with twist caps rated for 600V, then wrap with electrical tape for strain relief, ensuring no bare strands extend beyond the connector body.
How to Safely Link the Black (Motor), Blue (Luminaire), White (Common), and Green/Bare (Safety) Conductors
Turn off the circuit breaker supplying power to the fixture before handling any conductors. Verify absence of voltage using a non-contact tester on each lead–black, blue, white, and green. Failure to confirm de-energization risks shock or arc flash.
Identify the corresponding leads on the junction box and the fixture itself. The black conductor powers the motor, blue activates the luminaire, white serves as the neutral return, and green or bare grounds the system. Match each colored lead to its counterpart by twisting them together securely. Use UL-listed twist-on connectors rated for the gauge of the conductors (typically 18 AWG for fixtures).
Strip exactly 5/8″ (15.9 mm) of insulation from each conductor using precision strippers. Excessive exposed metal increases short-circuit risk; insufficient grip causes loose connections. After stripping, align the strands neatly before twisting the ends clockwise–this prevents fraying during insertion into the connector.
Tuck the connected conductors into the junction box, ensuring no bare metal remains outside the insulated connectors. Secure the fixture mounting bracket to the box using #10-32 screws, ensuring the bracket sits flush against the box’s knockout. Misalignment strains the conductors and may loosen connections over time.
Restrict the blue conductor’s load to the luminaire’s specified wattage–usually 60W or less for incandescent bulbs, or 15W equivalent for LEDs. Exceeding this rating causes overheating, melting connectors, or tripping the breaker. For dimmable luminaires, confirm compatibility with the switch type (leading-edge vs. trailing-edge dimmers).
- Tuck conductors clockwise around the box perimeter to prevent pinching when securing the fixture canopy.
- Avoid overtightening twist-on connectors–hand-tight plus ¼ turn is sufficient; overtightening cracks the shell.
- After restoring power, test each function (motor speeds, luminaire) separately to isolate faults before finalizing installation.
Connecting Appliance Cables to Home Electrical Supply and Control Setup
Identify the household supply conductor marked “hot” by checking for a smooth black, red, or occasionally blue sleeve–these carry voltage from the panel. The neutral return should be a white or gray braid, while the grounding path is always bare copper or green-sheathed. Use a non-contact voltage pen to confirm the hot line before touching any terminal, even if the breaker appears off.
Mount a dual-toggle wall control for separate regulation of the overhead rotor and lamp assembly. The control’s common terminal must connect to the supply hot line; from there, route one switched conductor to the rotor’s live inlet and the second switched conductor to the lamp’s input spud. Label each conductor at both ends with colored tape to prevent swapping during final hookup.

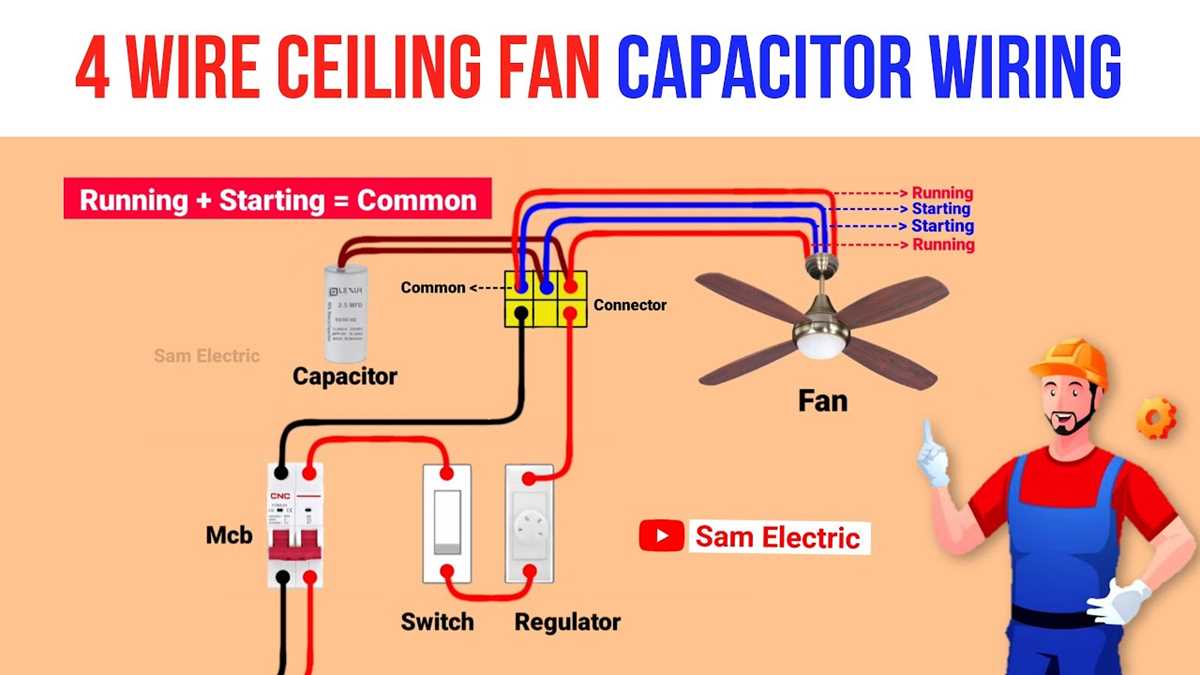

Ensure the rotor’s motor assembly uses a capacitor-run configuration, indicated by a cylindrical canister labeled “start-run.” The canister usually sits inside the rotor housing; its two terminals link to the rotor’s live spud and a secondary lead colored purple or brown. Reverse these links if the blades spin backward, but never omit the capacitor–doing so risks overheating the windings.
For lamp loads under 60W, match the socket type (candelabra or medium base) to the supplied hardware. Twist the lamp conductor into the socket’s center tab, then secure the neutral return to the threaded shell with a wire nut and pigtail. Replace factory-provided 18-gauge leads with 16-gauge extensions if the distance exceeds 1.5 meters to prevent voltage drop that dims bulbs noticeably.
Grounding integrity is non-negotiable. Attach a 14-gauge solid copper lead from the housing’s green grounding screw to the household grounding bus bar. If the existing service lacks a grounding conductor, retrofit a bare copper ground rod driven 2.4 meters into damp soil and link it to the bus bar with 6-gauge bare copper–this step prevents motor frame shocks during insulation failures.
Test each circuit segment sequentially: power the supply line, toggle the rotor switch, then verify blade rotation; toggle the lamp switch and confirm steady illumination. Restore power only after all conductors are insulated inside metal or plastic junction boxes rated for at least 60°C ambient temperature.
Record conductor colors, terminal labels, and breaker numbers in a pocket notebook secured near the panel. This prevents future confusion when servicing or upgrading, especially if the original color scheme differs from standard codes–red/black for switched hots, white for neutral, green/bare for ground.
