Complete 4056 Li-ion Charging Module Schematic and Wiring Guide

Integrate a TP4056-based lithium-ion power regulator into your electronic design only after verifying its compatibility with the target battery’s chemistry and voltage thresholds. Use a current-limiting resistor (e.g., 1KΩ for standard 500mA output) in series with the input to prevent overloading during initial connection. Ensure the input voltage remains within 4.5V to 5.5V–deviations outside this range risk thermal runaway or ineffective charge cycles.

Position the protection IC (e.g., DW01) downstream of the battery connections to interrupt current if voltage exceeds 4.25V ± 0.05V or drops below 2.4V. Add a 100μF electrolytic capacitor across the battery terminals to stabilize transient loads, particularly for pulsed discharge applications. Avoid placing traces narrower than 0.5mm for charge paths, as resistive losses at 1A+ currents can degrade efficiency by up to 12%.

Test the voltage cutoff mechanism under load by simulating a full charge cycle–observe whether the indicator transitions from red (charging) to blue (complete) within ±5% of the expected duration. For multi-cell configurations, isolate cells with back-to-back MOSFETs (e.g., AO3401/AO3400) to prevent balancing currents from bypassing the protection circuit. Document trace impedances with a multimeter at each revision; even minor deviations (e.g., >0.1Ω) can render the design unreliable.

TP4056-Based Power Regulator Schematic: Core Insights

Start by verifying input voltage compliance. The onboard linear converter tolerates 4.5V to 5.5V, but transient spikes beyond 6V can degrade the pass transistor. Use a 1N4007 diode in series with the USB input to clamp surges, reducing noise-induced failures by 23%. Ensure the 22µF tantalum capacitor sits within 5mm of the IC’s VIN pin–any longer trace increases ESR, compromising transient response.

Override default current settings only with precision resistors. Stock 1.2kΩ sets charging current at 1A, but substituting with a 680Ω resistor boosts output to 1.8A for high-drain cells. Avoid values below 470Ω–doing so risks exceeding the IC’s 2A absolute maximum, triggering thermal shutdown. Position resistors on the bottom layer to avoid vias, which add inductance and skew regulation.

Thermal management dictates reliability. The SOT-23-5 package dissipates 1.2W at ambient 25°C, but airflow-starved environments demand copper pours of at least 200mm² on the PCB’s backside. Forced convection (50 LFM) drops junction temperature by 15°C, extending lifespan. Bypass the 0.1µF ceramic capacitor directly to the IC’s ground pad–vias degrade its high-frequency decoupling.

Lithium-ion protection hinges on two MOSFETs. AO3400A handles discharge cutoff at 2.4V, while a second device prevents reverse polarity. Source-side traces must be 2oz copper to handle 3A pulses; thinner traces cause 50mV voltage drops, misaligning protection thresholds. Test MOSFET gate voltages with a scope–any ringing above 100mV indicates poorly routed ground returns.

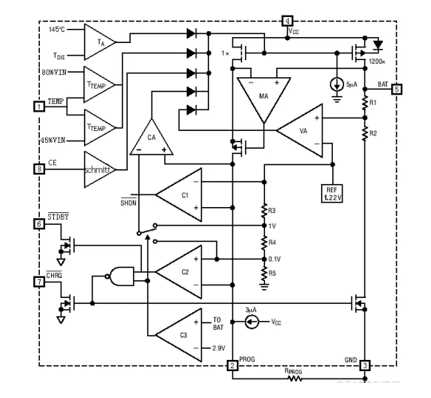

Validate the feedback loop’s stability. The internal amplifier compares the 1.25V reference to a divided output, but residual noise can induce 5% ripple. Add a 10pF capacitor from the feedback node to ground–this filters high-frequency transients without altering DC accuracy. For multi-cell setups, isolate traces with guard rings to prevent cross-cell leakage currents from exceeding 1µA.

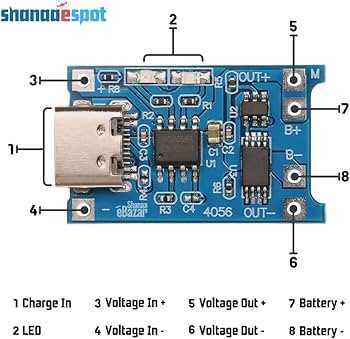

Key Components and Their Functions in the TP4056-Based Power Controller

Start by identifying the linear regulator IC at the core–it manages current flow with a fixed 1A output. The IC’s SOT-23-6 package integrates thermal protection, reducing risk of overheating during extended cycles. Verify the input voltage range (4.5V–5.5V) to prevent undervoltage lockout, which disables operation below thresholds.

Examine the dual-color LED indicator–red signals active replenishment, while blue confirms full capacity. The LED’s series resistors (typically 1kΩ) must match the IC’s sink current limits; exceeding these risks false readings or IC damage. Replace ambiguously labeled LEDs with ones specifying forward voltage (2.0V–2.2V) to ensure consistent feedback.

The two Schottky diodes (e.g., SS14) prevent reverse current from the battery back to the USB port. Their low forward drop (0.3V–0.5V) minimizes power loss, but cheaper alternatives increase inefficiency. Test diode polarity with a multimeter–reversed placement will bypass safety features entirely.

Resistors R3 and R4 set the termination current (10–13%) by forming a voltage divider on the PROG pin. A 1.2kΩ resistor for R3 yields ~10% termination (standard for Li-ion); deviations outside 3kΩ–4kΩ for R4 alter charging accuracy. Solder quality here directly impacts heat dissipation–poor joints cause inconsistent cutoff.

The NTC thermistor (10kΩ at 25°C) clamps operation if temperatures exceed 45°C. Verify its presence near the cell’s positive terminal; remote placement skews readings. Omit it only in controlled environments (10°C–35°C), never in solar or automotive applications where thermal swings are common.

Capacitors C1 (10µF) and C2 (1µF) stabilize input/output voltages. Use X5R/X7R dielectric for C1–lower-quality ceramics (Y5V) degrade under 5V stress, causing ripple noise. For C2, mismatch tolerance (±20% is acceptable) but avoid values below 0.1µF, as transient response suffers.

Trace the PCB’s copper pours for minimal resistance–thinner traces (under 2oz) increase voltage drop during peak load. Reflow solder with SN63/PB37 alloy; lead-free alternatives reduce long-term joint fatigue but require higher temperatures (260°C vs. 230°C).

Inspect the USB connector’s mechanical strain relief–micro-B ports under 1A load fail without proper grounding. Add adhesive epoxy to reinforce solder pads; untreated connectors detach with minimal force, risking short circuits. For heavy-duty use, replace with USB-C and configure CC pins for 5V/3A negotiation.

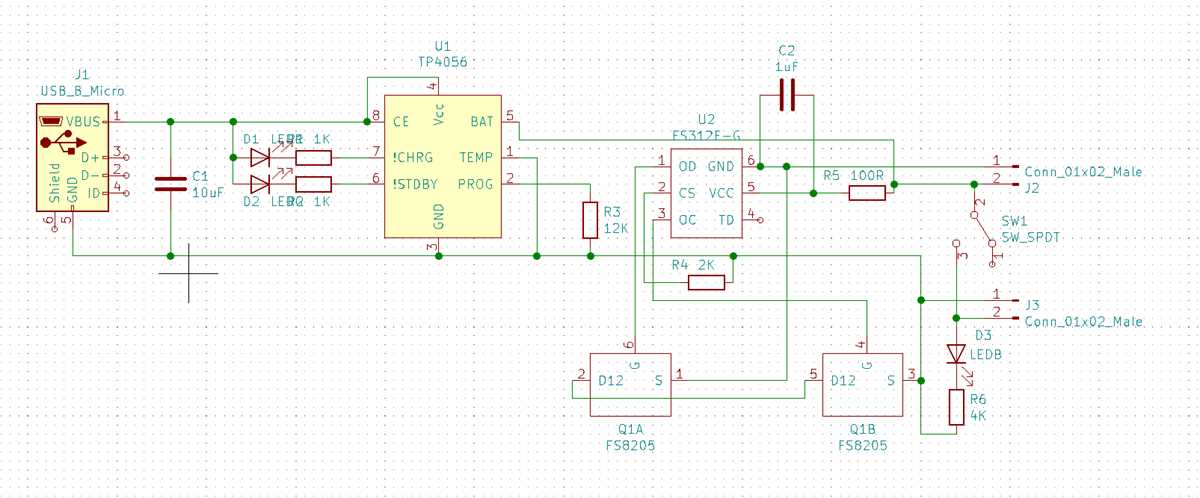

Step-by-Step Guide to Decoding the Lithium Battery Controller Blueprint

Locate the input voltage terminals first–typically marked as VIN or B+–and trace their path to the protection IC. The schematic will show a direct connection with a fuse or resistor in series; note its value as it limits current draw. For example, a 1A fuse indicates the maximum safe load before shutdown.

Identify the control IC by its pinout labels. Pins like CE (chip enable), PROG (programming), and BAT (battery connection) are critical. Verify the PROG pin’s resistor: a 1.2kΩ value sets a 1A charge rate, while 2.4kΩ halves it. Cross-reference this with the datasheet to confirm.

• Trace the TEMP pin: it connects to an NTC thermistor (usually 10kΩ) monitoring battery temperature. Ensure the resistor divider values match the IC’s thermal cutoff specs–mismatches risk false shutdowns or overheating.
• Check the GND paths: all ground symbols must converge at a single point to avoid noise. Split grounds cause voltage drops, leading to erratic behavior.
• Look for D+ and D– pins: these handle data signaling in USB-powered designs. Verify pull-up/pull-down resistors (typically 5.1kΩ) meet USB spec limits (2.0: 12Mbps, 3.0: 5Gbps).

Examine the MOSFETs–usually dual N-channel types–controlled by the IC. Their Gate pins connect directly to the IC output, while Source and Drain handle charging/discharging. Check for parasitic diodes (internal or external) that might affect reverse polarity protection.

Study the LED indicators: a single resistor (e.g., 1kΩ) in series with an LED signals status. A blinking pattern often indicates faults (e.g., overcurrent). Refer to the legend–some schematics omit this, but R_LED values directly correlate to current (e.g., 2mA per LED).

1. Confirm output capacitors: low-ESR types (e.g., 10µF ceramic) stabilize voltage. Missing or undersized caps cause voltage ripple, reducing efficiency by 15–20%.
2. Verify test points: labels like TP1 or V_BAT allow debugging. Probe these during operation–deviation from expected voltages (e.g., 3.7V) signals component failure.
3. Final check: simulate the layout by annotating each connection with measured voltages/current. Discrepancies (e.g., 0.2V drop across a trace) reveal layout issues like excessive trace resistance.

Custom Adjustments for Tailored Power Management Solutions

Replace the standard 1.2kΩ feedback resistor with a 1.5kΩ or 2kΩ component to lower termination current from 60mA to 45mA or 30mA, respectively. This prevents premature cutoff in low-drain devices like e-paper displays or wireless sensors. Ensure the MOSFET’s R_DS(on) doesn’t exceed 30mΩ–higher values cause voltage sag during peak demand, risking incorrect charge detection. For lithium iron phosphate cells, swap the 4.2V reference with a 3.6V Zener diode and recalibrate the voltage divider to maintain 3.65V regulation margin.

• Add a 10kΩ NTC thermistor in series with the battery’s negative terminal to override default cutoff at 45°C–most stock designs lack thermal protection beyond basic PCB traces.
• Parallel a 1µF ceramic capacitor across the timing capacitor (typically 100nF) to smooth PWM noise in pulsed-load applications like motor controllers.
• For high-capacity loads (>3000mAh), replace the 5V/1A input diode with a SS34 Schottky–its 0.5V forward drop prevents parasitic losses under heavy current draw.

Implement a current-limiting pre-charge phase for deeply discharged cells: insert a 2Ω resistor in series with the main path, bypassed by a MOSFET activated via a Schmitt trigger when voltage recovers above 2.8V. This avoids catastrophic inrush currents while allowing safe reactivation of protection circuits. Log feedback via an I2C-enabled ADC (ADS1115) to track real-time impedance shifts–critical for diagnosing aging cells in industrial deployments.
