How to Build a 40W Fluorescent Electronic Ballast Step-by-Step Guide
For consistent performance with 13mm diameter fluorescent lamps, integrate a dedicated driver using a resonant inverter topology. Select components rated for continuous operation at 50-60kHz to minimize audible noise and maximize electrode lifespan. Core components include a push-pull transistor pair (e.g., MJE13007 or equivalent) and a feedback transformer with a 1:1:1 turns ratio, ensuring stable current regulation.
Capacitor selection is critical–use polypropylene film types (X2-rated) for the resonant tank and low-ESR electrolytics for smoothing. Typical values: 47nF/400V for resonance and 100µF/350V for bulk storage. Avoid ceramic capacitors in high-voltage paths to prevent microphonic effects. Ensure the snubber circuit (1nF + 100Ω in series) across switching devices to suppress voltage spikes.
Ground the control circuitry separately from high-current paths to prevent EMI-induced flickering. Use a 10mm creepage distance between primary and secondary traces on the PCB. For thermal management, mount power transistors on aluminum heatsinks (minimum 20cm² surface area per device) with thermal paste. Test load stability by varying input voltage from 180-260VAC–output current should remain within ±5% of nominal.
Diagnose faults using a current-limited bench supply set to 12V and an oscilloscope on the lamp’s filaments. Expect a 20-30V RMS startup pulse before steady-state operation at 300-400V RMS. Common failure points include dried electrolytic capacitors (replace with 85°C-rated variants) and cracked ferrite cores (re-solder or replace).

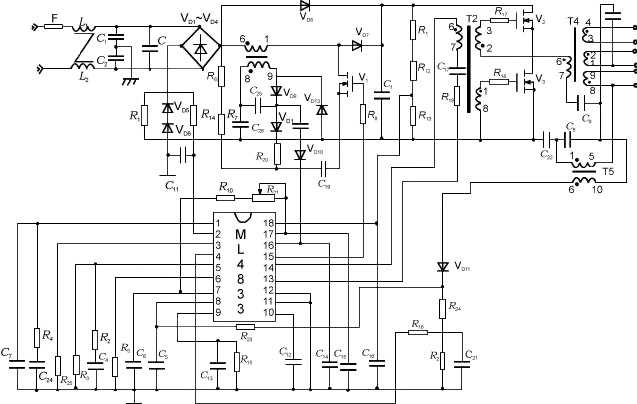

Building a Reliable Fluorescent Driver Schematic
Start assembly with a half-bridge inverter configuration using two power MOSFETs–IRF840 handles 8A/500V, ideal for 120VAC mains. Place a 22μF/250V electrolytic capacitor across the DC bus to smooth rectified voltage before the switching stage. Gate drivers IR2153 or L6569 offer integrated dead-time protection, eliminating the need for discrete timing components.
Frequency selection determines lamp stability: 30–50kHz minimizes audible noise while avoiding EMI spikes above 60kHz. A resonant tank formed by a 2.2nF/630V polypropylene film capacitor and 2mH ferrite-core inductor (30mm ETD core, 150 turns of 0.3mm wire) achieves zero-voltage switching for efficiency. Calculate impedance at Z = √(L/C); target 200–300Ω for optimal ignition.
Preheat filaments with a secondary winding on the transformer (3–5 turns) connected to a 10Ω/2W resistor and 47μF timing capacitor. This provides 1–2 seconds of warm-up, preventing cold-start flicker. For dimming compatibility, add a 10kΩ potentiometer in series with the feedback network to adjust control IC reference voltage.
- Use 1N4007 diodes for input rectification–fast recovery types like MUR120 increase switching losses.
- Snubber network: 1kΩ/2W resistor + 470pF/630V capacitor across MOSFET drains to suppress voltage spikes.
- Thermal shutdown: mount TO-220 devices on a 30mm² heatsink; LM358 comparator can disable the gate driver at >85°C.
Lamp faults require immediate protection: place a 0.1Ω/1W shunt resistor in series with the load to detect overcurrent. A TL431 voltage reference triggers shutdown if the drop exceeds 0.7V, indicating open-circuit or end-of-life failure. Test with a 1MΩ resistor across the lamp terminals to simulate worst-case conditions.
Component Substitution Rules
- Replace IRF840 with STW20NM50 (better RDS(on)) if input exceeds 240VAC.
- Film capacitors: WIMA FKP1 series tolerates 10% over-voltage; cheaper alternatives may fail at 500V transients.
- Ferrite cores: PC40 material (TDK) saturates at 0.4T; avoid gapped cores unless adjusting inductance.
Trace routing impacts EMI: keep high-current paths (1A, widening to 2mm near terminal blocks.
Final validation requires an oscilloscope: verify 300–400Vpp at the MOSFET drains, sinusoidal waveform at the tank, and
Critical Parts for a 40-Watt Fluorescent Driver Blueprint
Select a power MOSFET rated for at least 450V and 3A continuous current to handle switching transients reliably. Models like IRF840 or STW13NK40Z offer low RDS(on) and built-in gate protection, reducing heat dissipation needs. Pair these with ultrafast recovery diodes (UF4007) on the output rectifier stage to prevent reverse recovery losses, ensuring stable operation at 30-50kHz switching frequencies.
Incorporate a high-frequency ferrite core inductor with a saturation current exceeding 2.5A; EPCOS B66367G or similar cores wound with 28-30 AWG magnet wire deliver required inductance values (typically 2-4mH) while minimizing core losses. Use polyester or polypropylene capacitors (400V DC rating) for DC bus filtering to suppress ripple–values between 10-47µF strike a balance between bulk storage and start-up surge tolerance. A precision current-sense resistor (0.2Ω, 1W) enables feedback control, while a TL494 or similar PWM controller modulates duty cycle to maintain steady lamp current.
Ensure the resonant tank capacitor–usually 10-22nF, 630V–is polypropylene film type, as ceramic or electrolytic alternatives degrade under repetitive high-voltage spikes. Preheat filaments via a PTC thermistor or auxiliary winding to extend tube life, and include a snubber network (RC series: 47Ω + 1nF) across MOSFET drains to clamp voltage overshoot during commutation. Test all components under 120% nominal input to validate margin.
Step-by-Step Assembly of a Fluorescent Driver PCB Trace Routing
Begin by securing a 1.6mm FR-4 substrate with copper cladding of 35μm thickness–optimal for high-frequency switching without excessive heat buildup. Position the power MOSFETs (IRF840) on the top layer near the input terminals, ensuring thermal vias connect to an isolated copper pour on the bottom layer; each via should measure 0.8mm in diameter with 1mm annular rings for reliable heat dissipation. Route the gate drive traces at least 2mm apart from high-current paths to prevent cross-coupling, using 1oz copper weights for signal integrity. The input capacitor (100μF/450V) must sit within 10mm of the bridge rectifier output to minimize parasitic inductance.
| Component | Trace Width (mm) | Clearance (mm) | Layer |
|---|---|---|---|
| AC input | 3.0 | 1.5 | Top |
| DC bus | 2.5 | 1.2 | Top/Bottom |
| Gate drive | 0.5 | 0.8 | Top |
| Ground return | 4.0 | 2.0 | Bottom |
Solder the inductors (1.2mH) perpendicular to the control IC (IR2153) with a 5mm standoff to reduce EMI coupling–verify orientation by aligning the dot-marked end toward the switching node. For the feedback loop, route the 10kΩ NTC thermistor adjacent to the lamp terminals, using 0.3mm traces with serpentine patterns to avoid signal reflection. Terminate all unused via pads with solder mask to prevent accidental shorting; apply a conformal coating (acrylic-based) post-assembly to shield against environmental contaminants. Validate continuity with a 5V DC signal injected into the control IC’s VCC pin, ensuring no voltage drop exceeds 0.1V across any trace segment.
Common Arrangements for 16mm Diameter Luminescent Tubes
Start with a half-bridge inverter design for driving 1350mm T8 lamps at 0.43A. Use MOSFETs IRF840 or equivalent in a push-pull configuration, ensuring a gate drive voltage of 12-15V to prevent partial conduction. Resonant frequency should target 30-40kHz; a series capacitor of 100nF/400V paired with a 2.2mH inductor achieves this reliably. Avoid overwinding the inductor–120 turns of 0.3mm wire on an EI30 core suffices without saturation.
For preheat control, incorporate a UBA2024 IC or discrete timing network using a 4.7µF capacitor and 100kΩ resistor. This provides an 800ms delay before striking the arc, extending filament life. If preheat fails, check the 10nF coupling capacitor between filaments–values above 15nF cause excessive current, degrading electrodes prematurely.
Voltage stabilization requires a 220µF/450V electrolytic on the DC bus after rectification. Smaller values (fast-recovery diode (e.g., BYV29-600) is placed anti-parallel to each MOSFET to clamp flyback spikes; omitting this leads to 15-20% efficiency loss and thermal runaway.
Grounding the control IC’s reference pin via a 1MΩ resistor suppresses noise-induced misfires. If using a PCB, route this trace away from switching nodes–cross-talk here can trigger false shutdowns. For dimming compatibility, swap the fixed resistor with a 10kΩ NTC thermistor or pulse-width modulation input, but note that dimming below 30% shortens lamp life due to uneven mercury distribution.
Inductor core selection impacts efficiency: ferrite (e.g., 3C90) outperforms powdered iron by 8-12% at 40kHz but saturates abruptly. Wind the coil with Litz wire (0.1mm strands) if operating above 50kHz to minimize skin effect losses. Verify core temperature after 30 minutes–greater than 60°C indicates excessive hysteresis.
Snubber networks across MOSFETs (47Ω resistor + 1nF capacitor in series) reduce ringing by 70%. Without these, peak drain voltages may exceed 500V, risking avalanche breakdown. Test with an oscilloscope: ringing should decay within 2µs to avoid EMI compliance issues.
Filament heating circuits often omit a current-limiting resistor. Add a 10Ω/2W resistor in series with each filament to prolong electrode life. Without it, inrush current during cold starts reaches 5x operating current, eroding emissive coatings. Measure filament resistance when cold–normal range is 3-5Ω per end.
Output rectification to DC terminals (for CCFL compatibility) requires a full-bridge of 1N4007 diodes followed by a 100µH choke to smooth ripple. Omit the choke to save cost, but ripple will exceed 5% and cause audible hum. For high-altitude use (>2000m), derate the DC bus capacitor by 20% and increase gate drive voltage to 18V to compensate for reduced air density.
