How to Build and Understand 433MHz RF Transmitter Receiver Circuit Design

Use a HT12E encoder paired with an HT12D decoder for stable data transmission at 315-450 MHz ranges. These ICs handle 4-bit data with minimal latency–typically under 100 ms–when configured with a 75 kΩ resistor on the encoder’s oscillator pin. Avoid generic transistors; select a 2N3904 or S9018 for amplification stages, ensuring a gain of at least 150 to prevent signal degradation over 50-meter distances.

Power supply stability dictates performance. Route ground planes directly to a 10 μF tantalum capacitor near the voltage regulator (78L05 or AMS1117), filtering noise below 1 mVpp. For antenna matching, trim a 17.3 cm quarter-wave wire to ±2 mm precision–deviations increase VSWR past 1.5:1, reducing range by up to 30%. Include a PI network (22 pF shunt, 100 nH series) for impedance tuning if the environment has metallic surfaces within 1 meter.

Test interference sources before finalizing layouts. Common household LED drivers emit harmonics near 330 MHz; relocate transceivers at least 2 meters away. For noise rejection, isolate digital and analog grounds using a single-point star topology, connecting only at the power input. If using ASK modulation, set the receiver’s gain resistor (super-regenerative types like SYN470R) to 470 kΩ–adjust in 50 kΩ increments to balance sensitivity and false triggers.

Document every trace length. A 1 cm mismatch between differential pairs introduces phase errors, visible as packet loss above 3 kbps. Use a network analyzer (or SDR like RTL-SDR) to verify bandwidth–target 250 kHz at -6 dB edges for standard encoders. For extended range, replace the default 1.5 mW transmitter with a SAW-filtered PA stage (MAX2606), boosting output to 20 dBm without violating ISM band regulations if duty cycle stays below 1%.

Practical Schematics for Wireless Signal Transceivers

Start with a verified pair of transmitter and receiver chips like the PT2262/PT2272 or SYN115/SYN480R to ensure compatibility with standard encoding protocols. Connect the transmitter’s data pin (typically labeled DIN or DATA) to a microcontroller’s digital output, using a 1kΩ resistor in series to limit current spikes. Ground the VSS pin and supply 3–12V to VDD, depending on desired range–higher voltages increase distance but reduce battery life. Add a 100nF decoupling capacitor between VDD and ground to stabilize power delivery during transmission bursts.

For the receiving side, match the power supply voltage to the transmitter’s output to avoid signal distortion. Use an antenna–either a simple 17cm wire for short-range applications or a coiled spring design for extended reach–to capture incoming signals. The receiver’s data output (DOUT) should feed into a microcontroller’s interrupt pin for immediate processing, while a 1µF capacitor between the receiver’s voltage input and ground filters noise. If using the PT2272, ensure the address pins are configured identically on both ends to prevent signal mismatches.

Key Components for Reliable Performance

Replace generic antennas with a λ/4 monopole calculated for 433MHz (approximately 17.3cm in free space) to maximize efficiency. For printed circuit layouts, keep traces between the chip and antenna as short as possible–ideally under 1cm–to minimize signal loss. If interference is an issue, introduce a SAW filter like the B39491-B3710-U861 between the receiver’s RFIN pin and the antenna to block out-of-band noise. For battery-powered setups, a low-dropout regulator (e.g., MCP1700) ensures stable voltage during transmission, crucial for maintaining signal integrity.

When designing for low-power applications, use the transmitter’s enable pin (TE) to duty-cycle transmissions, reducing average current draw to microamps. For the receiver, implement a sleep mode via the microcontroller to disable it when inactive–wake it only on interrupts to save power. If data integrity is critical, add a Manchester encoding library to the firmware to handle errors caused by signal collisions or weak links. For ultra-long-range setups (over 500m), consider amplifying the transmitter with a MMIC (Monolithic Microwave IC) like the ERA-3SM+, paired with a directional antenna to focus the signal.

Test the setup with an oscilloscope on both ends to verify signal strength and encoding consistency. If data packets are lost, adjust the transmission rate–slower baud rates (e.g., 1200bps) improve reliability in noisy environments. For permanent installations, use shielded coaxial cable for antenna connections to prevent desensitization from nearby electronics. Always prototype on a breadboard first, then transfer to a PCB with a ground plane to reduce parasitic capacitance and improve signal stability.

Choosing Optimal Wireless Transceivers for Low-Power Applications

Prioritize pairs with FSK or ASK modulation at 250–500 kbps for reliable short-range transmission. The RFM69HCW (HopeRF) outperforms generic TX/RX sets with -120 dBm sensitivity, adjustable power (+20 dBm), and built-in encryption, reducing interference in crowded bands. For battery-powered devices, select 3V–5V tolerant options like the XY-MK-5V (50 mW) or HC-12 (100 mW) with U.FL connectors–these balance range (200+ meters outdoors) and power draw (5–12 mA active, ETSI EN 300 220 certified chips to avoid legal penalties.

Assess antenna matching–PCB trace antennas suit prototyping but limit range to 30–50 meters; replace with ¼-wave monopoles (17.3 cm for ISM bands) or high-gain external units (5–9 dBi) for industrial use. Test latency: ASK-based pairs (e.g., STX882/STR334) respond in FSK configurations (RFM69) extend reliability to 10+ years in sensors via hardware address filtering and CRC checks. Avoid counterfeit “XLRS” clones; source from Mouser, DigiKey, or Adafruit–reputable distributors provide datasheets with S-parameter plots for impedance tuning.

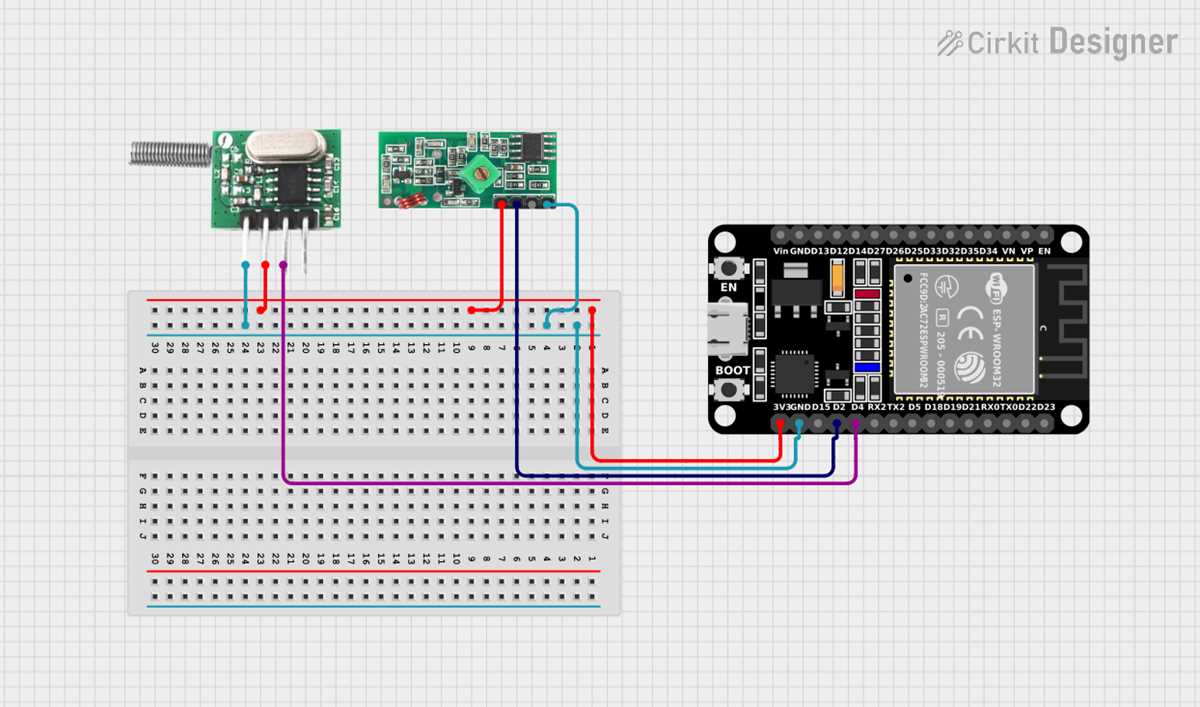

Connecting Wireless Transceivers to Arduino for Simple Signal Sending

Solder VCC pins directly to Arduino’s 5V output to ensure stable power delivery–avoid breadboard jumps for initial testing, as loose connections cause packet loss. Ground both transmitter and receiver units to Arduino’s GND using short, thick wires (22-24 AWG) to minimize noise interference. For data lines, attach the transmitter’s DATA pin to Arduino digital pin 12 and the receiver’s DATA pin to pin 11; these pins avoid conflict with default serial communication.

Component-Specific Wiring Steps

• Transmitter: Connect ANT to a 17.3 cm wire antenna (¼ wavelength at 433 MHz) for optimal range–no coil required for basic setups.
• Receiver: Add a 10 μF capacitor between VCC and GND to filter voltage spikes, improving signal stability.
• Use Arduino’s SoftwareSerial (pins 10/11) instead of default serial if debugging via USB-to-serial adapter–prevents data collisions.
• For battery-powered projects, regulate input voltage to 3.3–5V; exceeding 5.5V damages the silicon.

Verify connectivity by uploading a basic loop testing sketch: transmit three byte packets at 2000 ms intervals, then print raw receiver input to the serial monitor. If output shows “255” or erratic values, recheck solder joints–cold joints or reversed polarity are common failures. For longer ranges (>50m), swap the default 1/4 wave antenna for a half-wave dipole and align both units vertically to match polarization.

Configuring a Voltage Divider for Reliable Signal Strength

Set the resistor values based on the input voltage and desired output range. For a 5V source, pair a 10kΩ resistor with a 20kΩ resistor to achieve a 3.3V output, matching most receiver tolerances. Avoid exceeding 3.3V to prevent overdriving input pins, which degrades signal clarity and risks component damage.

Use high-precision resistors with a tolerance of 1% or better to minimize voltage variations. A 10kΩ/20kΩ divider with 5% tolerance can drift ±0.165V, while 1% tolerance reduces this to ±0.033V. This stability becomes critical in noisy environments where signal integrity depends on consistent voltage levels.

Critical Performance Factors

Resistor Pair	Input Voltage (V)	Output Voltage (V)	Power Dissipation (mW)
4.7kΩ / 10kΩ	3.3	2.2	1.5
6.8kΩ / 15kΩ	5.0	3.4	1.1
10kΩ / 20kΩ	5.0	3.3	0.8

Match the divider’s output impedance to the receiver’s input impedance. A 10kΩ/20kΩ divider presents a 6.67kΩ output impedance–compatible with most 10kΩ+ inputs. Lower impedance improves noise rejection but increases current draw; balance these factors for battery-powered applications.

Add a 100nF decoupling capacitor between the divider output and ground to filter high-frequency noise. Place the capacitor within 10mm of the receiver’s input pin for maximum effectiveness. This prevents transient spikes from corrupting signal edges, especially in long-range setups where weak transmissions amplify noise susceptibility.

Adjusting for Environmental Conditions

In high-interference areas, reduce resistor values by 30-50% to lower impedance and improve signal-to-noise ratio. A 4.7kΩ/10kΩ divider drops output impedance to 3.2kΩ but increases current consumption to 1mA. Test configurations with an oscilloscope; stable waveforms under load confirm reliable operation.

For variable input voltages, use trimmable resistors or a potentiometer. A 50kΩ potentiometer with a fixed 10kΩ resistor allows on-the-fly adjustments between 0.8V and 4.2V output. Calibrate during installation using a known-good transmission to set the optimal threshold before securing the wiper in place.

Validate the divider’s performance by measuring voltage under load. A 3.3V output should not drop below 3.2V when connected to the receiver. If flickering or intermittent reception occurs, increase capacitor size to 470nF or switch to low-leakage ceramic capacitors. Document final values for future troubleshooting.
