Complete 480 Volt Three Phase 12 Wire Motor Connection Guide and Schematic
Start by verifying the terminal configuration on the machine’s nameplate–most 720Hz, dual-voltage setups default to series delta for lower input levels or parallel wye for higher ranges. Identify terminals T1 through T12; cross-reference with the factory schematic to confirm winding groupings. Incorrect pairing risks overheating or reduced torque output.
For series delta operation at peak efficiency, link T4-T7, T5-T8, and T6-T9, then feed the supply lines to T1, T2, and T3. Ensure all joints are crimped with 10 AWG copper lugs rated for 90°C insulation. Skipping torque specifications on connections may introduce resistance-induced voltage drops of 3–5%.
To engage parallel wye, group T1-T7, T2-T8, T3-T9, and join T10-T11-T12 as the neutral point. Measure phase-to-phase balance before energizing–deviations above 2% indicate miswiring or internal shorts. Install a Class 10 overload relay calibrated to 115% of the full-load amperage to prevent nuisance tripping.
Test with a megohmmeter before final commissioning. Windings should register >100 MΩ at 500V DC; readings below 50 MΩ mandate drying cycles or insulation repair. Label all conductors per NEC Article 430–omitting this step complicates future troubleshooting and violates safety codes.

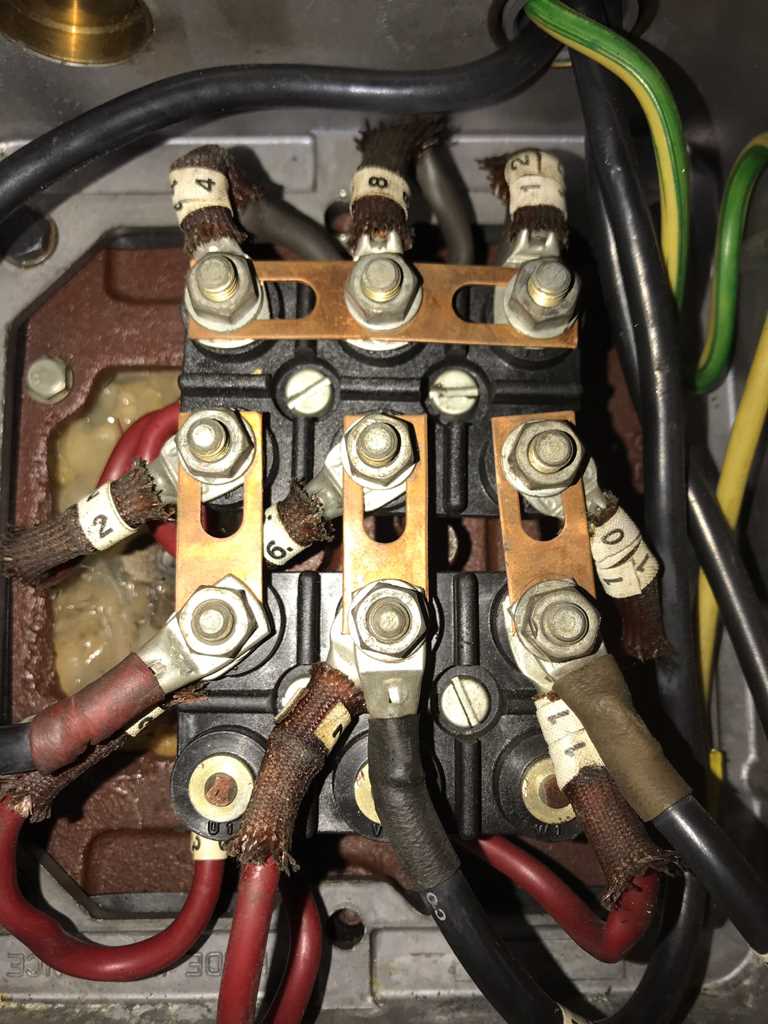

Connecting a Three-Phase Electric Drive with Twelve Terminals at Industrial Potential
Start by identifying terminal labels on the nameplate. Standard dual-voltage machines mark leads as T1 through T12. For high-voltage operation (series coil connection), link T4 to T7, T5 to T8, and T6 to T9. Jumper these pairs directly at the terminal block–use copper lugs rated for 600 V and 1.5× the current listed on the nameplate. Confirm tightness with a torque wrench set to 18 in-lbs for #10 AWG conductors.
Wire the input side as follows:
- Connect L1 to T1
- L2 to T2
- L3 to T3
Route supply cables through a flexible conduit whip prefitted with strain relief. Avoid daisy-chaining; each live conductor must terminate individually in the disconnect switch rated for at least 125% of the rated amperage.
Test insulation resistance between each stator winding and ground before energizing. Use a 500 V megohmmeter–minimum acceptable reading is 1 MΩ. If readings fall below threshold, dry the windings at 90 °C for 12 hours with circulating forced air calibrated to ±2 °C. Skip this step only if rush startup is mandated by production downtime penalties.
Verify rotation direction by momentarily powering the circuit. Observe shaft movement–clockwise rotation viewed from non-drive end is standard. Reverse any two live leads if direction opposes mechanical load requirements. Document the final connection diagram on weatherproof adhesive vinyl affixed inside the control panel door.
Low-Voltage Parallel Configuration
For 277 V line-to-neutral systems, connect windings in parallel:
- Join T1, T7, and T4 together
- T2, T8, and T5
- T3, T9, and T6
Supply L1, L2, and L3 feed each respective group. Cap off unused T10, T11, and T12 terminals with insulated spade connectors–these remain unconnected but must be isolated to prevent accidental shorting during maintenance.
Calculate breaker size using NEC Table 430.52. For a 25 HP drive drawing 32 A at industrial voltage, specify a 45 A inverse-time circuit breaker with 480 V interrupting rating. Torque terminal screws to 25 in-lbs–over-tightening distorts threads on aluminum housing units. Label each breaker slot with laser-etched phenolic tags measuring 25 mm × 12 mm; handwritten markings rub off under frequent vibration typical of reciprocating loads.
Mastering Dual-Voltage Terminal Configurations in High-Power Machinery
For industrial three-pole induction units rated at 460-480VAC, connect terminal posts in pairs following this arrangement: T1-T7, T2-T8, and T3-T9 for low-voltage parallel configuration. High-voltage series mode requires cross-linking T4-T7, T5-T8, and T6-T9 while leaving T1, T2, and T3 as independent coil inputs. Verify phase rotation by energizing with a reduced test supply–measure line-to-line potentials of 460V (±2%) between any two ungrounded conductors when properly aligned. Mistakes in bridging result in immediate phase imbalance, detectable via thermal overload within 120-180 seconds of full-load operation.
| Operating Mode | Terminal Links | Expected Current Draw | Voltage Across Coils |
|---|---|---|---|
| Low-Voltage Parallel | T1-T7, T2-T8, T3-T9 | 1.73 × nameplate FLA | 460V between lines |
| High-Voltage Series | T4-T7, T5-T8, T6-T9 | 0.866 × nameplate FLA | 266V per coil segment |
Wye (Star) Connection Setup for High-Power Industrial Equipment
Begin by isolating the power source to prevent accidental energization. Verify the absence of voltage using a multimeter across all incoming conductors–L1, L2, and L3–before proceeding.
Identify the twelve terminal posts on the machine’s junction box. Label them sequentially from T1 to T12 if not already marked. Group the terminals into four sets of three:
- T1, T2, T3 (first winding set)
- T4, T5, T6 (second winding set)
- T7, T8, T9 (third winding set)
- T10, T11, T12 (fourth winding set–often reserved for dual-voltage applications)
For a standard wye configuration, connect the end terminals of each winding set together. Link T3 to T6 to T9 using heavy-gauge copper jumpers, ensuring tight, corrosion-resistant connections. This creates the neutral point of the star arrangement.
Attach the phase inputs to the remaining free terminals:
- L1 to T1
- L2 to T2
- L3 to T4
If the system requires grounding, bond the neutral point (T3-T6-T9 junction) to the equipment chassis or a dedicated ground bus. Use a conductor sized no less than 8 AWG for compliance with NEC Article 250.
Inspect all connections for proper torque specifications–typically 12-15 lb-ft for lugs on industrial-grade apparatus. Loose terminals generate heat, degrade performance, and pose safety risks.
Reenergize the circuit through a properly rated circuit breaker or disconnect switch. Verify phase-to-phase voltage at approximately 480VAC (±5%) and phase-to-neutral at 277VAC using a true RMS meter. Imbalanced readings exceeding ±3% indicate wiring errors.
Test rotational direction by briefly engaging the drive. Reverse any two phase inputs if rotation opposes the intended operation. Ensure all personnel are clear of moving parts during this step.
Delta Hookup Schema and Connector Grouping for Dual-Voltage Industrial Drive Units
To achieve a delta connection in a dual-voltage 12-terminal industrial power system, pair terminals 1-6-7, 2-4-8, and 3-5-9 to form three closed loops. Verify line-to-line voltages with a calibrated scope before energizing–nominal readings should stabilize at 1.73 times the lower voltage rating across each loop. Secure jumper straps with torque-wrench settings specified in the OEM technical bulletin (typically 8-12 Nm for M6 hardware); improper tightening risks arcing or hot-spots at splice points.
Sequence terminal grouping as follows: U-phase feeds terminals 1 and 12, V-phase connects 2 and 11, W-phase bridges 3 and 10–ensuring clockwise progression around the stator. Label each group with heat-shrink identifiers matching the wiring schedule to prevent load imbalance exceeding 3% during transient start-up; use mil-spec AWG-6 copper jumpers for cross-links to minimize voltage drop under full torque demand.
Critical Errors in High-Power Electrical Configurations and Prevention
Avoid mixing line conductors by labeling each terminal with its corresponding voltage leg during installation. Misalignment often occurs when L1, L2, or L3 wires are swapped, causing improper rotation or equipment failure. Use colored tape or numbered tags–red for L1, black for L2, blue for L3–to eliminate confusion. Verify connections with a multimeter set to AC voltage mode, ensuring each leg reads 460-480V against neutral.
Neglecting torque specifications on terminal screws leads to overheating and arcing. Manufacturer datasheets specify exact values, typically 12-15 lb-in for copper lugs. Use a calibrated torque screwdriver; under-tightening causes resistance, while over-tightening cracks insulation or deforms terminals. Inspect connections annually, especially in environments with vibration or temperature fluctuations.
Dual-voltage systems (e.g., 240/480V) require strict adherence to connection diagrams. Jumpers between terminals must follow the schematic precisely–incorrect placement alters the magnetic field balance, increasing current draw by up to 30%. Double-check the nameplate for winding configurations (Wye/Delta) before adjusting links. A common pitfall is assuming a 6-terminal setup mirrors a 12-terminal one; they don’t.
Grounding and Bonding Oversights
Omitting a dedicated equipment ground conductor violates NEC Article 250. Even if the enclosure is metal, relying solely on conduit as a ground path risks corrosion or loose connections breaking continuity. Install a green or bare copper wire sized per Table 250.122, ensuring it terminates to the grounding busbar in the panel. Test continuity with a megohmmeter; resistance above 0.5 ohms indicates a faulty path.
Star-grounding neutrals in delta systems creates circulating currents. Neutrals must only be connected at the service entrance–never downstream. If a neutral is mistakenly tied to a delta winding, unbalanced loads produce stray voltage on equipment housings. Use a non-contact voltage tester to confirm no potential exists between chassis and neutral after installation.
Environmental and Mechanical Hazards
Ignoring ambient temperature ratings for conductors results in insulation degradation. THHN wire is rated for 90°C but derates to 75°C when bundled. Calculate ampacity reductions using NEC Table 310.15(B)(3)(a); a 10% ampacity loss occurs with just four conductors in a conduit. Select wire gauges two sizes larger than minimum requirements for extended runs.
Failing to secure cables properly causes chafing against sharp edges, especially in flexible conduit. Use nylon straps or rubber grommets at entry points, spacing supports every 18 inches per NEC 300.11. Exposed wiring over 600V requires additional guarding per OSHA 1910.303(g)(2)(ii)–install plexiglass shields or conduit sleeves where human contact is possible.
Overlooking phase sequence reversal detection leads to machinery operating backward. Install a phase rotation meter before energizing; incorrect sequences damage pumps, compressors, or fans. For critical loads, add a phase monitor relay that trips the circuit breaker within 0.5 seconds if sequencing fails. Retest after any maintenance involving conductor reconnection.
