Complete Guide to 5 Terminal Ignition Switch Wiring for Vehicles

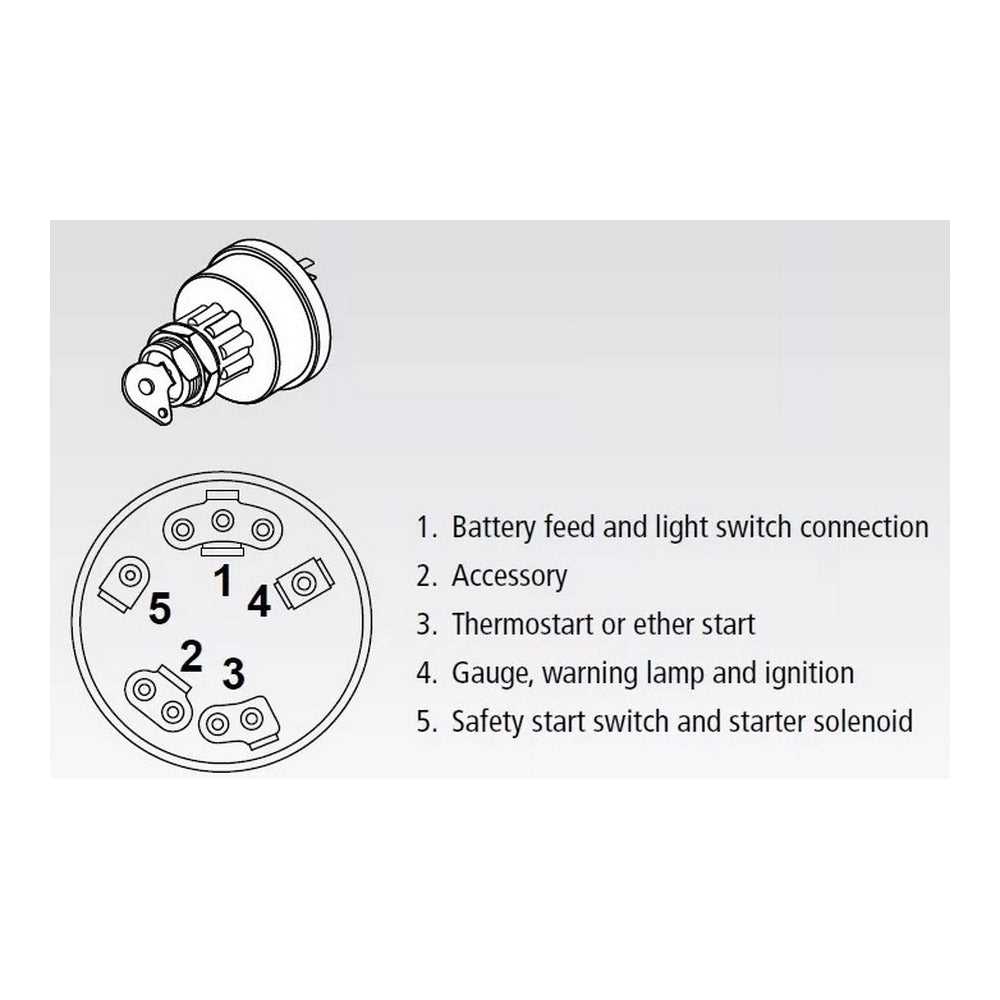

5 prong ignition switch wiring diagram

Connect the battery feed (30) to the thickest wire–typically 10-12 AWG–to handle starting currents without voltage drop. Route this directly from the positive battery terminal or through a fusible link rated at least 20% above the starter motor’s peak draw (commonly 30–50A for most vehicles).

Identify the starter solenoid output (50) by tracing the single wire leading to the starter–usually 14–16 AWG. This terminal activates the solenoid relay when grounded through the accessory circuit (15). Ensure the connection is sealed with dielectric grease to prevent corrosion, especially in humidity-prone environments.

For the ignition-on circuit (15), use 16–18 AWG wire to power ECM, gauges, and fuel pump relays. Test voltage at this terminal before installation; drops below 12.5V under load indicate a weak battery or undersized wiring. The accessory circuit (R) follows similar sizing but must be isolated from ignition-on to prevent parasitic drain–verify with a multimeter (less than 50mA) after wiring.

Label all terminals during disassembly. Misrouted connectors risk frying the ECM if accessory circuits receive full battery voltage during cranking. For late-model vehicles (2010+), check manufacturer schematics–some integrate immobilizer signaling into the starter terminal, requiring a scan tool to reset after installation.

Solder and heat-shrink all joints, including ground connections. A poor ground (resistance > 0.2Ω) causes erratic behavior in gauges and ECMs. Secure wires every 12 inches with adhesive-lined clamps to prevent chafing against sharp edges or exhaust components.

Understanding the 5-Terminal Electrical Activation Layout

Begin by identifying the battery feed terminal–typically labeled “B” or “30”–which delivers continuous power regardless of the actuator position. Connect this directly to the positive side of the power source using a 10-gauge wire to ensure sufficient current flow.

Locate the accessory contact (“ACC” or “15”), which energizes when the actuator turns to the first detent. Attach this to auxiliary systems like radios or lighting modules. Use a relay if the load exceeds 10 amps to prevent overheating at the terminal.

The ignition output (“IGN” or “50”) supplies power to the engine control module and fuel pump. Route this through a 20-amp fuse before branching to avoid catastrophic shorts. Verify polarity with a multimeter before finalizing connections.

The starter solenoid terminal (“ST” or “50”) carries high-current pulses during cranking. Secure this connection with a dedicated 4-gauge cable to minimize voltage drop. Ensure the solenoid itself is rated for at least 200 amps to handle cold-start demands.

Grounding paths vary by system. Some layouts use a dedicated chassis return (“G” or “31”), while others rely on the actuator housing. Sand paint from contact points and apply dielectric grease to prevent corrosion. Test continuity with a resistance meter (below 0.5 ohms).

Troubleshooting Common Issues

  • No power to accessories? Check the 15-amp fuse protecting the “ACC” circuit.
  • Intermittent engine cut-out? Probe the “IGN” terminal for loose crimps.
  • Starter engages but won’t crank? Inspect the 50-terminal cable for fraying near the solenoid.

For aftermarket installations, consult the vehicle’s service manual for pin assignments–some platforms swap “IGN” and “ST” designations. Diagram variations exist between OEM and universal replacements, so label wires during removal.

Materials Checklist

  1. 10-gauge red wire (battery feed)
  2. 14-gauge yellow wire (auxiliary circuits)
  3. 4-gauge purple wire (starter solenoid)
  4. Assorted fuse holders (10A–30A)
  5. Heat-shrink tubing (10mm diameter)
  6. Crimp connectors (ring and spade types)
  7. Multimeter (with continuity testing)

Secure all joints with solder and heat-shrink, avoiding twist-and-tape methods which degrade under vibration. For marine applications, upgrade to tinned copper conductors to resist moisture.

Identifying Each Terminal on a 5-Position Starter Mechanism

Label the contacts systematically before disconnecting anything. Use a multimeter set to continuity mode to trace connections–terminal B (Battery) delivers power directly from the source, typically linked to the main feed wire. Terminal S (Start) engages the solenoid when the key turns to the crank position, verified by a brief click during testing. The I (Ignition Feed) contact supplies power to accessories and systems once the device is in the “on” position, distinguished by voltage readings matching the battery.

Terminal A (Accessory) activates secondary circuits like radio or lights when the key rests in the first position, confirmed by isolating its wire and checking for voltage drop when turned. The P (Park/Neutral Safety) terminal prevents activation unless the transmission is in gear, requiring grounding when testing–use a jumper wire to simulate the safety switch’s closed state to verify functionality. Mark each terminal with tape while testing to avoid confusion during reassembly.

Verifying Connections Without Guesswork

Cross-reference findings with the vehicle’s service manual, as slight variations exist between models. For example, some European units merge the accessory and ignition feeds into a single contact (IGN/ACC), while American designs often separate them. If documentation is unavailable, trace wires by color: red for battery, yellow for ignition, purple for start, pink for accessory, and brown for safety circuits. Record measurements–B should read full voltage at all times, S only during cranking, and A/I only in their respective positions.

For stubborn cases, apply 12V directly to the start terminal while monitoring the solenoid–if nothing happens, the issue lies elsewhere in the starting system. Always disconnect the battery before probing live circuits to prevent shorts. Erratic readings indicate corroded contacts or frayed wires; clean terminals with a wire brush or replace the entire assembly if corrosion is extensive.

Terminal Connection Guide for a Five-Terminal Starter Control

Disconnect the battery’s negative terminal before handling any electrical components to prevent short circuits. Locate the B (battery) post–typically marked in red–and attach a 10-gauge wire (minimum) from the positive battery terminal directly to this post. Ensure the connection is secure with a ring terminal crimped and soldered for durability. This link powers all downstream circuits, so verify tightness with a torque wrench (8-10 lb-in).

Power Distribution to Accessory and Starter Circuits

Identify the ACC (accessory) post–often labeled–and connect a fused 12-gauge wire (10A fuse) from the B post to this terminal. Route this line through the vehicle’s firewall using a grommet to prevent chafing. For the ST (starter) terminal, run a 6-gauge cable from the B post, incorporating a 30A fuse or fusible link within 7 inches of the battery. Label all wires with heat-shrink tubing to simplify future diagnostics.

Ground the control unit by attaching the E (earth) terminal to the chassis using a 12-gauge braided ground strap. Sand the chassis contact point to bare metal, apply dielectric grease, and fasten with a star washer to avoid corrosion. Test continuity with a multimeter (resistance < 0.5 ohms) before proceeding. If the vehicle has electronic modules, isolate this ground from sensor grounds to prevent interference.

Connect the IG (ignition power) terminal to a fused 16-gauge wire (15A fuse) sourced from the ACC post. Route this line to all dash components (radio, gauges) via a central fuse block, avoiding daisy-chaining to prevent voltage drops. For vehicles with automatic transmissions, link the ST terminal to a neutral safety switch interrupt circuit–use a relay if the wire run exceeds 12 feet to maintain reliable starter engagement.

Finalize by reinstalling the battery’s negative lead, then test each position (OFF, ACC, RUN, START) with a load tester or bulb. Confirm no parasitic draw in OFF (current < 50mA) and verify starter engagement without dash dimming at crank. Record voltage drops across each connection: B to ST should measure < 0.2V at 200A load; exceedances indicate loose terminals or undersized wire.

Critical Errors to Sidestep When Connecting a Five-Terminal Starter Control

Mislabeling terminals during installation leads to immediate system failure or unpredictable behavior. Each contact point serves a distinct purpose–ground, solenoid activation, accessory feed, or starter engagement. Swapping the accessory and solenoid wires, for example, can cause the vehicle to crank while accessories remain powered, draining the battery in minutes. Always verify terminal functions against manufacturer specifications before attaching any connectors.

Overlooking wire gauge selection creates resistance issues, especially in high-current paths like the starter solenoid line. Using undersized cables generates excessive heat, leading to insulation melt or voltage drops that prevent proper engine turnover. For most 12V systems, 10-gauge wire suffices for accessory circuits, while 4- or 6-gauge is mandatory for the main starter feed. Confirm recommended thicknesses in the vehicle’s service manual before cutting any conductors.

Skipping continuity tests between connections invites intermittent problems that surface only under load. A seemingly intact circuit may hide corroded terminals or loose crimps, which fail when current spikes during startup. Use a multimeter to verify zero resistance across each joint, including ground paths, before finalizing the assembly. Even a 0.5-ohm resistance can disrupt solenoid operation in cold conditions.

  • Failing to secure cables away from moving components risks abrasion and short circuits over time. Exhaust manifolds, pulleys, and suspension linkages damage unprotected wires through vibration or heat exposure.
  • Neglecting fuse protection on accessory circuits leaves the entire system vulnerable to overloads. A single shorted radio or heated seat circuit can draw enough current to melt wiring harnesses if unprotected.
  • Assuming polarity matching is unnecessary when using universal replacement units often results in reverse voltage reaching sensitive electronics. Verify diode orientation in alternator circuits if replacing the device, as backward currents destroy control modules.

Heat-Related Pitfalls in High-Amp Circuits

Installing cheap spade connectors on heavy-current paths accelerates degradation. Standard-grade copper terminals oxidize rapidly under 100+ amp loads, creating resistance that mimics a partial break in the circuit. Silver-plated or tinned connectors resist corrosion for several years, while stainless-steel variants last even longer. Apply dielectric grease to each joint during assembly to seal out moisture.

Ignoring voltage drop under cranking conditions guarantees unreliable starts. A healthy system should maintain at least 9.6V at the battery during cranking. Readings below 9.0V indicate excessive resistance–often from corroded ground straps, undersized cables, or poor terminal contact. Measure voltage drop across each major cable segment while someone operates the starter to isolate the bottleneck.

  1. Disregarding the anti-theft bypass requirement in aftermarket installations causes security systems to disable the starter feed sporadically.
  2. Using solid-core wire for any movable section invites fatigue fractures from constant vibration–always opt for stranded conductors.
  3. Installing ground straps on painted surfaces creates high-resistance paths; always scrape paint down to bare metal before attaching.
