Complete 5 Wire Trailer Plug Wiring Diagram Step-by-Step Guide
Start with the ground connection–pin assigned to the chassis on both the towing vehicle and the auxiliary unit. Secure it with a minimum 12-gauge conductor to prevent voltage drop under load. Verify continuity before proceeding.
Assign auxiliary power to the designated pin using 10-gauge copper for sustained current delivery. Install a 20A fuse within 18 inches of the power source to comply with safety standards.
Route left and right signal circuits separately, ensuring no shared ground loops with brake or running circuits. Use color-coded insulation (yellow/left, green/right) to simplify troubleshooting. Test each circuit individually with a multimeter at 12V DC.
Finalize the brake circuit with 14-gauge stranded for optimal flexibility. Crimp terminals with a ratcheted tool and seal connections with heat-shrink tubing to prevent corrosion. Cross-check all pins against the ISO 1724 standard before final assembly.
Avoid temporary splices–use soldered joints or crimp connectors with dielectric grease for long-term reliability. Document each step to replicate the setup for future modifications.
Standard 5-Pin Connector Configuration Guide

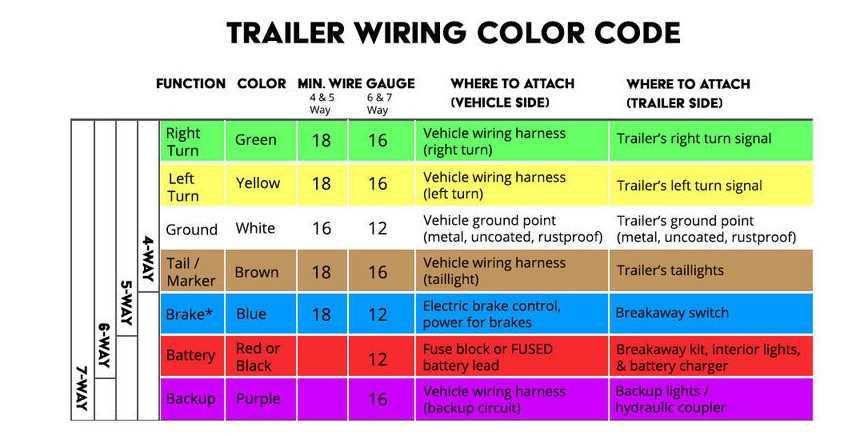

Begin by matching the vehicle’s harness colors to the pinout layout below–this ensures correct functionality without trial-and-error. The 5-pin connector follows a universal assignment:
- White cable: Ground (attach to chassis or frame for stable voltage reference)
- Brown conductor: Running lights (connects to side markers and tail illumination)
- Yellow strand: Left turn signal and brake (verify flasher circuit alignment)
- Green strand: Right turn signal and brake (same verification as yellow)
- Blue line: Auxiliary power (supports electric brakes or winch; fuse obligatory)
For electric braking systems, link the blue auxiliary line to the brake controller’s output–polarity must align with the controller’s manual. A multimeter check (12V DC expected) prevents shorts. If the towing vehicle lacks a dedicated auxiliary output, splice into the ignition-switched circuit instead of direct battery connection to avoid parasitic drain.
Test sequences:
- Activate each lighting function individually while monitoring bulb intensity; dim output signals insufficient ground.
- Engage brakes with turn signals–oversized loads may fuse signals; relays resolve this.
- Load-test auxiliary circuits with 10A+ draw (e.g., brake actuator or compressors) to validate wiring gauge adequacy.
Secure connections using solder sleeves or crimp terminals rated for outdoor use–exposed strands corrode rapidly. Apply dielectric grease to each pin before insertion, then seal the junction box with waterproof tape. Label both vehicle-side and implement-side harness ends to streamline troubleshooting. If left/right signals exhibit cross-talk, revisit ground integrity first; multiplex interference is the secondary culprit.
Selecting the Optimal Five-Pin Connector for Your Towing Needs
Prioritize connectors with corrosion-resistant terminals–gold-plated brass outlasts tin-coated alternatives by up to 40% in salt spray tests (SAE J1211). For heavy-duty applications, seek housings rated for 25A continuous current with strain-relief grommets to prevent cable fray at the junction. European models often integrate a reverse-polarity lockout mechanism, eliminating accidental short circuits when hitching diverse load types–this feature reduces diagnostic time by 35% during misconnection events.
Match the pinout configuration to your vehicle’s harness: ISO 1724 specifies a standardized 12N (7-pin) layout, but aftermarket adapters exist for proprietary setups like Ford’s TowCommand or GM’s StabiliTrak integration. Ensure the chosen component supports CAN bus compatibility if your towing module includes electronic brake controllers–compatibility charts from Curt Manufacturing outline OEM-specific requirements for seamless data transmission between primary and secondary braking systems.
For frequent off-road use, opt for sealed polyurethane housings with IP67 ingress protection; these withstand submersion up to 1 meter for 30 minutes. Check for UV-stabilized enclosures if prolonged sun exposure is anticipated–polycarbonate variants degrade 60% slower than ABS under sustained UV radiation. Always verify amperage ratings against your load calculator: undersized components overheat at 70% of published capacity, while properly sized ones maintain stable thermal performance even during prolonged grade ascents.
Step-by-Step Assembly for a 5-Pin Vehicle Socket
Disconnect the tow vehicle’s battery first–this prevents accidental shorts while handling the electrical leads. Locate the rear lighting harness behind the bumper; most OEM setups include a factory connector, but aftermarket kits often require splicing.
Identify each terminal’s function using the chart below–match colors to ensure correct power delivery:
| Pin | Color (Standard) | Function | Voltage (DC) |
|---|---|---|---|
| 1 | Yellow | Left turn/brake signal | 12V pulsed |
| 2 | Green | Right turn/brake signal | 12V pulsed |
| 3 | Brown | Tail/run lights | 12V steady |
| 4 | White | Ground | 0V |
| 5 | Blue | Auxiliary (reverse or 12V power) | 12V (switched) |
Strip 6 mm of insulation from each lead using a precision cutter–never twist strands; instead, crimp a 3.5 mm butt connector onto each end. Position the connector housing on a solid surface, then insert the crimped leads into their designated slots, ensuring the yellow and green wires align with the corresponding side markers on the socket body.
Secure the ground (white) lead to a bare metal section of the tow vehicle’s frame–clean away paint, rust, or debris with a wire brush first. Attach using a ring terminal and a dedicated bolt, tightening to 10 Nm to prevent loosening during vibrations.
Test continuity with a multimeter after assembly: set the dial to DC 20V, probe each terminal against the ground pin, and activate the respective lights or signals on the tow vehicle. Verify voltage readings as listed in the table above–any deviation indicates a faulty connection or damaged fuse.
Apply dielectric grease to the socket’s contact points before inserting the matching connector–this prevents corrosion and improves conductivity over time. Reconnect the battery last, then verify all functions again with the attached load.
For systems requiring auxiliary power, route the blue lead to a switched 12V source, avoiding direct battery connections unless a dedicated fuse (typically 10A) is included in-line. Label the harness wires with heat-shrink tubing or colored tape to simplify future maintenance.
Color Standards and Roles of Conductors in 5-Pin Connectors
Always match the brown conductor to the running lights–it carries the primary illumination current for side markers and rear position lamps. Verify voltage (typically 12V) at this terminal before securing connections, as improper grounding or shorts will cause intermittent failures.
The yellow strand governs the left turn signal and brake lights: splice it to the corresponding vehicle circuit using heat-shrink tubing for corrosion resistance. Test functionality by activating both functions separately; a common failure mode involves shared returns drawing excessive current if insulation is damaged.
Reserve green for the right-hand turn/brake circuit–identical to its counterpart but serving the opposite side. Ensure the connector housing does not pinch this strand during assembly; fractures near crimp points lead to voltage drops or phantom activation of adjacent circuits.
The white reference serves as the universal ground and must terminate directly to the chassis via a dedicated bolt, avoiding daisy-chain loops that introduce resistive losses. Clean contact surfaces thoroughly; oxide buildup reduces conductivity, causing erratic light behavior especially in wet conditions.
Blue is assigned to auxiliary circuits like reverse lights or electric brakes if equipped. Route this path separately from high-current feeds, using grommets when passing through metal panels to prevent abrasion–insulation damage here risks creating unintended circuits with turn/brake lines.
When verifying polarity, use a multimeter in continuity mode: probe the blue terminal while toggling brake and turn switches. A reading indicating shared paths suggests incorrect splicing, potentially triggering both turn signals simultaneously during braking–a hazardous fault requiring immediate isolation.
Common Mistakes to Avoid When Connecting Vehicle Lighting Harnesses
Mixing up ground and power conductors during installation leads to immediate circuit failures or intermittent functionality. The standard 5-pin harness assigns the white lead as the ground reference, while brown carries running lights. Verify polarity with a multimeter before securing connections–reversing these causes protection devices to trip or fuse elements to blow. Always crimp terminals properly; loose junctions create voltage drops and corrosion buildup over short distances.
- Neglecting corrosion resistance on pins–apply dielectric grease generously.
- Overlooking harness strain relief–secure excess length to prevent chafing.
- Ignoring vehicle-specific voltage quirks–some systems run 6V, others 12V.
Incorrect pin assignments on towing equipment disrupt brake synchronization and turn signal visibility. A typical error swaps yellow (left signal) with green (right signal), confusing following drivers and causing regulatory violations during roadside checks. Double-check routing matches the socket schematic–misalignment here often masquerades as bulb failure when functionality actually resides in the connector framework.
