Step-by-Step Guide to Wiring a 50 Amp RV Outlet with Diagram
Use 6 AWG copper wire for the hot conductors and an 8 AWG copper wire for the neutral and ground. This sizing prevents overheating under a sustained 50-power load, complying with NEC Table 310.16 for 75°C terminals. Verify the breaker’s ampacity rating matches the wire–most recreational vehicle setups demand a double-pole 50 switch, though some high-demand models may require a 60.
Begin by shutting off the main panel before handling any live contacts. Place the breaker in the panel’s top position to ensure optimal cooling. Strip exactly 0.5 inches of insulation from each conductor, then secure them with torque screwdriver set to 17 inch-pounds–loose connections are the primary cause of arc faults in these installations.
The receptacle must be a NEMA 14-50 configuration, rated for 50-power at 240 volts. Mount it within 18 to 24 inches of the ground to comply with RV park regulations. Use a weatherproof cover if the installation is outdoors–moisture infiltration degrades connection integrity over time. Ground the receptacle to a dedicated 8-foot copper rod driven into the soil, ensuring resistance below 25 ohms.
Test continuity with a multimeter set to ohms; readings should show zero resistance between hot conductors and infinite resistance between any hot wire and ground. Energize the circuit only after confirming the neutral is bonded to the grounding bus at the service panel–never at the RV pedestal. Replace the breaker if it trips during initial testing, as this indicates a potential internal fault.

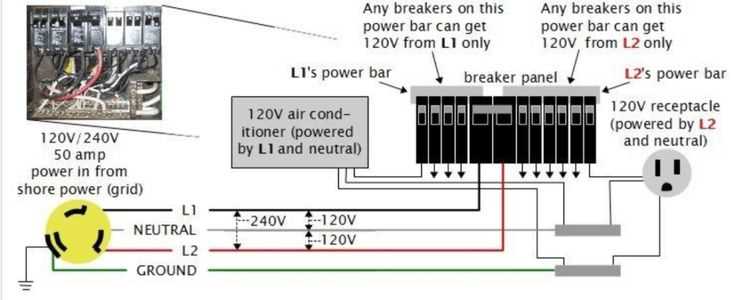

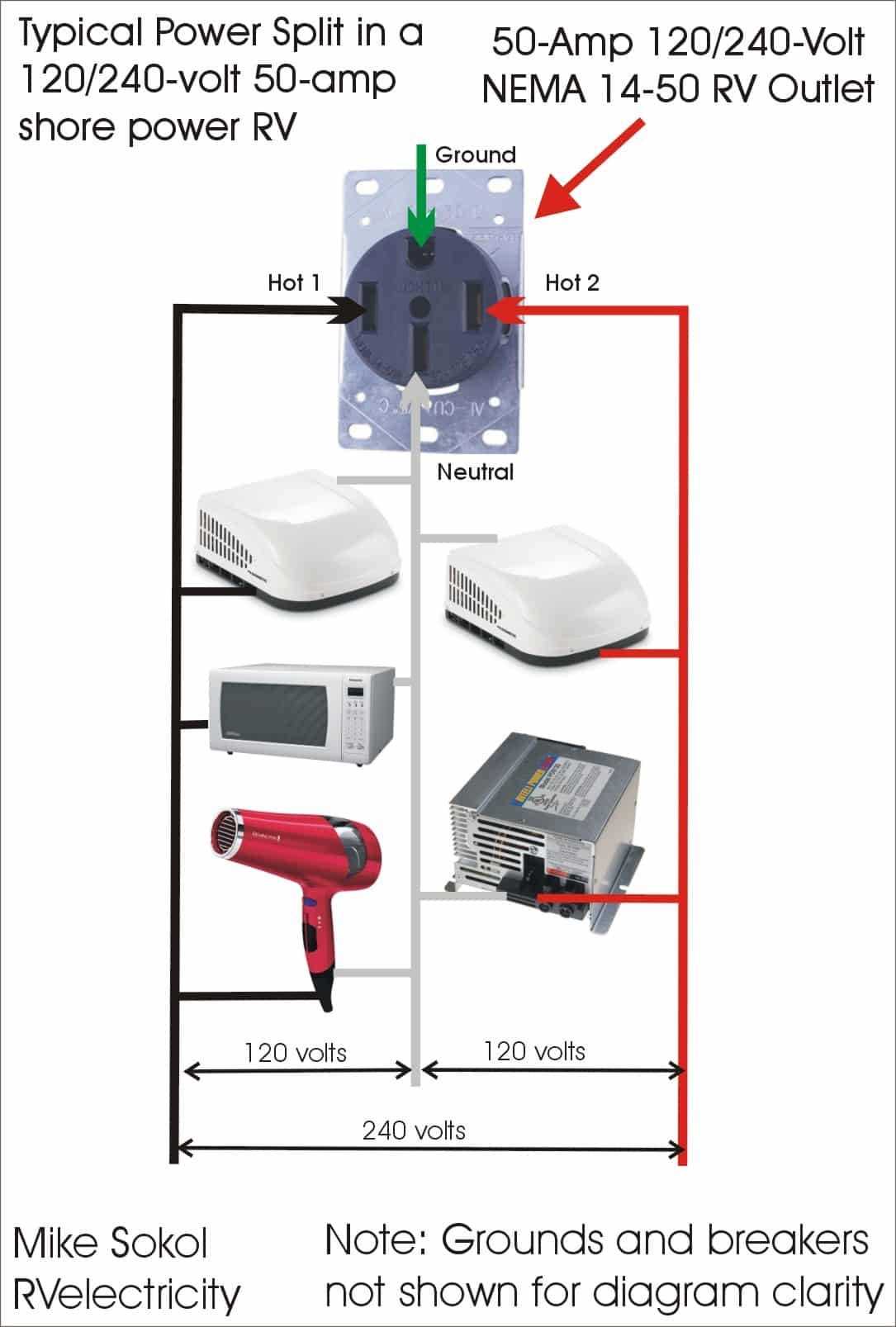

For split-phase systems, ensure the neutral wire carries only the imbalance current–typically under 20 power units during normal operation. Overloading the neutral risks damaging onboard electronics. Always verify local codes, as some jurisdictions require rigid conduit for underground runs, while others permit direct burial with UF cable.
50-Ampere Recreational Vehicle Power Connection Installation Manual
Install a double-pole 50A breaker in your service panel to handle the heavy-duty current draw. Use 6 AWG copper wire for runs under 50 feet and 4 AWG for longer distances to prevent voltage drop.
Mount the receptacle box at least 18 inches above ground level to avoid moisture intrusion. Secure the box with corrosion-resistant screws rated for outdoor use.
Connect the wires as follows:
- X (red): Terminal marked “Hot 1” on the plug
- Y (black): Terminal marked “Hot 2” on the plug
- Neutral (white): Dedicated neutral terminal
- Ground (green/bare): Grounding screw or lug
Tighten connections to 20 inch-pounds using a torque screwdriver. Loose connections create resistance and generate dangerous heat buildup.
Apply dielectric grease to terminals before final assembly to prevent oxidation. Wrap exposed connections with self-fusing silicone tape rated for 600V.
Test continuity between each conductor and ground with a multimeter before energizing. Expected readings:
- Hot to hot: 240V (±5%)
- Hot to neutral: 120V (±3%)
- Hot to ground: 0 ohms
Label the breaker “RV Supply” with a permanent marker. Include the circuit voltage (240V) and maximum current (50A) on the panel schedule.
Install a lockout hasp on the breaker when not in use. Store the key adjacent to but separate from the main electrical shutoff for quick access during emergencies.
Essential Gear for Setting Up a Heavy-Duty Power Connection
Start with a 50-service inlet box rated for outdoor use, ensuring it has a weatherproof cover and built-in grounding lugs. Brands like Siemens or Eaton offer models with NEMA 14-50 configurations, which include four terminals: two hot legs, one neutral, and one ground. Verify the enclosure’s UL listing to confirm compliance with local electrical codes.
Select 6-gauge copper conductors for the main feed, as they handle up to 55 thermal units (BTUs) of current without overheating. For longer runs exceeding 25 meters, opt for 4-gauge wire to minimize voltage drop. Avoid aluminum wiring unless using specialized connectors like AlumiConn, which prevent oxidation at connection points.
A 2-pole, 50-breaker is non-negotiable. Double-check the breaker’s frame size–typically 1-inch for residential panels–to ensure compatibility with your circuit board. Schneider Electric’s QO or Square D’s Homeline series are reliable choices, featuring magnetic trip mechanisms for overload protection.
Use conduit for underground runs, with Schedule 40 PVC recommended for durability. For above-ground installations, rigid metal conduit (RMC) or intermediate metal conduit (IMC) provides better protection against physical damage. Secure all conduit bends with straps every 1.2 meters to prevent sagging.
Equip yourself with torque-rated screwdrivers to tighten terminal screws to manufacturer specifications–usually 45 inch-pounds for 6-gauge wire. A calibrated digital multimeter is critical for verifying voltage between hot legs (240V) and neutral-to-ground (0V) before energizing the system.
Include anti-corrosion paste (like Noalox) for all copper-to-aluminum connections, along with heat-shrink tubing rated for 125°C to insulate splices. For underground applications, wrap connections in self-amalgamating tape to seal out moisture, followed by a layer of electrical tape for mechanical protection.
Specialized Safeguards
Install a surge protector with at least 3,500 joules of suppression, such as the Progressive Industries EMS-HW50C, to shield recreational gear from transient spikes. For installations near saltwater environments, add a zinc anode to the grounding rod to prevent galvanic corrosion.
Verification Checklist
Before finalizing the setup, confirm the grounding electrode has less than 25 ohms of resistance using a ground meter. Test GFCI functionality by pressing the “Test” button on the receptacle–it should trip the breaker instantly. Label all cables with wire markers denoting L1, L2, N, and G to simplify future troubleshooting.
Step-by-Step Wire Connection for a 50 Amp RV Receptacle

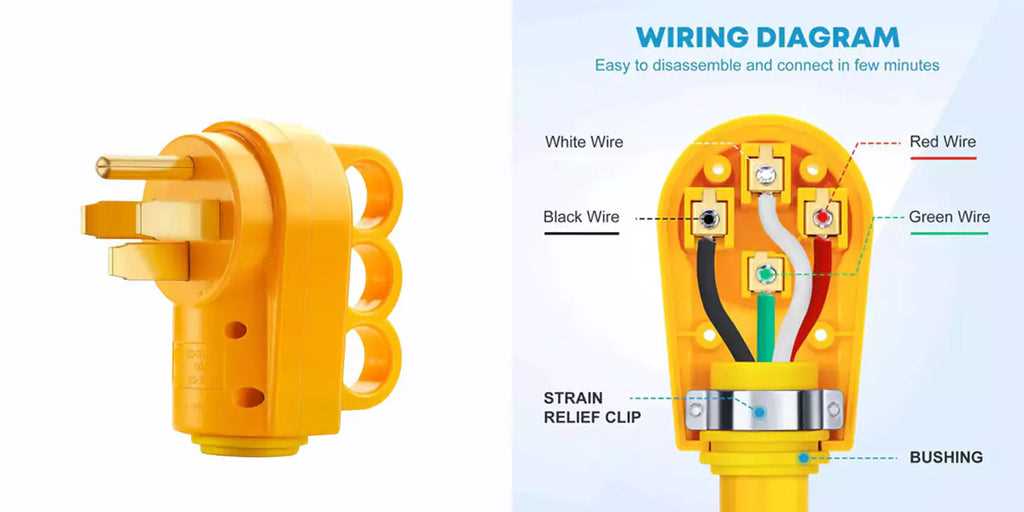

Turn off the main circuit breaker before touching any conductors. Use a non-contact voltage tester to confirm all lines are dead–this step prevents fatal shocks. Strip ¾ inch of insulation from the ends of the 6 AWG copper cables, ensuring no nicks on the strands. Twist the exposed strands clockwise tightly, then secure them under the terminal screws of the NEMA 14-50 plug, tightening to 20 inch-pounds with a torque screwdriver.
Connect the black and red power leads to the brass screws marked L1 and L2, respectively. The white neutral cable attaches to the silver screw, while the green or bare grounding conductor fastens to the green grounding screw–never interchange these. Double-check each connection with a multimeter set to continuity mode; a beep confirms correct placement. If readings fluctuate, loosen, reposition, and retighten the screws until stable.
Mount the receptacle into a weatherproof electrical box designed for outdoor use, ensuring the cover gasket seals completely. Use 1¼-inch stainless steel screws to attach the box to a stud or masonry anchor, preventing vibration loosening over time. Apply dielectric grease to the terminal screws and plug blades to inhibit corrosion from moisture or road salt exposure. Test the completed setup with a plug-in circuit analyzer–LEDs should indicate proper polarity and grounding.
Label the breaker in the service panel with “RV Hookup” using permanent ink on a ½-inch-wide adhesive tag. Store spare NEMA 14-50 plugs and 8 AWG pigtails in a locked toolbox to minimize theft risk. Recheck torque specs annually–thermal cycling can loosen connections by up to 15% over 12 months. Replace any receptacle with cracks, discoloration, or resistance exceeding 0.5 ohms across terminals.
Safety Precautions When Installing a Heavy-Duty Recreational Vehicle Power Connection
Shut off the main circuit breaker at the service panel before handling any electrical components. A 50-volt recreational hookup requires a double-pole breaker rated for 60 volts–verify this matches the manufacturer’s specifications on the panel label. Use a non-contact voltage tester to confirm all conductors are de-energized; probe each wire individually, including neutral and ground, as residual current can persist.
Select cables with a minimum gauge of 6 AWG for copper conductors to prevent overheating under full load. Inspect insulation for cracks, fraying, or discoloration–replace any damaged wire immediately. Secure all connections with torque-rated terminals: tighten terminal screws to 20 inch-pounds for aluminum clamps and 25 inch-pounds for copper lugs. Loose connections generate heat, increasing fire risk.
Ground the installation properly by bonding the neutral conductor to the grounding rod at the main service panel only. Use an 8-foot, 5/8-inch copper-clad steel rod driven vertically into moist soil, ensuring a resistance below 25 ohms. If soil conditions prevent low resistance, install additional rods spaced at least 6 feet apart. Test the grounding path with a clamp-on ohmmeter before energizing the circuit.
Avoid installing the receptacle in areas prone to water exposure, even if rated for outdoor use. Mount it at least 12 inches above grade on a non-combustible surface, such as concrete or metal siding. If using a weatherproof enclosure, seal cable entries with silicone-based duct seal to prevent moisture ingress. Label the circuit clearly at the panel with “RV Receptacle – 50V” in permanent ink to prevent accidental deactivation during maintenance.
| Material | Minimum Size | Max Temperature Rating | Torque Spec (lb-in) |
|---|---|---|---|
| Copper Wire | 6 AWG | 90°C | 25 |
| Aluminum Wire | 4 AWG | 75°C | 20 |
| Grounding Rod | 5/8″ diameter | N/A | N/A |
