Build a 555 Timer Astable Multivibrator Step-by-Step Circuit Guide
Use a dual-threshold pulse generator with three resistors and two capacitors for stable square-wave output. The first resistor (R₁) connects the power pin to the discharge pin, the second (R₂) bridges the discharge pin to the trigger/threshold junction, and the third (R₃) acts as a pull-up. Place the main capacitor (C₁) between the trigger/threshold junction and ground, with a secondary capacitor (C₂) at the control voltage pin to filter noise.
For predictable timing, calculate the charge and discharge cycles using the formula T = 0.693 × (R₁ + R₂) × C₁ for high output and T = 0.693 × R₂ × C₁ for low output. Adjust R₂ to at least 1kΩ–values below this risk unreliable oscillation. If the output drifts, reduce C₂ from 100nF to 10nF to minimize jitter.
Test frequency stability with an oscilloscope: probe the output pin and ground, ensuring a clean 50% duty cycle at 1kHz with R₁ = 4.7kΩ, R₂ = 10kΩ, and C₁ = 100nF. For higher frequencies, halve R₁ and R₂ while keeping their ratio fixed. If the waveform distorts, add a 10μF decoupling capacitor across the power supply pins to suppress voltage spikes.
Optimize thermal performance by avoiding carbon-film resistors–metal-film variants (tolerance ±1%) improve long-term stability. For low-power applications, replace the primary IC with a CMOS variant and increase R₁ and R₂ by 10× to reduce quiescent current to <100μA. Always match capacitor types: use polyester for <100nF and electrolytic (with low ESR) for larger values.

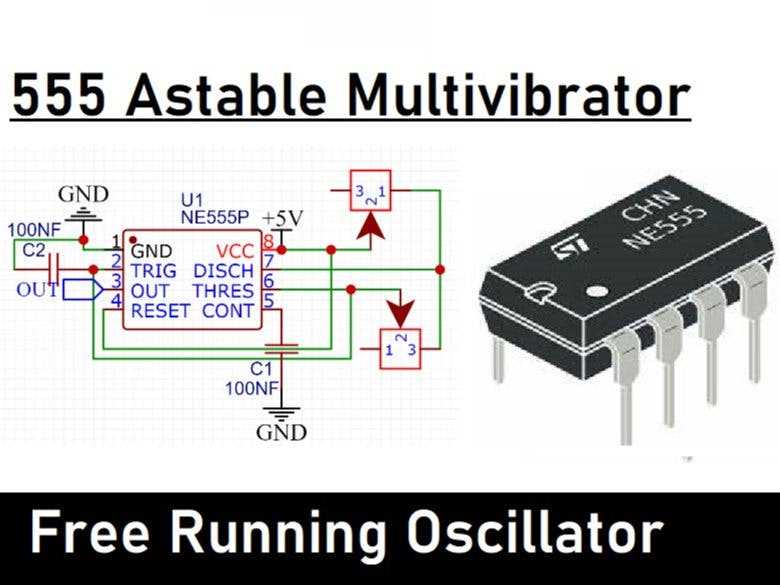

Building a Reliable Oscillator Schematic with the NE555 Timer
Begin by selecting a 0.1µF timing capacitor for the timing network–this value balances frequency stability and component availability. Pair it with two resistors: one between 1kΩ and 10kΩ for the charge path (R1) and another of similar or slightly lower resistance (R2) for discharge control. Lower resistor values yield faster oscillations, but avoid dropping below 1kΩ to prevent excessive current draw on the output stage.
For consistent operation, use metal-film resistors with 1% tolerance or better. Carbon-film types introduce thermal drift, skewing frequency by up to 5% over a 20°C temperature swing. The capacitor should be a low-leakage type (e.g., polyester or polypropylene) to minimize drift caused by dielectric absorption, which can shift timing by several milliseconds per cycle.
- Connect the discharge pin (7) to the junction of R1 and R2 through a direct trace–avoid vias or long runs that add parasitic capacitance.
- Ground the control voltage pin (5) with a 10nF ceramic capacitor to suppress high-frequency noise. Omitting this step introduces random jitter, especially in noisy environments like switching power supplies.
- For supply decoupling, place a 10µF tantalum capacitor within 5mm of the IC’s power pins (8 and 1) alongside a 100nF ceramic capacitor for high-frequency noise rejection.
Critical Frequency Adjustments
The output frequency follows the formula f = 1.44 / ((R1 + 2*R2) * C), where R-values are in ohms and C in farads. For a 1Hz target, use R1=68kΩ, R2=33kΩ, and C=10µF. To fine-tune, substitute a 50kΩ potentiometer for R1, but wire it as a rheostat (only two pins) to avoid accidental opens during adjustment. A 10-turn trimmer allows precision to within 0.1%, though most applications tolerate ±2% deviation.
Power supply ripple directly modulates frequency. A 100mV ripple on a 5V rail can cause ±3% frequency variation. Use a linear regulator or add a 100Ω series resistor plus 1000µF capacitor at the supply input to filter low-frequency noise. For battery-powered devices, monitor discharge curves: a 20% voltage drop (e.g., from 9V to 7.2V) increases frequency by ~8% due to reduced internal current-limiting thresholds.
Output Stage Optimization
The internal totem-pole output stage sinks and sources up to 200mA, but exceeding 100mA introduces thermal distortion, manifesting as uneven square-wave symmetry. To drive heavier loads (e.g., relays, LEDs), use an external transistor like a 2N2222 or MOSFET. Connect the base/gate through a 1kΩ resistor to the output pin; the emitter/source should return to ground, with the load between the collector/drain and positive rail.
- LED loads: Add a 220Ω series resistor to limit current to 15mA. Without it, the LED forward voltage (typically 1.8V–3.3V) disrupts timing by altering the discharge path voltage.
- Inductive loads: Place a flyback diode (e.g., 1N4007) across coils to clamp voltage spikes. Omitting this risks avalanching the timer’s internal transistors during turn-off.
- Logic interfaces: For TTL/CMOS compatibility, use a 1kΩ pull-up resistor if the input cannot tolerate the 1.7V low-level output.
Avoid breadboarding this configuration with long, unshielded wires–parasitic capacitance between traces can cause subharmonic oscillations or latch-up. For professional PCBs, keep trace inductance below 10nH/cm by using wide, short paths (minimum 0.3mm width). Ground planes under the timing network reduce cross-talk from nearby high-speed signals, which can couple into the threshold/comparator inputs and alter frequency unpredictably.
Key Elements for Building a Reliable Pulse Generator
Select a timer IC with a minimum 9V tolerance to handle supply variations. The NE555P variant offers better thermal stability than cost-focused alternatives like the TLC555. Check datasheets for maximum output current–typically 200mA–but avoid exceeding 80% of this limit to prevent overheating.
- Timing capacitors: Polyester film types (e.g., 1μF, 100V) resist leakage currents better than ceramic disks. Match capacitance to desired frequency range: larger values (10μF+) suit sub-1Hz pulses, while 100nF-1μF targets 1Hz-10kHz.
- Resistors: Metal film 1% tolerance ensures frequency consistency. For R1 and R2, use 1kΩ-1MΩ; lower values risk exceeding the IC’s sink/source limits. Always pair with a 0.1μF decoupling capacitor within 2cm of the IC power pins.
- Potentiometers: Multi-turn cermet types (e.g., Bourns 3296) allow precise frequency adjustments. Wire as R2 to vary duty cycle without affecting timing stability.
- Output load: LEDs demand current-limiting resistors (e.g., 330Ω for 5V). For inductive loads like relays, add a flyback diode (1N4007) across the coil to clamp voltage spikes.
Power supplies below 4.5V risk erratic triggering. Use a linear regulator (7805) if stability is critical, or a 3xAA battery pack for portable setups. Avoid rapid transients–sudden voltage drops >10% can reset internal flip-flops.
For adjustable frequency ranges, wire a two-resistor configuration with R1 between Discharge and Trigger pins, and R2 bridging Trigger to Threshold. Calculate period using T=0.693*(R1+2*R2)*C. Replace R2 with a potentiometer to sweep frequency without recalculating R1/C pairs. Test with an oscilloscope: rise times should stay below 100ns to maintain clean square waves.

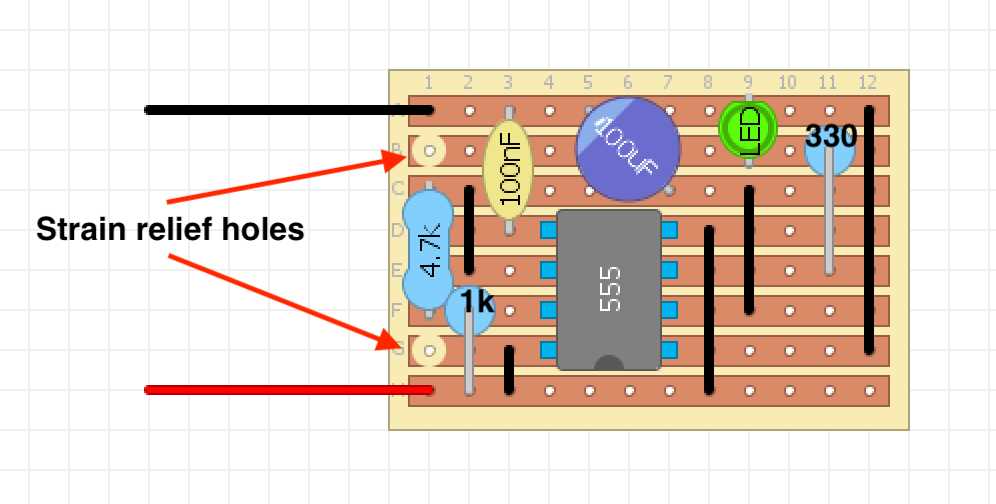

Building the Pulse Generator: Practical Assembly Guide
Select a ceramic capacitor rated 10 nF for C1 (pins 5–GND). This stabilizes reference voltage fluctuations by providing low impedance bypass directly between control and ground. Fit the component as close to the chip’s body as physically possible–trace length should not exceed 1.5 mm to prevent parasitic oscillations above 5 kHz. Polarity is irrelevant here; orient leads perpendicular to the board edge to simplify soldering.
Choose timing components based on desired frequency and duty cycle using the formula f = 1 / (TH + TL), where TH = 0.693 * (RA + RB) * C and TL = 0.693 * RB * C. Below are validated component pairings for common pulse rates:
| Target Frequency (Hz) | RA (kΩ) | RB (kΩ) | C (μF) | Measured Duty Cycle (%) |
|---|---|---|---|---|
| 1 | 470 | 470 | 10 | 50.4 |
| 100 | 10 | 10 | 0.1 | 66.1 |
| 1000 | 10 | 6.8 | 0.01 | 43.8 |
Solder RA (pin 7–C) and RB (pin 7–pin 6) in a single continuous trace to minimize resistance drift. Use 1% tolerance metal film resistors for frequencies above 50 kHz; carbon films suffice below 1 kHz. Cut leads flush after soldering to avoid accidental shorts against nearby vias. Verify continuity with a multimeter before applying power–any reading above 0.3 Ω indicates cold joints requiring reheating.
Attach C2 (pin 6–GND) last; its value determines timing precision. Electrolytic capacitors introduce leakage currents that skew pulse width–use polyester or polypropylene types for frequencies under 1 MHz. When inserting polarized variants, align the negative stripe toward ground. After soldering, clip excess lead length, then apply conformal coating to exposed traces if operating in humid environments to prevent corrosion-induced timing drift.
Final Validation and Troubleshooting Steps
Power the board with 5–15 VDC via pin 8 (+) and pin 1 (GND). Probe pin 3 with an oscilloscope: correct output shows clean square waves with rise/fall times under 100 ns. If waveform rings excessively, add a 220 Ω resistor in series with the output (pin 3) to dampen overshoot. Excessive jitter above 10 kHz often stems from noisy supply lines–rectify by adding a 10 μF tantalum capacitor across the power rails adjacent to the chip. For intermittent triggering, increase C1 to 100 nF or reduce RA by 20% to lower sensitivity to supply noise.
Calculating Output Timing with Passive Component Values
Start by determining the charge time (Thigh) using the formula:
Thigh = 0.693 × (R1 + R2) × C. Both resistors affect the on-period, so measure them precisely in ohms and the capacitor in farads.
For the off-period (Tlow), apply:
Tlow = 0.693 × R2 × C. Here, only the second resistor influences the duration. Ensure component tolerances are accounted–5% variance in resistors or 10% in capacitors alters timing by milliseconds.
Frequency (f) derives from both intervals combined:
f = 1 / (Thigh + Tlow). Substituting the previous formulas yields:
f = 1.44 / ((R1 + 2 × R2) × C). Use this to target specific oscillations; for 1 kHz, select values near R1 = 1 kΩ, R2 = 2 kΩ, and C = 0.1 μF.
Duty cycle (D) follows:
D = (Thigh / (Thigh + Tlow)) × 100%.
Simplify to:
D = (R1 + R2) / (R1 + 2 × R2) × 100%.
A 50% duty cycle requires R1 2, while shorter pulses demand R1 ≈ 0.
Temperature drift impacts accuracy. Ceramic capacitors shift ±15% over 25°C, while electrolytics stabilize at ±5% after thermal equilibrium. Polyester films hold ±2% but cost more. Match materials to precision needs–high-stability applications benefit from NP0 ceramics or polypropylene.
Parasitic capacitance (Cp) on breadboards adds 5–20 pF, skewing low-frequency signals. For sub-100 Hz oscillations, account for it by reducing C slightly or confirming on a PCB. Track layout also matters; keep traces short to minimize interference.
Power supply ripple distorts timing. Use a decoupling capacitor (0.1 μF ceramic) near the chip’s power pins to filter noise. Linear regulators improve stability over switching supplies, especially when targeting
For fixed frequencies, pre-calculate resistor ratios. Example: To achieve 1 MHz, pair R1 = 470 Ω, R2 = 1 kΩ, and C = 1 nF. Validate with an oscilloscope–probes with 10× attenuation ensure minimal loading.
