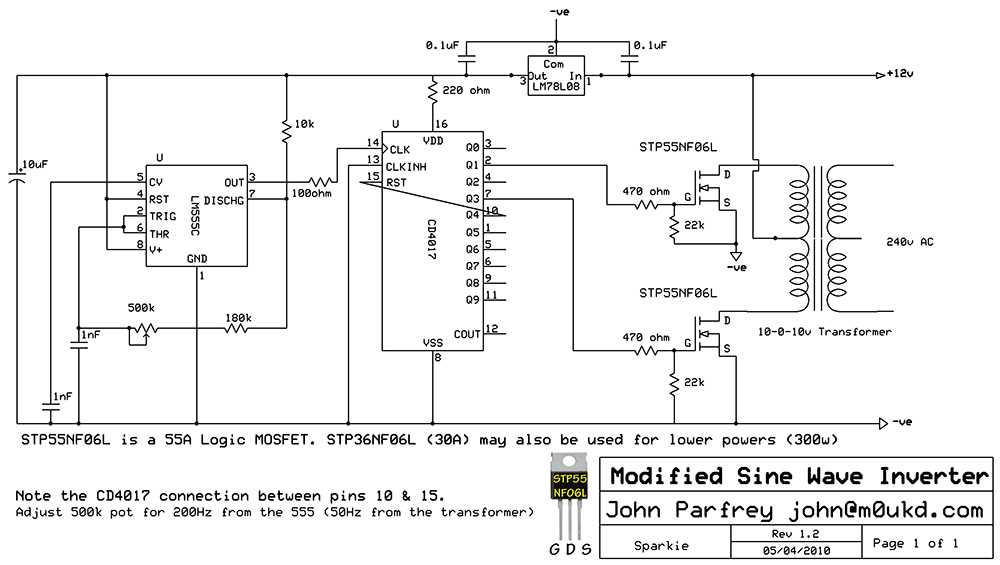

Simple 555 Timer Inverter Circuit Design with Schematic

Start with a NE555 timing chip configured in astable mode to generate a steady square wave output between 50Hz and 200Hz–ideal for driving small loads. Use two 10kΩ resistors and a 100μF capacitor to set the frequency: f = 1.44 / ((R1 + 2R2) × C). Replace R1 and R2 with precise values for 60Hz or custom waveforms. Ensure the timing capacitor has a voltage rating at least 1.5× above the input supply to prevent breakdown.

For power handling, pair the timing component with a push-pull transistor stage using complimentary 2N3904 and 2N3906 BJTs or logic-level MOSFETs like IRLZ44N. Drive the gates/base with a maximum 20mA to avoid overloading the timer’s output. Keep lead lengths under 5cm to minimize inductance; solder directly to a perforated board if high-frequency operation is required.

Regulate input voltage between 5V and 15V DC–any higher risks degrading the timing chip’s performance. Add a 1N4007 diode across the supply for reverse polarity protection and a 100μF bulk capacitor to smooth ripple. Test the output waveform with an oscilloscope before connecting a load: clipped edges or excessive ringing indicate layout issues.

For isolation, opt for a gate driver IC like TC4427 instead of direct transistor coupling. This prevents back-EMF spikes from damaging the timing unit. If efficiency is critical, replace the diode with a Schottky (1N5817) and add a 10Ω series resistor to limit inrush current. For 230V AC output, supplement the design with a step-up transformer rated for 10VA–avoid undersized cores to prevent saturation.

Fine-tune duty cycle by adjusting the timing capacitor’s value in 10% increments. A 75% duty cycle maximizes power transfer while keeping transistor dissipation low. For variable output, replace one resistor with a 100kΩ potentiometer–but ensure the wiper can handle the current (use a multi-turn trimmer) to avoid instability.

Building a Reliable DC-to-AC Conversion Schematic

Select a bipolar junction transistor (BJT) with a current gain (h_FE) exceeding 100 and a collector-emitter breakdown voltage (V_CEO) of at least 30V for robust switching. Pair it with a timing IC in astable configuration, setting the frequency via two resistors (R_A, R_B) and one capacitor (C) using the formula: f = 1.44 / ((R_A + 2R_B) × C). For a 50Hz output, target values like R_A = 10kΩ, R_B = 100kΩ, and C = 100nF, adjusted ±5% for tolerance.

Use a center-tapped transformer with a 12V primary and 230V secondary for standard mains compatibility. Ensure the winding ratio matches the target AC voltage–calculate turns with N_primary / N_secondary = V_primary / V_secondary. Add a 1N4007 diode across the transistor’s base-emitter junction to protect against reverse voltage spikes, and a 1000μF electrolytic capacitor on the DC input to smooth rectified voltage. Test with an oscilloscope to confirm a clean square wave before connecting loads.

Key Component Specifications

• Timing element: NE555 variant (e.g., LM555) or low-power CMOS LT1054 for battery applications.
• Switching device: MJE13003 (40V, 1.5A) or IRFZ44N MOSFET (55V, 49A) for higher power.
• Heat management: Mount the transistor on a TO-220 heatsink with thermal paste; derate by 20% if ambient >40°C.
• Safety: Fuse the DC input (e.g., 3A slow-blow) and add a varistor (250V) across the AC output to clamp transients.

Common Pitfalls & Fixes

1. Distorted waveform: Replace R_B with a 50kΩ potentiometer to fine-tune frequency symmetry.
2. Transistor overheating: Verify base current is ≤5mA; increase R_B if necessary.
3. Low output voltage: Check transformer polarity or add a 1μF polyester coupling capacitor between the timing IC and transistor base.
4. Audible transformer hum: Secure windings with epoxy or upgrade to a toroidal core to reduce mechanical vibration.

Core Elements Needed for a Bistable Multivibrator Power Conversion Setup

Start with a bipolar timing chip–the NE555 variant remains the most reliable for low-power AC generation tasks. Pair it with a 10kΩ potentiometer to adjust frequency output between 50Hz and 200Hz, ensuring compatibility with small appliances. For power handling, a pair of TIP31C NPN transistors or equivalent (e.g., MJE13003) will suffice for loads up to 60W; exceed this, and thermal runaway becomes a risk without proper heatsinks.

Component	Specification	Critical Notes
Timing IC	NE555P or TLC555	Avoid CMOS versions for inductive loads
Switching transistors	TIP31C, MJE13003	Check hFE ≥ 20 for maximum efficiency
Resistors	1kΩ–10kΩ, 1/4W carbon film	Metal film for precision frequency tuning
Coupling capacitors	0.1µF–1µF, 50V polyester	Low ESR prevents waveform distortion

Transient protection demands a 1N4007 diode across the load to suppress back EMF, and a snubber network (100Ω resistor + 0.1µF capacitor) on the transformer primary to dampen voltage spikes. For output smoothing, a 220µF electrolytic capacitor rated at 400V or higher eliminates residual DC components–polarity misalignment here guarantees failure within minutes.

Power the control section with a 12V–15V DC supply; linear regulators (7812) work but waste heat. For battery-driven setups, add a 100µF input capacitor to stabilize voltage sag during peak switching. Avoid ground loops by routing the timing chip’s GND pin directly to the power source negative–ignorning this causes erratic oscillation or premature shutdown under load.

Step-by-Step Assembly for a Time-Based Power Conversion Module

Begin by soldering the timing chip’s eighth pin to a 12V DC input via a 100nF decoupling capacitor–or a 0.1µF ceramic–to filter voltage spikes. Connect the fourth and eighth pins together to enable the internal flip-flop; neglecting this link forces a permanent shutdown state. Position a 1kΩ resistor between the seventh pin and the positive rail, then attach a 10kΩ potentiometer from the sixth pin to ground for adjustable frequency control. A 100µF electrolytic capacitor wired from the second pin to ground sets the pulse duration, while a 1N4148 diode bridges the second and sixth pins to clamp reverse voltages during discharge cycles.

For the switching stage, pair an IRFZ44N MOSFET with a 10Ω gate resistor to limit inrush current. The MOSFET’s drain connects to the primary winding of a 230V center-tapped transformer (12-0-12V), while its source ties to ground. Add a 10kΩ pull-down resistor on the gate to prevent floating during operation. A 1A fast-recovery diode across the transformer’s secondary coils suppresses back-EMF spikes–omit this and risk permanent MOSFET damage. Use 18AWG wire for primary connections to handle transient currents exceeding 2A.

Test the setup with a 220Ω load before full-scale use. Probe the timing chip’s third pin with an oscilloscope: expect a 50Hz square wave with 45-55% duty cycle. If the waveform distorts, halve the 10kΩ potentiometer’s value or swap the 1N4148 for a Schottky diode. For stability, mount the timing chip on a heatsink if ambient temperatures exceed 40°C, and enclose the assembly in a grounded metal case to reduce EMI.

Calculating Resistor and Capacitor Values for Desired Frequency

Start with the formula T = 0.693 × (R1 + 2R2) × C, where T is the oscillation period in seconds, R1 and R2 are resistance values in ohms, and C is capacitance in farads. For a target frequency of 1 kHz, T equals 0.001 seconds. Select R1 between 1 kΩ and 10 kΩ to ensure stable operation–lower values risk excessive current draw, while higher resistance increases sensitivity to noise. For example, with R1 = 4.7 kΩ and C = 100 nF, solve for R2: 0.001 = 0.693 × (4700 + 2R2) × 100×10⁻⁹. Rearranging gives R2 ≈ 2.2 kΩ.

Validate results with a breadboard test–deviations exceeding ±5% indicate parasitic effects or component tolerances. For frequencies below 10 Hz, increase C to 1 µF or higher to avoid impractically large resistors. For precision timing, use 1% tolerance resistors and low-leakage capacitors like polyester or polypropylene. Avoid ceramic capacitors in low-frequency designs due to voltage coefficient errors. Adjust R2 dynamically if duty cycle modulation is required; a 50% duty cycle occurs when R1 ≪ R2, while unequal ratios create asymmetrical waveforms.

Frequent Errors in Timed Oscillator Builds and Corrective Steps

Incorrect capacitor values misalign output frequency, causing unstable operation. For a 12V input, use 470nF for timing capacitor C1 if targeting 50Hz; 220nF shifts it to 110Hz. Verify values with a multimeter before soldering–tolerance deviations beyond ±5% distort waveform symmetry.

Underestimating power dissipation leads to thermal shutdown. A TO-92 timer handling 200mA requires heatsinking when driving inductive loads. Replace with a DIP-8 package in high-current applications or add a 10Ω series resistor to limit surge currents. Ensure supply voltage matches the timer’s absolute maximum; 15V on a 12V-rated unit degrades lifespan.

Ignoring PCB trace widths results in voltage drops. Trace resistance of 0.1Ω over 10cm dissipates 1W at 3A–use 2oz copper thickness for paths carrying >1A. Route high-current traces away from signal lines to prevent crosstalk coupling above 20mV. Ground loops in poorly isolated circuits introduce noise; adopt a star grounding scheme to sink return currents directly to the power supply.

Overlooking feedback polarity in flyback transformers reverses phase, destabilizing oscillations. Confirm winding direction with a continuity test; a 10-turn primary vs 200-turn secondary demands correct dot notation placement. Incorrect phase manifests as erratic frequency drifts >15%. Swap transformer leads if output amplitude collapses below 80% of expected RMS.

Using generic diodes instead of ultrafast types causes switching losses. A 1N4007’s 5μs recovery time suffices for
