How to Build a 555 Timer Monostable Circuit Step by Step Guide
Use a time-base IC to generate a fixed-duration output pulse when triggered–this arrangement solves delays from milliseconds to hours without drift. Connect pin 2 to a switch or logic signal for instant activation. A 1μF capacitor between pin 1 (ground) and pin 6 delivers a 1-second pulse with a 10kΩ resistor; scale resistance up to 1MΩ for longer intervals. Avoid electrolytic capacitors above 100μF–they leak current and alter timing accuracy.
Link pin 6 and 7 together to form the timing network. Bypass pin 5 to ground with a 10nF capacitor to suppress noise from power lines–omitting this risks false triggers during voltage spikes. Place a 1N4148 diode across the timing resistor to clamp inductive load transients if driving relays.
Power the device between 4.5V and 16V; voltages outside this band distort output duration. Add a 0.1μF decoupling capacitor close to the VCC pin for stable operation under load changes. Test pulse width variation with an oscilloscope–expected tolerance is ±2% with metal-film resistors and ±5% with carbon types.
For edge-triggering, use a 1kΩ pull-down resistor on the input line to prevent floating states. Configure a 10kΩ feedback resistor from output (pin 3) to threshold (pin 6) to enable retriggering without reset delays. Reject spurious pulses shorter than 10μs by inserting a 10nF capacitor in series with the trigger input.

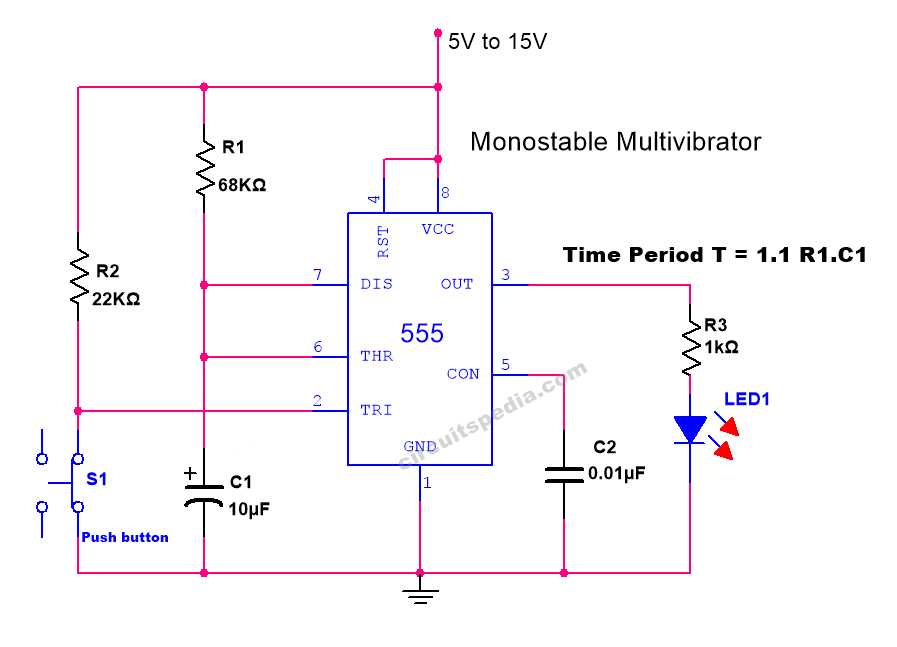

Designing a Single-Pulse Timer Schematic: Practical Guidelines
Select a timing capacitor between 10 nF and 100 μF based on required pulse duration; larger values extend output duration but increase recovery time. Pair it with a resistor in the 1 kΩ to 1 MΩ range–low values yield microsecond pulses, high values stretch durations to minutes. For precision, use 1% tolerance components and confirm actual capacitance with a multimeter.
Trigger the timing block via a negative pulse applied to pin 2; maintain pulse width below 1/3 of the desired output to prevent retriggering. A simple push-button with a 0.1 μF debounce capacitor ensures clean activation. Avoid noise-induced false triggers by shielding the trigger trace or adding a 10 kΩ pull-up resistor.
Output pulse width follows t = 1.1 × R × C; verify calculations with an oscilloscope–real-world deviations often exceed 5% due to component tolerances. For sub-millisecond pulses, minimize PCB trace length and employ a low-ESR capacitor. Test load compatibility: standard TTL sinks 8 mA, CMOS requires less than 1 mA.
Critical Adjustments for Stability
Use a decoupling capacitor (0.1 μF ceramic) between Vcc and ground, placed within 2 mm of the timer IC to suppress voltage spikes. If pulse width drifts with temperature, replace the timing resistor with a temperature-compensated network. Avoid long output cables; inductance may distort edges–buffer with a MOSFET or optocoupler for loads exceeding 200 mA.
For repeatable 1-second pulses, combine a 1 μF capacitor with a 910 kΩ resistor–actual duration typically settles at 960 ms due to parasitic board capacitance. Calibrate by trimming the resistor value; a 1% change in resistance shifts pulse width proportionally. Never exceed 15 V on the capacitor–dielectric absorption distorts linearity.
Reset the pulse manually by pulling the reset terminal low, but ensure the reset pulse lasts longer than the timing pulse to avoid partial resets. For interlocking multiple modules, isolate outputs with diodes to prevent back-feeding. Store unused units with timing capacitor discharged; residual charge skews initial pulses.

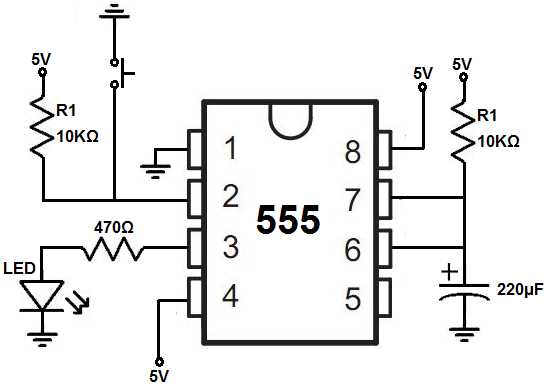

Step-by-Step Wiring Guide for a Single-Pulse Timer Configuration
Begin by connecting the power supply’s positive terminal to pin 8 of the IC, ensuring a direct 5-15VDC input–common values like 9V work reliably without additional regulation. Ground the negative terminal to the common rail, linking it to pin 1 on the component; this establishes the baseline reference for all subsequent connections. Insert a 10kΩ resistor between pin 7 (discharge) and the positive rail, while a 100nF capacitor bridges pin 5 (control voltage) to ground; these stabilize internal thresholds and prevent erratic triggering.
Trigger and Output Setup
For pulse initiation, wire a momentary switch from pin 2 (trigger input) to ground, incorporating a 1kΩ resistor in series to limit current–this avoids false activations from noise. When the switch closes, the output (pin 3) shifts high for a duration defined by the external resistor-capacitor pair. Calculate timing using T = 1.1 × R × C, where R is in ohms and C in farads. The table below provides tested values pairing resistors (R) and capacitors (C) for predictable delays:
| Resistor (kΩ) | Capacitor (µF) | Resulting Pulse Width (seconds) |
|---|---|---|
| 10 | 10 | 0.11 |
| 100 | 100 | 11 |
| 470 | 220 | 113 |
| 1000 | 470 | 517 |
Attach pin 6 (threshold) directly to the timing capacitor’s positive lead; this node resets the internal flip-flop once the voltage decays below 2/3 of the supply. For extended durations, use low-leakage capacitors (e.g., film or tantalum) to minimize drift. Always decouple the power rail near the IC with a 0.1µF ceramic capacitor to suppress transients–locate it within 5mm of pin 8 to ground for optimal performance.
Key Component Values and Their Impact on Pulse Duration
Select a 47 kΩ resistor and a 10 µF capacitor for a ~0.5-second output. This combination balances responsiveness and stability, preventing false triggers while ensuring consistent timing. For longer pulses, scale capacitor values exponentially–47 µF extends duration to ~2.5 seconds, while 220 µF reaches ~11 seconds. Resistors below 1 kΩ risk exceeding the timer’s sink current (20 mA), distorting accuracy; values above 1 MΩ introduce leakage errors, especially in humid conditions.
Resistor-Capacitor Pairing Guidelines
- Precision requirements: Use 1% tolerance resistors and low-leakage tantalum capacitors for durations >10 ms to minimize drift. Ceramic capacitors discharge unpredictably below 10 µF, skewing shorter pulses.
- Temperature stability: Replace carbon-film resistors with metal-film if operating above 60°C–resistance shifts (±200 ppm/°C) can alter duration by ±1.5% per 10°C change. Polypropylene capacitors outperform electrolytic for sub-1-second pulses due to lower ESR.
- High-frequency limits: For pulses resistors ≥10 kΩ and capacitors ≤1 µF to avoid parasitic inductance from traces. Bypass the timing capacitor with a 1 nF ceramic to suppress noise coupling.
Adjusting the trigger network’s voltage divider ratio directly affects pulse consistency. A 10 kΩ pull-up resistor to VCC with a 1 kΩ pull-down ensures clean edge detection, but reduces sensitivity–swap the pull-down for 10 kΩ to extend trigger window to 50 ms without false resets. For sub-microsecond triggers, replace the pull-up with a 2.2 kΩ resistor and add a 100 pF capacitor to ground to sharpen response, though this risks overshoot if input impedance exceeds 50 kΩ.
Critical failure modes to avoid:
- Capacitor leakage: Tantalum types exhibit 1 µA, creating a “soft floor” that prematurely ends long pulses. Test samples at target voltage before assembly.
- Stray capacitance: A 5 cm trace adds ~2 pF, skewing 1 µF to reduce footprint.
- Power supply ripple: >50 mVpp ripple at VCC modulates charge time–add a 10 µF low-ESR cap and 10 Ω series resistor near the timer’s power pin. Decouple control voltage (pin 5) with 0.1 µF to ground if using external modulation.
Common Errors When Assembling a One-Shot Timer Configuration
Incorrect capacitor selection ranks as the most frequent blunder. A 10 μF electrolytic component may suffice for brief delays, but values below 0.1 μF introduce instability, while those exceeding 1000 μF risk leakage current dominating the discharge cycle. Polarized capacitors must align their negative terminal to the ground path; reversal introduces reverse voltage that permanently damages the dielectric, leading to premature failure. Ceramic or film alternatives eliminate polarity concerns but require precise sizing–smaller values (100 μF) slow response times unpredictably.
Misaligned trigger pulse duration constitutes another critical flaw. A pulse shorter than 1 μs often fails to activate the internal latch, whereas one exceeding 10 ms risks retriggering, converting the design into an unintended astable oscillator. The threshold pin, if left floating, picks up stray noise, causing spurious outputs; a 10 kΩ pull-down resistor stabilizes this input but must not exceed 100 kΩ, as higher values delay the reset phase. Edge-sensitive configurations demand sharp transitions–slow rise times (beyond 0.1 V/μs) render the system unresponsive, mandating a Schmitt trigger buffer for noisy environments.
Improper power supply decoupling undermines reliability. A 0.1 μF ceramic capacitor absent at the supply pins allows high-frequency noise to corrupt timing, while missing bulk capacitance (e.g., 10 μF tantalum) causes voltage dips during switching, skewing intervals. Supply voltages below 4.5 V disrupt the internal comparator thresholds, elongating or shortening delays unpredictably; above 15 V, thermal runaway accelerates component degradation. Linear regulators (e.g., 7805) introduce ripple if not paired with adequate filtering, whereas switching regulators require ferrite beads to suppress transient spikes.
Resistance Miscalculations and Their Consequences
Resistor values outside the 1 kΩ–1 MΩ range yield erratic behavior. Below 1 kΩ, excessive current draw overheats the discharge transistor, warping timing accuracy; above 1 MΩ, stray capacitance prolongs discharge, stalling the output. The timing formula T = 1.1 × R × C assumes ideal conditions–real-world tolerances (e.g., ±5% resistors, ±20% capacitors) compound errors, mandating potentiometers for fine adjustments. Bipolar transistors in the design introduce leakage (typically 10–100 nA), distorting intervals when high-value resistors (>470 kΩ) are used; MOSFET alternatives reduce this effect but require careful gate drive.
Ground loop interference often goes overlooked. Shared ground paths between the timing network and load inject noise, modulating the output duration; a dedicated star ground for the timing components isolates this instability. Unbuffered outputs drive less than 200 mA reliably–exceeding this load pulls the output low prematurely, necessitating a Darlington pair or logic-level MOSFET for heavier currents. Breadboard prototypes suffer from parasitic capacitance (5–10 pF per node); soldered perfboard minimizes this but demands short traces to prevent crosstalk.
Ignoring thermal drift skews long-term performance. Timing intervals shift by 0.1% per °C due to component sensitivity–electrolytic capacitors age faster at elevated temperatures, while resistors exhibit positive TCR (e.g., 50 ppm/°C). Stabilizing the environment or using temperature-compensated components (e.g., polypropylene capacitors) mitigates drift, but calibration remains essential for sub-millisecond precision. Rarely, batch variations in the core IC alter comparator thresholds; testing multiple units from different lots ensures consistency in critical applications.
