Complete Guide to 568A Wiring Diagram for Ethernet Connections

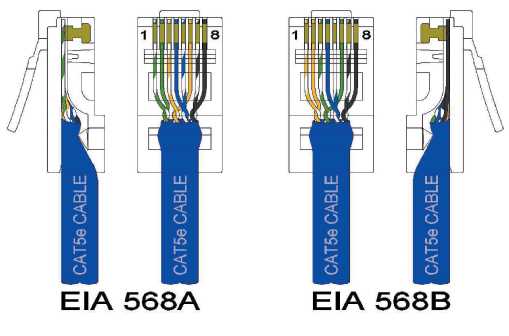

Use the T568A color scheme for straight-through cables to ensure compatibility with most networking devices. Connect the green-white wire to pin 1, green to pin 2, orange-white to pin 3, and blue to pin 4. Continue with blue-white on pin 5, orange on pin 6, brown-white on pin 7, and brown on pin 8. This arrangement adheres to industry conventions and prevents signal interference.

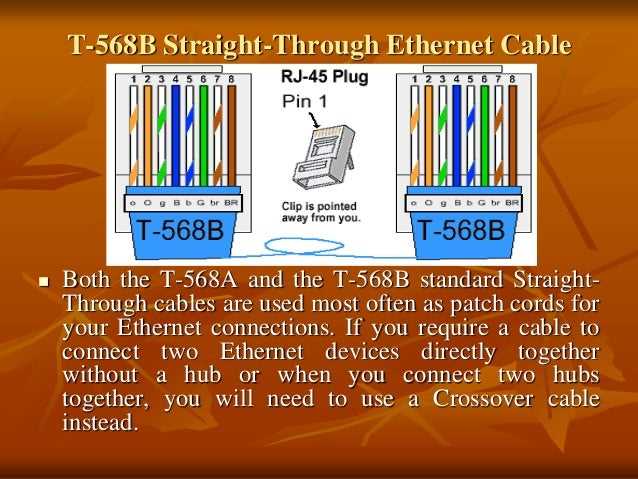

Verify each connection with a cable tester before finalizing terminations–misaligned pairs degrade speeds, particularly above 100 Mbps. Crimp RJ45 connectors firmly, ensuring no copper strands escape the jacket, as stray wires cause short circuits. For cross-over setups, swap pins 1-2 with 3-6 on one end only, leaving the other end in the original sequence.
Label both ends immediately after assembly to avoid confusion during deployment. Store unused cable in coiled bundles away from power lines to minimize EMI. Replace connectors if insulation resistance drops below 50 megohms–corrosion on contacts reduces throughput. Follow these steps for consistent gigabit performance across copper infrastructure.
Mixing color sequences invalidates cable certification–stick to one standard per installation. Patch panels should mirror the same pinout as workstation cables to maintain signal integrity. For PoE applications, confirm adequate gauge (minimum 24 AWG) to handle current without overheating. Avoid excessive pulling tension when routing cables through conduits, as this weakens conductors over time.
Standardized Cable Termination: A Hands-On Approach
Start by aligning the twisted pairs in this precise sequence for the first connector: white-green, green, white-orange, blue, white-blue, orange, white-brown, brown. Use a modular crimping tool with an 8P8C die to secure the ends, ensuring each conductor reaches the tip without overlapping the adjacent slot. Trim excess sheathing to exactly 12.7 mm to avoid crosstalk.
Test continuity with a dedicated network tester before terminating the second plug. The preferred pattern inverts pairs two and three: swap green and orange pairs while maintaining the same pin assignments (pins 1-2, 3-6). Verify resistance values between 22 and 24 AWG conductors–expect 100 ohms ±15% over a 100-meter segment.
- Always strip the outer jacket 19 mm from the end–excess length introduces insertion loss.
- Twist rates should not exceed 25 turns per meter to comply with Category 5e specifications.
- Use a staggered punch-down for patch panels–white-green terminates first to minimize interference.
For temporary installations, use pre-terminated cables with molded boots to prevent conductor fatigue at the plug-interface junction. Select boots rated for 50 insertion cycles if frequent reconfiguration is anticipated. Avoid untwisting pairs beyond 6 mm from the termination point–this preserves signal integrity.
When routing cables, maintain a 30 mm separation from fluorescent lighting and power lines carrying currents above 16 amps. Secure bundles every 45 cm with Velcro ties–zip ties can deform the jacket and alter impedance. Label both ends immediately after termination; use alphanumeric tags that include the port number and VLAN identifier.
Document termination details in a spreadsheet, noting:
- Color code sequence for each end.
- Cable length (measured, not estimated).
- Ambient temperature during installation (above 20°C may require de-rating for PoE applications).
- Tester model and firmware version.
Replace patch cords every 24 months in high-flex environments. For extended reach (beyond 90 meters), use intermediate repeaters or fiber segments–copper degrades predictably beyond this threshold. Keep spare connectors pre-stripped and twisted to the correct spec to expedite repairs during outages.
Recognizing Ethernet Cable Color Codes and Terminal Arrangements

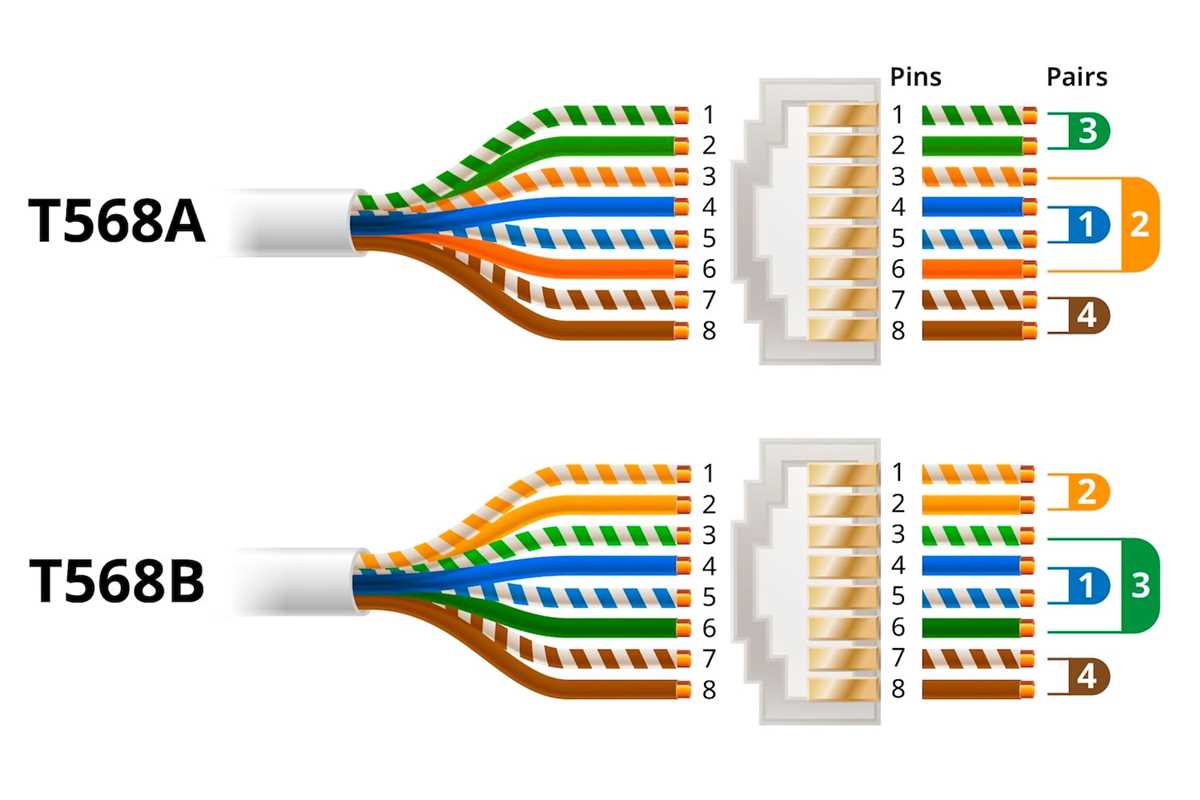

Examine the connector ends directly under bright light to reveal the color sequence. The standardized ANSI/TIA-568 scheme arranges pairs in a fixed order: green-white, green, orange-white, blue, blue-white, orange, brown-white, brown. Record the pattern immediately–small discrepancies between ends often indicate faults.
- Pin 1: Green-white
- Pin 2: Green
- Pin 3: Orange-white
- Pin 4: Blue
- Pin 5: Blue-white
- Pin 6: Orange
- Pin 7: Brown-white
- Pin 8: Brown
Verify continuity with a network tester–each conductor should map precisely to its counterpart at the opposite terminal. Swap cables if interruptions persist.
Strip insulation back 2 cm to expose internal pairs; misaligned conductors beneath the jacket often stem from incorrect termination. Identify split pairs by pairing colors–blue-white must couple with solid blue, green-white with solid green. Substandard boots frequently conceal reversed sequences; trim boots to uncover mistakes.
Step-by-Step Cable Termination Using TIA/EIA-568A Configuration
Strip 1.5 inches of the outer jacket from the twisted-pair cable to expose the conductors, ensuring no damage to individual wires. Use a sharp cutting tool and rotate it once around the jacket to create a clean incision before pulling the sheath away. Avoid nicking the insulation of internal pairs, as this compromises signal integrity.
Unwind and straighten each conductor carefully, separating them by color: white/green, green, white/orange, blue, white/blue, orange, white/brown, brown. Arrange wires from left to right in this sequence–deviation will result in miswiring or link failure. Trim the tips uniformly to 0.5 inches, maintaining parallel alignment for consistent termination.
Termination Into the Connector
Slide the prepared wires into the RJ45 plug, pushing until each conductor reaches the front of the connector. Verify through the transparent housing that all pairs sit flush against the contact pins and maintain correct order. Incomplete insertion leads to weak connections or intermittent faults.
Crimp the connector using a ratchet tool with 10–12 lbs of force. Insert the plug fully into the crimping die, then squeeze firmly to engage the blades with the conductors and secure the strain relief. Test continuity with a cable analyzer immediately–failing pairs require re-termination without delay.
Dress the cable by securing it with a strain-relief boot if available, sliding it over the connector backward before crimping. Label both ends with permanent tags indicating the configuration standard and installation date. Store excess length in a service loop, avoiding sharp bends tighter than four times the cable diameter to prevent signal loss.
Common Pitfalls in Structured Cable Termination
Avoid swapping pairs 1-2 with 3-6 during assembly. These pairs carry differential signals; crossing them creates split pairs, causing crosstalk exceeding 40dB at 100MHz. Verify continuity before crimping–15% of field failures stem from reversed conductors. Use a cable tester showing pair alignment, not just pin connectivity.
Trimming copper strands flush introduces impedance discontinuities. Exposed wires beyond the RJ-45 plug ferrule risk oxidation within 3 months, increasing attenuation. Maintain 0.5mm protrusion; strip only 12mm of jacket to preserve twist density–ISO/IEC specifies 12 twists per meter for Cat 5e. Check jacket removal tools; blade depth must match cable type–UTP requires 0.2mm deeper cuts than FTP.
Ignoring color-coding tolerance leads to mis-termination. ANSI/TIA allows ±2mm stripe variation; exceeding this reverses polarity on pairs. For solid-core cables, secure all 8 conductors under strain relief–partially seated cables fail at 7N pull force. Verify shield continuity if present; improper bonding raises noise floor by 22dB in screened environments.
Tools Required for Crimping and Testing Structured Cabling Terminators
Use a modular crimping tool with precision-ground jaws rated for 8P8C connectors. Ensure the tool includes a built-in cutter for solid 24 AWG copper conductors; avoid generic crimping tools as they risk incomplete termination. A ratcheting mechanism is non-negotiable–cheaper models often crush the plug contacts, causing intermittent faults. Pair it with a wire stripper offering 0.18–0.22-inch exposure settings to prevent nicked strands.
Essential Testing Equipment
| Tool | Specifications | Verification Purpose |
|---|---|---|
| Network cable tester | Voltage: 9V, Continuity mode with remote identifier (RJ45) | Confirms pin-to-pin mapping across segments, detects opens/swaps |
| Tone generator | Frequency: 1 kHz, dual-ended probes | Traces hidden conductors behind walls; attach via alligator clips to exposed pairs |
| Time-domain reflectometer | Range: 0–150 m, resolution ±0.5 m | Locates impedance mismatches, kinks, or water ingress beyond standard continuity tests |
Inspect terminated ends with a fiber-optic inspection scope if hybrid copper-fiber panels exist–even microscopic debris degrades signal integrity. Always calibrate testers against a known-good patch cord before field use; erroneous readings waste hours isolating phantom faults.
