Complete Guide to Building a 5V Relay Circuit with Wiring Diagram
Start with a low-power control signal from your microcontroller–3.3V or 5V logic outputs work reliably. Connect the trigger pin of the module to the GPIO, ensuring current doesn’t exceed 10 mA. A 1N4007 diode across the coil prevents voltage spikes from damaging sensitive components. For inductive loads like motors, add a flyback diode (1N4007) in reverse bias parallel to the load.
Use at least a 220Ω resistor between the control source and the module’s input to limit current. Test continuity with a multimeter before powering–resistance should drop when activated. A 2.5mm screw terminal block simplifies connections for mains voltage switching, but always double-check insulation. For DC loads up to 10A, stranded copper wire (0.75mm²) prevents overheating.
Optocoupler isolation (PC817) separates low-voltage logic from high-power lines, improving safety. If switching AC, verify the module’s contact rating matches your load–common 10A 250VAC models handle most household appliances. Always fuse the live wire (3A slow-blow for 750W loads). Ground the metal case if exposed to human contact.
Use a 5V regulated power supply–LD1117V33 with filtering capacitors (100µF + 0.1µF) stabilizes input. For PWM control, ensure the module’s response time (typically 10ms) matches your signal frequency. If noise causes false triggers, add a 10kΩ pull-down resistor to the input pin.
How to Build a Compact 5V Switching Module

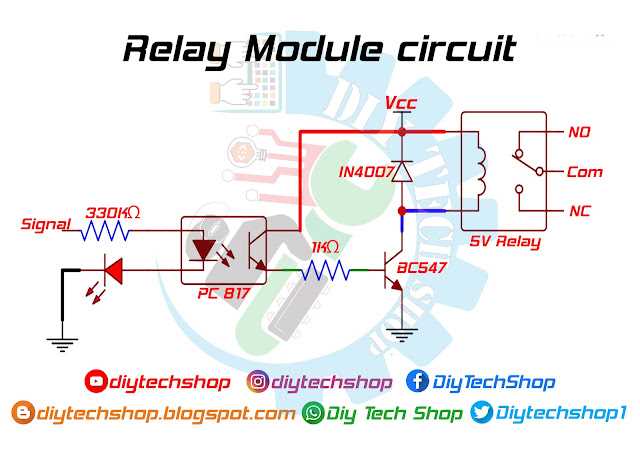

Use a low-power optocoupler like the PC817 to isolate the control signal from the power path. This component requires just 5mA at 5V to activate, making it ideal for direct connection to microcontroller pins like Arduino’s digital outputs without additional resistors.
Select a single-pole double-throw (SPDT) latching switch for the load side. Models such as the G5LE draw only 70mW during switching and handle 10A at 250VAC, sufficient for most low-voltage automation tasks without heat dissipation concerns.
Place a flyback diode like the 1N4007 directly across the coil terminals to suppress voltage spikes. Position the cathode at the positive side; incorrect orientation will short the supply when the driver transistor turns off.
For microcontroller interfaces, drive the optocoupler with a 2N2222 transistor. Connect the base through a 470Ω resistor to the GPIO, emitter to ground, and collector to the optocoupler LED’s anode. This arrangement inverts the signal but protects the pin from exceeding its 40mA absolute rating.
Test the complete setup with a 5V DC bench supply before integrating it with higher voltages. Monitor coil current with a multimeter; typical values range between 30-50mA for most 5V modules. Deviations indicate incorrect coil resistance or damaged internal wiring.
Add a 0.1µF ceramic capacitor between the 5V line and ground near the module’s power input. This bypass filter reduces noise that could cause false triggers, particularly when controlling inductive loads like solenoids or small motors.
Label each terminal clearly with heat-shrink tubing. Common markings include “COM” for the common contact, “NO” for normally open, and “NC” for normally closed. Miswiring can short the supply or damage the driving source if the wrong terminals are energized during initial testing.
Basic Components for a 5V Switching Module

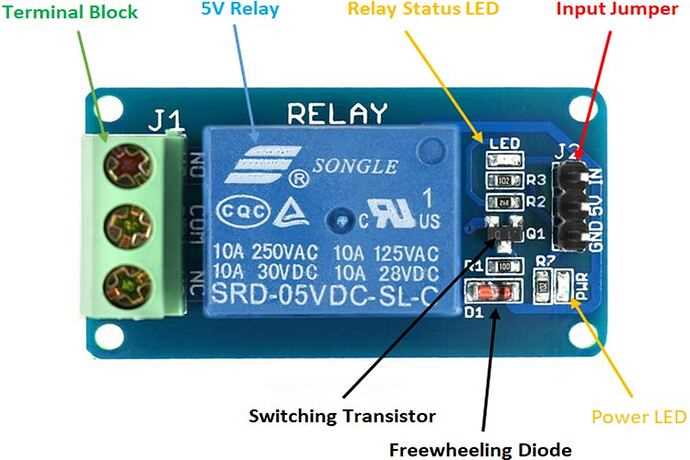

Select a 5V coil-driven mechanical actuator with a contact rating matching your load–common options include Songle SRD-05VDC-SL-C (10A at 125VAC/28VDC) or Omron G5LE (15A at 250VAC). Verify coil resistance (~70Ω for 5V models) and ensure the actuator’s footprint fits your prototyping board; through-hole variants simplify manual assembly while surface-mount types demand precise soldering.
Pair the actuator with a flyback diode like 1N4007 to suppress voltage spikes–polarity matters, cathode connects to the positive supply. Add a PN2222 or 2N3904 transistor as a driver if your microcontroller’s GPIO can’t source the 70mA coil current; base resistors (~1kΩ) prevent excessive current draw. For inductive loads, integrate a 104 (0.1µF) ceramic capacitor across the actuator’s coil terminals to dampen noise.
Step-by-Step Wiring Guide for a 5V Switching Module

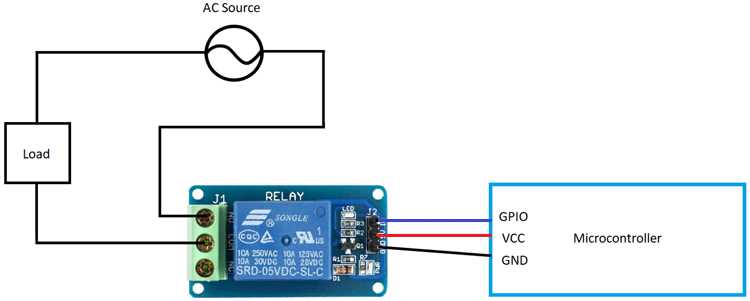

Start by connecting the control pin to a microcontroller’s GPIO output–use pin D8 on an Arduino Uno or GPIO 17 on a Raspberry Pi. Ensure the logic level matches: a 5V signal works directly, but a 3.3V source requires a logic level converter. Verify the module’s power requirements; most 5V boards need 50–100mA, so avoid powering from the microcontroller’s 5V rail if it shares a USB supply–use an external adapter instead.
Securing High-Power Loads
Attach the load’s positive terminal to the common (COM) contact and the normally open (NO) contact to the power source–never exceed the module’s rated current (typically 10A at 250VAC or 30VDC). For inductive loads like motors, add a flyback diode (1N4007) across the terminals, cathode to positive. Use 18 AWG or thicker wire for currents above 5A, and strip only 6mm of insulation to prevent shorts.
Test the setup with a multimeter in continuity mode: activate the control signal and confirm the NO contact closes. If the module clicks but fails to switch, check for reversed polarity on the control input or insufficient voltage at the coil (minimum 4.5V). For intermittent issues, solder all connections–breadboard jumps can introduce resistance at high currents. Document your wiring with labels: mark the control input as “IN,” power as “5V,” and ground as “GND” to prevent misconfiguration during future adjustments.
Common Pitfalls in 5V Switching Module Connections and Prevention
Always verify the control signal’s voltage matches the module’s input requirements–most 5V units tolerate 3.3V logic but degrade at lower levels, causing unreliable engagement. A 150Ω current-limiting resistor on the trigger pin prevents transient spikes exceeding 40mA, which can permanently damage the internal transistor. Check for reversed polarity on input pins: miswiring the positive and ground can instantly burn the coil driver, typically irreversible. Measure continuity before powering–open circuits on output terminals often indicate blown contacts from excessive load (max 10A resistive for most boards).
Load-Specific Errors and Solutions
| Load Type | Risk | Fix |
|---|---|---|
| Inductive (motors, solenoids) | Back EMF >1kV spikes frying contacts | Add flyback diode (1N4007) across load |
| Capacitive (power supplies) | Inrush current welding contacts | Use RC snubber (0.1µF + 100Ω) or soft-start circuit |
| Incandescent bulbs | 10× cold resistance surge melting contacts | Derate load by 50% or use solid-state alternative |
| AC mains | Prolonged arcing carbonizing contacts | Replace after 10^4 cycles; use tungsten for longevity |
Never exceed the module’s contact voltage rating–most 5V boards handle 250VAC but fail catastrophically at 400VAC. For DC loads, observe polarity on output terminals: reversed polarity across contacts accelerates pitting. Isolate high-voltage sections with optocouplers if the control source shares ground with hazardous voltages. Replace units exhibiting arcing noises immediately–contact resistance spikes exponentially with erosion. Store spare parts in a dry, anti-static environment; humidity causes internal corrosion degrading performance by 30% within months.
Power Supply Options for Stable 5V Switching Mechanism Operation
Use a dedicated 5V linear regulator like the LM7805 for consistent performance. Input voltage should range between 7V and 12V to maintain regulation efficiency above 80%. Add a 100nF ceramic capacitor at the regulator’s input and a 10µF electrolytic capacitor at the output to suppress transients and improve load response. This setup minimizes ripple to under 10mV, ensuring noise-free operation.
- USB power sources: A standard 5V/2A USB adapter provides adequate current for most configurations. Verify the adapter’s output with a multimeter–cheaper models often deliver 4.75V under load, risking unstable behavior. For higher reliability, use a USB power bank rated for 10,000mAh or more, which stabilizes voltage during temporary dips.
- Buck converters: Modules based on the MP2307 or LM2596 handle input voltages up to 24V while outputting 5V with ±2% accuracy. Adjust the potentiometer to 5.0V before connecting the load. Include a 22µF input capacitor and a 100µF output capacitor to prevent oscillations.
For microcontroller-driven setups, bypass capacitors are critical. Place a 0.1µF capacitor near the switching element’s power pin and a 10µF tantalum capacitor across the supply rails. This prevents voltage sag during activation, which can exceed 200mA inrush current. Avoid using breadboard power rails for high-current loads–their resistance can drop voltage by 0.2V or more under load.
- Battery options:
- Alkaline cells: Four AA batteries in series yield ~6V, which a low-dropout regulator (e.g., MCP1700) can efficiently convert to 5V. Output current is limited to 250mA due to internal resistance.
- Li-ion cells: A single 18650 cell (3.7V nominal) paired with a boost converter (e.g., MT3608) achieves 5V at 1A. Add a 1A fuse to prevent overheating if the converter fails. Monitor battery voltage–discharging below 3.0V damages the cell.
- Power-over-Ethernet (PoE): Use a PoE splitter outputting 5V/2A for remote installations. Isolate the DC-DC converter’s ground from chassis ground to prevent ground loops, which introduce noise.
