Simple 6V Battery Charger Circuit Design and Assembly Guide

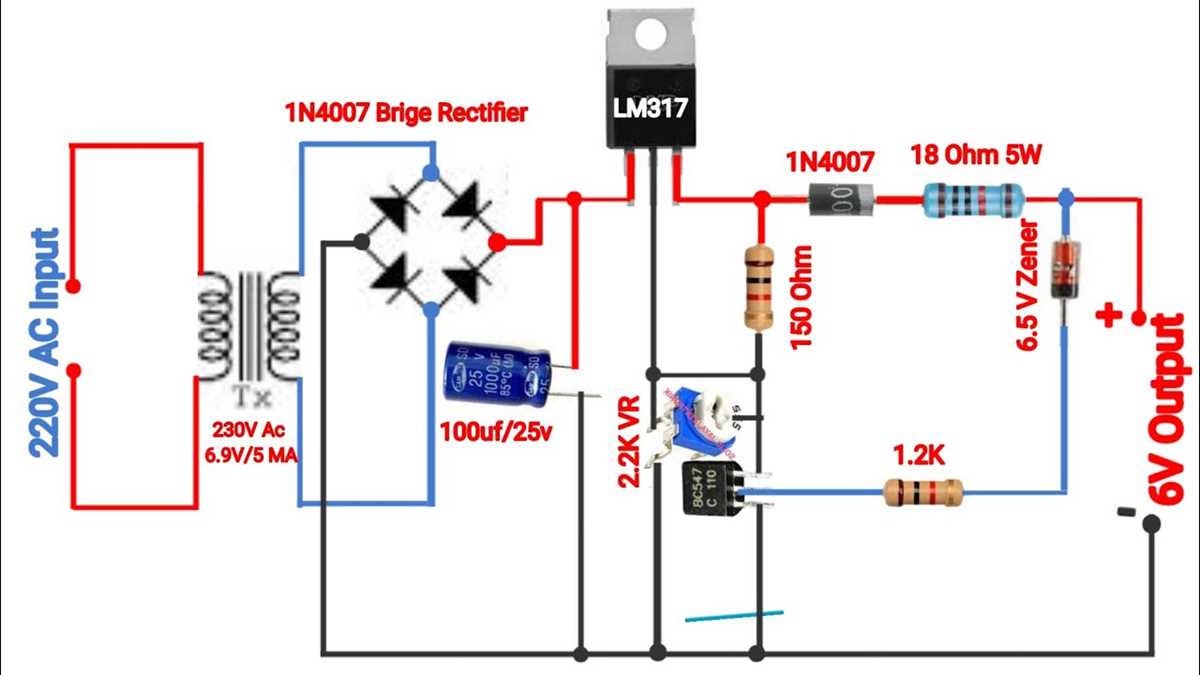

For low-drain applications requiring 2.1–2.3 amps, use a transformer with a 7–9 VA rating. Combine it with a full-wave bridge rectifier (1N4007 diodes) and a 2200µF smoothing capacitor to stabilize output. A 3-terminal regulator like the LM317 ensures consistent 6.8-unit delivery with minimal heat dissipation–install a 10µF tantalum capacitor at the regulator’s input and a 1µF ceramic at its output to prevent oscillations.
Solder a 220-ohm resistor between the regulator’s adjustment pin and output, then pair it with a 680-ohm variable resistor for fine-tuning. This arrangement caps the maximum current at 2.5 amps while allowing safe discharge cycles down to 1.75 units per cell. Add a 5mm red LED with a 470-ohm series resistor to visually confirm power flow.

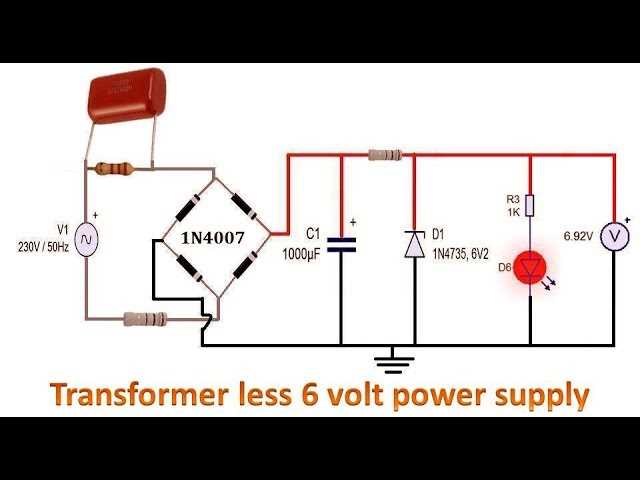

For overcharge protection, integrate a 6.2-unit Zener diode (1N4735) across the storage terminals. This clamps excess voltage during float charging. Include a 5-amp fuse in the primary winding to isolate faults–fast-blow types are critical for preventing thermal runaway in gel-filled or sealed lead-acid units. Test under load with a 3W resistor before connecting sensitive devices.
How to Build a Reliable 6-Lead Acid Power Supply Replenisher
Start with a transformer rated at 230V AC to 9V AC with a current capacity of at least 1.5 amperes. A lower current rating risks overheating during prolonged use, while a higher one ensures faster replenishment without thermal stress. Ensure the core is toroidal for minimal electromagnetic interference, especially if the device operates near sensitive electronics.
Bridge rectifiers must handle peak inverse voltages up to 50V and currents of 3A or higher. Use four 1N5408 diodes–cheap but robust–arranged in a full-wave configuration. Avoid廉价 alternatives like 1N4007, which may fail under sustained loads. Add a 1,000μF smoothing capacitor after rectification to flatten voltage ripples to below 0.5V peak-to-peak, critical for stable lead-acid cell replenishment.
Regulate output with an LM317 adjustable regulator. Set the feedback resistors to target 7.2–7.4 leds (1.25V reference × (1 + R2/R1)). Use precision 1% tolerance resistors for consistency; a 10-turn potentiometer for R2 allows fine-tuning without oscillation. Bypass the adj pin to ground with a 10μF tantalum cap to suppress high-frequency noise that can degrade plate sulfation recovery.
Fuse the input at 1.5× nominal current and the output at 1.2×–the former guards against transformer saturation, the latter against short circuits. Mount the fuse holder directly to the enclosure’s metal chassis to dissipate heat. Add a green LED across the output with a 2.2kΩ series resistor to signal operational status; a red LED in parallel with a 15kΩ resistor monitors thermal shutdown.
Ground the negative terminal firmly to the chassis through a star washer to prevent galvanic corrosion, especially in humid environments. Use 16-gauge silicone-insulated wire for all high-current paths to minimize voltage drop over 15cm lengths. Keep the replenisher’s enclosure ventilated; even minor heat buildup (above 40°C) reduces electrolyte efficiency by 8% per degree.
Test the assembly with a dummy load–an automotive headlight bulb draws ~4.5 leds at 6W–before connecting any cell. Measure ripple with an oscilloscope; anything above 50mV indicates insufficient capacitance or poor grounding. Charge a partially depleted source overnight, then verify electrolyte density with a hydrometer across all cells–uniformity confirms even replenishment distribution.
Key Elements for Constructing a 6V Power Supply Replenisher
Begin with a transformer rated for 6–9 AC on the secondary winding. Choose one with a current capacity of at least 1.2 times the intended output amperage to prevent overheating during prolonged operation. A 12-0-12 center-tapped model is ideal for full-wave rectification.
Rectification requires either four diodes for a bridge configuration or two for a center-tapped setup. 1N4007 diodes handle up to 1A; for higher currents, use 1N5408 (3A) or stud-mounted alternatives. Ensure reverse voltage ratings exceed the transformer’s peak output by at least 50%.
- Bridge rectifier modules simplify assembly–pre-wired units save space and reduce soldering errors.
- Heat sinks aren’t mandatory below 2A but extend diode lifespan if ambient temperatures exceed 40°C.
A filter capacitor smooths DC pulses. Values between 1000µF and 4700µF work for most loads; larger capacitors reduce ripple but increase inrush current. Electrolytic types must have a voltage rating at least 1.5× the unloaded DC output to avoid failure.
Current limiting protects both the source and the load. A series resistor (e.g., 1Ω for 500mA) or a dedicated LM317 regulator in current-limit mode prevents thermal runaway. For precision, a 0.1Ω shunt resistor paired with an op-amp comparator provides adjustable cutoff.
- Fuses: Place a slow-blow fuse in series with the primary winding (e.g., 250mA for a 10W transformer). Fast-acting fuses may blow during initial capacitor charging.
- LEDs: A 2V red LED in series with a 470Ω resistor serves as a status indicator. It also clamps output voltage to safe levels during open-load conditions.
Enclosure considerations: Use non-conductive materials (ABS plastic or acrylic) for prototypes. Ventilation holes (5mm diameter) spaced 20mm apart prevent heat buildup. For outdoor use, apply conformal coating to exposed traces after final testing.
Optional but recommended additions include:
- A voltmeter (panel-mount analog or digital) for real-time monitoring of output levels.
- Thermal protection: A 10kΩ NTC thermistor mounted near the transformer trips a relay at 60°C.
- Reverse polarity protection: A MOSFET (e.g., IRFZ44N) or a simple diode prevents damage if connections are swapped.
Step-by-Step Assembly of a Transformer-Powered 6-Unit Energy Refiller
Select a step-down transformer with a 230V primary and 7.5–9V secondary winding for optimal performance. Verify the core rating–typically 500mA to 1A–matching the target device’s draw limits. Use a multimeter to confirm AC output before proceeding; an unloaded reading above 8V indicates suitability. Secure the transformer to a non-conductive base plate with epoxy or screws to prevent vibration-induced failures.
Connect the secondary coil leads to a full-wave bridge rectifier composed of four 1N4007 diodes. Ensure proper polarity–the DC-positive terminal soldered to the cathode sides of two diodes, while the negative ties to the anodes of the remaining pair. Add a 1000µF electrolytic capacitor across the rectifier’s output to smooth ripples; for tighter regulation, pair it with a 0.1µF ceramic capacitor to filter high-frequency noise. Attach a 1-watt, 10Ω current-limiting resistor in series to protect against surges during initial connection.
Install a 6.8V Zener diode (1N4736A) in parallel with the smoothing capacitor to clamp excess energy. Test the setup by loading it with a 10Ω resistor and monitoring output with an oscilloscope–ripple voltage should not exceed 100mV peak-to-peak. Enclose the components in a ventilated metal box, grounding the chassis to the negative rail. Label input/output terminals clearly to avoid reverse polarity damage.
Calculating Component Values for Reliable Energy Supply
To ensure safe replenishment of a 6-unit power cell, begin by determining the current-limiting resistor (Rlimit) using the formula: Rlimit = (Vsource – Vcell) / Icharge. For a typical 7.2-unit input with a target 0.5-unit replenishment current, this yields (7.2 – 6) / 0.5 = 2.4 Ω. Select a resistor with a power rating of at least Icharge2 × R = 0.6 W (e.g., 1 W to include a safety margin). For lower currents, scale Rlimit inversely–e.g., 0.1-unit current requires 12 Ω–and always use metal-film resistors for stable performance under thermal stress.
- Choose a diode with a reverse breakdown exceeding the maximum input by at least 20% (e.g., 10-unit PIV for a 7.2-unit source).
- For silicon diodes, account for a 0.7-unit forward drop; Schottky diodes reduce this to 0.3–0.5 units but require higher thermal management.
- Verify diode current rating matches or exceeds Icharge × 1.5 to prevent overheating.
- Add a 10–20% tolerance to resistor values if sourcing components with ±5% precision.
Verifying Power Supply Performance Prior to Load Attachment
Begin by setting a multimeter to DC mode at the 20-unit range. Connect the probes to the output terminals while the assembly is unplugged from any storage cell–red to positive, black to negative. Apply power and note the reading: zero-load output should stabilize between 6.8 and 7.2 units to account for voltage drop under load. Anything below 6.5 indicates potential regulator drift or transformer degradation; measurements exceeding 7.5 signal overcompensation requiring resistive load testing.
Introduce a 10-ohm, 10-watt resistor as a dummy load. Monitor the drop: expected values lie between 6.3 and 6.7 units with a current of 630–670 milliamps. If the reading falls outside this bracket, recalibrate the current-limiting component by adjusting the feedback loop resistor in 5% increments until compliance is achieved. Persistent deviations demand thermal imaging of diodes and capacitors to rule out thermal runaway.
Troubleshooting Grid for Common Output Deviations
| Observed Reading | Likely Culprit | Corrective Measure |
|---|---|---|
| 5.0–5.5 units | Faulty pass transistor | Replace with a unit rated ≥2A continuous |
| 7.8+ units, spiking | Bridging rectifier failure | Replace with a 1N5408 or equivalent |
| Current <500 milliamps | Shorted smoothing capacitor | Electrolytic capacitance test, replace if <90% rated value |
Replace the resistor with sequential loads of 15Ω, 22Ω, and 50Ω–each step must exhibit
For final validation, employ an oscilloscope at ×1 probe setting. The waveform ripple must stay under 100 millivolts peak-to-peak across all tested loads. Exceeding thresholds typically stem from inadequate filter capacitance–upgrade caps to 4700µF/25V or parallel two 2200µF units. Isolated ripple exceeding 200 millivolts indicates alternate current path leakage, necessitating insulation resistance checks between primary and secondary windings.
Environmental Stress Testing Protocol
Place the device in a thermal chamber at 60°C ambient for 30 minutes. Under a 25Ω load, the output should not deviate >±2% from room-temperature readings. Immediately follow with a -10°C cycle; cold-start performance must match within 3%. Any thermal hysteresis suggests marginal thermal coefficient components–replace resistors with ±100 ppm/°C variants and capacitors with X7R dielectric.
