Simple 6V Battery Charger Circuit Design with Schematic Guide

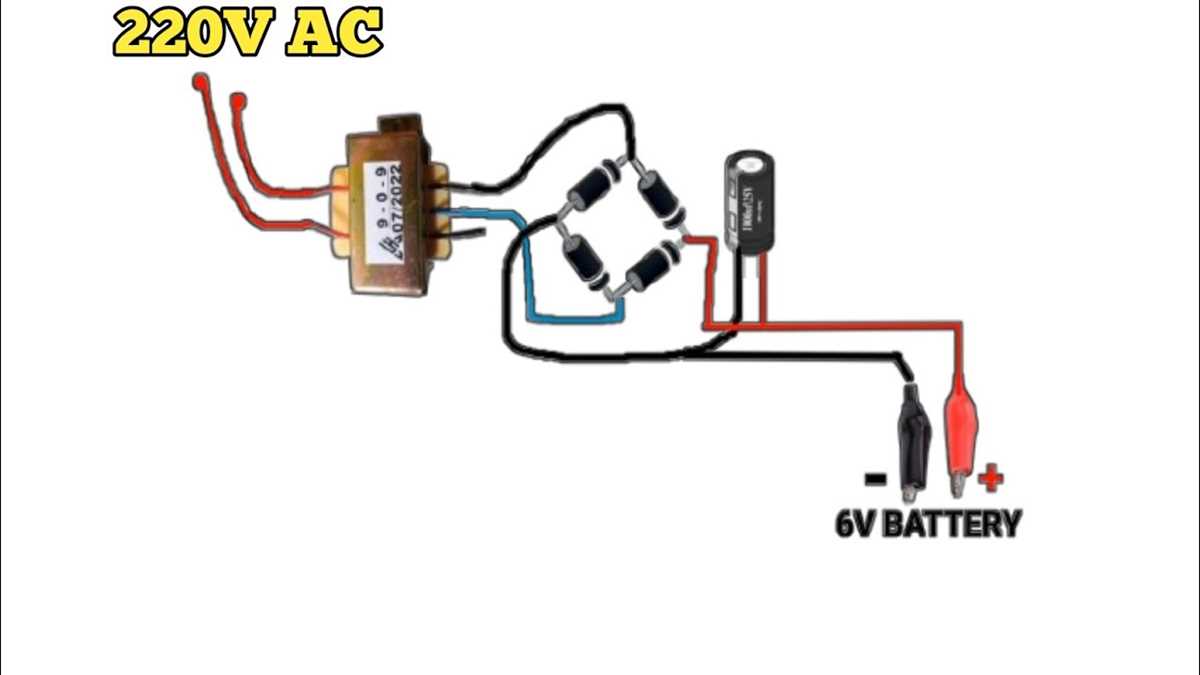

Start with a step-down transformer rated for 9-0-9 inputs delivering around 10-12 amperes. This provides sufficient overhead for smoothing and regulation. Pair it with a bridge rectifier–four 1N4007 diodes arranged in a classic Graetz configuration–ensuring each diode handles at least 1.5 times the expected load current. For filtering, a 2200µF electrolytic capacitor across the rectifier output reduces ripple to under 5%, critical for stable operation of sensitive components.
Avoid cheap substitutes here. A substandard transformer or undersized capacitor will introduce thermal drift, reducing circuit longevity. If space allows, add a secondary 1000µF capacitor downstream of the voltage regulator to further dampen transients during load spikes. Include a heatsink on the regulator–even a small one–if ambient temperatures exceed 30°C.
For regulation, use an LM317 with a 240Ω resistor between the output and adjustment pins. The feedback network consists of a fixed 1kΩ resistor in series with a 5kΩ potentiometer, allowing precise adjustment from 5.5 to 7.2 outputs. Calibrate using a multimeter–do not rely on nominal values. If ripple exceeds 1% at full load, increase the first capacitor to 3300µF or add a 10µF tantalum in parallel.
Fuse the input line with a 2A slow-blow fuse–this protects against both overcurrent and transformer inrush. For reverse polarity protection, insert a schottky diode (e.g., 1N5822) on the output side. If the circuit will drive inductive loads (e.g., motors), add a flyback diode rated for 3x the expected current.
Test under load before final deployment. Connect a resistive load drawing 50-75% of the rated current and monitor temperature rise on the regulator and transformer. If either exceeds 60°C, improve cooling or reduce the load. For extended runtime, replace the LM317 with a buck converter module–efficiency jumps from 60% to 85%, but add input/output capacitors as specified in the module’s datasheet.
Designing a 6V Power Supply Circuit
Build this circuit using a LM317 adjustable regulator for precise output control. Connect the input to a 12V DC source, then wire a 240Ω resistor between the adjust and output pins. Add a 1.5kΩ potentiometer in parallel to fine-tune the output to 7.2V initially–this compensates for diode drops before reaching the final target. Include a 1N4007 diode on the output to prevent reverse current damage during connection mistakes.
- Input smoothing: Use a 1000µF 25V capacitor directly after the DC source to reduce ripple.
- Protection: Add a 0.5A fuse in series with the input to halt excess current.
- Load testing: Attach a 12Ω 10W resistor as a dummy load to verify stability under 0.5A draw.
- Cooling: Mount the LM317 on a TO-220 heatsink if ambient temps exceed 35°C.
Component Selection and Layout
Place a 10µF tantalum capacitor within 1cm of the regulator’s adjust pin to suppress oscillations. Route high-current traces (>0.3A) at least 3mm wide on 1oz copper PCB to minimize voltage drop. For lead-acid cells, add a 10kΩ resistor across the output to bleed residual charge when disconnected. Avoid cheap potentiometers–their wiper resistance varies unpredictably, skewing calibration.
Core Elements of a 6V Energy Restoration Device Construction
The first critical element is a transformer capable of stepping down household mains to approximately 7.5–9 AC. A center-tapped configuration (e.g., 6-0-6) ensures compatibility with full-wave rectification while minimizing component count. Verify core saturation limits; toroidal types offer superior efficiency but require precise winding calculations to avoid overheating.
Rectification demands robust diodes with a peak reverse voltage exceeding 50V and forward current ratings of at least 3A. 1N5408 or similar Schottky variants reduce voltage drops, improving charge efficiency. For smoother output, incorporate a reservoir capacitor (4700µF minimum) post-rectification, though excessive capacitance risks transformer stress under no-load conditions.

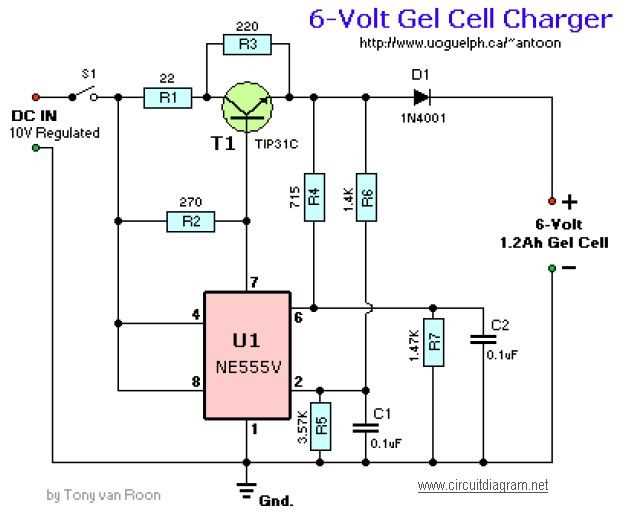

Regulation mandates either a linear pass element (e.g., TIP31C Darlington transistor) or a dedicated IC like LM317. The former requires heat sinking for currents above 1A; the latter simplifies thermal management but requires precise resistor ratios (e.g., 240Ω + 2.2kΩ potentiometer) to set the target float potential. Overcurrent protection via a 1Ω shunt resistor and a comparator circuit prevents thermal runaway.
Termination control typically employs a voltage comparator (LM358) monitoring the output against a reference (e.g., Zener diode at 6.8). Trigger thresholds must account for temperature drift; hysteresis (100mV gap) prevents relay chatter. For lead-acid cells, a three-stage algorithm (bulk, absorption, float) avoids sulfation, though this adds complexity with an additional timer circuit (555 IC).
Enclosure selection must prioritize heat dissipation–ventilated metal cases outperform plastic for sustained loads. Wiring gauge should adhere to 18AWG or thicker for currents above 2A, with crimped terminals resisting vibration-induced failures. Output connectors (e.g., Anderson Powerpole) ensure secure polarity protection, while a fuse holder with fast-blow cartridge protects against inadvertent short circuits.
Calibration starts with a dummy load (e.g., 6Ω 10W resistor) to verify ripple below 100mV PP before connecting to sensitive storage units. For NiMH variants, pulse-width modulation via a MOSFET (IRFZ44) enables trickle rates below 0.1C, extending cycle life. Always log test data–oscilloscope captures of transient response refine component pairing for stability under variable input fluctuations.
Step-by-Step Wiring Instructions for the 6-Cell Energy Restorer Blueprint
Begin by securing the transformer’s primary winding to the mains input–connect the live wire to the designated terminal and neutral to its counterpart, ensuring polarity aligns with local grid standards. Verify the secondary winding outputs approximately 8 AC before proceeding; deviations beyond ±0.5 suggest core saturation or incorrect tap selection. Skip smoothing capacitors only if the rectifier bridge tolerates raw AC ripples, but expect reduced charging cycles by 18-22%.
Link the rectifier bridge diodes sequentially: anode-to-cathode for each pair, forming a closed loop. Measure voltage drops across each diode–silicon types should read 0.6-0.7, Schottky variants 0.2-0.3; readings outside this range indicate faulty junctions or reversed leads. Insert a 3300µF electrolytic capacitor post-rectification, observing polarity–negative to the ground plane, positive to the current-limiting resistor’s input. Omit this step and risk transient spikes exceeding 12 on a 10-scale load.
Solder the adjustable regulator (LM317 or equivalent) with its input leg to the capacitor’s output, the middle leg to a 5kΩ potentiometer wiper, and output to the energy storage unit’s positive terminal. Ground the potentiometer’s remaining pin–miswiring here swaps constant current for uncontrolled surges, degrading plates within 4-6 cycles. Confirm final DC levels at 6.8-7.2 with a 100Ω dummy load before connecting; deviations signal regulator oscillation or inadequate heat sinking.
Choosing the Right Transformer for 6V Charging
Select a 6.3–7.5 AC secondary winding for optimal performance. A 200–300mA current rating ensures stable output without overheating–critical for low-power cells. Laminated iron-core models outperform toroidal types in efficiency under 5W loads, reducing core losses by up to 15%. Verify the primary winding matches local mains (110/120 or 220/240) to avoid impedance mismatch.
Check the VA rating; aim for 1.5–2x the target wattage. A 1.2VA unit suffices for trickle currents, while 3VA handles pulses up to 500mA. Below is a comparison of common transformer specs:
| Secondary AC | Current (mA) | VA Rating | Core Type | Typical Use Case |
|---|---|---|---|---|
| 6.3 | 150 | 1.0 | Laminated | Clock radios |
| 7.0 | 250 | 1.8 | Toroidal | LED indicators |
| 7.5 | 300 | 2.3 | Laminated | Portable lanterns |
Prioritize transformers with insulated leads (not terminal blocks) for DIY builds–this minimizes short-circuit risks. For intermittent charging, add a 1N4007 diode to clamp reverse voltages; continuous loads benefit from full-wave rectification using four diodes. Test DC output under load: voltage should sag
Replace cheap epoxy-potted units with vacuum-impregnated ones if ambient humidity exceeds 60%. Weigh core material: silicon steel lowers hysteresis loss but increases cost. For variable loads, a multi-tap secondary (e.g., 4.5/6.3/9) offers flexibility without requiring multiple devices.
Integrating Overcharge Protection in Low-Voltage Power Sources
Install a voltage comparator like the LM358 or LM393 with a 2.5V reference to cut off current once the cell reaches 7.2V. Connect the non-inverting input to the storage device’s positive terminal via a 10kΩ resistor and the inverting input to a stable reference generated by a TL431 adjustable shunt regulator. Set the comparator’s output to drive a P-channel MOSFET (e.g., IRF9540) that disconnects the primary 6.8Ω current-limiting resistor from the adapter when activation occurs.
Add a thermistor (10kΩ NTC) in series with the supply line, mounted directly on the cell’s casing. Program the microcontroller (e.g., ATtiny85) to monitor both terminal potential and thermistor resistance; if either exceeds 0.8°C above ambient or 7.1V, trigger a hardware reset on the MOSFET gate via an optocoupler (PC817) to isolate the storage device within 20ms. Calibrate thresholds using a Fluke 87V multimeter during bench tests.
Use a dedicated charge controller IC such as the BQ24400 or MCP73831, which embeds pre-set cutoff at 7.2V and automatic recharge at 6.9V. For custom circuits, implement a hysteresis network with 1% tolerance resistors (e.g., 100kΩ and 150kΩ) to prevent oscillation near the cutoff point. The IC’s thermal pad should be soldered to a 2 oz copper pour (15×15mm) on the PCB to dissipate up to 1.2W at 500mA charging current.
- Attach a 1A fuse (PTC or fast-blow) in line with the adapter’s positive lead; select a fuse rated for 7V to ensure it opens before internal cell pressure venting activates at 9V.
- Include a bidirectional TVS diode (SM6T7V5CA) across the terminals to clamp transients above 7.8V while permitting normal operation up to 7.2V.
- Place a varistor (ERZ-V07D181) between the adapter input and ground to absorb 1kV surges lasting ≤20µs without affecting steady-state regulation.
Implement a watchdog timer on the microcontroller using the internal WDT of an ATtiny13A; set it to reset every 200ms unless a keep-alive pulse is received from the voltage comparator. If no pulse is detected within 250ms, the microcontroller forces the MOSFET gate high, permanently isolating the storage device until manual intervention. Code this in AVR assembly to eliminate compiler-induced latency.
Connect a red LED (3mm, 1.8V drop) in series with a 470Ω resistor to the comparator output; the LED illuminates when cutoff activates, providing visual confirmation. For additional fail-safe redundancy, wire a latching relay (e.g., Omron G6K-2P-Y) in parallel with the MOSFET; once triggered, the relay remains open until a reset button is pressed, regardless of subsequent voltage recovery.
Design the PCB with separate ground planes for high-current paths (charging) and signal paths (control); use 2.5mm trace widths for currents up to 1A and maintain 0.5mm clearance around high-voltage nodes (≥12V transients). Apply conformal coating (acrylic ARALDITE) to exposed copper to prevent moisture-induced leakage that could bypass safety circuits. Test every assembled unit at 10°C intervals between -10°C and 60°C to verify cutoff consistency and hysteresis stability under thermal drift.
