How to Wire the Intake Heater Relay for 73 Powerstroke Engines
Install a bypass circuit using a 30-amp automotive fuse and 12-gauge wire between the glow plug controller and the thermal switch. This prevents voltage drops that cause premature failure in cold conditions. Test connections with a multimeter at 0.2V or less–any higher reading indicates corrosion requiring immediate cleaning with dielectric grease.
Locate the PCM (Powertrain Control Module) under the driver-side dashboard and identify pin 87 on the airflow control module. Route a dedicated 10-gauge wire from this point directly to the battery, bypassing the factory harness. Avoid splices–terminate both ends with gold-plated ring terminals to eliminate resistance buildup. Replace the OEM thermal cutoff switch every 40,000 miles regardless of symptoms.
For engines operating in sub-zero climates, add a secondary 15A fuse inline with the primary circuit to handle increased amperage draw during extended warm-up cycles. Monitor intake manifold temperature via OBD-II scanner–if readings exceed 140°F during idle, inspect the solenoid valve for stuck-open position. Clean contacts with 800-grit sandpaper followed by CRC Electrical Cleaner application.

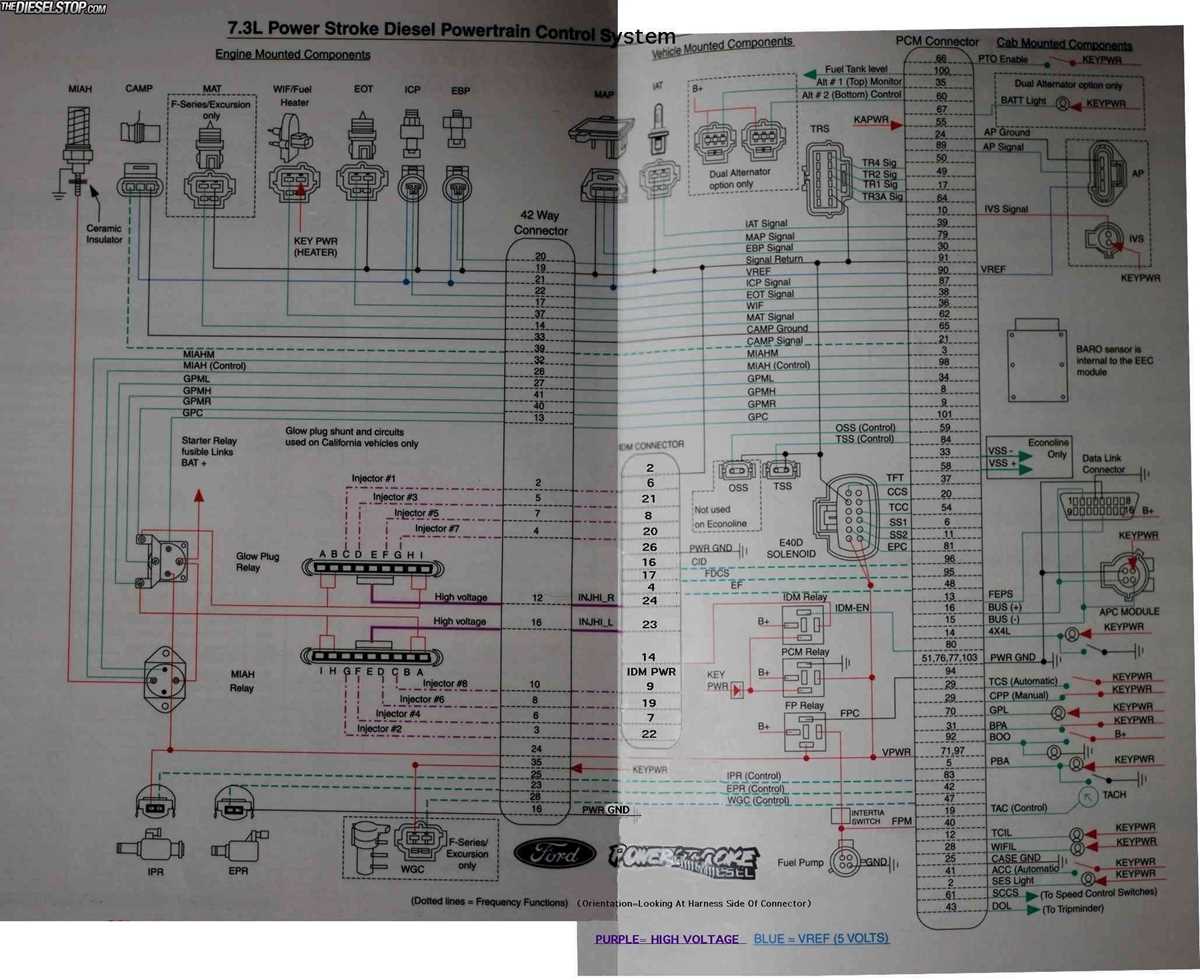

The factory relay wiring schematic often omits a critical ground path improvement. Run a braided 8-gauge ground strap from the chassis to the engine block, torquing to 18 ft-lbs. This stabilizes voltage fluctuations that trigger false error codes. Replace vacuum hoses at the same interval as oil changes–cracked lines disrupt airflow calibration, leading to incomplete combustion.

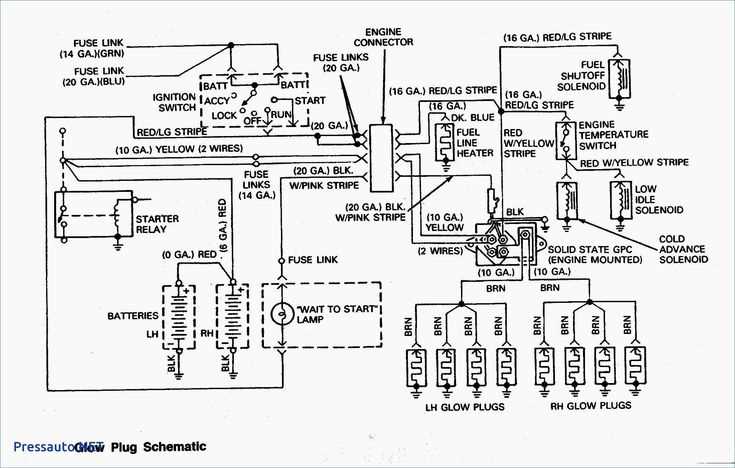

Diesel Engine Pre-Glow System Circuit Guide
Locate the auxiliary electrical control module beneath the driver-side dashboard. Pin 3 on the 16-way connector supplies 12V fused ignition feed–verify this with a multimeter before proceeding. Trace the violet wire from the module to terminal 87a of the secondary switch unit; any corrosion here disrupts cold-weather activation.
Connect a 14-gauge jumper between terminal 86 and the chassis ground–use a fresh M6 bolt near the fuse box for reliable bonding. Resistance above 0.2 ohms indicates oxidized ground paths; clean contacts with fine-grit sandpaper and apply dielectric grease. Test glow plug resistance at 0.5-1.8 ohms per plug; values outside this range signal internal short circuits.
Fault Isolation Steps
Bypass the dual-timer control by probing the tan wire at the solenoid plug; consistent voltage confirms timer module failure. Replace burnt resistors (marked R47/R48) on the PCB using ¼W 10kΩ components–originals degrade after 80k miles. Check harness continuity between the ECU and solenoid with a tone generator; discontinuity requires re-termination using crimped butt connectors.
Wire diameter mismatches cause overheating–upgrade to 12AWG for runs exceeding 15 feet. Secure splices with adhesive-lined shrink tubing; avoid solder-only connections that fatigue under vibration. Note the blue feedback wire from the temperature sensor carries 0.5V at 32°F–adjust idle speed parameters if voltage drifts outside ±0.1V.
Install an inline fuse holder rated 30A within 7 inches of the battery positive terminal. Route harness away from moving linkages and exhaust components using plastic loom. Document every modification with circuit labels; annotate resistance values and voltages for future diagnostics.
Locating the Glow Plug Control Module in Your Diesel Engine
Start by removing the passenger-side kick panel beneath the dashboard. The control unit is secured behind a black plastic cover near the fuse box, identifiable by a rectangular shape and two wiring harness connectors–one 10-pin and one 6-pin. If the module isn’t visible, trace the glow plug wiring harness upward; it leads directly to the mounting bracket.
The factory position varies slightly across model years. For 1999–2003 trucks, the module sits vertically against the firewall, while later models may have it oriented horizontally. Use a flashlight to scan for the engraved label reading “GPCM” or part number F81Z-12B533-AA if corrosion obscures markings. Avoid confusing this with the nearby PCM or ABS controller, which share similar dimensions but have distinct connector layouts.
| Module Type | Connector Count | Mounting Orientation | Engine Compartment Zone |
|---|---|---|---|
| Early (’99–’00) | 10-pin + 6-pin | Vertical | Directly behind kick panel |
| Late (’01–’03) | 10-pin + 6-pin | Horizontal | Adjacent to coolant reservoir |
If the module remains elusive, disconnect the battery and remove the lower glovebox for unobstructed access. The rear firewall area often conceals attachment screws; a swivel-head ratchet or 7mm socket extension will reach recessed fasteners. Mark each connector with masking tape before detachment–reversal of the 10-pin plug disrupts engine timing, while the 6-pin governs pre-chamber warmers.
Step-by-Step Guide to Locating the Pre-Combustion Air Warmer Electrical Connection
Disconnect the vehicle’s battery terminals first–ground cable followed by the positive–to eliminate voltage risks. The control module for the air preheating system resides behind the driver-side kick panel. Remove the two 8mm fasteners securing the panel, then pull it outward to expose the fuse block and adjacent components. The switching unit rests in the upper left corner, identifiable by its two-pin connector and labeling stamped on the housing.
Use a 10mm socket to detach the mounting bracket holding the switching device in place. Gently pry the harness plug free from its socket by pressing the release tab–avoid pulling on the wires directly. Inspect the pins for corrosion or bent contacts; clean them with electrical contact cleaner if necessary. Trace the wires back to their routing paths–one leads to the 30-amp fuse link, while the other connects to the engine control unit via a thin gauge signal wire.
Label each wire with tape before disconnecting anything further. Verify circuit integrity by testing for 12V at the supply side of the harness with a multimeter while having an assistant cycle the ignition to the “on” position. If voltage is absent, examine the fuse link and upstream wiring harness for damage or loose connections near the firewall grommet. Reassemble in reverse order, ensuring all fasteners are torqued to 8-10 ft-lbs.
Solving Glow Plug Circuit Problems in Diesel Engines
Begin troubleshooting by testing the control module’s voltage output at the harness connector. Use a multimeter set to DC 12V range and probe the designated pin (typically pin 87 on Bosch-style connectors) while the system is activated. A reading below 11.5V indicates either a weak battery, corroded terminals, or a failing alternator. For reference, factory specs require a minimum of 12.2V for proper operation.
Inspect the pre-chamber grid connector for overheating signs: discolored plastic, brittleness, or melted terminals. These symptoms point to excessive current draw, often caused by:
- a shorted grid element (internal resistance below 0.2 ohms)
- poor ground connection at the engine block (clean mating surfaces with 320-grit sandpaper)
- corroded braided strap between grid and intake manifold
Measure grid resistance with a load tester–factory spec is 0.5 to 1.2 ohms.
If the circuit activates but cuts out prematurely, focus on:
- the thermal cutoff switch (replacement threshold: 300°F/150°C)
- the solid-state timer (test for 3.5-4.5 second activation pulse)
- voltage drop across the fuse link (should not exceed 0.1V)
Use an oscilloscope to verify pulse width if diagnosis remains unclear.
Loose components often create intermittent faults. Secure all connections with dielectric grease and torque to manufacturer specifications:
- Harness splices: 4-6 in-lbs
- Grid terminals: 7-9 in-lbs
- Battery cable clamps: 8-10 ft-lbs
Vibration can loosen fasteners over time–recheck after 500 miles.
For hard-start conditions in temperatures below 32°F/0°C, bypass the timer temporarily by jumpering the control lead to battery positive. If the system engages fully, replace the timer module with OEM part number F5TZ-12A336-B. Aftermarket versions may lack proper thermal calibration.
When diagnosing parasitic draws, disconnect the circuit’s main feed wire and insert an ammeter in series. Normal draw should not exceed 0.05A with the ignition off. Higher readings indicate:
- a stuck contactor (manual override test: apply 12V directly to coil)
- chafed wire insulation shorting to chassis (inspect harness routing near exhaust manifolds)
- a malfunctioning glow plug (test individually by removing and checking for continuity)
Always verify repair success by monitoring:
- inlet air temperature before/after grid activation (target: 15-20°F rise in 20 seconds)
- fuel rail pressure (minimum 4,500 psi on 1999-2003 models)
- exhaust smoke opacity (should drop below 2% within 30 seconds)
Data log parameters for 10 consecutive start cycles to confirm consistency.
Essential Equipment for Diagnosing and Fixing Electrical Switch Circuits
Begin with a digital multimeter (DMM) set to continuity mode (≤200Ω) to verify conductor paths across terminals. Ensure the meter’s probes are rated for CAT III 1000V or higher–standard automotive leads often fail under inductive loads. For live circuit testing, switch to DC voltage mode (≤60V range) and measure across coil contacts to confirm 12–14.5V supply during activation. If readings fluctuate or drop below 10V, inspect battery terminals for corrosion or loose connections using a torque wrench (30–50 in-lb specification).
Specialized Tools for Precision Work
- Thermal imaging camera (FLIR E4 or equivalent): Detects overheating in connectors or terminals before disassembly. Scan at idle and under load–temperature spikes above 180°F indicate resistance.
- Wire-piercing probe (e.g., IDEAL Industries 61-065): Allows voltage measurement without stripping insulation. Use with heat-shrink tubing (3:1 shrink ratio) to seal puncture points afterward.
- Crimping tool with die sets (e.g., Knipex 97 52 36): Required for AWG 10–14 terminals. Avoid pliers–crimp depth must be 1.2–1.5mm for military-grade durability.
- Insulation-displacement kit (Tyco Electronics PIDG): For repairing chafed conductors. Cut damaged sections cleanly with a wire-cutting knife, strip 5mm, and terminate with tin-plated barrels.
- Load tester (Ferret 550): Simulates real-world current draw (30–50A) to identify intermittent faults. Attach inline between the fuse box and component.
Store tools in a static-dissipative case to prevent ESD damage to sensitive components. Replace test leads annually–frayed insulation skews readings by ±7%.
