Complete Guide to Wiring a 7 Pin RV Trailer Plug with Diagram

Connect the brown wire to the running lights terminal–this handles marker, tail, and clearance illumination. Route this first to ensure visibility compliance before moving to other circuits.

Attach the yellow lead to the left turn signal and brake light circuit–verify polarity with a multimeter before securing the crimp or solder joint. Cross-check continuity at ground potential (typically the white wire) to prevent intermittent shorts common in towing applications.

The green wire carries the right turn and brake signals; label it clearly to avoid confusion with the yellow during installation. Use heat-shrink tubing over connections subjected to moisture–standard vinyl insulation fails within months under road vibration and UV exposure.

A blue auxiliary wire powers the electric brakes or auxiliary circuits like backup lights. Connect this last if the system includes brake controllers; incorrect wiring risks fuse blowouts or controller damage. Test with a 12V load before finalizing.

For the black (12V power) circuit, fuse the line at 10-20 amps near the battery–never rely on the vehicle’s factory fuse. Corrosion-resistant terminals (tin-plated copper) prevent voltage drops exceeding 0.2V over a 20-foot run.

Ground connections demand dedicated paths back to the battery negative. Shared grounds through chassis or coupling points induce phantom signals and erratic behavior in LED lighting. Use star washers under ring terminals to penetrate oxidized surfaces.

Document wire lengths and terminal positions before assembly. A crimped ring terminal should compress 18-22 AWG wire to 75-80% of its original diameter–any deviation weakens pull-out resistance below the required 20 lbs minimum for SAE J560 compliance.

Electrical Link Guide for Recreational Vehicle Plugs

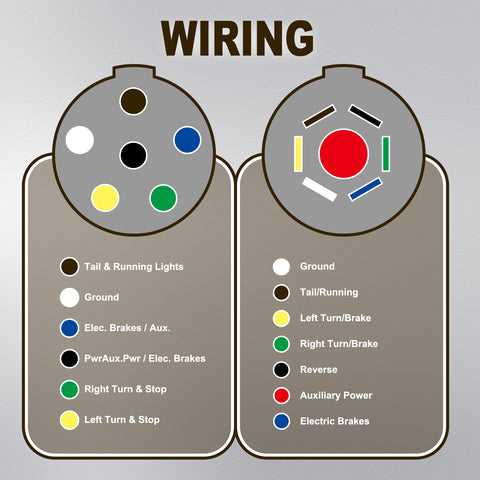

Start by verifying the voltage across each contact before connecting to avoid damaging components. The standard configuration pairs brown (running lamps) with the outermost port, yellow (left turn) at 7 o’clock, green (right turn) at 5 o’clock, white (common ground) centered, blue (brake controller) at 12 o’clock, black (battery charge) at 3 o’clock, and red (auxiliary power) at 1 o’clock.

Use a multimeter to confirm continuity between the plug and socket after installation; resistance should not exceed 0.5 ohms. If readings deviate, inspect for corrosion or loose terminal crimps. Replace crimping tools if jaws show signs of wear–flared copper strands cause intermittent failures.

For vehicles with integrated braking systems, connect the blue wire directly to the brake controller output, bypassing any intermediate modules. Factory controllers often require a 5A fuse inline; omit this step only if the manual specifies otherwise. Never splice into existing circuits for brake signals–dedicated pathways prevent voltage drop under load.

Ground the white lead to the chassis near the plug mounting point, not a threaded bolt already shared by other accessories. Paint or powder coating introduces resistance; scrape clean until bare metal is exposed. Corrosion inhibitors like dielectric grease applied after testing maintain conductivity without hindering future diagnostics.

Color-Coded Reference for Common Issues

• Brown: Dim rear lights typically indicate a bad ground at the taillight assembly rather than the plug itself. Trace the circuit backward step-by-step.
• Yellow/Green: Flashing lights acting as both turn and brake signals suggest a short to the brown circuit. Isolate each lamp cluster to identify the fault point.
• Black: Slow battery charging may be due to undersized wire gauge; minimum 10 AWG is recommended for towing distances under 15 feet.
• Red: Auxiliary circuits lacking power often stem from blown fuses or tripped breakers inside the tow vehicle. Check the fuse box even if initial inspection appears normal.

Secure all wires inside a flexible conduit where they exit the vehicle frame; rodents routinely chew exposed cables. Split-loom tubing provides minimal protection–opt for spiral wrap or armored sleeving in high-risk areas. Fasten conduit ends at both vehicle and chassis junctions to prevent chafing from vibration.

Label every wire at both ends during disassembly to eliminate guesswork during reassembly. Tagging with unique alphanumeric codes speeds troubleshooting later. Color-blind users should mark wires with embossed sleeves or heat-shrink labels that distinguish hues tactilely.

1. Disconnect the vehicle battery before working on any live circuits.
2. Tape off unused ports on the socket side with waterproof insulation to prevent moisture ingress.
3. Test all circuits with a tow simulator before attaching the load to confirm functionality.
4. Recheck torque on all fastening screws after the first 50 miles of towing; vibration loosens connections quickly.

Emergency Field Repairs

Carry a pre-wired bypass harness with weatherproof connectors for immediate temporary fixes. Standard replacement kits include 12-inch pigtails with heat-shrink terminals–adequate for roadside repairs if the original harness suffers catastrophic failure. Store spare wire nuts and butt connectors in a sealed container to prevent corrosion during transit.

How to Identify the Correct Wires in a 7-Way Plug Assembly

Begin by locating the vehicle’s harness and the matching socket. Most setups follow a standardized color-coding system, though variations exist. Check the owner’s manual for the tow vehicle or the harness manufacturer’s documentation–some makers like Hopkins, Curt, or Bargman use proprietary hues.

Use a multimeter set to continuity mode or voltage testing to verify each lead’s function. Ground the black probe to the frame or a known ground point, then probe each terminal with the red probe. A functional brake light circuit will show 12 volts when the brake pedal is pressed, while running lights activate at ignition. Auxiliary power (commonly for battery charging) typically delivers a steady 12 volts regardless of lighting state.

Key Color Codes and Their Functions

Yellow usually corresponds to the left turn and brake signal, while brown handles taillights or marker lamps. Green typically controls the right turn and brake, with white reserved for the primary ground. Blue is often designated for electric brake control, and red or black carries auxiliary power. Purple or orange wires may serve reverse lights or backup sensors in certain setups–confirm with a test light before connecting.

If color discrepancies arise, trace the wires back to their source. Disconnect the socket and peel back a small section of insulation to inspect the conductor–some aftermarket harnesses use thin copper strands, while OEM bundles may include thicker, tinned wires for corrosion resistance. Label each wire with masking tape and a marker to avoid confusion during reassembly.

For vehicles with factory tow packages, consult the build sheet or VIN decoder for wiring specifics. Some European or Asian models invert the standard green and yellow assignments, while diesel trucks with exhaust brakes may repurpose the blue lead for engine-related functions. Always cross-reference with a trusted source before splicing.

In cases where the harness is damaged or colors are indistinguishable, rebuild the connection using heat-shrink butt connectors and marine-grade wire. Match the gauge to the original–12 AWG for brake circuits, 14 AWG for lights, and 10 AWG for power feeds. Test each circuit incrementally to isolate faults before finalizing the installation.

How to Install a 7-Way RV Electrical Interface on Your Tow Vehicle

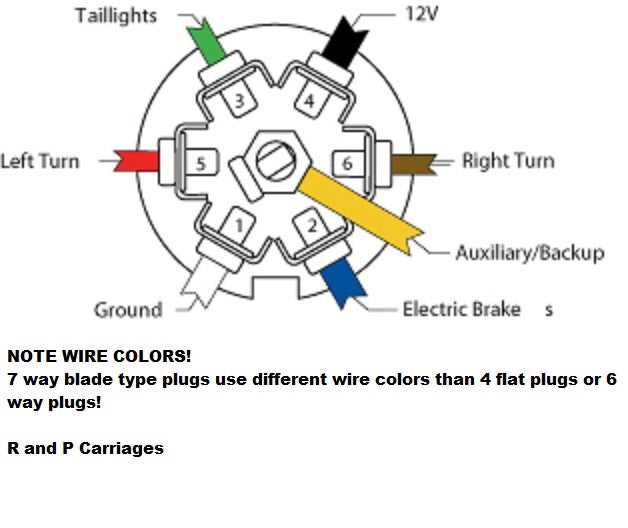

Begin by stripping the insulation from the ends of each colored cable in the harness–expose exactly 6 mm of copper to ensure a solid connection. Secure the wire into the corresponding terminal slot using a crimping tool; avoid twisting or bending the strands, as this increases resistance and can lead to intermittent contact. The standard color-coding for North American setups is as follows: white for ground, black for 12V auxiliary power, yellow for left turn/brake, green for right turn/brake, brown for running lights, blue for electric brakes, and red or purple for reverse lights or auxiliary functions.

Mount the socket base to a metal surface on the tow vehicle using self-tapping screws–ensure the surface is clean, dry, and free of paint or corrosion. If the vehicle’s frame is aluminum or composite, use a grounding plate or star washer between the screw and surface to improve conductivity. Connect the white ground cable directly to the vehicle’s chassis using a ring terminal; crimp and solder the joint, then wrap it tightly with heat-shrink tubing to prevent moisture ingress. For vehicles with trailer brake controllers, route the blue cable straight to the controller–skip splices if possible to maintain signal integrity.

Test each circuit with a multimeter before final assembly: set the meter to DC voltage, activate the corresponding function (e.g., turn signals, brake lights), and probe the terminal inside the socket–readings should match the vehicle’s battery voltage (±0.5V tolerance). Install a dielectric grease inside the socket housing before sealing it to protect against oxidation. Once all circuits are verified, attach the plug cover and secure it with the locking tab to prevent road vibration from loosening the connection. Repeat voltage checks after driving 50 miles to confirm stability under load.

7-Way Plug Installation Errors and Their Fixes

Using mismatched wire gauges leads to overheating and unreliable power flow. Stick to 16-12 AWG wiring for circuits carrying less than 15 amps and 12-10 AWG for brake/auxiliary functions. Verify gauge compatibility with your vehicle’s electrical system documentation before stripping cables. Skimping on wire thickness causes voltage drops, especially under load–a 10% loss can disable lights or brakes.

Incorrect color coding disrupts signal routing. Follow the standard: brown for running lights, yellow for left turn/brake cluster, green for right, white for ground, blue for electric brakes, red for auxiliary power, and black for 12V hot lead. Cross-wiring, like swapping yellow and green, triggers erratic braking or turn signals on one side only. Use a multimeter to confirm each circuit’s function before finalizing connections.

Improper grounding creates intermittent failures. Connect the white wire directly to the tow vehicle’s chassis–avoid paint, rust, or coatings. Bolt it tight with a star washer to ensure a solid contact surface. For trailers, run a dedicated ground from the plug to the frame, avoiding shared grounds with lights or other components. Poor grounding mimics bulb failure, often misdiagnosed as a wiring issue.

Skipping the dielectric grease accelerates corrosion. Apply a thin layer to each terminal before assembly–this prevents moisture infiltration, especially in wet climates or off-road use. Corroded contacts increase resistance, causing dim lights or intermittent brake activation. Clean terminals with a wire brush if corrosion is already present, then coat before reassembling.

Overlooking fuse protection risks electrical fires. Install a dedicated fuse (typically 30A) on the auxiliary power circuit within 7 inches of the battery connection. Forgetting this step leaves the entire setup vulnerable to shorts. Match the fuse rating to the wire gauge: 10A for 16 AWG, 20A for 14 AWG, and 30A for 12-10 AWG. Use a fuse holder with a waterproof cover if exposed to elements.

Tightening terminals too loosely or too tightly damages the assembly. Over-torquing cracks the housing, while under-torquing causes vibrations to loosen connections. Use a torque screwdriver set to 8-10 inch-pounds. Test each contact by tugging gently–if wires slip, re-secure. Check regularly, as road vibrations can gradually loosen terminals during use.
