How to Build a 7 Segment Display Circuit with Detailed Wiring Guide
Start with a common cathode or common anode configuration–your choice dictates resistor placement and logic polarity. For a common cathode, connect the negative terminal of a 5V supply directly to the shared pin (usually pin 3 or 8 on a 10-pin package). Each of the seven LED bars (labeled A to G) requires a current-limiting resistor (220Ω–470Ω) on its anode side to prevent burnout. If using common anode, reverse the polarity: wire the positive rail to the shared pin and place resistors on the cathode leads.

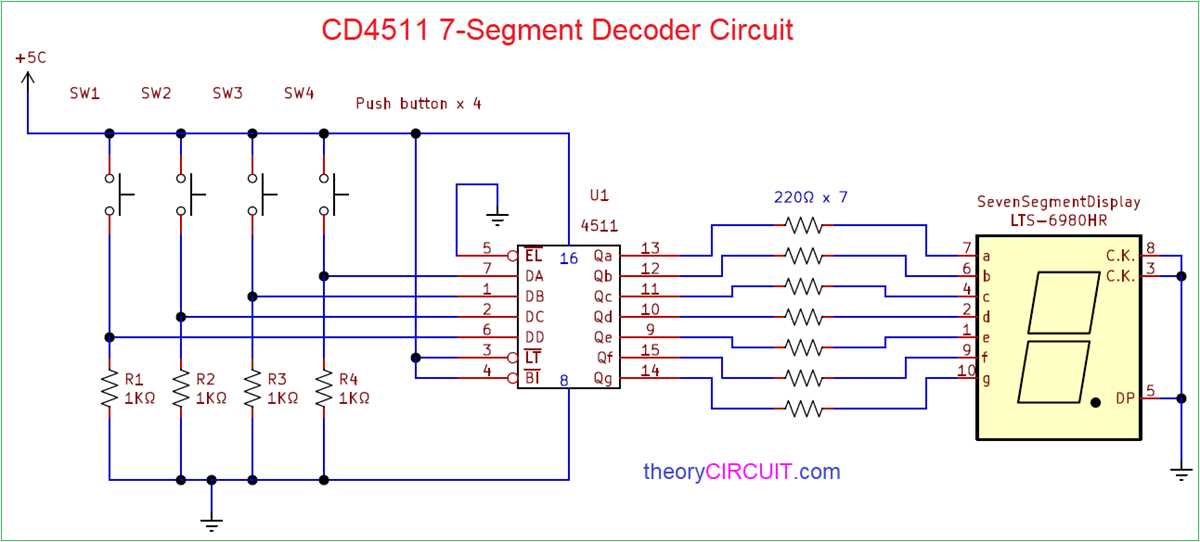

Assign each bar (A–G) to a microcontroller port or decoder IC output. For direct control, an Arduino’s digital pins (D2–D8) can drive a common cathode display with a single line of code per bar: digitalWrite(pin, HIGH) lights the bar. For multiplexing, route all anodes through a 74HC4511 BCD-to-LED decoder to reduce pin usage. Tie the decoder’s inputs to four microcontroller ports; it handles the binary-to-light conversion automatically.
Ground decoupling is non-negotiable. Add a 0.1µF ceramic capacitor between the supply rail and ground near the display to suppress voltage spikes that cause ghosting. If wiring by hand, use 24-gauge solid wire for rigidity–solder bridges easily short adjacent bars, especially around the decimal point. Test each bar with a multimeter in continuity mode before powering the circuit; a silent beep confirms a broken trace.
For power efficiency, limit current to 10–15mA per bar. A common anode display under 12V can run without resistors if the driver IC (like ULN2003) has built-in current limiting, but this risks uneven brightness. Always measure voltage drop across each bar–any value under 1.8V suggests insufficient current; above 2.2V, reduce resistor value.
Label your wiring harness. Color-code anode wires (red for A, orange for B, yellow for C) to avoid confusion during assembly. Keep traces as short as possible–long runs act as antennas, picking up EMI that can trigger erratic flickering. If using a breadboard, place the display close to the microcontroller to minimize noise.
Building a 7-Pin Numeric Indicator Circuit Layout
Start with an active-low common cathode configuration if using a microcontroller like Arduino or PIC. Connect pins A-G and DP to current-limiting resistors (220–470Ω) before routing to digital output pins. For 5V logic, 330Ω resistors prevent LED burnout while maintaining visibility.
For passive driving (without a controller), use a BCD-to-7 decoder IC such as 74LS47. Inputs D0–D3 accept binary codes 0000–1001, auto-translating to numerals 0–9. Tie BI/RBO and RBI to VCC unless blanking or ripple-blanking features are needed.
Ensure power rails run parallel to the indicator’s pins. Dedicate GND and VCC traces at least 0.5mm wide–thinner traces risk voltage drop during simultaneous illumination (e.g., digit “8” drawing ~20mA per pin). Thermal vias beneath the cathode pad improve heat dissipation if mounted on protoboard.
Add decoupling capacitors (0.1µF ceramic) within 2cm of the decoder IC or microcontroller pins. High-frequency switching–common during multiplexing–induces noise spikes; bypass caps filter transients that could corrupt adjacent logic levels.
Multiplexing extends battery life but demands precise timing. Drive common cathodes via NPN transistors (2N3904) or N-channel MOSFETs (2N7000). Switch cathodes at ≥100Hz to avoid flicker; pulse width modulation (>2ms per digit) balances brightness across digits of unequal complexity.
Test each pin individually after assembly. Illuminate the decimal dot (DP) alone to confirm resistor sizing; overly bright dots indicate insufficient resistance. Faint segments suggest cold solder joints–reflow pins with flux-cored solder and clean residues with isopropyl alcohol.
For custom symbols (e.g., letters A–F), override the BCD decoder’s truth table via microcontroller firmware. Arduino’s `digitalWrite` toggles pins A–G sequentially; exploit persistence of vision by strobing each at 5ms intervals for pseudo-static glyphs.
CMOS variants (74HC4511) tolerate 3–15V but require pull-down resistors on unused inputs. Substitute TTL (74LS47) for 5V-only designs. Reverse polarity protection diodes (1N4007) safeguard against accidental power swaps, critical in portable builds.
Key Components and Symbols in a 7-Segment Indicator Circuit
Begin by identifying the decimal point separately–it’s often overlooked but critical for designs requiring precision. The DP pin (typically labeled “DP” or “h”) is tied to a dedicated LED and requires its own current-limiting resistor, sized identically to the main bars (220Ω for 5V logic). Ensure this resistor connects directly to VCC or ground, depending on common-anode or common-cathode configuration, to avoid unintended illumination or reverse bias damage.
- Common cathode (CC): All bar LEDs share a ground node. Symbol shows a downward arrow at the common pin. Drive bars high (logic 1) to light.
- Common anode (CA): Bars share VCC. Symbol has an upward arrow. Drive bars low (logic 0) to light.
- Interconnects: Standard 0.1″ headers or SIL sockets mate most modules. Avoid soldering directly to pins–thermal stress fractures copper pads after 8-10 cycles.
- Resistor placement: Insert between MCU and each bar anode/cathode, not at the common pin. Parallel paths otherwise create uneven brightness and thermal runaway in high-current variants.
Decode IC symbols simplify wiring: a 74LS47 (BCD-to-7-bar decoder/driver) uses a trapezoidal outline with 4 input pins (A-D) and 7 outputs (a-g). Outputs map directly to bar positions–no additional logic needed. For multiplexed arrays, add a ULN2003 darlington array: each transistor pair handles 500 mA per bar, protecting MCU ports from exceeding 20 mA per pin. Verify resistor values with: R = (VCC – Vf) / I, where Vf (forward voltage) ≈ 2V for red, 3.2V for blue, and I ≤ 20 mA per bar.
Step-by-Step Wiring Guide for Common Cathode vs. Common Anode LED Numerals

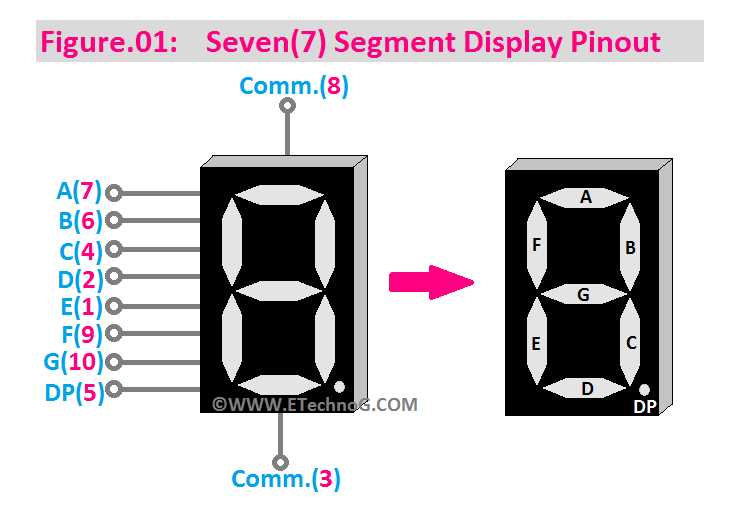

Begin by identifying the pin layout of your 7-bar module. Most standard units have 10 pins: one for each bar (A–G), a decimal point, and either a shared positive or negative terminal. Common cathode types will group all negative legs together, while common anode variants consolidate the positive legs. Confirm this using a multimeter in continuity mode–probe between the shared pin and any bar lead to detect conduction.

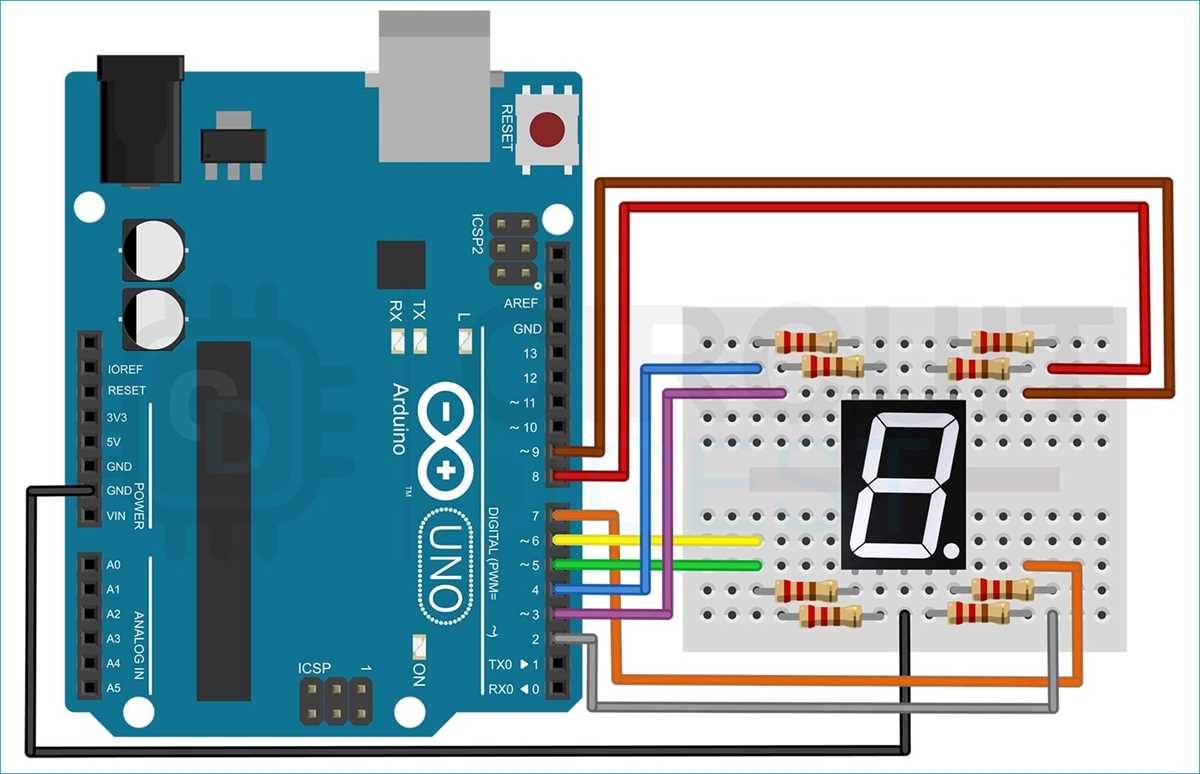

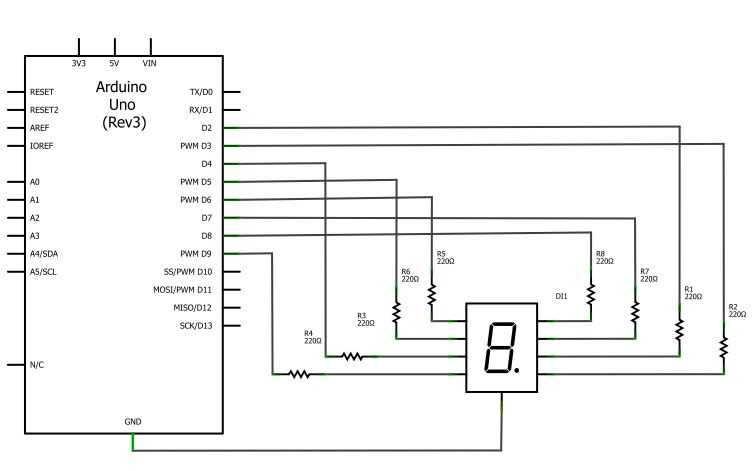

For common cathode wiring, connect the shared pin directly to ground. Use a current-limiting resistor (typically 220–470Ω) on each bar lead before attaching to a microcontroller output. Example: connect resistor from Arduino pin D2 to bar A, D3 to bar B, and so on. Enable bars individually by pulling microcontroller pins LOW. Note that multiplexing requires additional hardware; static wiring is simplest for single-digit setups.
For common anode wiring, tie the shared pin to VCC (+5V). Place a resistor (same values as above) between each bar lead and the microcontroller. Drive bars by pulling microcontroller pins HIGH. If using a shift register, map outputs accordingly: bar A to Q0, bar B to Q1, etc. Remember active-high logic reverses the usual pull-down pattern; test with a blinking sketch before finalizing connections.
- Common cathode pros:
- Compatible with active-low logic (direct transistor drive)
- Lower power draw in high-side switching setups
- Common anode pros:
- Simpler integration with PNP transistors or high-side drivers
- Matches standard logic of many driver ICs (e.g., MAX7219)
Verify polarity before soldering: miswiring a common cathode as anode (or vice versa) risks permanent damage. Use a breadboard to prototype both configurations with a 9V battery and 330Ω resistor–expected behavior is full illumination in one setup and darkness in the other. Label modules immediately after testing to avoid confusion.

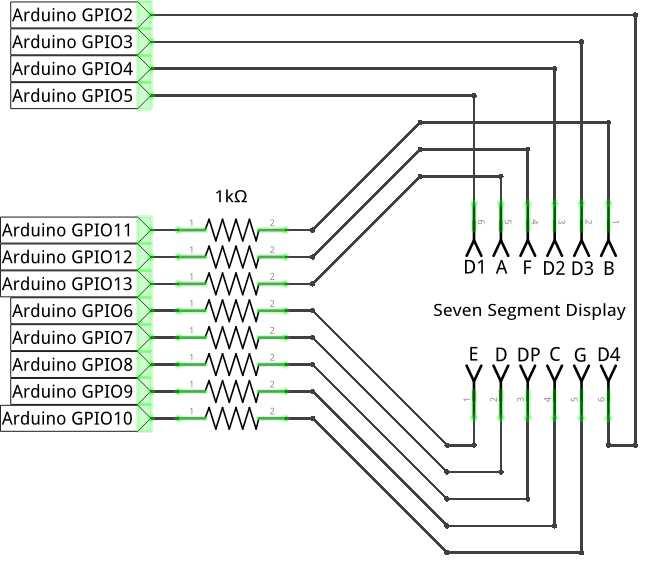

For multi-digit assemblies, isolate bar leads across all digits (A1–A8, B1–B8), then connect shared pins individually. Common cathode digits share a single ground plane; common anode types demand separate VCC lines. Multiplexing reduces pin count–example firmware toggles digit 1 ground LOW while setting bar voltages, then shifts to digit 2. Cycle at ≥100Hz to prevent flicker.
Decouple power lines with a 0.1µF capacitor near each module’s supply pin, especially in multi-digit stacks. Long wires introduce inductive noise; twist ground returns with data lines to minimize ghosting. When daisy-chaining driver ICs, adhere strictly to datasheet timing–common anode arrays often tolerate faster refresh rates than cathode siblings due to inherent diode capacitance.
How to Read and Label Pinouts in Circuit Designs
Begin by identifying the common cathode or anode configuration in the component datasheet. Most 7-segment indicators use one of these two setups, with pins grouped into digit inputs and LED outputs. Trace the power pins first–typically labeled VCC or GND–then map each output pin to its corresponding position (a-g, DP) using the manufacturer’s layout. Pin numbering often follows a counter-clockwise pattern starting from the upper-left corner.
Cross-reference the assigned functions with the board layout to avoid confusion between similar components. Common labeling errors occur when pins for different digits (e.g., “digit 1” vs. “digit 2”) are swapped or when decimal point pins are misidentified. Use a multimeter in continuity mode to verify connections between the PCB traces and component leads, ensuring the schematic matches physical pin assignments.
Adopt a consistent naming convention for clarity. For example:
| Pin Type | Recommended Label |
|---|---|
| Power (Positive) | VSUP or V+ |
| Ground | GND |
| Output (LED) | OP_A, OP_B, …, OP_DP |
| Control Input | CTL_DIG1, CTL_DIG2 |
Annotate power rails with voltage tolerances directly on the design file. A 5V indicator, for instance, should have pins marked as “VCC (4.5V–5.5V)” to guide current-limiting resistor calculations. Include pull-up or pull-down resistors in the notes if required, specifying values like 220Ω or 330Ω for standard LED drive currents.
Group related pins visually using net labels or buses. For multi-digit units, bundle digit-select lines (e.g., DIG1–DIG4) into a bus labeled “DIG[3:0]” and segment outputs into “SEG[7:0].” This reduces clutter and makes debugging easier. For complex boards, add a reference table within the design file listing each pin’s function, connected net, and any special conditions (e.g., “Active Low”).
Double-check polarity markers on polarized components like electrolytic capacitors or transistors. Mislabeling these–such as swapping emitter and collector on an NPN transistor–can lead to component failure or circuit malfunction. Use standardized symbols (e.g., “+” for anodes, “-” for cathodes) and verify against the footprint’s silkscreen during PCB assembly.
