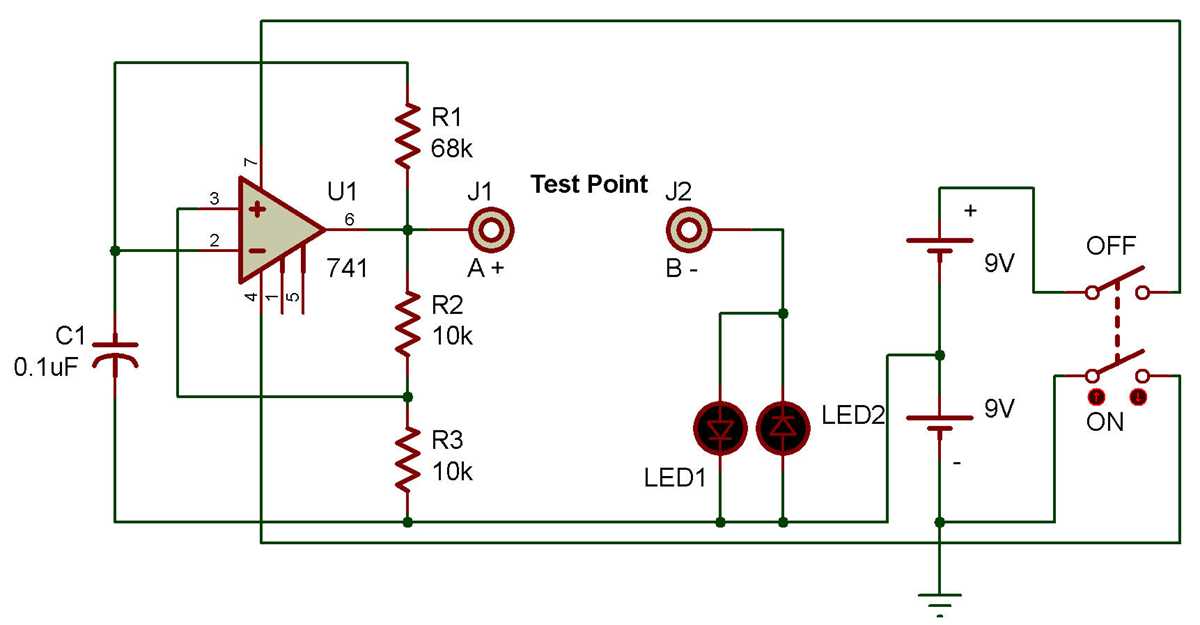

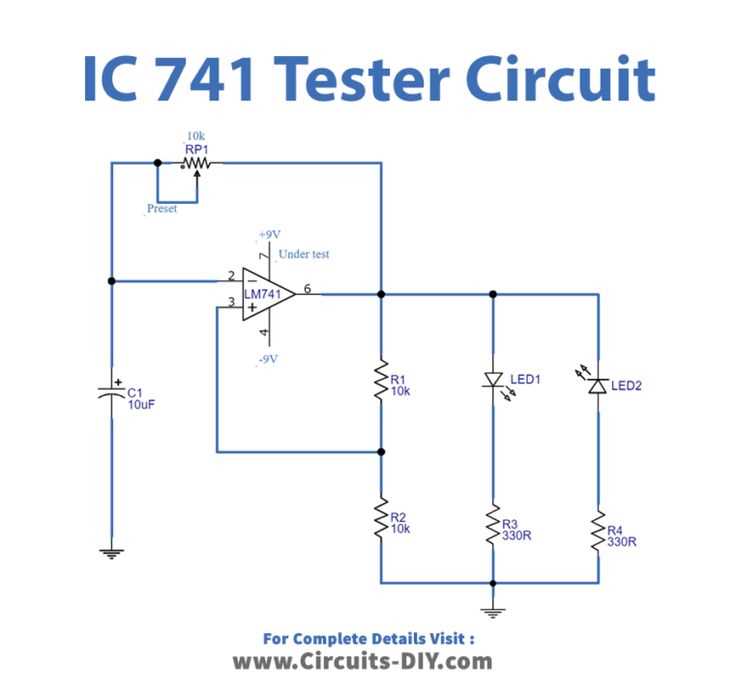

Build and Understand a 741 Operational Amplifier IC Tester Circuit Schematic
Start by sourcing a standard DIP-14 socket, precision resistors (1% tolerance or better), and a stable dual-power supply delivering ±9V to ±15V. Connect the non-inverting input to a voltage divider configured to deliver a precise reference–typically midway between the rails–to avoid common-mode voltage drift. Bypass capacitors (0.1µF ceramic) must be placed within 2mm of the socket’s power pins to suppress high-frequency noise that distorts small-signal measurements.
A two-stage approach ensures accuracy: first, verify open-loop behavior by forcing the output to swing rail-to-rail via a series resistor (10kΩ) on the inverting input while monitoring slew rate and phase margin on an oscilloscope. Second, test closed-loop configurations (unity gain, ×10 gain) with a known signal source–preferably a low-distortion function generator–to confirm bandwidth linearity and offset null adherence. Document input impedance discrepancies above 1MΩ as they indicate internal leakage paths.
LED indicators–red for fault, green for pass–should be driven by a window comparator (LM393) comparing the device’s output to calculated thresholds (±3V for ±12V rails). Include a manual override with a toggle switch to isolate feedback networks during slew-rate testing. For batch screening, add a 4-channel analog multiplexer (CD4051) to automate input stimulus selection without recalibration between units.
Thermal drift can skew results, so perform all tests at a controlled 25°C–preheat samples in a convection chamber before evaluation. Log deviations greater than 50µV/°C; these devices must undergo further characterization under transient load conditions. Always cross-reference results with manufacturer’s datasheet plots for input bias current and common-mode rejection ratio to distinguish inherent design limits from actual defects.
Building a Precision Op-Amp Verification Unit
Start with a regulated dual power supply delivering ±12V to ±15V for accurate component evaluation. Mount a ZIF socket on the breadboard to avoid mechanical stress during repeated insertions, ensuring secure pin contact. Use precision resistors rated at 0.1% tolerance–key values include 1kΩ for input limiting, 10kΩ for feedback loops, and 100kΩ for load simulation. Bypass capacitors (0.1μF ceramic) should be placed within 5mm of the socket’s power pins to suppress high-frequency noise.
Integrate a quad SPST switch array for flexible test mode selection: open-loop gain, closed-loop gain, input offset voltage measurement, and common-mode rejection testing. For open-loop assessment, connect a 100kΩ resistor in series with the non-inverting input, while the inverting input links to a 10kΩ potentiometer for voltage adjustment. Measure output swing with a 10Hz–100kHz sine wave generator, ensuring linearity within ±10V.
Critical Signal Path Components
Embed a two-stage LED indicator system: red for fault conditions (shorts, open pins), green for passed parameters. Current-limiting resistors of 330Ω prevent excessive draw during faulty states. For offset voltage tests, insert a 1mΩ resistor between the inverting input and ground, then monitor output drift with a 12-bit ADC module sampling at 1kHz. Calibration requires trimming the potentiometer until the ADC reads zero at 25°C ambient.
Use a low-leakage 4.096V reference IC to establish measurement baselines. Connect the reference output to the non-inverting input through a 1kΩ resistor during CMRR tests, while grounding the inverting input via 100kΩ. Record output voltage change when switching the reference from +4V to -4V–acceptable CMRR exceeds 70dB. Log results with a microcontroller outputting raw values to an OLED display via I2C, formatted as three-decimal-place figures.
Thermal stability checks demand a 1°C/minute temperature ramp from 0°C to 70°C, achieved with a Peltier module and PID controller. Place a thermistor (10kΩ NTC) within 2mm of the component under test, interfaced to the microcontroller’s ADC. Track output drift: maximum permitted deviation is 5μV/°C. If values exceed this, flag the unit as temperature-sensitive.
For slew rate validation, inject a 10V peak-to-peak square wave at 1kHz. Route the output through a 10pF compensation capacitor to a high-speed comparator (e.g., LM311). The comparator’s threshold should trip at 90% of the final voltage within 5μs–slower transitions indicate degraded slew performance. Capture waveforms with a 50MHz oscilloscope; store screenshots for batch comparison.
Advanced Diagnostic Techniques
Noise floor assessment involves grounding all inputs through 10kΩ resistors, then amplifying residual signals by 100× using an ultra-low-noise preamplifier (e.g., ADA4522). Bandwidth filtering (10Hz–100kHz) isolates relevant noise; measure RMS voltage with a true-RMS meter. Acceptable noise levels stay below 5μV RMS–higher values suggest internal oscillation or poor manufacturing quality.
Short-circuit current tests require a 1Ω current-sense resistor in series with the output. Drive the input to ±12V and measure voltage drop across the resistor; multiply by 1A/V transimpedance gain to derive current. Healthy units deliver 20–25mA without thermal shutdown. Failure to recover within 10 seconds post-short indicates latch-up susceptibility. Document all results in a CSV file for statistical process control analysis.
Selecting Optimal Parts for an Operational Amplifier Validation Setup
A precision dual-supply voltage regulator is mandatory. LM317 paired with an LM337 delivers stable ±15V rails with minimal drift, critical for maintaining signal fidelity during noise susceptibility checks. Calculate resistor values using R1 = (Vout – 1.25)/Iadj to ensure current remains above 5 mA for thermal stability under load.
Replace generic breadboard contacts with machined IC sockets rated for 100+ mating cycles. Phosphor bronze contacts with gold flash plating (ENIG finish) reduce contact resistance below 5 mΩ, preventing false negatives in offset voltage measurements caused by parasitic thermocouple effects.
Choose 1% tolerance metal film resistors for feedback networks. Temperature coefficient under 50 ppm/°C guarantees consistent gain calibration across temperature sweeps from -20°C to +85°C. Toroidal inductors at supply inputs suppress high-frequency noise; opt for 10 µH parts with self-resonant frequency above 10 MHz to avoid signal distortion.
Dual comparator chips with rail-to-rail output simplify pass/fail indication. The TLC3702CP consumes under 500 µA per channel, extending battery life when using a 9V alkaline cell. Its internal hysteresis of 2 mV eliminates false toggling during slew rate evaluations. Decouple each chip with 0.1 µF X7R ceramic capacitors mounted within 2 mm of the VCC pin.
LED selection impacts interpretation speed. Use green (525 nm) for “operational” indication, red (625 nm) for faults, and amber (590 nm) for transient anomalies. Current-limiting resistors calculated as (Vsupply – VLED)/ILED prevent thermal runaway; a 1 kΩ resistor yields 10 mA through a typical 2V forward-voltage device, balancing visibility and longevity.
Step-by-Step Assembly of the Operational Amplifier Evaluation Setup
Begin by securing a solderless breadboard, a 14-pin DIP socket, and a precision resistor kit with values of 1kΩ, 10kΩ, and 100kΩ. Verify the resistor tolerances at ±1% or better to ensure measurement accuracy. Position the DIP socket near the center of the breadboard, aligning its notched end with the silkscreen markings for pin orientation reference.
Connect the positive supply rail to pin 7 and the negative rail to pin 4 using jumper wires. Use a regulated dual-power supply delivering ±15V; bypass each rail with 0.1µF ceramic capacitors placed as close as possible to the socket to suppress high-frequency noise. Confirm power integrity with a multimeter before proceeding to avoid damaging the device.
Insert a 1kΩ resistor between the inverting input (pin 2) and the output (pin 6) to establish a basic unity-gain buffer configuration. Add a 10kΩ resistor between the non-inverting input (pin 3) and ground to set a stable reference point. For initial verification, apply a 1V DC signal to the non-inverting input and measure the output; expect near-identical voltage with minimal offset.
To test frequency response, replace the 1kΩ feedback resistor with a 10kΩ component and introduce a 100pF capacitor in parallel. Inject a 1kHz sine wave at the non-inverting input using a function generator; observe the output waveform on an oscilloscope. A properly functioning device will maintain waveform integrity up to approximately 1MHz before noticeable roll-off.
For slew rate assessment, drive the input with a 10V peak-to-peak square wave at 10kHz. Monitor the output slope; typical values range from 0.5V/µs to 1V/µs. Deviations beyond this range indicate potential internal compensation issues or fabrication variations. Document observed rise/fall times for baseline comparison.
Evaluate input bias current by removing the 10kΩ grounding resistor and replacing it with a 100kΩ component. Measure the DC voltage at the non-inverting input; expect values below 20mV for low-leakage devices. Higher readings suggest excessive gate current, which can degrade high-impedance signal performance.
Construct a variable gain stage by replacing the 1kΩ feedback resistor with a 100kΩ potentiometer. Adjust the wiper while monitoring output linearity across a 0-5V input range. Non-linear response at higher gains signals potential output stage saturation or insufficient supply headroom. Test with both ascending and descending input sweeps to detect hysteresis.
Final assembly involves adding a 10kΩ load resistor between the output and ground to simulate realistic operating conditions. Re-measure all prior test parameters under this loaded state, noting any deviations from unloaded values. Store assembled components in an anti-static tray with desiccant to prevent moisture-induced performance drift before further use.
