How to Wire 74HC595 Shift Register Step-by-Step Guide with Diagram
Start by connecting the serial data line to the microcontroller’s designated output pin–commonly GPIO 12 (D6) on ESP8266 or D11 on Arduino Uno. Assign VCC to 5V and ground the register’s GND pin directly to the board’s common ground. Use a 0.1µF ceramic capacitor between power and ground near the chip to stabilize voltage fluctuations.
For clock and latch control, link SH_CP (pin 11) to SCLK (D13 on Arduino) and ST_CP (pin 12) to latch (D8 on ESP8266). Keep leads short–under 10cm–to minimize signal degradation. If driving LEDs, add 220Ω resistors on each output to limit current to ~10mA per channel.
To cascade multiple registers, connect Q7′ (pin 9) of the first unit to DS (pin 14) of the second. Power both from the same 5V rail, but isolate grounds if noise appears–use separate traces back to the main ground plane. For precise timing, set clock pulses ≥50ns wide; violating this causes data corruption.
Test each output with a logic probe or multimeter before attaching loads. Voltages should toggle 0V to 5V when sending high/low signals. If outputs remain stuck, verify OE (pin 13) is tied low; floating this pin disables outputs entirely.
Shift Register Connection: Hands-On Assembly Guide
Start with a stable 5V power source–fluctuations above 7V risk permanent damage. Connect VCC to the positive rail and GND to the negative, ensuring a 0.1µF decoupling capacitor sits directly between these pins, reducing noise from high-speed data transfers.
Link the serial input (DS) to a microcontroller’s digital output, using a 220Ω resistor in series to limit current surges. For clock synchronization, attach SH_CP (or CLK) and ST_CP (or LATCH) to separate MCU pins–avoid PWM-capable outputs to prevent unintended data shifts mid-operation.
Data cascading requires connecting Q7’S (serial output) of one register to DS of the next. Keep traces under 10cm when chaining more than two devices to prevent signal degradation. For long chains, add a 47pF capacitor between CLK and GND near each subsequent register to dampen ringing.
Pull-down resistors (10kΩ) on unused inputs prevent floating states, which can cause erratic LED flashing or incorrect data latching. Test each segment with a 20ms delay between latch pulses during setup–faster toggling risks metastability in the storage register.
Common errors and fixes:
| Symptom | Root Cause | Solution |
|---|---|---|
| Flickering outputs | Excessive clock jitter | Reduce trace length, add 22pF cap to CLK |
| Data corruption at 8MHz | Missing decoupling | Add 1µF tantalum cap + 0.1µF ceramic |
| Random bit flips | Floating MR pin | Tie MR to VCC with 1kΩ resistor |

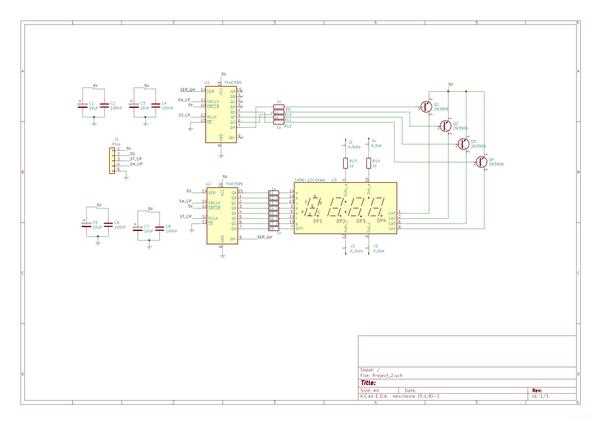

For high-current loads like 7-segment displays, insert a ULN2803A Darlington array between the register’s parallel outputs and the load. Each channel handles up to 500mA but requires heatsinking if driving inductive loads–exceeding 300mA per segment may necessitate active cooling.

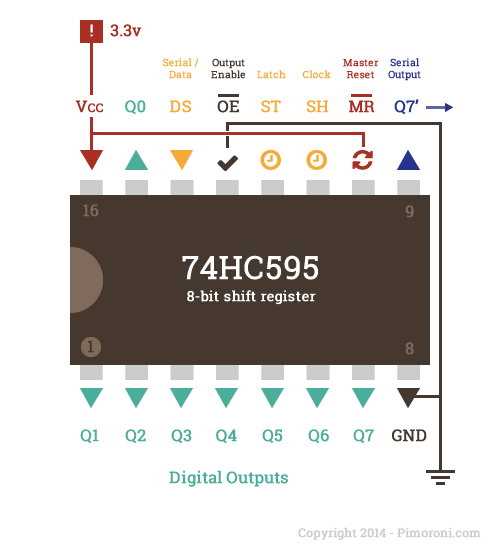

Understanding Shift Register Pin Configuration for Microcontroller Projects

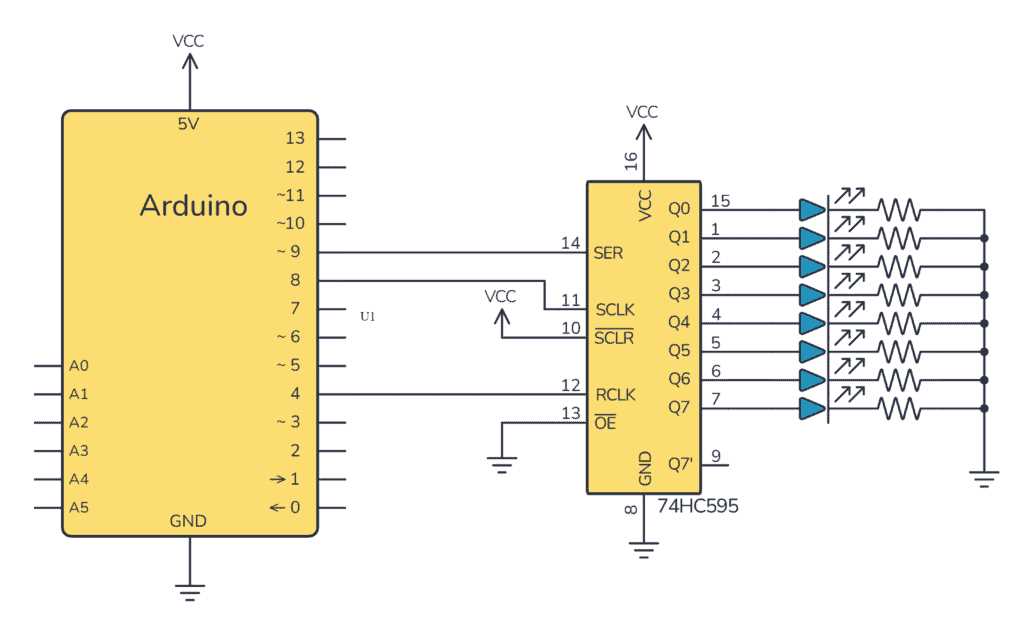

Connect the serial data input (DS/14) directly to your Arduino’s digital pin (e.g., D11 for software-driven output) to transmit bit patterns sequentially. Keep wire runs under 15 cm when prototyping to minimize signal degradation, especially at clock speeds above 1 MHz.
Route the shift clock (SH_CP/11) and latch clock (ST_CP/12) lines to separate Arduino pins (D13 and D8, respectively) to prevent timing conflicts. Use a 100 nF ceramic capacitor between VCC (pin 16) and GND (pin 8) placed within 2 mm of the chip to suppress power spikes during parallel output switching.
Ground the master reset (MR/10) by tying it permanently to VCC unless dynamic clearing is required–this eliminates unintended register resets. For cascading multiple devices, link the serial-out (Q7’/9) of the preceding unit to the data-in (DS/14) of the next, ensuring consistent clock and latch signals.
Parallel outputs (Q0-Q7) can sink up to 6 mA per pin at 5 V; use current-limiting resistors (220 Ω) for LEDs or interface with logic-level MOSFETs for higher loads. Avoid exceeding the total package current of 70 mA when all eight outputs are active simultaneously.
Signal Integrity Considerations
Separate high-speed clock traces from analog or power lines on perfboard to reduce crosstalk. If using longer cables (>30 cm), implement a series resistor (22-47 Ω) on each clock line to dampen reflections and improve waveform integrity.
When driving inductive loads (e.g., relays), add flyback diodes (1N4007) and clamp voltages with a Zener diode (5.1 V) across the load to protect output transistors from voltage transients. Test prototype circuits with an oscilloscope to verify clean transitions on clock edges, particularly when operating near the maximum recommended frequency of 25 MHz.
For battery-powered projects, minimize power consumption by lowering VCC to 3.3 V (operational range extends to 2 V) when possible–this reduces current draw by ~40% while maintaining logic levels. Disable unused outputs by holding them HIGH during initialization to prevent floating states.
Document each connection with adhesive labels on breadboard wires or use color-coded jumpers (e.g., red for VCC, black for GND, yellow for clocks) to streamline debugging. Store spare components in anti-static bags to prevent electrostatic damage to the CMOS inputs.
Cascading a Chain of Serial-to-Parallel Converters: A Practical Guide
Begin by soldering the supply lines: connect VCC of each IC to a stable 5V source, ensuring decoupling capacitors (0.1µF) are placed within 2mm of every chip’s power pins to suppress transients. Ground all GND pins directly to the system’s common return path–avoid daisy-chaining ground traces between chips to prevent voltage drops during simultaneous outputs.
Link the data path: feed the serial input (DS) of the first module from your microcontroller’s dedicated output pin. Route the serial output (Q7′) of each converter straight into the DS pin of the next in sequence–maintain consistent trace impedance below 50Ω by keeping traces under 10cm and avoiding sharp angles. If propagating four or more chips, insert a 22pF capacitor between each Q7′ output and ground to filter high-frequency noise that risks false bit shifts.
Clock and Latch Synchronization
Drive the shift clock (SHCP) and storage clock (STCP) lines in parallel across all chips–use separate microcontroller outputs if timing precision exceeds 10ns skew; otherwise, a single clock line suffices. Add 10kΩ pull-down resistors on both clock inputs to eliminate floating states during startup. For 16MHz or faster systems, shorten clock traces to under 5cm or use differential pairs with 100Ω termination resistors at the farthest chip to prevent ringing.
When cascading eight modules, buffer the clock lines with a 74ACT125 quad line driver to handle the cumulative input capacitance (each chip adds ~5pF). If skipping the buffer, reduce the clock edge rate to 50ns by adding a 470Ω series resistor at the microcontroller pin–this trades a minor speed penalty for reliable signal integrity. Test with a logic analyzer by transmitting an alternating bit pattern (0xAA or 0x55) to confirm no dropped bits occur at the final output.
Power Distribution and Thermal Mitigation
If driving more than 32 outputs simultaneously, distribute power via a star topology using 1mm thick traces or 20AWG wires from the main 5V rail–avoid single thin traces that can sag under transient loads. Monitor chip temperature; exceeding 60°C risks erratic behavior–add a small 10mm × 10mm heatsink on each IC if ambient exceeds 40°C or if sinking more than 10mA per output. For high-current loads, use ULN2803 Darlington arrays between the converters and loads; never connect inductive loads directly.
Validate the chain by sending a 32-bit incremental pattern (0x00000001 → 0x80000000) and verifying each output toggles in exact sequence. If any module misbehaves, isolate it by breaking the serial link and testing individually–most faults stem from incorrect solder joints or missing decoupling. Once confirmed, reassemble the chain and reduce the microcontroller’s SPI clock frequency by half if bit errors persist–adjusting slew rates often resolves timing violations without hardware changes.
Frequent Errors in Shift Register Circuit Assembly and Solutions
Connect the serial data input to the microcontroller via a 220-ohm resistor instead of wiring it directly. This prevents voltage spikes from damaging the IC, especially in noisy environments like motor control systems. Many omit this step, resulting in unreliable data transmission or premature component failure.
Avoid leaving output enable (OE) pins floating–tie them to ground for permanent activation or connect them to a logic pin for dynamic control. Floating OE can cause erratic output states, where LEDs flicker unexpectedly or shift registers deliver inconsistent signals to downstream components.
Incorrect Power Supply Practices
- Use a 0.1µF ceramic capacitor between VCC and GND, placed as close as possible to the IC’s power pins. Skipping this causes voltage fluctuations, particularly during high-speed clock pulses.
- Never exceed 6V supply voltage; the 74-series logic operates reliably only within 2–5V. Higher voltages risk thermal damage, turning the chip into an unpredictable current sink.
- Test supply lines with an oscilloscope for noise exceeding 100mV peak-to-peak. Switching regulators or brushed motors nearby can introduce interference that disrupts data integrity.
Clock and latch signals must follow strict timing: ensure 50–100ns setup time before clock edges and 20ns hold time after. Violating these margins causes data corruption, where outputs shift unpredictably or freeze. Use scope triggers to verify pulse width and edge alignment.
Signal Integrity Pitfalls
- Route data, clock, and latch lines away from electromagnetic sources like relays or transformers. Keep traces under 15cm for 5MHz operation to avoid signal degradation.
- Add 20–50kΩ pull-up resistors to unused inputs. Floating inputs act as antennas, picking up stray signals that alter internal register states unexpectedly.
- Match logic levels if interfacing with 3.3V controllers–use a level shifter or an internal clamping diode. A 5V IC driven directly by 3.3V logic may interpret signals incorrectly.
After assembly, validate each output pin with a 330-ohm resistor and LED. Power sequencing–enabling outputs only after data loads–prevents brief ghost pulses that can trigger unintended actions in connected circuitry. Test under worst-case conditions (high speed, full load) to catch intermittent failures masked during initial checks.
