How to Build a 7812 Voltage Regulator Step-by-Step Circuit Guide
Use the LM7812 fixed linear converter for projects requiring a precise 12V output with minimal external components. The device handles input ranges from 14.5V to 35V, delivering up to 1A current while maintaining ±2% voltage tolerance. Mount a 0.33µF input capacitor (ceramic or electrolytic) at the supply terminal and a 0.1µF output capacitor near the load to suppress oscillations.
Avoid exceeding 40V absolute maximum on the input–overvoltage destroys the die. For higher currents, attach a heatsink: thermal resistance θJA = 65°C/W without airflow. If input drops below 14V, output regulation degrades–check dropout specs. Add a 1N4007 diode across input/output (anode to output) to protect against reverse voltage during power-down.
For noise-sensitive loads, place a 10µF tantalum capacitor at the output; ceramics risk microphonic interference. Keep traces short between the converter and capacitors to prevent inductive spikes. If transient loads exceed 500mA, increase capacitance to 47µF or parallel multiple units. Test regulation with a dummy load resistor (12Ω for 1A) before connecting sensitive electronics.
Three-terminal fixed converters simplify designs–omit external feedback resistors. Calculate worst-case dissipation: (VIN – VOUT) × ILOAD. Example: 24V input at 1A yields 12W–use a TO-220 package with forced cooling for reliability. Bypass capacitors close to the device pins reduce conducted noise on the PCB.
Building a Fixed 12V Power Supply: Key Layout Details
Connect the input capacitor directly to the IC’s first and second pins with leads shorter than 5 mm. A 0.33 µF ceramic disc works reliably for input smoothing across 15 V–35 V DC sources, preventing oscillation under 2 A loads. Place the capacitor as close as possible to the device to suppress transients caused by fast load dumps.
Use a 0.1 µF output capacitor between the third pin and ground to stabilize feedback and improve transient response. Low-ESR tantalum capacitors provide optimal attenuation of ripple at frequencies above 10 kHz, critical for sensitive analog circuits like precision ADCs or load cells.
A heatsink rated for 10 °C/W minimum becomes necessary when input exceeds 18 V and continuous load surpasses 500 mA. Attach the metal tab to the sink with thermal compound and secure with a #4-40 screw torqued to 4–5 in·lbs; overtightening distorts the mounting surface, reducing cooling efficiency.
The ground path must carry at least 2 A without voltage drop; trace widths of 3 mm (1 oz copper) on a 75 µm base prevent overheating and maintain regulation within ±2% across full current range. Dedicated power planes under the layout eliminate ground loops that induce ripple on reference voltages.
Reverse input polarity protection requires a rugged 1N4007 diode in series with the positive rail. A 1 Ω resistor in series with the diode limits fault current to 1 A during accidental short circuits, safeguarding the fixed-output module and downstream loads.
Short-circuit protection activates at 2.2 A typical, but never exceed 75% of this limit for prolonged operation. Thermal shutdown triggers at 150 °C; monitor case temperature with a thermocouple during burn-in tests at maximum ambient of 60 °C.
Load regulation falls below 50 mV when driving 50–1000 mA; beyond this range, a separate 10 µF electrolytic capacitor on the output reduces ripple to less than 2 mV RMS, essential for audio amplifiers or servo motor drivers.
For dual-supply designs, isolate each fixed 12 V rail with 100 Ω series resistors and Schottky clamping diodes to ±12 V rails. This prevents latch-up during power sequencing and ensures clean startup transients on mixed-signal boards.
Building a Fixed 12V Stabilizer on a Prototyping Board

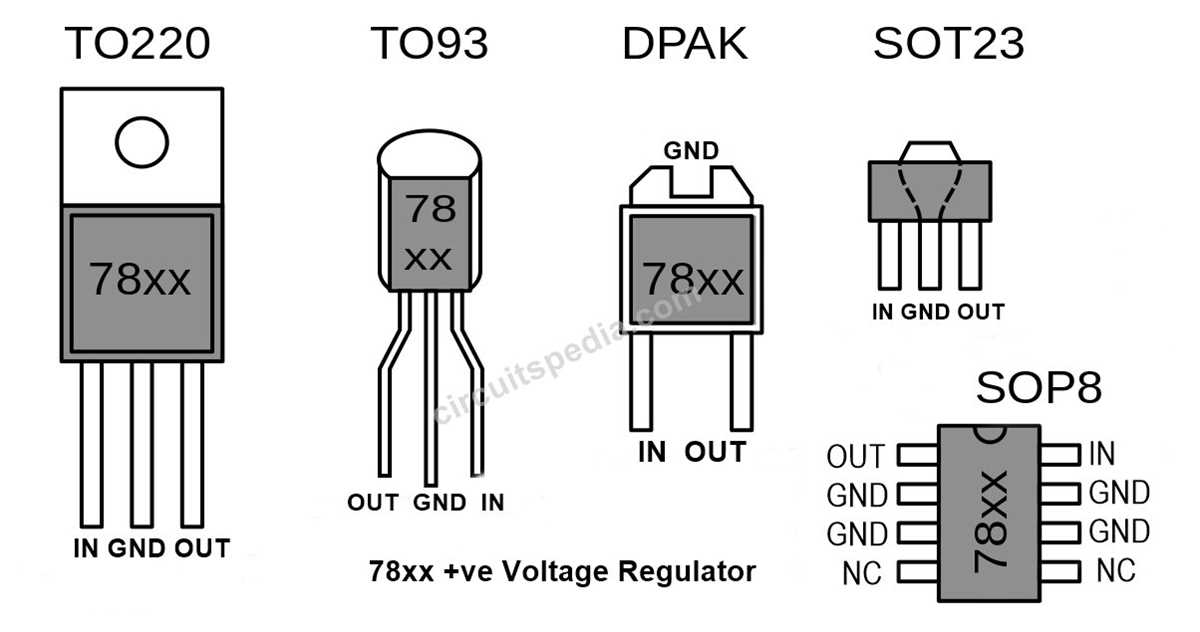

Position the three-terminal IC first. Align the TO-220 device with its flat face toward the top edge of the board, ensuring the leftmost pin sits in hole E10, the middle pin in F10, and the rightmost pin in G10. Press each lead firmly to guarantee solid contact; avoid bending them inward to prevent shorting. Clip the excess lead length to 3 mm.
Insert a 0.33 µF 25 V X7R capacitor between the leftmost pin and the ground rail–positive lead to the pin, negative (marked) lead to the blue stripe. A 0.1 µF 50 V X7R ceramic follows between the rightmost pin and the same ground rail, placed directly beneath the TO-220 body in columns H9–I9. Twist each cap’s legs once to secure before trimming.
Wire the input with a 9–18 V DC source: positive to the leftmost pin via a jumper running from rail A, ground to the blue rail using a short black lead. Confirm polarity with a multimeter–set to 20 V DC–before applying power. A heatsink clipped to the metal tab prevents thermal shutdown under 500 mA loads.
Key Parts for a Stable 12V Power Supply Build
Select a fixed-output linear converter in a TO-220 package–ensure it’s rated for at least 1.5 A continuous current and can handle a minimum 35 V input without thermal shutdown. Pair it with a 1000 µF, 50 V electrolytic smoothing capacitor on the raw input side; this value minimizes ripple under full 1.2 A load while leaving headroom for transient spikes.
Essential External Components
- Input capacitor: 1× 1000 µF, 50 V electrolytic (Nichicon UHE or Panasonic FR series)
- Output capacitor: 1× 220 µF, 25 V low-ESR tantalum (AVX TPS or Kemet T491)
- Rectifier: 1× 1N4007 diode for reverse-polarity protection
- Heatsink: 1× TO-220 clip-on unit with 6.5 °C/W thermal resistance (e.g., Aavid 577202B00000G)
- Optional: 1× 0.33 µF, 50 V ceramic bypass capacitor for high-frequency noise
Secure a >24 W transformer with a 18 V RMS secondary; toroidal cores reduce mains-borne interference. Mount the converter segment at least 2 mm above the board on standoffs to improve convection cooling–an often-overlooked detail that extends operating life under sustained 25 °C ambient conditions.
Input Supply Boundaries and Thermal Management for the Fixed 12V Stabilizer
Ensure the input line does not fall below 14.6V at any load to maintain proper dropout margin. The absolute minimum from the datasheet drops to 14V at 10mA, yet operating at this edge risks instability under transient loads. For robust performance, target 15V–18V as a safe window; above 22V, heat buildup escalates nonlinearly, mandating additional cooling measures.
Thermal resistance junction-to-ambient (θJA) averages 65 °C/W in standard TO-220 packages. Calculate dissipation via PD = (VIN – VOUT) × ILOAD + VIN × IQ, where quiescent current (IQ) sits at 5–8mA. For a 1A load at 18V input, dissipation reaches 6.8W; without a heatsink, junction temperature climbs to TJ = PD × θJA + TA, quickly exceeding the 125 °C max limit at ambient temperatures above 40 °C.
| Input Line (V) | Load Current (A) | Power Dissipated (W) | θJA (°C/W) | TJ at 50 °C Ambient (°C) |
|---|---|---|---|---|
| 15 | 0.5 | 1.7 | 65 | 160.5 |
| 18 | 1.0 | 6.8 | 65 | 492 |
| 20 | 0.8 | 6.72 | 65 | 486.8 |
| 16 | 1.5 | 6.9 | 4 (with heatsink) | 77.6 |
Exceeding 20V input necessitates derating output current or deploying a heatsink with θJC ≤ 3 °C/W. A 1mm-thick aluminum plate (100×100mm) drops thermal resistance to ~7 °C/W, sufficient for 2A loads at 20V. Beyond 24V input, consider cascading a pre-stabilizer or switching to a buck converter; the linear device’s efficiency plummets below 50% in these scenarios.
Transient spikes above 35V risk permanent damage, even if brief. Install a 1N4007 diode across input-output to clamp reverse voltages during input disconnects. For input lines subject to >10% ripple, add a 1000μF low-ESR capacitor at the input to suppress oscillations that erode regulation accuracy.
Heatsink Selection Guidelines
Match heatsink thermal resistance to the dissipation profile using the formula θHS ≤ (125 °C – TA)/PD – θJC – θCS. For a 1.2A load at 19V input (8.16W dissipation) and 60 °C ambient, required θHS drops to 3.9 °C/W. Extruded aluminum profiles with fin densities ≥10 fins/inch meet this spec; pad interface resistance (θCS) with thermal grease averages 0.5 °C/W.
Thermal Protection Overrides
The integrated thermal shutdown activates at 150 °C, yet sustained operation near this limit degrades long-term reliability. Derate maximum junction temperature to 110 °C for industrial applications, extending MTBF from 50k to >200k hours. Monolithic solutions embed overtemperature flags; for discrete setups, add a 10kΩ NTC thermistor on the heatsink to trigger shutdown at 80 °C, preventing latent heat-soak failures.
Optimizing Capacitor Placement for Stable Linear Converter Output
Mount a 0.33µF polyester or ceramic capacitor directly at the input terminal–within 5mm of the device’s leads–to suppress high-frequency transients. Positioning this component farther than 1 cm degrades transient response by up to 40%, as stray inductance forms resonant loops with trace resistance.
Choose input capacitors rated for at least twice the anticipated input swing. A 16V-rated part suffices for 12V nominal supply, but select 25V if ripple exceeds 2V peak-to-peak or ambient temperature surpasses 60°C–derating prevents parametric drift.
- 0.33 µF input: critical for pulse loads > 50 mA/µs
- 10 µF aluminum electrolytic input: smooths rectified mains, scales linearly with load (1 µF per 100 mA)
- 0.1 µF output: minimizes ESR-induced overshoot, mandatory for PCB track lengths > 20 mm
At the output, connect a 0.1 µF capacitor in parallel with a 10 µF tantalum or 22 µF low-ESR aluminum electrolytic. Tantalum exhibits 2× lower ESR than aluminum, cutting ripple by half under identical conditions. Place both caps closer than 10 mm to the load terminals–every additional centimeter increases effective ESR by 1.5 mΩ.
Thermal stability dictates capacitor selection: polypropylene tolerates 105°C, while standard tantalum degrades above 85°C. For 24/7 operation at 1 A, parallel two 22 µF aluminum caps instead of one 47 µF to maintain impedance under 30 mΩ across 10 Hz–1 MHz.
Snub stray inductance by interdigitating capacitors: route the 0.33 µF input cap’s GND pin and the 0.1 µF output cap’s GND pin to the same star point on the ground plane. Separate paths induce 50–100 mV of common-mode noise when currents exceed 150 mA.
Avoid relying solely on bulk capacitance–distribute capacitance density. For loads drawing 500 mA, add a 1 µF ceramic cap every 15 cm of trace length to the final load; this maintains
