Complete Ford F150 97 Factory Stereo Wiring Guide Color Codes

For a 1997 model truck’s sound installation, locate the brown/white wire at pin 18 of the radio connector–this carries switched 12V for memory retention. If the original harness lacks this line, splice into the ignition-controlled pink/light blue wire from the instrument cluster harness (pin C201). Avoid tapping the constant 12V yellow wire directly; doing so risks draining the battery.

Ground connections demand clean metal surfaces–sand the mounting point on the chassis near the factory radio bracket and secure with a #10-12 ring terminal. If static noise persists after installation, reroute the RCA cables from the amplifier away from the alternator’s +12V output and ignition wires to eliminate interference. Use a multimeter to verify voltage stability: expect 13.8–14.4V at the harness with the engine running.

The speaker outputs use color-coded pairs with polarity markings: gray (+) and gray/black (-) for front right, white (+) and white/black (-) for front left. Connect aftermarket units directly to these wires–not through the factory harness’s splice points–as oxidation on older connectors often causes signal degradation. For subwoofer integration, the violet (+) and violet/black (-) wires at the rear harness provide full-range output; isolate low frequencies using a line-level converter if crossing into a dedicated mono amplifier.

Verify the dimmer circuit before finalizing connections: the orange/pink wire at pin 14 should drop voltage proportionally when adjusting the headlight switch. If dashboard illumination flickers, test the headlight switch resistor pack for corrosion–common failure point in 90s models. Final resistance check: probe between the radio’s ground terminal and chassis ground; readings above 0.2 ohms require a new ground path.

Color-Coded Connections for 1997 Ford Audio System Installation

Start by locating the factory harness behind the dashboard on the driver’s side. Match the 12-pin connector labeled “C2” to the aftermarket head unit’s wiring harness adapter. Use a multimeter to verify pin assignments–constant 12V power is orange (pin 1), ignition-switched power is gray/yellow (pin 9), and ground is black (pin 8). If reverse polarity is detected, correct it immediately to avoid damage to the amplifier or speakers.

Speaker outputs follow a non-standard color scheme: front left positive is violet/white (pin 5), front left negative is tan/light blue (pin 12); front right positive is white/orange (pin 3), front right negative is green/brown (pin 10). Rear outputs are similarly coded: left positive is brown/yellow (pin 2), left negative is black/white (pin 11); right positive is gray/red (pin 4), right negative is pink/blue (pin 6). Use crimp connectors or solder joints sealed with heat-shrink tubing for maximum durability.

Amplifier Bypass and Antenna Trigger

For direct speaker operation without an external amplifier, connect the head unit’s RCA pre-amp outputs to the corresponding speaker wires using a line-output converter. The factory amplifier (if present) can be bypassed by jumpering pins 7 (blue/white) to pin 1 (orange) for retained factory functionality. The power antenna or amplifier remote turn-on is triggered via a blue/white wire (pin 7, C2 connector)–ensure this is connected to the aftermarket unit’s remote lead to avoid interference with signal processing.

Check the factory fuse block under the hood for audio-related fuses. Fuse #13 (15A) protects the radio circuit, while fuse #5 (10A) covers the amplifier. Replace blown fuses with identically rated units–never use a higher amperage substitute. Test the circuit with the key in the “ACC” position; if the head unit powers off with the ignition, confirmation of a proper switched power connection is confirmed.

Grounding and Noise Suppression

Avoid ground loops by securing the head unit’s ground wire directly to the vehicle’s chassis using a bolt or screw free of paint or corrosion. Scrape away any surface oxidation and apply dielectric grease to prevent future oxidation. For persistent alternator whine, install a noise filter inline with the power lead, or relocate the ground point closer to the battery. Capacitors across speaker terminals can also mitigate high-frequency interference.

If retaining the stock steering wheel controls, interface them with the aftermarket system using a dedicated adapter (e.g., PAC RP4-FD11). Connect the adapter’s purple wire to the vehicle’s data bus (pin 12, gray/black) and the adapter’s red wire to constant power (orange). Failure to properly interface controls may result in erratic volume changes or unresponsive switches.

Finalize the installation by securing all loose wires with zip ties and foam tape. Route wires away from sharp edges, moving parts, or heat sources. Reassemble the dashboard only after verifying all connections with a test tone through each speaker. If phase cancellation is observed, swap the positive and negative terminals on one speaker to restore proper stereo imaging.

Matching Audio System Connector Colors for Your 1997 Ford Pickup

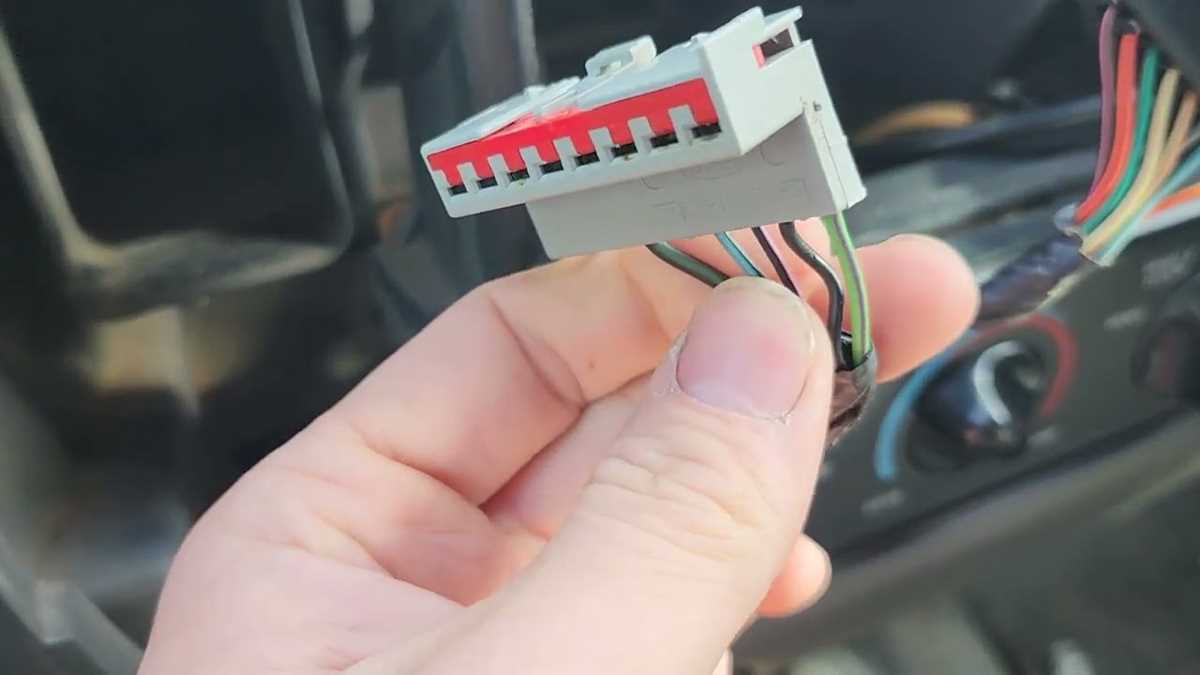

Begin by locating the factory harness behind the radio cavity–it’s a 12-pin rectangular plug with distinct color-coding. The constant power (yellow) wire delivers 12V regardless of ignition status, while the switched power (red) activates only when the key is turned. Ground (black) must connect to a bare metal surface for secure chassis contact; bypassing this risks intermittent sound or electrical noise. Verify each wire’s function with a multimeter before splicing aftermarket components.

Speaker outputs use a consistent scheme across the trim levels. Front left positive (light green) and negative (green/brown stripe) handle the driver-side door unit, while rear left positive (gray) and negative (gray/red stripe) serve the cabin or bed-mounted woofers if equipped. Right channels follow: front positive (white) with negative (white/blue stripe), rear positive (purple) with negative (purple/white stripe). Cross-check against the door jamb harness if discrepancies arise–some extended-cab models reroute left rear signals through the B-pillar instead of the head unit.

Illumination control (orange) dims dashboard lights when headlights engage; isolate this during daylight testing to avoid confusion. The antenna trigger (dark blue) powers motorized or amplified setups–tapping it incorrectly can damage the existing amplifier in XLT or Lariat editions. Rare trim packages may substitute pink (for memory retain) or tan (accessory delay) wires; these rarely interfere with audio installation but should be capped if unused.

Use weatherproof connectors for exposed splices near the firewall. Avoid twisting copper strands–crimp terminals rated for 18-20 AWG prevent corrosion in humid climates. Keep original harness lengths intact; extending by more than 6 inches introduces signal degradation, especially in premium sound systems with subwoofer pre-outs (brown/white). If integrating satellite radio or navigation, preserve the data bus (light blue/white)–severing it disables steering-wheel controls on models equipped with auto-climate interfaces.

How to Access Original Audio System Connectors Beneath Dashboard Panels

Remove the two screws securing the lower trim panel directly beneath the climate controls. This panel, typically black plastic, hides the primary bundle of harnesses leading to the head unit. Use a 7mm socket or Phillips #2 screwdriver–no specialty tools required.

Gently pull the trim downward and outward once screws are removed. Disconnect the cigarette lighter wiring by squeezing the plastic tabs on the sides of its harness connector. Set the panel aside, exposing the vertical metal support bracket behind the HVAC module.

Locate the single 10mm bolt fastening the support bracket to the dashboard frame. Remove it to pivot the bracket away, revealing the factory radio harness bundled in black corrugated conduit. Peel back the conduit to expose the multi-pin plug and antenna lead.

The harness plug will have twelve slots: four larger power/ground cavities on the left, eight smaller signal cavities on the right. Label each wire with masking tape before disconnecting anything–standard automotive tape works best for adhesion on dusty surfaces.

Use a circuit tester to confirm constant 12V on the solid yellow conductor, switched power on the orange/white trace, and ground on the black wire. Probe carefully; shorting adjacent terminals risks blowing the 10A fuse in the under-hood distribution box.

If the factory subwoofer harness is present, it will be a separate two-pin connector tucked behind the main bundle. This plug carries low-level preamp signals, identifiable by red and white striped wires–do not confuse it with the amplified speaker leads.

Verifying Connector Integrity

Check the harness terminals for bent or pushed-back pins before attempting any modifications. Use a small flathead screwdriver to gently realign any misaligned contacts–forceful probing can damage the plastic locking tabs that secure the connector halves together.

Reconnect all harnesses and test each audio channel before reassembling dashboard components. Turn ignition to ACC and confirm all speakers produce sound without distortion–static indicates a loose connection, while silence suggests an open circuit needing further tracing upstream.

Matching Third-Party Audio System Cables to Factory Truck Audio Outputs

Locate the factory speaker cables behind the dash harness–typically grouped by color codes: front left (gray/violet), front right (white/green), rear left (brown/yellow), and rear right (purple/orange). Confirm each wire with a multimeter set to AC voltage while playing audio; any signal above 0.5V indicates the positive lead. Cutting into these outputs directly risks damaging the vehicle’s audio interface, so strip only 5mm of insulation, tin the bare ends, and crimp 18-gauge spade connectors for a secure, solder-free junction with aftermarket harness adapters like Metra 70-1781 or Axxess ASWC-1.

Key Installation Steps

• Disconnect the negative battery terminal to prevent short circuits during handling.
• Route new speaker cables away from engine noise sources (alternator, ignition coils) using existing truck loom channels.
• Secure connections with shrink tubing or electrical tape to prevent corrosion from moisture ingress, especially for lower door or kick-panel installations.
• Test impedance levels post-installation; factory outputs handle 4-6 ohms, while aftermarket units may require 2-ohm stable amplifiers.

For vehicles equipped with premium audio packages (e.g., Sony), bypass the built-in amplifier by identifying the 12-pin input connector near the glove box. Use a label maker to mark each cable immediately after validation–factory harnesses lack standardized labeling, and misrouting will result in phase cancellation or blown fuses. If replacing a non-Bose system, install a grounding kit at the chassis near the radio cavity to reduce dashboard whine, targeting a bare metal surface free of paint or undercoating.
