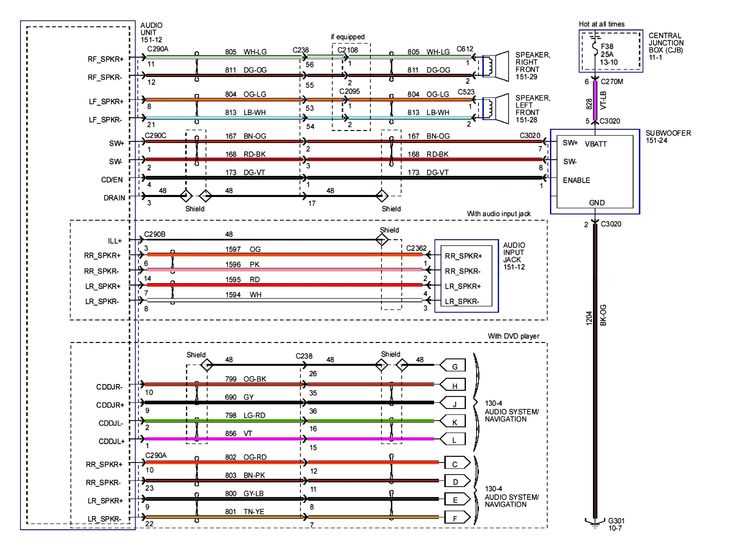

Complete 1997 Ford Explorer Radio Wiring Color Code and Connection Guide
Start by locating the 22-pin ignition harness behind the factory stereo unit–pin 18 delivers constant 12V power, while pin 5 handles switched ignition. Ground wires typically terminate at pin 2 or 16, but verify with a multimeter if corrosion is visible. The aftermarket adapter harness labeled Metra 70-1779 matches this configuration precisely, eliminating guesswork during installation.
For speaker outputs, pins 4 (left front), 14 (right front), 6 (left rear), and 17 (right rear) connect to the matching wires in the vehicle’s harness–color codes gray/black, white/black, violet/black, and green/black respectively. If static persists, inspect the antenna lead (pin 22) and ensure the coaxial cable is securely fastened to avoid signal interference.
If retaining the original amplifier, confirm the data bus wire (pin 3, usually orange) remains intact–disconnecting it may trigger erratic volume behavior. For vehicles with factory alarms, bypass the VSS wire (pin 9, pink) unless the new unit supports speed-sensitive volume. Alternative harnesses like Scosche FD17B include adapters for these edge cases, simplifying retrofits.
Document each connection with labels before finalizing–common pitfalls include reversed polarity (speaker damage risk) or misrouted power wires (blown fuses). Use crimp connectors instead of solder for durability, especially in high-vibration areas. If dimmer functionality is missing, reroute the illumination wire (pin 7, light green) to the new head unit’s dimmer input.
Connecting the Audio System in a 1997 SUV Model
Begin by locating the harness behind the dashboard, typically near the fusion module. The 4-speaker setup in this vehicle relies on a 12-pin connector labeled C2091. Pin assignments follow this pattern:
- Pins 1-4: Front-left (+/-) and rear-left (+/-) channels
- Pins 5-8: Front-right (+/-) and rear-right (+/-) channels
- Pin 9: Illumination (orange/light blue stripe)
- Pin 10: Ground (black)
- Pin 11: Battery constant (yellow)
- Pin 12: Accessory feed (red)
Use a multimeter to verify voltages before connecting aftermarket units. The constant power line should read 12V regardless of ignition state, while the accessory feed drops to 0V when the key is off. Avoid splicing into the factory harness if possible–use a compatible adapter like Metra 70-1771 to preserve OEM integrity.
Identifying Wire Colors and Functions
Factory cables in this trim use distinct color coding:
- Gray/black stripe: Front left positive
- Gray: Front left negative
- White/black stripe: Rear right positive
- White: Rear right negative
- Violet/black stripe: Rear left positive
- Violet: Rear left negative
- Green/black stripe: Front right positive
- Green: Front right negative
Antitheft systems in this model rely on a data bus connection through a dark green wire with a yellow stripe. Interrupting this line may trigger error codes–ensure all splices maintain proper continuity. For illuminated faceplates, connect the orange/light blue stripe to the aftermarket unit’s dimmer input.
Low-impedance speakers (4Ω) require stable current delivery. Upgrading to higher-wattage amplifiers demands thicker gauge wiring–14AWG minimum for factory replacements, 12AWG for aftermarket upgrades. Fuse both the constant power (yellow) and accessory (red) lines within 18 inches of the battery with 10A and 5A fuses respectively. Test speaker polarity by playing a 1kHz tone–reversed polarity causes phase cancellation.
If retaining the stock cassette player, the eject mechanism power (blue/white stripe) must be routed to avoid interference with modern Bluetooth adapters. Damaged factory connectors can be repaired using Molex 03-06-2242 terminals–crimp carefully to prevent short circuits. For integrated steering wheel controls, add a PAC RP4-CH11 adapter or equivalent to maintain functionality with third-party head units.
Decoding Original Equipment Cable Colors and Connector Layout
Begin by locating the primary harness at the rear of the audio head unit–pinpoint the 12-pin connector labeled “C” and the 6-pin connector labeled “A”. The larger bundle carries power, ground, and speaker outputs, while the smaller one handles illumination and antenna controls. Use a multimeter to verify each lead against the chart below; back-probe each terminal with the ignition on to confirm +12V accessories, dimmer inputs (3–7V), and chassis grounds (0Ω). Misidentifying illumination wires (typically light green/yellow) can cause dash lights to flicker or fail–cross-check against the vehicle’s fuse box legend before soldering.
Common Connector Color Codes for 1997 Model Stock System
| Connector Pin | Wire Color | Assigned Function | Test Voltage/Reading |
|---|---|---|---|
| A1 | Black | Ground | 0Ω to chassis |
| A3 | Light green/red stripe | Right rear speaker (+) | 4–8Ω at 1 kHz |
| A4 | White/light blue stripe | Left front speaker (-) | 4–8Ω at 1 kHz |
| C7 | Yellow | Constant 12V | 12.0–14.4V, key-on or off |
| C10 | Light green/yellow stripe | Dimmer input | 3–7V with dash lights activated |
T-taps or crimp connectors risk shorting adjacent leads–always solder joints and heat-shrink each splice. Speaker polarity is critical: swap (+) and (-) wires on a single door or rear channel, and the audio phase cancellation will mute mid-bass frequencies. Label every lead with painter’s tape before disconnecting to avoid mixing yellow (constant) with red (switched) circuits, which drains the battery if miswired. For stock amplifier models, trace pink/light blue wires to the amp trigger; cutting this lead may kill subwoofer output.
Step-by-Step Receiver Removal and Disconnection Process
Begin by disconnecting the vehicle’s negative battery terminal to prevent electrical shorts or accidental deployments of airbag systems during handling. Use a 10mm socket to loosen the terminal clamp, then set the cable aside in a secure position away from metal surfaces. This step is non-negotiable for safety and system protection.
Locate the trim panel surrounding the infotainment unit–typically secured by plastic clips and screws hidden beneath small covers or labeled caps. Gently pry the edges with a trim removal tool, working in small increments to avoid cracking the panel. If screws are present, remove them with a 7mm or Phillips screwdriver before attempting further disassembly.
Once the trim is detached, the head unit will be visible, held in place by a mounting bracket or release clips. Some models require pressing tabs on the sides of the device while pulling outward, while others may need a specialized removal key inserted into small slots. Apply steady pressure to avoid damaging the connectors behind it.
Carefully slide the unit partially out to expose the wiring harness and antenna cable. Do not force it–ensure all clips are fully disengaged. The harness will include multiple plugs: power, speakers, illumination, and potentially a ground wire. Note their positions or take a quick reference photo before proceeding.
Press the release tabs on each plug to disconnect them sequentially. Speaker wires are often color-coded, while the main power connector typically has a larger, multi-pin design. For factory-installed systems, some harnesses may include anti-theft clips–depress these with a small flathead screwdriver if present. The antenna lead is a coaxial cable with a threaded or snap-on connector; unscrew or pull it firmly but gently to avoid bending the pin.
If the unit includes a separate amplifier or climate control module beneath it, remove additional screws securing these components before lifting them free. Check for hidden bolts or brackets, especially in older dashboard designs where friction may hold parts in place. Label all screws and small parts in a magnetic tray or bag to prevent loss.
Before reinstallation or storage, verify all connectors are free of debris and corrosion. Use dielectric grease on terminals if reusing the original harness to maintain signal integrity. Reverse the removal steps for reassembly, ensuring all panels snap back securely and no wires are pinched. Reconnect the battery last, then test all functions–volume, tuning, and auxiliary inputs–to confirm proper operation.
Integrating Factory-Amp Compatible Stereo with OEM Harness
Locate the blue/white stripe harness lead behind the factory receiver–this triggers the external amplifier in 1997 models. Splice it directly to the aftermarket head unit’s remote turn-on wire (typically blue/white) using a 18-22 AWG butt connector or solder joint sealed with heat-shrink tubing. Bypass bridging adapters–direct connection preserves signal integrity and prevents voltage drop that degrades high-frequency output.
Match impedance by verifying OEM speaker labels: front door drivers (4-8 ohms), rear coaxial assemblies (2-4 ohms). Use a multimeter to test resistance before attaching new stereo channels–mismatched loads risk amplifier overload. For systems with separate tweeters (common on premium trim), retain the inline crossover network spliced between the new harness and factory tweeter leads to maintain crossover slopes.
Terminal Connections and Insulation
Pinout sequence for the 12-pin OEM plug follows this layout (clockwise from key tab): Left front (+), Left front (-), Right front (+), Right front (-), Right rear (+), Right rear (-), Left rear (+), Left rear (-), then accessory wires. Crimp T-taps only on speaker wires rated for 30W RMS or above–avoid piercing connectors on brittle 25-year-old insulation. Wrap each joint individually with electrical-grade vinyl tape, then encase the entire harness in split loom tubing secured with zip ties every 4 inches to prevent vibration-induced chafing.
Ground distribution demands direct chassis attachment for the aftermarket unit. Scrape paint from mounting bolts near the center console or dashboard brace, attach an 8 AWG ground wire, and torque to 10-12 Nm. Never daisy-chain grounds–parallel paths create ground loops. Test for continuity between new stereo chassis and battery negative before energizing; silence confirms proper grounding.
