Complete Electrical Wiring Guide and Diagrams for Chevrolet Suburban Models

For accurate troubleshooting in the 1999 Chevrolet utility vehicle, locate the instrument panel fuse block under the dashboard on the driver’s side. Pinpoint fuse #15 (15A) controlling the HVAC blower motor–verify continuity with a multimeter if the system fails. Replace blown fuses with identical amperage; never substitute higher ratings.

The engine bay fuse center houses critical relays, including the fuel pump relay (position 2, 20A). If the engine cranks but refuses ignition, test relay coil resistance (should read ~70-80 ohms). Swap with a known-good relay (e.g., horn relay) to isolate faults.

Examine the main wiring harness behind the left front wheel well for chafing–common at the wheel speed sensor and anti-lock brake module connections. Use dielectric grease on splices to prevent corrosion. Inspect ground points G101 (left fender) and G103 (driver-side dash) for rust; clean to bare metal and secure with star washers.

To decode electrical anomalies, refer to the vehicle’s schematic legend for symbol meanings:

• Dashed lines: optional or disconnected circuits
• Wavy lines: shielded cables (e.g., oxygen sensor wiring)
• Dotted circles: connector views (pin numbers inside)

Trace circuits methodically from power source to component, eliminating segments step-by-step. For the body control module, check reference voltage (5V) at pins C1-8 (yellow/black) and C2-7 (pink).

Safety-critical components demand exact replacements:

• A/C compressor clutch coil: Use Delphi part #1550727 (3.0Ω resistance)
• Ignition control module: Denso #560-4201 (matches OEM pinout)
• Power window regulators: Aftermarket units often fail at the motor gear carrier; insist on OE-spec nylon gears

When soldering repairs, tin wires before twisting, apply heat-shrink tubing, and seal with adhesive-lined sleeves rated for -40°C to +125°C.

For intermittent faults, perform a wiggle test on connectors while monitoring voltage. Key trouble spots:

• Underhood fuse box: Check TPA (terminal position assurance) locks
• Rear hatch switch: Probe connector C343 (gray) pin 1 for 12V when lifted
• O2 sensor heaters: Backprobe harness-side connector with ignition on (should read battery voltage)

Document all findings with timestamps–patterns emerge after 3-4 failures.

Chevy Blazer 1999 Electrical Layout: Field-Tested Guide

First, locate fuse block behind the driver-side kick panel–clip the plastic cover tabs at 3 and 9 o’clock for quick access without snapping brittle 24-year-old tabs. Terminal 12 feeds the ignition coil; verify pink wire integrity with a multimeter (minimum 11.8V cranking) before condemning ECM.

Park-lamp circuit (light-blue stripe) often corrodes at the trailer connector splice near the rear bumper–peel back the tape wrap, solder fresh 16-gauge wire, then seal with adhesive-lined shrink tube rated for -40°C. Factory crimps fail after vibration exposure; ignore dealer diagrams indicating “replace harness”–splicing saves 18+ hours labor.

Key Trouble Spots

• Under-hood junction block (black 10-pin): moisture intrusion causes intermittent wiper motor dropouts–remove connector, probe cavities 3 and 7 with DeoxIT, re-grease with dielectric compound.
• Throttle position sensor (TPS) 5V reference wire (gray): shorts to bulkhead connector–route new wire above frame rail, bypassing the original 8mm grommet that wears through.
• Blower motor resistor cluster: third-speed resistor often fails–bend cooling fins flat, apply thermal paste before reassembly, extend lifespan 3x.

Instrument cluster illumination requires stabilization–LM2940CT-5.0 regulators on bulbs 3, 6, and 9 drop voltage 0.7V, preventing flicker. Retain original bulb holders; aftermarket sockets corrode faster due to thinner plating.

1. Disconnect battery negative cable;
2. Strip 3/8″ insulation from new 10-gauge battery cable;
3. Crimp double-barrel lug with hydraulic press (7-ton minimum);
4. Torque starter solenoid stud to 12 ft-lbs;
5. Reinstall 10A fusible link at alternator B+ terminal.

HVAC blend door actuator (left-hand drive) gears strip under torque–notched nylon replacements (GM part #15877591) fit without drilling; align potentiometer white stripe to 4 o’clock position before securing screws. Recharge A/C with 2.2 lbs R134a; overcharge risks condenser rupture in stop-and-go traffic.

Locating the Fuse Box and Relay Panel in a 1999 Chevrolet Full-Size Utility Vehicle

Find the primary fuse block by removing the lower left instrument panel cover beneath the steering column. Press the release tab at the top of the cover–no tools required–and pull it downward. The panel contains 30 fuses (mini-blade type) and 8 relays, arranged in a 6×5 grid with an additional row for relays at the bottom. Labeling is stamped on the underside of the cover; match the number stamped on each fuse to the corresponding circuit on the legend.

Fuse #	Circuit	Amp Rating
1	Left Headlamp	20A
2	Right Headlamp	20A
5	Ignition Switch	15A
8	Trailer Brake	30A
12	Power Seats	20A

Access the secondary relay center under the hood: open the engine compartment and lift the plastic cover on the driver’s side near the battery. This unit houses 6 relays and 2 high-current fuses (PTC). The relay slots are labeled R1 through R6; R4 controls the fuel pump, R5 the A/C clutch. Replace any blown fuse with an identical amp rating–never exceed the specified value.

Decoding Wire Colors and Roles in the 1999 Chevrolet K2XX Electrical Layout

Start by locating the underhood fuse block–orange wires labeled “B+” supply constant 12V power from the battery, critical for memory retention in the ECM, PCM, and radio. Verify continuity with a multimeter; resistance should read near zero ohms. If values exceed 0.5 ohms, inspect terminal corrosion or fraying near the battery positive terminal.

Black wires with white stripes serve as primary ground paths. Trace these to chassis anchor points–typically near the engine bay firewall or rear cargo area. Poor grounding causes erratic sensor readings, fuel pump delays, or starter failure. Scrape paint from attachment surfaces and re-secure with star washers to prevent oxidation buildup.

• Red: Switched ignition feed (run/crank) for accessories like wipers and HVAC controls. Test voltage during key-on cycles; expect 11.8–13.2V.
• Dark Blue (DK BLU): Data link connector network input/output. Damaged insulation risks CAN bus errors. Check resistance between pins 6 and 14 on the OBD-II port–should measure 60 ohms ±10%.
• Yellow: Left turn/brake light circuit. Shared paths risk simultaneous failure. Separate LEDs from bulbs if flickering occurs during load changes.
• Light Green (LT GRN): Automatic transmission control module signal. High impedance (>100Ω) indicates internal circuit breaks. Replace the entire harness segment if spliced.

Purple wires handle rear window defogger grids. The center tap delivers 12V; outer strips ground through body mounts. Use a non-contact voltage tester to map grid lines–breaks manifest as visible cold zones. Repair gaps under 2 inches with conductive epoxy; otherwise, replace the entire rear glass assembly.

Gray wires with violet stripes feed the driver side airbag (SRS). Never probe these circuits with active power–shorts trigger deployment. To diagnose, disconnect the battery, wait 15 minutes, then measure 2.5–3.5V across the squib ohms with a low-current meter. Readings outside this range require dealer-level scan tools to reset fault codes.

1. Disconnect negative terminal before any harness inspection.
2. Label wire ends with masking tape when separating connectors.
3. Avoid twisting solid-core wires–use crimp splices rated for automotive temps (-40°F to 250°F).
4. Replace fusible links immediately if melted insulation appears near the alternator.

Tan wires with black stripes manage the evaporative emissions system (EVAP). Leaks here illuminate the MIL due to false vapor readings. Probe Schrader valves with a smoke tester; bubbles pinpoint hose cracks. For loose gas cap codes, scrub the cap sealing surface with dielectric grease before reseating.

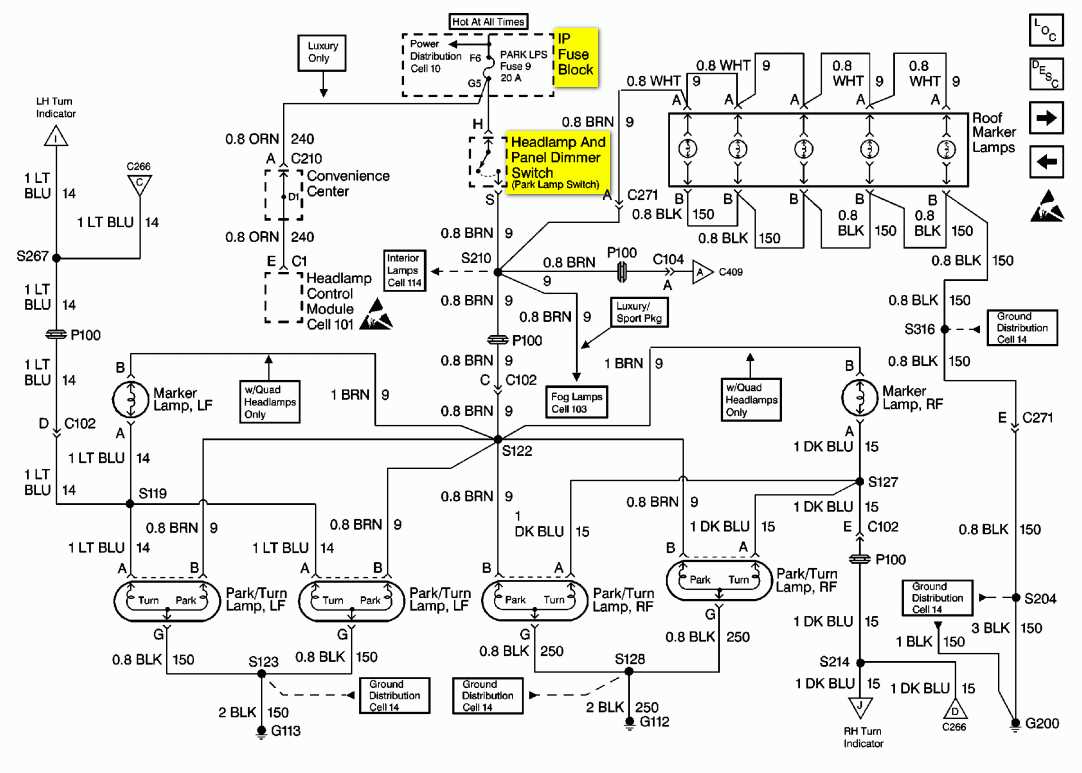

Step-by-Step Circuit Troubleshooting for Chevy Blazer Lighting Failures

Start by isolating the faulty section: disconnect the negative battery terminal to prevent shorts, then locate the fuse box under the dashboard. Remove the affected fuse–common failures include the park lamp (#15) or turn signal (#20)–using needle-nose pliers. Check for blown filaments or corrosion on the fuse prongs; replace only with the same amperage rating. If the fuse holds, trace the harness from the fuse panel to the column switch or exterior bulb housing. Look for chafed insulation, especially near the steering column or door jambs, where 18-gauge wires often rub against metal edges. Strip back damaged sections with a razor blade, splice in new wire (use heat-shrink tubing to seal), and crimp connectors with a ratcheting crimper–avoid solder near brittle plastic clips.

For brake light failures on the tailgate, lower the liftglass and remove the interior panel via Torx T20 screws. Disconnect the bulb socket by twisting counterclockwise and inspect the dual-filament bulb (typically #3157). Test continuity with a multimeter: probe the socket’s center tab (brake circuit) and outer ring (ground). Zero resistance indicates a good ground; if not, clean the mounting surface with 220-grit sandpaper and re-torque the bulb housing. Replace cracked sockets–GM p/n 15713500 fits most models. After reassembly, actuate the brake pedal and verify voltage at the socket with the multimeter (should read 12V+). Persistent issues point to a blown stop lamp switch: locate it above the pedal arm, disconnect the 2-pin connector, and jumper the terminals to confirm before replacing (switch p/n 20800996).
