Step-by-Step AC Disconnect Box Wiring Guide with Diagram for Safe Installation

Install a three-pole isolating switch with a 60A rating for most residential air conditioning units. Mount it within 3 feet of the outdoor condenser using weatherproof enclosures rated NEMA 3R minimum. Route all conductors through liquid-tight flexible conduit where exposed to outdoor conditions. Use 10 AWG copper wire for 240V circuits under 50 feet; increase to 8 AWG for longer runs or higher ambient temperatures above 110°F.

Connect the L1 and L2 terminals to the double-pole breaker in your main service panel, matching the phase to the compressor label. Attach the ground wire to the designated terminal and extend it to a grounding rod with at least 5 ohms resistance. Use listed lugs and torque all connections to 20 lb-in as specified in NEC 110.14(D). Label each conductor at both ends with heat-shrink tubing or permanent markers following ANSI/NECA 1-2006 standards.

Test continuity with a multimeter before energizing. Verify the switch interrupts all ungrounded conductors simultaneously when operated. Install a lockable cover if required by local building codes. For high-altitude installations above 3300 feet, derate the switch capacity by 10% and consult OEM specifications for permissible operating conditions outside standard 95°F ambient ratings.

Position the enclosure so the handle operates at a maximum height of 6.5 feet from grade. Use copper conductors exclusively for terminations exposed to outdoor environments. Seal all conduit entries with UL-listed fittings and apply corrosion inhibitor to aluminum connections. Record the installation details in the equipment maintenance log, including date, wire size, conduit type, and breaker rating for future reference.

How to Install an Outdoor Electrical Safety Switch for HVAC Systems

Begin by selecting a weatherproof enclosure rated for outdoor use–NEMA 3R or higher–for your climate. Mount it within 3 feet of the condensing unit, ensuring it’s secured to a rigid surface like concrete or metal siding to prevent vibration damage. Use 10-gauge copper conductors for 240V circuits up to 30A, or 8-gauge for 40–60A units, as specified in NEC Article 440. Route the supply cables from the main panel through liquid-tight conduit (LFNC) to protect against moisture ingress, keeping a minimum 12-inch loop at the entry point for serviceability.

• Label the hot wires L1 and L2 at both the terminal block and the source breaker to avoid miswiring–mismatched phases will destroy the compressor.
• Ground the enclosure via a dedicated 6-gauge bare copper conductor connected to the grounding rod system, never to the neutral bus.
• For dual-capacitor units, connect the run capacitor between the start and run terminals, and the start capacitor in series with the potential relay.
• Verify torque specs for all terminals: 15–20 lb-in for #10 wire, 25–30 lb-in for #8, using an insulated torque screwdriver.
• Test the setup with a multimeter: confirm 240V across L1-L2 and 0V between either hot and ground before energizing.

Identifying Components of an Air Conditioning Isolation Housing

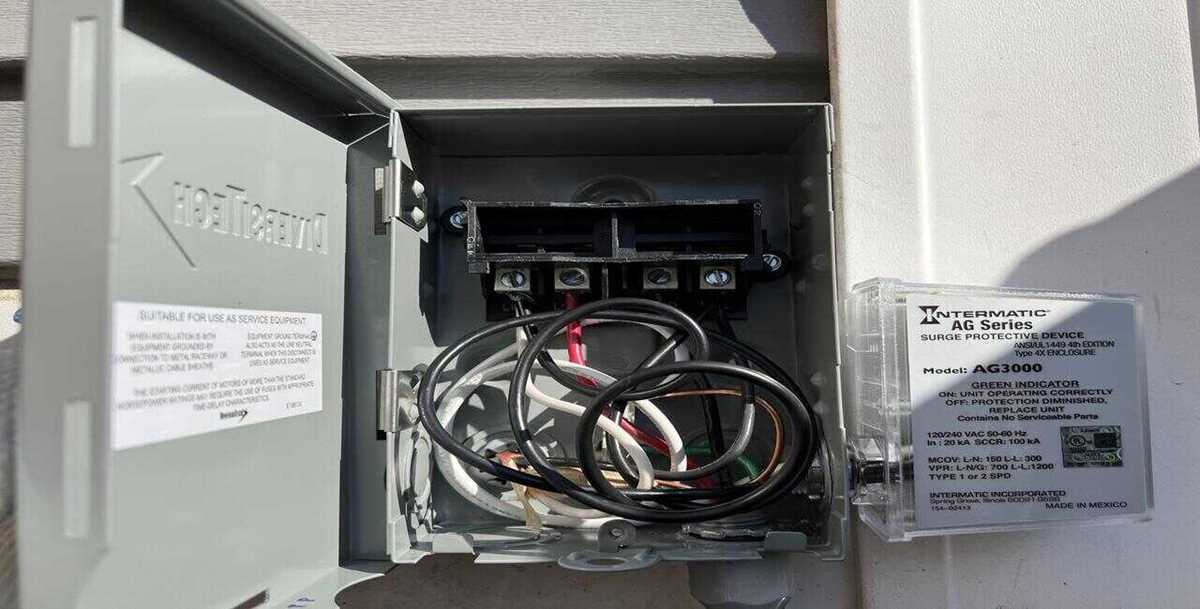

Locate the service switch first–the rectangular or square enclosure mounted near the outdoor condenser unit. This device separates incoming power from the circuit panel to prevent overloads during maintenance. Verify its NEMA rating (typically 3R for outdoor use) to ensure weather resistance.

Examine the interior for two primary parts: the switch mechanism and the fuse holders. The switch lever or pull-out handle should move freely without resistance–stiffness indicates corrosion or misalignment. Fuse holders appear as cylindrical sockets holding cartridge fuses, often rated at 30–60 amps depending on the system’s capacity.

Inspect the line-side terminals where the feeder wires connect. These lugs secure the incoming conductors from the main panel. Look for burn marks, discoloration, or loose connections–signs of overheating. Use a non-contact voltage tester to confirm the circuit is de-energized before touching.

Note the load-side terminals linking to the compressor. These typically use color-coded wires: red and black for hot, green or bare for ground, and sometimes white for neutral. Follow the wire gauge specifications–#10 AWG for 30-amp circuits, #8 AWG for 40–50 amps to prevent voltage drop.

Check for auxiliary components like surge protectors or condensate overflow switches. Surge devices often attach to the housing’s exterior with a status indicator LED. Condensate switches mount near drain lines, cutting power if water levels rise.

Identify knockout plugs for conduit entry points. These are circular metal discs removable with a screwdriver–leave unused knockouts intact to block debris. Ensure conduit seals are intact, preventing moisture ingress.

Observe any labeling on the housing’s door or interior. Proper installations include a wiring schematic adhered to the inside. If missing, sketch a diagram noting terminal positions and wire colors for future reference.

Measure the housing’s proximity to the condenser–NEC requires a maximum 25-foot separation unless using a disconnecting means immediately adjacent. Confirm grounding continuity with a multimeter; resistance should read below 1 ohm between the ground terminal and nearby metal pipes.

How to Assemble an Isolator Enclosure: A Detailed Procedure

Begin by verifying the local electrical codes for your area–minimum wire gauge, fuse amperage, and clearance requirements must align with regulations before proceeding. For a typical 240V setup, use 6 AWG copper conductors or 4 AWG aluminum, ensuring each strand is rated for 75°C or higher. Strip the outer jacket precisely 6 inches from the end, exposing only the necessary length to avoid accidental shorts.

Mount the safety switch on a stable, non-combustible surface with 3/8-inch lag screws spaced no more than 12 inches apart. Position the enclosure so the door swings freely without obstruction, maintaining at least 30 inches of working space in front. Secure the grounding busbar directly to the metal chassis using a star washer and a green 10-32 grounding screw–torque to 18 inch-pounds.

Route the incoming power cables through the knockout hole nearest the switch lever, leaving an 8-inch loop inside the enclosure for stress relief. Connect the line-side conductors to the upper terminals, matching the screw torque specified on the switch label (typically 25 inch-pounds for copper, 30 for aluminum). Use a calibrated torque screwdriver to prevent loosening over time.

Attach the load-side wires to the lower terminals, ensuring polarity matches the equipment being powered. For dual-pole units, label each conductor clearly with heat-shrink tubing–black for line 1, red for line 2, white or gray for neutral if applicable, and green or bare for ground. Avoid twisting wires more than 180 degrees during installation to prevent conductor fatigue.

• Inspect all connections with a non-contact voltage tester before sealing the enclosure.
• Apply anti-oxidant compound to aluminum conductors to prevent corrosion.
• Test the switch operation with a multimeter in continuity mode–no resistance should register in the “on” position.
• Seal unused knockouts with UL-listed plugs to maintain ingress protection rating.

Close the enclosure door and mark it with the circuit’s purpose–”AC Unit #1″ or similar–using engraved plastic tags or permanent ink. Store backup fuses in a labeled zip-top bag inside the enclosure for quick access during maintenance. Schedule annual inspections to check for thermal degradation at connection points using an infrared thermometer; readings above 60°C indicate an impending failure.

Common Electrical Layouts for Residential Cooling Systems

For a standard 240V cooling unit, use 10-gauge copper conductors (red, black, white, and green) between the power source and the isolation assembly. Connect the red and black wires to the dual-pole breaker (typically 30–50A based on unit specs), neutral (white) to the neutral bus, and ground (green or bare) to the grounding bus. Ensure the isolation assembly has matching terminal labels–misalignment can trip circuits or damage equipment. Verify torque values for terminals (e.g., 15–20 lb-in for breaker connections) to prevent overheating.

Single-Phase vs. Dual-Capacitor Setups

Single-phase systems require a run capacitor (40–60 MFD) wired between the compressor contactor and start terminal. For dual-capacitor configurations (common in units >3 tons), use a separate start capacitor (80–150 MFD) and run capacitor (30–50 MFD). Connect the start capacitor to the potential relay coil (if present) and the run capacitor across the compressor windings. Omitting the potential relay can cause hard starts, risking motor burnout. Always match capacitor ratings to the manufacturer’s data plate–undersizing reduces efficiency, oversizing shortens lifespan.

For mini-split systems, follow the outdoor unit’s L1/L2 terminals instead of color codes. Typically, L1 connects to a 20–30A breaker, L2 to the neutral (if split-phase), and ground to the chassis. Some non-U.S. models use 230V single-phase with only L/N markings–consult the schematic to avoid reversing polarity. Use a multimeter to confirm 230V ±5% at the unit terminals after installation; voltage drops below 218V reduce cooling capacity and increase energy consumption by 10–15%.

Safety Precautions When Handling Electrical Isolation Units

De-energize the circuit at the main panel before touching any conductors or terminals. Confirm absence of voltage using a non-contact voltage tester rated for the system’s voltage–typically 240V for residential split-phase systems. Test the device on a known live circuit first to ensure it functions correctly. Never rely on visual inspection alone; residual capacitance can retain lethal charges even after opening the switch.

Wear insulated gloves compliant with ASTM D120 or IEC 60903 standards, rated for at least 1,000V when working on high-voltage installations. Ensure gloves are inspected for punctures, cracks, or degradation before each use, and pair them with leather protectors to prevent tears. Store gloves in a cool, dry environment away from ozone-generating equipment, as UV and ozone accelerate rubber deterioration.

Proper Grounding Procedures

Connect a temporary ground to neutral or earth before handling any exposed conductors. Use a grounding strap or clamp with a minimum 6 AWG copper wire for systems under 60A; 4 AWG wire is required for larger currents. Verify the integrity of the grounding path by testing continuity with a multimeter set to ohms. Failure to ground can result in arc flash incidents, which release energy equivalent to 35,000°F–hotter than the surface of the sun.

System Voltage	Minimum Wire Gauge (AWG)	Recommended Torque (Nm)
120V	10	1.4–1.7
240V (single-phase)	8	2.8–3.4
480V (three-phase)	6	4.5–5.5

Secure all terminal connections with a torque screwdriver calibrated to the manufacturer’s specifications. Over-tightening can strip threads or crack terminals, while under-tightening causes loose connections that generate heat–leading to oxidation or fire. For aluminum conductors, apply an anti-oxidant compound to the contact surfaces before securing. Aluminum expands and contracts 30% more than copper under thermal cycling, increasing the risk of loosening.

Work with a partner when handling live circuits. The second person should stand at a safe distance (minimum 3 feet) but be ready to cut power or call emergency services. Maintain a clear path to the main breaker; in emergencies, reaction time is critical. If an arc fault occurs, the pressure wave can exceed 1,000 psi–enough to rupture eardrums or fling debris at 700 mph. Keep combustible materials at least 10 feet away from the work area.

Post-Work Verification

After completing adjustments, re-energize the system in stages. First, close the main breaker, then verify voltage at the load side with a multimeter. Check for abnormal heating at connections by using an infrared thermometer; temperatures above 70°C (158°F) indicate potential failure points. Document all readings and observations for future reference. If devices trip immediately upon re-energizing, re-open the circuit and inspect for short circuits or miswired components.
