Practical AC Motor Control Circuit Design with Wiring Schematics

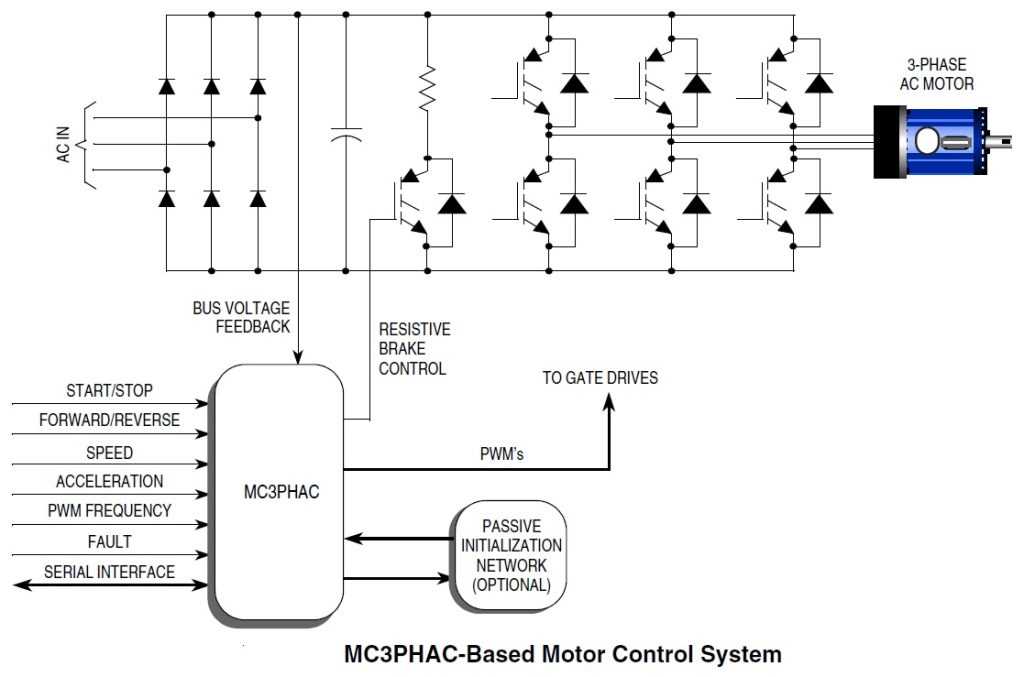

For precision speed regulation of asynchronous machines, integrate a variable frequency drive (VFD) with a three-phase inverter bridge using IGBT modules rated for 1200V/50A. Ensure the gate driver circuitry includes opto-isolators (e.g., HCPL-3120) to prevent false triggering under high dv/dt conditions typical in 400VAC systems.

Incorporate a current sensing feedback loop with Hall-effect sensors (ACS712) positioned on two phases to detect imbalances exceeding 5%. The sensed signals must pass through a third-order low-pass filter (fc=1kHz) to eliminate PWM-induced ripple before reaching the microcontroller’s ADC. An STM32F407 with floating-point unit is recommended for real-time PID computation at 20kHz sampling rate.

Critical fault protection requires a dual-layer approach: hardware-based overcurrent detection via comparators (LM311) triggering a shutdown within 2μs, and software-based thermal monitoring using an NTC thermistor mounted on the heat sink. For regenerative braking, add a chopper circuit with a 600V/30A MOSFET (IPP60R160P6) to dissipate excess energy in a braking resistor (e.g., 10Ω/200W).

For wiring, use twisted pair cables (1.5mm²) between the drive and machine terminals, keeping conductor lengths under 5 meters to minimize inductive voltage spikes. Ground the heat sink directly to the chassis with a dedicated 4mm² copper wire. Pre-charge the DC bus through a relay and 50Ω resistor to limit inrush currents to 20A during startup. Test the schematic with an oscilloscope to verify PWM rise times (target: 100ns) and phase-to-phase voltage balance (±2% tolerance).

Designing Induction Machine Wiring Schematics for Industrial Use

Start with a three-phase power source rated for your load demands–400V for European standards, 480V for North American applications. Include a disconnect switch directly after the source with a current rating exceeding the maximum operating current by 25%. This ensures safe isolation during maintenance without relying solely on circuit breakers.

Use a manual starter for basic on-off functionality in low-complexity setups. For enhanced safety and automation, replace it with a motor protector combining overload relays, short-circuit protection, and phase loss detection. Select relays with adjustable trip curves matching the machine’s thermal characteristics to prevent premature or delayed shutdowns.

Incorporate a reversing arrangement for bidirectional operation: two contactors wired in parallel with their main poles connected in opposition. Add interlocking auxiliary contacts to prevent simultaneous engagement, which risks phase-to-phase shorts. Verify wiring polarity before energizing–incorrect phase sequencing can reverse rotation unintentionally.

Frequency converters require additional safeguards: install line reactors on both input and output to reduce harmonic distortion and protect windings. Choose reactors with inductance values between 3-5% of the converter’s rated impedance. Ground the converter’s DC link capacitor midpoint through a high-resistance path to minimize voltage spikes during switching events.

For variable torque loads (fans, pumps), employ a soft starter to limit inrush current. Set initial voltage to 30-40% of nominal, ramping up over 5-10 seconds. Bypass the soft starter with a contactor once acceleration completes to avoid unnecessary heat dissipation. Avoid prolonged operation below 50% speed–most soft starters lack internal cooling at low outputs.

Remote monitoring demands auxiliary signals: wire auxiliary contacts from the starter to a PLC digital input module. Use normally open contacts for status indication and normally closed for fault alerts. Add a 120Ω resistor across the input to prevent false triggers from electromagnetic noise–this is critical in environments with heavy switching equipment.

Finalize schematics with clear labeling: phase conductors in L1/L2/L3 sequence, neutral (if applicable) as N, and protective earth as PE. Use color codes per regional standards–brown/black/gray for EU, black/red/blue for US. Include a legend with contactor coil voltages (24V, 110V, 230V) and relay trip classes (10, 10A, 20). Document all wire gauges–undersized conductors cause voltage drops exceeding 3%, leading to nuisance tripping.

Key Elements of an AC Drive Activation Setup

Ensure the main switching device employs a contactor rated for at least 120% of the driven load’s full-load current. For 230V applications, select a Model LC1D contactor with AC-3 utilization category; 400V setups require a Model LC1F. Overload relays must be class 10 for general-purpose applications or class 20 for frequent start-stop cycles, adjusted to trip within 2.5–3× the nominal current draw. Fuse ratings should follow IEC 60947-4-1: 10A gG for 4kW loads, 16A for 7.5kW, and 25A for 11kW.

Integrate a three-phase thermal protection module downstream of the contactor coil to prevent phase imbalance damage–opt for Schneider RM4TR32 (4–6A range) or Siemens 3RB3011-0FA0 (0.5–8A). Wiring gauge must comply with NEC Table 310.16: 14 AWG for ≤7A, 12 AWG for 7–15A, and 10 AWG for 15–25A. Mount the start/stop pushbuttons within 2 meters of the driven apparatus but isolate them with a 600V-rated conduit if ambient humidity exceeds 85%.

Wiring a Direct Online (DOL) Starter for Single-Phase Induction Drives

Begin by connecting the live wire from the mains to the first terminal of the overload relay. Then, link the relay’s output terminal to the starter’s “L1” input. The neutral wire should run directly to the drive’s “N” terminal. Ensure the starter’s auxiliary contacts (NO/NC) align with the manufacturer’s specifications–most single-phase units require a NO (normally open) configuration for the holding coil. Verify the coil voltage matches the supply (e.g., 230V AC) to prevent burnout.

Attach the phase wire to the start capacitor’s input, then route the output to the drive’s “U” terminal. For drives exceeding 1 HP, add a run capacitor in parallel, connecting it between the “U” and “V” terminals. Use 12-16 AWG wire for currents below 10A; upsize to 10 AWG for 10-16A loads. Secure all terminals with a torque screwdriver (typically 1.2–1.5 Nm for brass terminals) to avoid arcing.

Test the setup with a multimeter: measure voltage across the holding coil (should match supply) and check for continuity in the overload relay’s closed state. If the drive hums but doesn’t start, swap the start capacitor–single-phase units often fail due to faulty caps. For reversing rotation, interchange the “U” and “V” wires at the drive’s terminals.

Step-by-Step Assembly for a Three-Phase Rotary Machine with Direction Switching

Begin by connecting the main power lines (L1, L2, L3) to a fused disconnect switch, ensuring each phase is protected with a properly rated fuse. For a 400V system, use 63A fuses for a 15kW unit or adjust according to the nameplate current. Secure the disconnect switch to a non-conductive panel, leaving 10cm clearance on all sides for ventilation.

Mount a three-pole contactor (NO type) rated for 15% above the machine’s full-load amperage next to the disconnect switch. Wire L1, L2, and L3 from the output of the fuses to the contactor’s top terminals (T1, T2, T3), using 16mm² copper cable for currents up to 60A. Label each terminal immediately after connection to avoid miswiring.

Direction Control Wiring

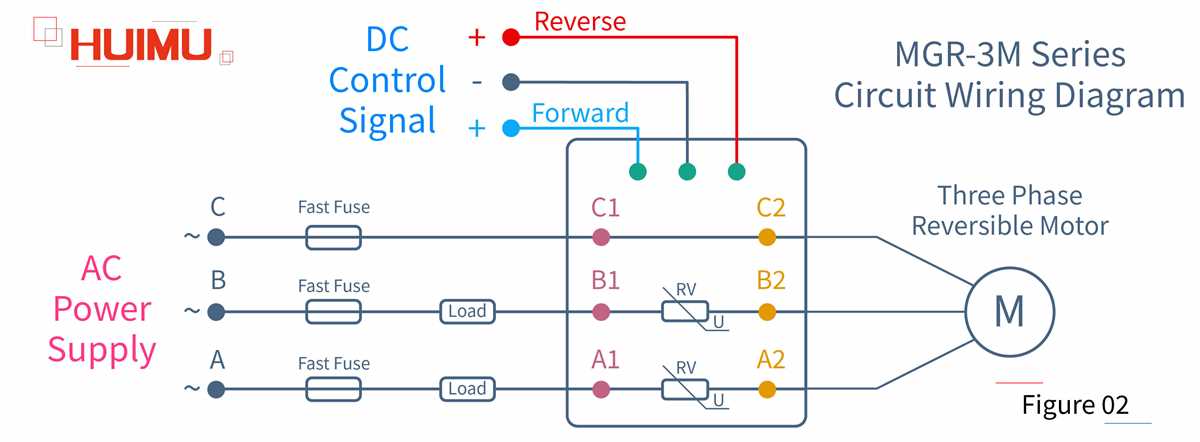

Install a second contactor of identical rating and connect its top terminals to the same power lines as the first, but swap L1 and L3 (L3 to T1, L1 to T3) to enable reverse rotation. Place both contactors 5cm apart to prevent interference. Use a three-position selector switch (forward/off/reverse) wired to the coils of both contactors, ensuring only one can engage at a time via interlocking auxiliary contacts.

• Forward coil: Connect to selector switch “F” terminal, then to neutral.
• Reverse coil: Connect to selector switch “R” terminal, then to neutral.
• Interlock wiring: Cross-connect NC auxiliary contacts of each contactor to the coil circuit of the opposing unit to prevent simultaneous activation.

Attach thermal overload relays directly beneath each contactor, dimensioned for 100-120% of the machine’s nameplate current. Route the machine’s winding leads (U, V, W) through the relays’ bimetallic elements, then to the contactor’s bottom terminals (T1, T2, T3 for forward; swapped for reverse). Use 10mm² cable for these connections to handle operational currents safely.

Final Checks and Safety Measures

Ground the machine’s frame and all metallic components to a dedicated earth busbar using 16mm² green/yellow cable. Verify all connections with a multimeter: measure 400V phase-to-phase and 230V phase-to-neutral at the machine terminals when the contactor is engaged. Test the interlock mechanism by attempting to activate both contactors simultaneously–the second attempt should fail.

1. Power on the disconnect switch and observe the machine at no load for 30 seconds.
2. Switch between forward and reverse directions three times, pausing 5 seconds between changes.
3. Measure current draw at each phase during operation–values should not exceed 90% of relay settings.
4. If irregularities occur, immediately de-energize and recheck polarity, interlock wiring, and relay alignment.

For braking, add a dynamic braking module (resistor bank) rated for 2x the machine’s power, wired to the windings via a dedicated NC contactor. Activate it only after the main contactors disengage to avoid short circuits. Finalize assembly by enclosing all components in a NEMA 4X enclosure if operating in humid or dusty environments.
