How to Build an AC to DC Power Supply Step-by-Step Schematic Guide

Transforming alternating current (AC) into direct current (DC) requires a controlled pathway with precise component selection. For most standard applications under 30V, a bridge rectifier paired with smoothing capacitors (typically 1000µF–4700µF) ensures stable output while minimizing ripple. When input voltages exceed 240VAC, incorporate a step-down transformer rated for the target load–undersizing leads to overheating and inefficiency.

Key factors dictate design robustness: load current demands, voltage regulation needs, and thermal constraints. Linear regulators (e.g., LM7805) suit low-current devices (

Grounding practices separate signal and chassis paths to avoid noise interference. Star grounding reduces loops; connect all grounds at a single point near the output filter. Test waveforms with an oscilloscope: peak-to-peak ripple should stay below 5% of the DC output. For higher precision, add a post-regulator (e.g., LM317) with appropriate feedback resistors.

Avoid common pitfalls: reverse polarity protection (diode or MOSFET) prevents damage during miswiring; inrush current suppression (NTC thermistor or relay) safeguards against transformer saturation. Verify component derating–capacitors must handle 1.5× the DC voltage, diodes should support 3× the peak inverse voltage.

For custom builds, simulate the layout first using SPICE tools. Trace inductance and ESR values of capacitors influence transient response. Opt for thick copper pours (≥2oz/ft²) in PCB designs to handle current spikes. Field-test with resistive loads before integrating into final systems.

Building a Reliable AC to DC Conversion Layout

Select a transformer with a secondary voltage rating 1.2 times higher than the required DC output. For a 12V output, a 14.4V secondary winding ensures sufficient overhead after rectification and smoothing. Avoid transformers with excessive capacity–1.5x the expected load current prevents overheating while maintaining efficiency. Verify core material: toroidal units reduce EMI, while EI laminations suit cost-sensitive designs.

Key Component Specifications

• Bridge rectifier: Choose a module with a current rating 2x the load current. For 3A loads, use a 6A or 10A bridge (e.g., KBPC1005). Ensure peak inverse voltage (PIV) exceeds 2x the secondary voltage–25V secondary requires ≥50V PIV.
• Smoothing capacitor: Calculate using C = (I_load × Δt) / ΔV. For 1A load, 10ms ripple period, and 100mV ripple, use C = (1 × 0.01) / 0.1 = 1000µF. Use low-ESR electrolytic capacitors; add a 0.1µF ceramic for high-frequency noise suppression.
• Voltage regulator: Linear regulators (e.g., LM7812) suit low-current applications; for currents >1A, use a switching regulator (e.g., LM2596) to minimize heat dissipation. Input capacitors (0.33µF) and output capacitors (0.1µF) are mandatory for stability.

Wire gauge matters. For 5A currents, use 18 AWG copper wire; 10A demands 14 AWG. Overlook trace widths on PCBs: 1mm width per ampere prevents voltage drops. Route high-current paths away from sensitive control lines to avoid coupling noise. Ground the enclosure to the main return path near the input capacitor for EMI reduction.

Add protection components upstream:

1. A 1A fuse in series with the primary winding prevents transformer overload.
2. A varistor (e.g., 130VAC MOV) across the primary clamps transient spikes.
3. A reverse-polarity protection diode (1N4007) on the DC side guards against incorrect voltage application.

Test the layout with an oscilloscope before full load application. Check for ripple–values above 50mVpp indicate inadequate smoothing. Measure efficiency: (V_out × I_out) / (V_in × I_in) × 100. Target >80% for linear designs, >90% for switching regulators. Store spare diodes and capacitors; failures often occur during initial power-on due to inrush currents.

Key Components of an AC to DC Conversion Setup

Select a transformer with a turns ratio matched to the input voltage and desired output level. For example, a 230VAC input requires a 10:1 transformer to produce ~23VAC unloaded, accounting for ~1V core loss. Secondary current rating must exceed the load’s peak draw by at least 20% to prevent saturation and overheating. Toroidal cores offer lower leakage inductance than E-I laminations, improving regulation under dynamic loads.

Rectification Stage Essentials

Use ultrafast recovery diodes rated for twice the peak inverse voltage (PIV). For a 23VAC secondary, diodes must handle ≥65V PIV. Schottky diodes reduce forward drop to ~0.3V, lowering conduction losses in low-voltage outputs. Bridge configurations halven ripple frequency but require heatsinking if continuous current exceeds 1A. For higher efficiency, synchronous rectifiers with MOSFETs cut losses to milliwatts at currents above 5A.

Choose smoothing capacitors based on ripple current tolerance. Electrolytic types must withstand at least 1.4× the RMS ripple current at 100Hz (for 50Hz mains). Film capacitors eliminate ESR-related failures but require larger board space. A 2200µF capacitor per ampere of load current balances cost and ripple suppression, typically holding output fluctuation below 1%. For switch-mode topologies, low-ESR ceramics or polymer types are mandatory.

Linear regulators demand a dropout margin of ≥2V between input and output. LDO devices reduce headroom to 0.5V but require careful thermal design–calculate dissipation using (V_in – V_out) × I_load. Switching converters achieve ≥90% efficiency by adjusting duty cycle; inductors must have saturation currents ≥1.5× the maximum load, with ferrite cores minimizing eddy losses at frequencies above 100kHz.

Step-by-Step Guide to Building a Transformer-Based AC Conversion Unit

Begin by selecting a transformer with a secondary voltage rating 10-15% higher than the target output after rectification. For a 12V DC output, choose an 18V-0-18V center-tapped transformer. Verify the transformer’s current capacity matches the load requirements–multiply the expected current by 1.8 to account for rectifier inefficiencies during peak charging cycles of the smoothing capacitor.

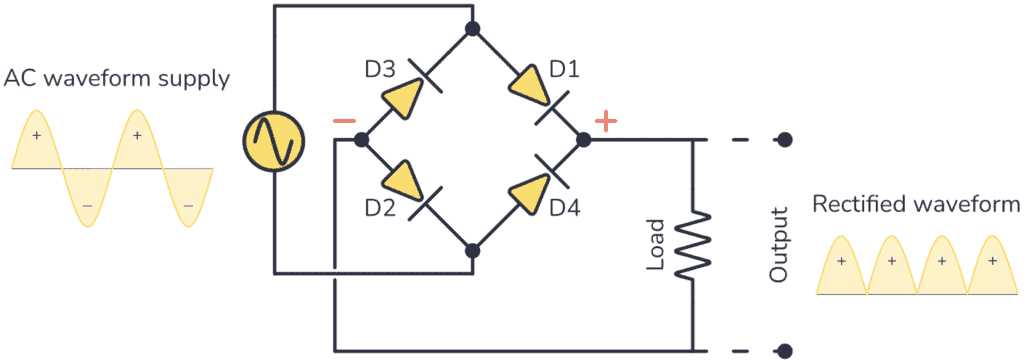

Connect the transformer’s secondary winding to a bridge rectifier composed of four 1N4007 diodes. Ensure each diode’s reverse voltage rating exceeds the transformer’s peak secondary voltage (e.g., 100V for 18V AC). For higher current loads (above 1A), substitute the 1N4007 with SB560 Schottky diodes to reduce forward voltage drop from 0.7V to 0.2V per diode pair, improving efficiency by up to 12%.

Calculate the required capacitance for the smoothing reservoir using the formula: C = I_load / (2 × f × V_ripple), where f is the rectified frequency (100Hz for full-wave), and V_ripple is the acceptable ripple voltage (typically ≤5% of DC output). For a 1A load at 12V with 0.5V ripple, this yields C = 10,000µF. Use a capacitor with a voltage rating at least 50% higher than the peak rectified voltage (e.g., 25V for 18V AC input).

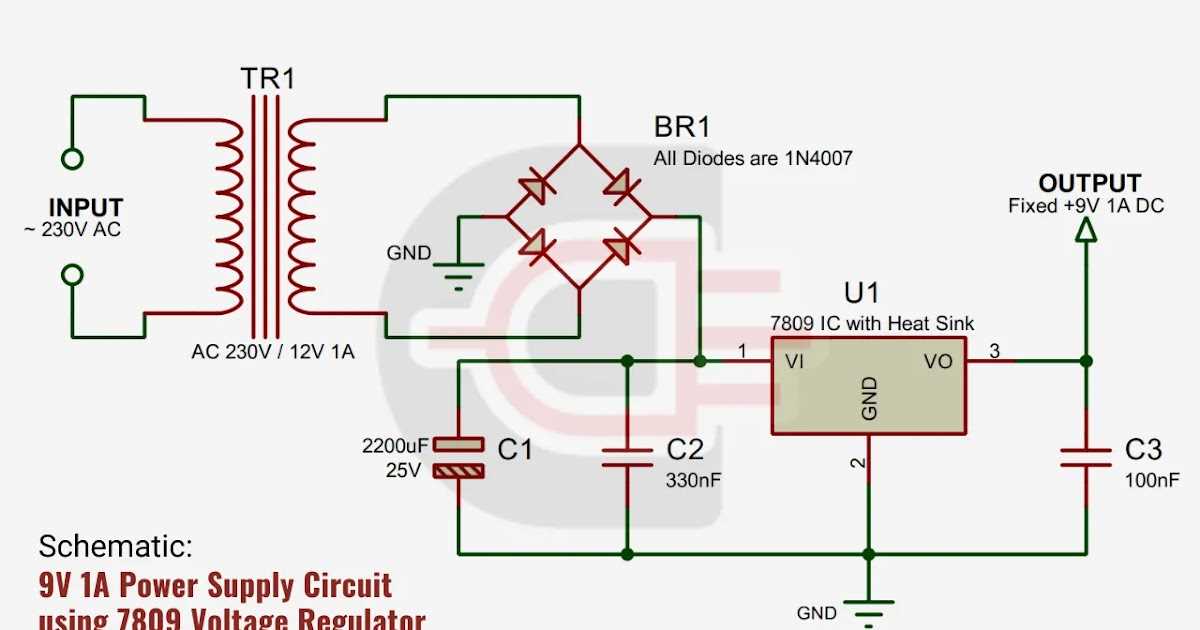

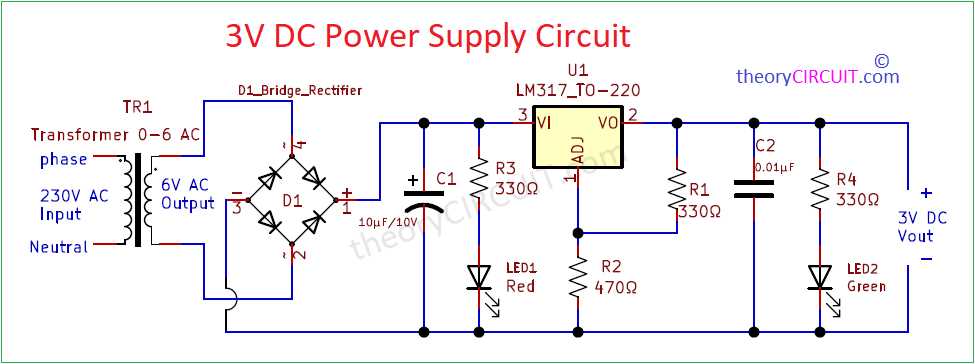

Add a series pass element–a linear voltage regulator like the LM7812–if precise output stability is required. The regulator must handle input voltages 3-4V above the nominal output to avoid dropout. For adjustable outputs, replace the fixed regulator with an LM317, pairing it with 240Ω and 5kΩ resistors to set the output via V_out = 1.25 × (1 + R2/R1). Include 0.1µF input and 1µF output capacitors within 10mm of the regulator pins to suppress high-frequency oscillations.

Estimate thermal dissipation by multiplying the regulator’s voltage drop by the load current. A 12V output with 18V input and 1A load results in 6W of heat–require a heatsink with a thermal resistance ≤10°C/W. For TO-220 packages, use a 35×35×10mm aluminum heatsink with thermal compound. Avoid exceeding the regulator’s maximum junction temperature (125°C for most silicon devices).

Implement surge protection by placing a 10Ω resistor in series with the transformer primary and a 250V varistor (e.g., V275LA4) across the primary winding. The resistor limits inrush current during capacitor charging, while the varistor clamps transient voltages exceeding 275V. For sensitive loads, add a 1N4007 diode in reverse across the output to prevent voltage spikes from inductive kickback.

Finalize the layout with star grounding–connect all ground returns to a single point near the smoothing capacitor’s negative terminal. Keep traces carrying rectified AC short (

Calculating Voltage and Current Ratings for Semiconductors and Energy Storage Components

Select diodes with a peak reverse voltage (PRV) at least 1.5 times the peak input AC value. For a 230V RMS source (325V peak), choose a diode rated 488V or higher. This margin compensates for voltage spikes and transient surges typical in unregulated designs. Failure to observe this rule risks avalanche breakdown, leading to catastrophic failure.

Forward current ratings must account for both steady-state and surge conditions. Measure the load’s continuous draw, then apply a derating factor of 20-30%. A 1A load thus requires a diode handling 1.3A minimum. During inrush, capacitors draw currents 10-20 times their steady-state value–verify diode ratings can withstand these spikes without thermal runaway.

Capacitors in smoothing stages demand precise voltage selection. Multiply the average DC output by 1.3-1.4 to determine the minimum working voltage. A 12V system needs capacitors rated 16V or above. Ripple current ratings often overlooked–derate by 40-50% from the capacitor’s datasheet specification to prevent overheating and premature degradation.

The table below correlates input voltages, diode requirements, and capacitor ratings for common configurations:

Input (RMS)	Diode PRV	Capacitor Voltage Rating	Derated Ripple Current (50%)
12V	25V	16V	2A
24V	50V	35V	4A
110V	200V	160V	10A
230V	400V	350V	15A

Pulse loading scenarios alter calculations. Bridge rectifiers with capacitive loads experience non-sinusoidal currents. Use the formula I_RMS = I_DC × √(2/t), where t is the conduction angle in radians. For t = 0.3π, this yields I_RMS ≈ 1.8 × I_DC. Verify diode datasheets specify I_FSM (non-repetitive surge) values exceeding this result.

Temperature derating curves dictate real-world performance. A diode rated 1A at 25°C drops to 0.6A at 100°C. Apply correction factors from manufacturer graphs; linear approximations underestimate stress. Electrolytic capacitors suffer similar derating–consult impedance versus frequency plots, as ripple performance degrades sharply above 5kHz.

Paralleling diodes distributes current but introduces imbalance. Match forward voltage drops (ΔV_F F device hogging current until failure. For critical applications, add small series resistors (0.1-0.5Ω) to force balance.

Output capacitance calculations hinge on ripple voltage tolerance. The equation C = I_load / (2 × f × V_ripple) provides baseline values, where f is the ripple frequency (twice the AC line frequency for full-wave rectification). Target ≤5% ripple; halving ripple voltage quadruples required capacitance. ESR compounds ripple–choose low-ESR types for high-frequency switching applications.
