How to Wire Amazon Smart Thermostat for Heat Pump Systems Step by Step Guide
For dual-fuel setups–where a compressor-driven unit switches to auxiliary electric coils at low ambient–terminate the O/B wire to the reversing valve port labeled “O” on the indoor board. This ensures 24 VAC energizes the valve for cooling; the same conductor becomes the defrost control during heating. Leave the “B” terminal vacant unless legacy documentation specifies otherwise–miswiring sends refrigerant backward, tripping high-pressure cutouts within minutes.
Strip ⅜” of insulation from the Y1 (stage 1) cable and land it on the outdoor unit’s compressor contactor exactly beside the factory jumper. Remove that jumper only if the control expects a floating Y2 signal; otherwise, shared relay logic between stages risks short-cycling the scroll. For variable-speed ECMs, splice a 4-conductor 18 AWG shielded cable from the controller’s Y2/C pair to the inverter board’s V and COM terminals–omitting this link locks the blower at 30% speed regardless of demand.
Ground the thermostat baseplate directly to the equipment chassis via 16 AWG stranded copper. Avoid daisy-chaining through the furnace transformer common; parasitic currents above 40 mA will corrupt Modbus packets between the wall module and the zone relay. If line-noise persists, insert a 1 kΩ, ½-watt metal-film resistor in series with the Rc line–this suppresses back-EMF pulses without altering voltage drop.
Label each conductor at both ends with heat-shrink tubing matching the ISO 14725 color standard: R (red), C (blue), W1 (white), W2/AUX (brown), G (green), Y1 (yellow), Y2 (orange), O/B (purple). Reverse polarity on any single terminal induces a 3-degree Fahrenheit offset across all zones, detectable only via sub-meter voltage readings taken at the outdoor disconnect.
Connecting Your Climate Control Device to a Dual-Stage HVAC System
Locate the labeled terminals on your indoor unit: R (24V power), C (common), O/B (reversing valve), W2 (auxiliary heating), Y1 (first-stage cooling), Y2 (second-stage cooling), G (fan). For systems with auxiliary heating, verify that W2 is connected to a dedicated terminal–not sharing with Y–I/O mismatches here can trigger staging errors. If your system lacks a C-wire, use an isolation kit (e.g., Venstar Add-a-Wire) to repurpose the G-wire without sacrificing fan control; never bridge R to C on a heat-driven setup, as this risks damaging the PCB.
Test the reversing valve’s polarity before finalizing connections–energize the O/B terminal with a multimeter set to AC voltage while the system is in cooling mode. A reading between 22-26V confirms correct operation; below 18V suggests a faulty valve or wiring fault. For variable-speed compressors, connect Y2 only if the manufacturer’s documentation specifies dual-stage operation–otherwise, leave it unconnected to prevent erratic cycling.
Locating Proper Connection Points in Climate Control Systems
Begin by examining the control unit’s interface–most setups require R (power), C (common), Y (compressor), O/B (reversing valve), and W (auxiliary heat) terminals. Modern HVAC configurations split O and B for cooling or heating dominance; verify which activates the valve in your equipment’s manual. If the board lacks labeling, trace wires from the outdoor unit–O/B typically connects to a small gauge wire, while Y links to a thicker cable.
Check voltage between R and C with a multimeter; a reading of 24VAC confirms correct power supply. For dual-fuel systems, an additional W2/E terminal may appear–this engages emergency heat stages. Reverse-valve wiring (O/B) varies: O energizes in cooling (common for Trane, Rheem), B in heating (typical for Lennox, Carrier). Mismatched connections will invert operation causing inefficiency or damage.
Label each conductor before disconnecting–a mismatch risks frying the control board or compressor. Use terminal-specific markers (RH/RH for dual-transformer setups) and photograph the original layout. If G (fan) is present, ensure it bridges to the blower motor; some systems omit it, relying on the indoor unit’s auto-switching.
How to Properly Link the Auxiliary Power Lead on Your Climate Control System

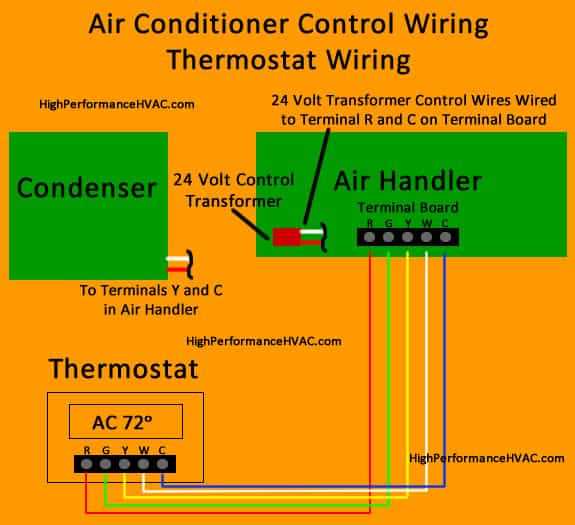

Locate the control board inside your HVAC unit–typically positioned near the blower compartment. Identify the transformer’s secondary side, which provides 24 volts AC, and trace the wires to find the terminal labeled “C” or “Common.” This terminal serves as the return path for uninterrupted power delivery to your device. If absent, check for an unused wire in the existing cable bundle or install a new 18-gauge conductor from the control board to the display unit.
Shut off power at the circuit breaker to prevent short circuits. Verify the absence of voltage using a multimeter by testing between the R (power) and C terminals. At the display’s backplate, connect the auxiliary wire to the terminal marked “C”–often color-coded blue or black, but confirm against the manufacturer’s documentation. If reusing an existing wire, ensure it’s stripped, secured, and free of corrosion to avoid intermittent failures.

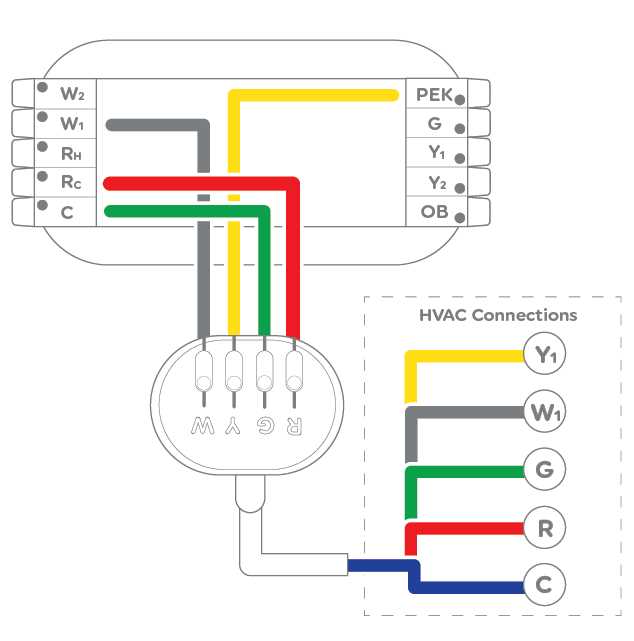

For systems without a dedicated auxiliary lead, add a power extender kit. Connect the kit’s transformer between the R and C terminals on the control board, then run a new wire to the display. Avoid repurposing safety or sensor wires (e.g., Y, W, G), as this can disrupt heating/cooling cycles or cause erratic behavior. If the system uses a dual-fuel setup, verify compatibility–some configurations require separate auxiliary leads for emergency heat stages.
After securing connections, restore power and test continuity. On the display, navigate to the power settings to confirm the auxiliary lead is detected–usually indicated by a stable “powered” status. If the device fails to initialize, recheck for loose terminals, reversed polarity, or incorrect voltage (should read ~24V AC). For older units with variable-speed blowers, consult an HVAC technician to avoid damaging sensitive electronics.
Label all wires at both ends with heat-resistant tags to prevent future misidentification. Store the installation guide and a wiring schematic near the unit for reference during maintenance. If the system uses a heat sink or auxiliary relay, ensure the auxiliary lead bypasses these components to maintain a direct path to the transformer. For battery-backed displays, retain the batteries until the auxiliary lead is confirmed operational to avoid losing settings during setup.
Diagnosing Electrical Failures in Climate Control Systems
Check the circuit breaker first–many power loss cases stem from a tripped switch. Reset it once, then observe if it holds. If it trips again immediately, inspect the equipment’s internal fuse or transformer. Most modern units integrate a 24V transformer that converts mains power; a multimeter set to AC voltage should read between 24–28V across the R and C terminals. Readings below 20V indicate transformer failure or a short in the low-voltage circuit.
Verify the emergency heating relay if the system defaults to backup mode. Remove the cover panel and locate the relay–often marked as “E-Heat” or “Aux Heat.” Use a continuity tester to confirm the coil activates when power is applied. Burnt contacts or a failed coil require replacement. Common relay models include 8324G1276 (Honeywell) and ICM290 (White Rodgers); cross-reference part numbers before ordering.
Common Voltage Drop Scenarios
| Symptom | Likely Cause | Solution |
|---|---|---|
| Intermittent shutdowns | Loose wire nut at compressor contactor | Re-strip and re-secure connections with crimp connectors |
| No response, humming sound | Capacitor failure (start or run) | Test with capacitor analyzer; replace if microfarads drop below 10% of rated value |
| Constant cycling | Faulty defrost control board | Check defrost thermostat (usually closes below 25°F); replace board if fails self-test |
Inspect the reversing valve solenoid for correct operation. This component, typically labeled “O” or “B,” requires 24V to shift between heating and cooling modes. With power on, measure voltage across the solenoid coil–absence indicates a wiring break or control board issue. Replace the solenoid if resistance exceeds 50 ohms or falls below 20 ohms, as per manufacturer specs.
Examine the outdoor unit’s fan motor separately. Disconnect the motor leads and test resistance across each winding. Typical readings range 1–5 ohms; open circuits confirm motor failure. Lubricate sleeve bearings annually–seized bearings draw excessive current, overheating the motor and tripping breaker protection. For PSC motors, ensure the run capacitor meets the motor’s microfarad rating (e.g., 10µF for 1/6 HP motors).
If the system powers on but shuts off within seconds, suspect the pressure switches. Low-pressure switches (LPS) typically open below 50 PSI, while high-pressure switches (HPS) trip above 375 PSI. Bypass each switch temporarily to isolate the fault–never run long-term without functional switches. Clean condenser coils to prevent HPS trips from airflow restrictions; verify refrigerant charge remains within 3 oz of factory specifications.
Compatibility Check: Aligning Climate Controller Cables with HVAC System Markings
Verify the HVAC unit’s terminal strip labels against the control device’s wiring guide before connecting any cables. Most heat-driven cooling systems use standard designations:
- R/Rc/Rh: Power supply (24V), often split if separate transformers serve heating and cooling modes
- Y: First-stage compressor relay
- Y2: Second-stage cooling (if dual-compressor setup)
- W/W2: Heating activation (auxiliary heat for emergency backup)
- O/B: Reversing valve control (energized for cooling on most systems)
- G: Fan relay (separate from blower during defrost cycles)
- C: Common/neutral (required for powering internal circuits)
- L: Optional fault detection input (check manufacturer specs)
Locate the matching symbols on both the HVAC control board and the new climate regulator. Discrepancies between O and B signal opposite valve polarization–energizing the wrong terminal may damage components. Confirm the reversing valve’s default state: Carrier, Bryant, and Payne units typically energize O for cooling, while Rheem, Ruud, and Trane usually default to B. Cross-reference with the equipment’s installation manual if labels don’t align.
Test continuity between system terminals and the regulator’s connection points before snapping any wires into place. Use a multimeter set to 200V AC mode–probe the R terminal and each other point to confirm 24V presence. Absent voltage on Y while W energizes suggests miswired staging, risking short-cycling. Jumper R to G briefly to verify fan operation; if the blower fails to engage, check breaker and motor capacitor before proceeding.
Adapting to Non-Standard Configurations
Systems with auxiliary or emergency heat strips (E) require special handling. Connect the primary heating lead (W) to the compressor-based stage, reserving E for backup–most digital controllers include a dedicated slot for emergency heat, often labeled W2/AUX. For zoned systems or variable-speed blowers, identify the DHUM (dehumidification) or VS (variable-speed) terminals. Failure to isolate these may cause erratic cycling or compressor damage. Map all labeled points on paper, noting transformer VA rating–undersized transformers (
- Power down the HVAC unit and breaker panel.
- Remove existing control faceplate, photographing wire positions.
- Label each wire with manufacturer-provided stickers (or masking tape), matching HVAC board markings.
- Insert labeled wires into corresponding slots on the new regulator baseplate.
- Restore power; observe system behavior for 15 minutes–unusual noises or failure to engage indicate miswiring.
For dual-fuel setups (heat source switching between compressor and gas furnace), confirm the O/B terminal functions as a changeover trigger. Rheem Econet and Honeywell Prestige systems often use DF (dual-fuel) terminals; connect this to the regulator’s auxiliary input if available. When labels conflict (e.g., C mislabeled as X), trace the wiring harness to the outdoor condenser–the low-voltage bundle typically enters near the defrost control board. Document every connection step; retain notes for future troubleshooting.
