Build a Reliable Astable Multivibrator Circuit Step by Step Guide
Start with a 555 timer IC configured in its most efficient mode for generating consistent pulses–no stable state means no external triggers are needed. Power it with a 5V to 15V DC supply, depending on output load requirements, but ensure stable voltage to avoid frequency drift. Use precision resistors (1kΩ–1MΩ) and capacitors (0.1µF–1000µF) to fine-tune timing; values outside this range risk unreliable oscillation or excessive heat.
Connect the timing components as follows: R1 (between Vcc and discharge pin), R2 (between discharge and threshold pins), and C1 (from threshold to ground). For predictable results, R2 should be ≈1.5× R1–deviations beyond ±20% may cause erratic behavior. Bypass the control voltage pin with a 0.01µF capacitor to suppress noise, especially in environments with electromagnetic interference.
Avoid ceramic capacitors below 0.1µF for C1–they lose capacitance at low voltages, skewing frequency calculations. Use polyester or tantalum for stability, particularly in temperature-sensitive applications. Test the output frequency with an oscilloscope before finalizing values; expect ±5% tolerance due to component variance, but anything beyond requires recalibration.
For higher current demands, add a transistor (e.g., 2N2222) or MOSFET to the output stage to prevent overloading the timer. Keep traces short between the IC and timing components to minimize parasitic capacitance–longer paths introduce phase shifts, distorting the waveform. Ground the circuit properly, preferably with a star grounding technique, to prevent feedback loops.
If the design fails to oscillate, check for: floating pins (especially reset), incorrect resistor ratios, or a damaged IC. Replace prototypes if the timer overheats–persistent issues often stem from flawed solder joints or reversed polarity in capacitors. For dual-output applications, consider a CD4047 IC as an alternative; it simplifies design but delivers lower drive current.
Building a Reliable Pulse Generator with Common Components
Choose a 555 timer IC for stability–avoid mismatched resistors that skew timing. A 10 kΩ resistor in series with a 1 nF capacitor yields ~72 Hz output, but for precise intervals, match the threshold voltage to 2/3 VCC by adjusting R2 within 1 kΩ–1 MΩ.
Use tantalum capacitors (≥10 µF) for low leakage; ceramic types drift under 1 V. For symmetric waveforms (near 50% duty cycle), ensure R1 + R2 = 2 × R2. Example: R1 = 4.7 kΩ, R2 = 1 kΩ approximates 53% high time.
- VCC tolerance matters: 5–15 V range degrades above 9 V without a decoupling capacitor (0.1 µF across power pins).
- Temperature drift: Resistor TCR (
- Diode bypass (1N4148) across R2 for sub-5% duty cycles, but adds ~5 ns rise time penalty.
For rapid prototyping, breadboard the layout with these traces:
- Pin 8 (VCC) → 5 mm from ground plane.
- Pins 2/6 (trigger/threshold) → shortest path to timing capacitor.
- Pin 7 (discharge) → single 10 kΩ resistor to VCC to reduce stray capacitance.
Measure frequency with an oscilloscope probe (×10 setting) on the output pin–parasitic capacitance from ×1 probes can reduce measured frequency by 10–15%. Calibrate using a 1 Hz reference signal and trim R2 in 1% increments until ±0.1 Hz accuracy is achieved.
Replace the 555 with a Schmitt trigger (74HC14) for frequencies above 1 MHz, but expect higher current draw (7 mA vs. 0.5 mA for 555). Stabilize the Schmitt trigger’s supply with a ferrite bead (60 Ω @ 100 MHz) to suppress ringing on the output.
Document component tolerances: ±1% resistors and ±5% capacitors yield predictable ±3% frequency variation. Log each build’s values (e.g., R1=2.2 kΩ, C=47 µF → 9.6 Hz) to replicate results across units without recalibration.

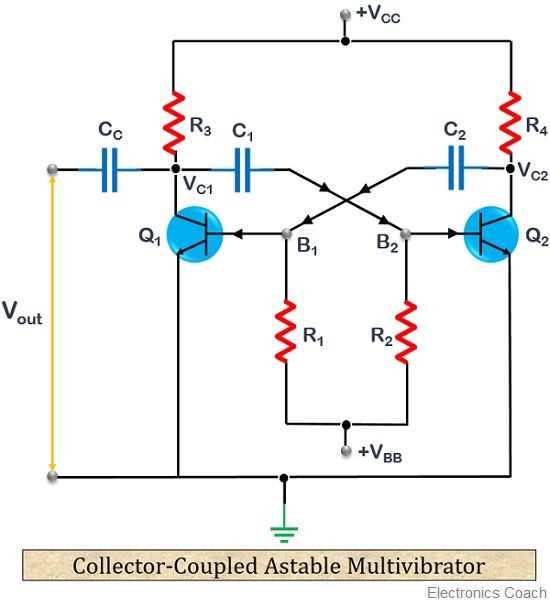

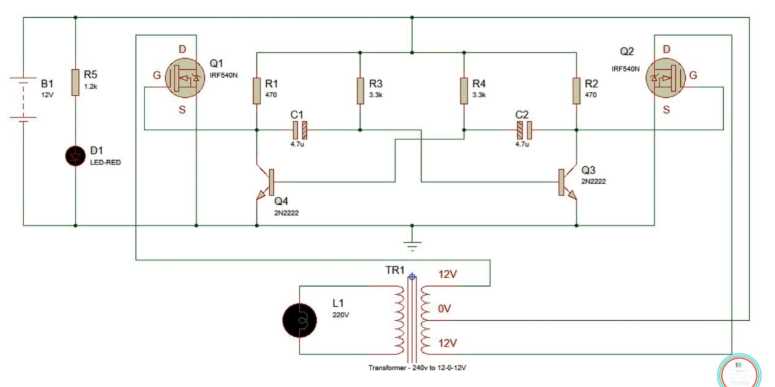

Core Elements for Constructing a Free-Running Oscillator
Select two transistors with matched gain values, ideally ±5% tolerance. BC547 (NPN) or 2N3904 work reliably for most configurations. Higher gain reduces asymmetry in output pulses–aim for hFE ≥ 200. Mismatched gains distort duty cycle, shifting frequency unpredictably.
Capacitors dictate timing intervals. Use polyester or polypropylene types for stability; ceramic capacitors drift under thermal changes. For adjustable timings, pair a 100nF fixed capacitor with a 1µF electrolytic or film in parallel–this balances speed and range. Avoid polarized capacitors unless reverse voltage is negligible.
| Component | Typical Value | Effect on Frequency |
|---|---|---|
| Base Resistor (RB) | 10kΩ–100kΩ | Higher RB lowers frequency logarithmically |
| Coupling Capacitor (C) | 1nF–10µF | Inverse proportionality: C↑ → f↓ |
| Collector Resistor (RC) | 1kΩ–10kΩ | Minor influence; primarily affects output amplitude |
Resistors control charge/discharge rates. For RB, 22kΩ–47kΩ yields stable square waves; below 10kΩ risks transistor saturation. Carbon film resistors (1% tolerance) suffice; metal film improves precision for sub-1% frequency deviation. Always measure RB values–manual adjustments trim duty cycle.
Power supply decoupling adds reliability. Insert a 100nF ceramic capacitor between VCC and ground near the transistors. Without it, noise from switching transistors corrupts timing, especially above 10kHz. For battery-powered designs, a 10µF electrolytic capacitor smooths voltage sag during load transients.
Practical Adjustments
Swap one coupling capacitor with a trimmer (e.g., 50nF) to fine-tune frequency. For 50% duty cycle, ensure RB1 = RB2 and C1 = C2–use 1% tolerance components. Output voltage swings between VCC and 0.2V (saturation); add a 1kΩ series resistor to drive LEDs or small relays without loading effects.
For temperature stability, bias resistors with 10% headroom–e.g., if calculations suggest 22kΩ, use 20kΩ. Temperature-sensitive applications benefit from negative-temperature-coefficient thermistors (NTC) in place of RB. Test prototypes at ±10°C extremes; frequency drift should not exceed 3% per 10°C change.

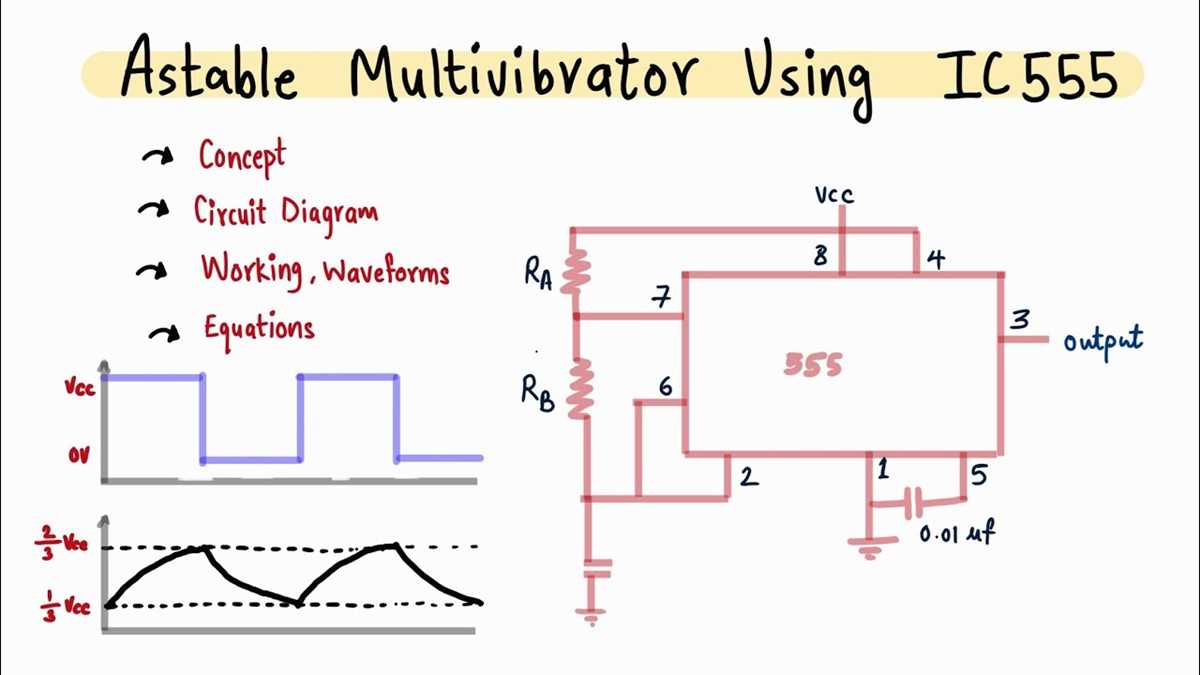

How to Wire a 555 Timer for Continuous Pulse Generation
Gather components first: a 555 IC, two resistors (47kΩ and 10kΩ), a 10µF capacitor, a 0.1µF capacitor, a breadboard, jumper wires, and an LED with a 220Ω resistor. Connect pin 1 (ground) directly to the negative rail. Pin 8 (VCC) goes to the positive rail, but add the 0.1µF capacitor between VCC and ground to stabilize voltage–place it as close to the IC as possible to prevent noise.
Tie pin 2 (trigger) to pin 6 (threshold) with a jumper. This connection forms the core feedback loop. The 10µF capacitor connects between pin 2 and ground, while the 47kΩ resistor bridges pin 6 to VCC. The 10kΩ resistor links pin 7 (discharge) to VCC. For output, attach the LED’s anode to pin 3 via the 220Ω resistor, and ground the cathode. Miswiring here risks damaging the LED–double-check polarity before powering on.
Power the breadboard with 5V DC. The LED should blink at roughly 1Hz. Adjust timing by swapping resistor values: lower resistance speeds up pulses, while increasing capacitance slows them. For example, replacing the 10µF capacitor with a 47µF unit extends the interval to ~5 seconds. Monitor pin 3 with an oscilloscope to confirm square wave output–ideal levels should swing between near-ground and VCC minus 1.7V.
Avoid exceeding 15V input, as the IC’s internal circuitry isn’t rated for higher voltages. For long-term use, solder components on perfboard and add a heat sink if driving inductive loads. To troubleshoot erratic behavior, probe connections with a multimeter: verify pin 4 (reset) is tied to VCC and check for shorts between adjacent pins. Silence or constant output indicates a faulty IC–replace it before re-testing.
Calculating Frequency and Duty Cycle for Custom Oscillations
Use the equation f = 1 / (0.693 × C × (R₁ + 2R₂)) for precise frequency tuning. For a 1kHz output, pair a 10μF capacitor with R₁ = 10kΩ and R₂ = 68kΩ–verified values that minimize drift over temperature variations. Higher R₂ increases period stability but narrows duty cycle range; balance resistors within 1kΩ-1MΩ for predictable results.
Duty cycle (D) hinges on resistor ratios: D = (R₁ + R₂) / (R₁ + 2R₂). Target specific pulse widths by fixing R₁ (e.g., 10kΩ) and sweeping R₂. A 10μF capacitor with R₂ = 22kΩ yields ~45% D, while R₂ = 100kΩ pushes it to ~83%. Validate calculations with a 1MHz oscilloscope; deviations above 5% signal parasitic capacitance or component tolerance issues.
Replace standard electrolytic capacitors with polypropylene or NP0 ceramic types for frequencies exceeding 50kHz. Polypropylene reduces dielectric absorption, improving timing accuracy by up to 3% at 100kHz. NP0 ceramics maintain ±0.1% tolerance below 100kHz but drop sharply above that–switch to film if precise high-frequency control is critical.
Adjusting for Component Tolerances
Factor ±5% resistor tolerance into calculations: a 100kΩ nominal R₂ could range from 95kΩ to 105kΩ, skewing f by ±2.5%. Trim this error using matched resistors (±1% or better) or a 20-turn potentiometer in series with R₂. For 1% frequency stability, ensure all passive components share the same temperature coefficient–mismatches introduce thermal drift.
Capacitor leakage current distorts timing below 1Hz. Test for leakage by charging a candidate capacitor to 5V and monitoring voltage decay over 24 hours; acceptable capacitors lose
Optimizing for Load Conditions
Add a 1kΩ series resistor between the timer output and load to prevent loading effects. A 10mA load can pull output voltage down 0.7V, skewing timing by 8% at 1kHz. For higher currents, buffer the output with a MOSFET (e.g., IRLZ44N) or an emitter follower (2N2222). Verify duty cycle under load with a differential probe–ground loops can falsely indicate stable operation.
