Understanding Asthma Pathophysiology Through Visual Schematic Breakdown

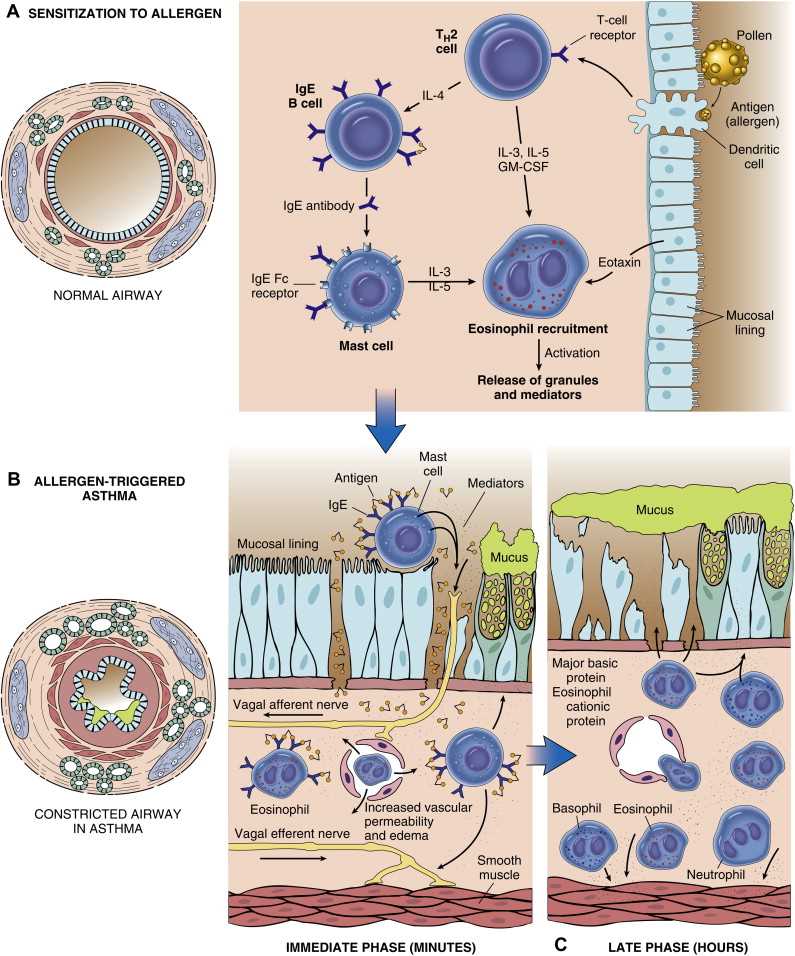

Begin with a layered cutaway illustration of bronchial tubes in cross-section. Highlight three concentric zones: the epithelial barrier, smooth muscle layer, and adjacent vasculature. Use color gradients (deep red for inflamed tissue, pale blue for edema) to show heightened reactivity during an exacerbation–this immediately clarifies how hyperresponsiveness manifests structurally.

Mark the mucus plugs in distal airways with greenish-blue shading; these obstruct airflow actively. Layer annotations beside them: goblet cell metaplasia (×3 normal density), IL-13-driven mucin overproduction, and eosinophilic debris. This combination pinpoints why spirometry shows FEV₁

Show mast cell degranulation in submucosa with yellow flare symbols. Indicate histamine release (pre-formed granules) within 5 minutes of allergen exposure, then leukotriene C4/D4/E4 synthesis via 5-LO pathway over 30–90 minutes. Link this sequence to wheeze onset timing in clinical logs.

Trace T-helper type 2 lymphocyte infiltration with violet arrows following dendritic cell antigen presentation. Locate CD4+ cells adjacent to bronchial smooth muscle; label IL-4/IL-13 co-localization–this pair drives both IgE class-switching and myofibroblast proliferation, thickening the airway wall by 20–50%.

Integrate pulmonary function correlates: superimpose flow-volume loops (blunted expiratory limb) and DLCO <70% (alveolar membrane thickening). Use dashed grey lines to show baseline vs. acute state comparisons–this anchors the illustration to real diagnostic metrics.

Visualizing Bronchial Hyperresponsiveness in Allergic Airway Disease

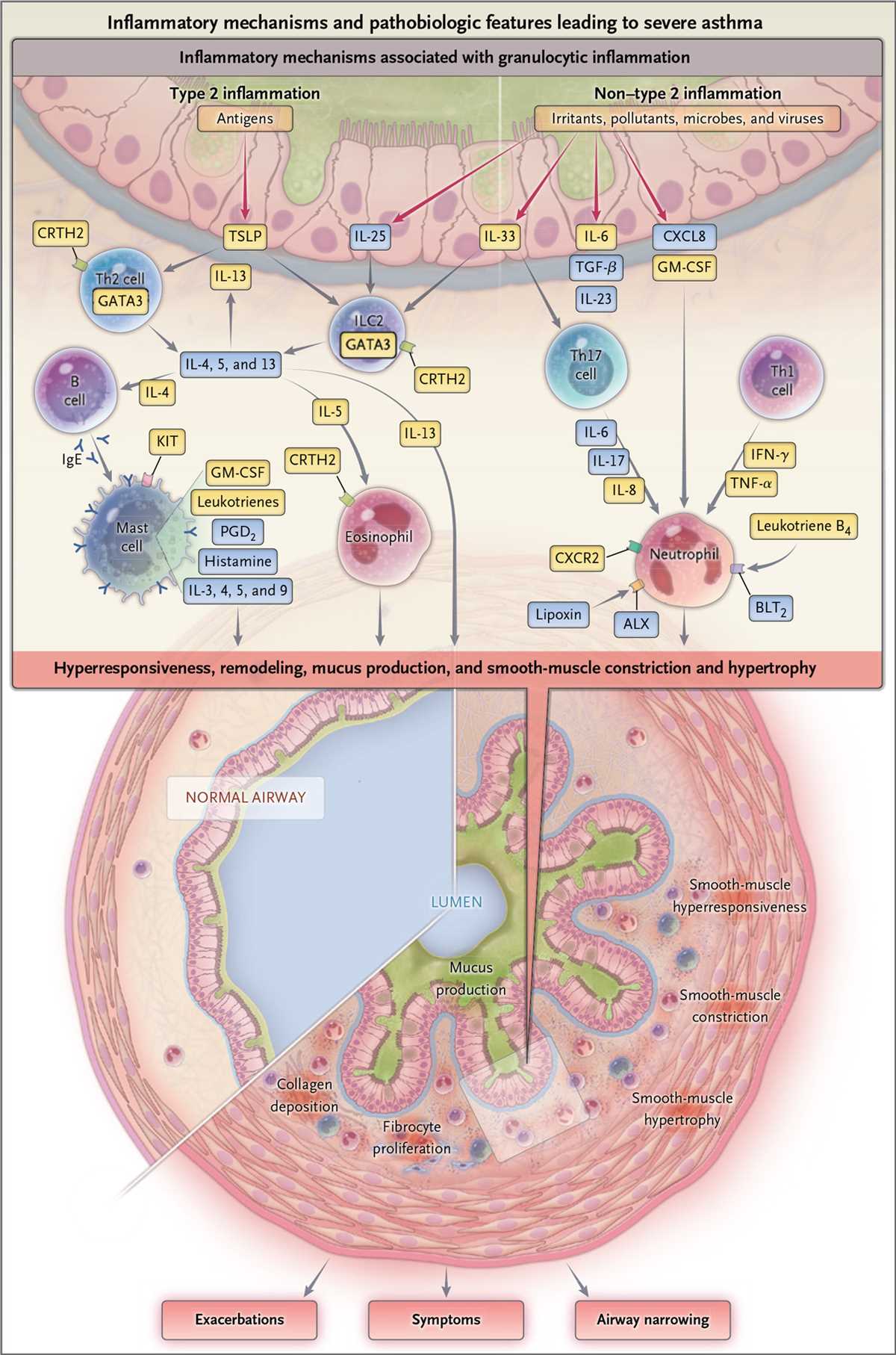

Begin with a layered depiction of bronchial inflammation: place IgE-mediated mast cell degranulation at the top of the flowchart, shaded in bright red (#FF5733) to signal immediate-phase reactions. Directly beneath, map eosinophil recruitment and Th2 cytokine release (IL-4, IL-5, IL-13) in gradient orange (#FF8C42) over 4-8 hours–label exact cytokine concentrations (IL-5 > 100 pg/ml in sputum) to underscore chronicity. Connect these nodes to subepithelial fibrosis and goblet cell metaplasia in dark amber (#CC7722), using dashed arrows to denote delayed remodeling occurring beyond 24 hours.

Incorporate a branching path for neural mechanisms: show C-fiber sensitization (TRPV1 receptor activation) and cholinergic hyperresponsiveness as parallel streams feeding into bronchoconstriction–quantify airway resistance (>8 cmH₂O/L/s during methacholine challenge) in a small oval adjacent to each stream. Use contrasting arrow weights: thick solid for dominant pathways (IgE-mast cell axis), thin dotted for modulatory influences (PGE₂ release from epithelial cells). Below, isolate structural changes–airway wall thickening (>30% increase in basement membrane depth) and smooth muscle hypertrophy (>150% cross-sectional area)–in a separate panel, color-coded in deep purple (#6A0DAD) to distinguish irreversible progression.

Add a dynamic time-slider at the bottom: overlay 0-6 hours in semi-transparent yellow (#FFFF99) for acute flare-ups, 6-48 hours in orange (#FF8C00) for late-phase responses, and >48 hours in dark gray (#555) for permanent alterations. Annotate each phase with key effector molecules (histamine, leukotrienes, TGF-β) and their peak serum levels (LTC₄ > 1.2 ng/ml within 30 minutes). Ensure every labeled node includes a therapeutic intervention point: omalizumab at IgE, mepolizumab at IL-5, tiotropium at M3 receptors–position these in green (#2E8B57) callout boxes with dosage ranges (e.g., “150 mg SC q4wk”).

Core Elements to Depict in a Respiratory Inflammation Visual Model

Begin with epithelial cell layers showing disruption in tight junctions and goblet cell hyperplasia–critical for illustrating mucus overproduction. Include magnified cross-sections of airway walls with annotated shifts in thickness, specifically the basement membrane thickening (≥7–9 μm) and smooth muscle hypertrophy.

Highlight inflammatory mediators such as IL-4, IL-5, IL-13, and eotaxin, using color-coded gradients to differentiate their concentration gradients along the bronchi. Add labels for T-helper 2 (Th2) lymphocytes and eosinophils (≥400 cells/μL in sputum), positioning them near submucosal glands to show recruitment pathways.

Incorporate bronchial vasculature with enlarged vessels (>150% normal diameter) to depict edema. Use dotted lines to trace plasma exudation paths into the lamina propria, and annotate vascular endothelial growth factor (VEGF) as the key driver.

Depict nerve endings with increased sensory and cholinergic fibers, noting upregulated transient receptor potential (TRP) channels (TRPV1, TRPA1). Show nerve terminals releasing neuropeptides (substance P, neurokinin A) adjacent to smooth muscle bundles to illustrate heightened bronchial hyperresponsiveness.

Outline fibroblast activation zones with extracellular matrix deposition–collagen types I/III ratios (normal ≤1:3, inflamed ≥1:1). Mark transforming growth factor-beta (TGF-β) as the central mediator, and add arrows indicating feedback loops with myofibroblasts.

Integrate airflow limitation markers: forced expiratory volume in 1 second (FEV₁ 20% diurnal change). Place these near airway resistance arrows (R_aw) to correlate structural changes with functional decline.

Add a side panel for remodeling triggers: allergen proteases (Der p1), viral RNA sensors (TLR3/7), and particulate matter (

Step-by-Step Process for Mapping Airway Inflammation in Obstructive Pulmonary Disease

Begin by identifying key biomarkers linked to eosinophilic or neutrophilic dominance in lung tissue using induced sputum analysis. Collect samples within 24 hours of symptom exacerbation to capture acute inflammatory mediators–interleukins (IL-4, IL-5, IL-13), eosinophil cationic protein (ECP), and myeloperoxidase (MPO). Use flow cytometry to quantify CD4+ Th2 cells and CD8+ neutrophils, ensuring a minimum of 500 viable cells per analysis to avoid sampling bias.

Precision Sampling Techniques

Isolate airway lining fluid via bronchoalveolar lavage (BAL) in three sequential 50 mL saline washes, followed by immediate centrifugation at 4°C to prevent cytokine degradation. Prioritize segments with confirmed obstruction on high-resolution computed tomography (HRCT)–bronchiectasis or mucus plugging often correlate with elevated IL-8 and TNF-α levels. For patients intolerant to invasive procedures, substitute with fractional exhaled nitric oxide (FeNO) testing: values ≥50 ppb indicate eosinophilic inflammation;

Map topological inflammation patterns using endobronchial ultrasound (EBUS) to biopsy submucosal nodules or thickened airway walls. Target regions with:

• Wall thickness >1.5 mm on HRCT (measured during full expiration)
• Vascular endothelial growth factor (VEGF) expression via Doppler imaging
• Reduced forced oscillation technique (FOT) reactance at 5 Hz (X5 ≤ -0.15 kPa/L/s)

These zones frequently exhibit upregulated mast cell tryptase and Chymase, even in clinically stable patients.

Integrating Multi-Omics Data

Combine proteomic profiles from BAL with transcriptomic analyses of bronchial brushings. Focus on:

1. Epithelial barrier dysfunction: Claudin-18 downregulation and zona occludens-1 phosphorylation
2. Extracellular matrix remodeling: Matrix metalloproteinase-9 (MMP-9) and tissue inhibitor of metalloproteinase-1 (TIMP-1) ratios >2.0
3. Oxidative stress: 8-Isoprostane levels >50 pg/mL in exhaled breath condensate

Overlay these findings with microbiome sequencing (16S rRNA) to identify Haemophilus or Moraxella dominance linked to Type 17 inflammation.

Validate spatial inflammation gradients using multiplex immunofluorescence staining of endobronchial biopsies. Apply the following panel:

• CD68 (macrophages) + CD206 (M2 polarization)
• CD3 (T-cells) + GATA3 (Th2)
• Neutrophil elastase + Citrullinated histone H3 (NETosis)

Compare proximal vs. distal airway segment staining intensity–proximal regions often show 2.5× higher CD4+ infiltration, while distal alveoli favor CD8+ recruitment in corticosteroid-refractory cases.

Translate findings into a quantitative inflammation scoring system (0–10 scale) using machine learning on 3D airway reconstruction models. Key parameters include:

• Wall area percentage (WAP) >60% on CT
• FeNO ≥80 ppb + blood eosinophils ≥300 cells/μL
• BAL eosinophils >3% or neutrophils >65%

Scores ≥7 correlate with poor responses to inhaled corticosteroids (ICS/LABA), necessitating targeted biologics like dupilumab (IL-4Rα) or benralizumab (IL-5R) based on dominant cell type.

How to Visually Represent Bronchoconstriction and Mucus Hypersecretion

Begin with a layered cross-section of airways using contrasting colors for healthy and narrowed passages. Use translucent red to depict smooth muscle contraction, applying thicker lines along the bronchial walls to emphasize constriction. Overlay this with a semi-transparent blue gradient to illustrate edema, ensuring it tapers toward the lumen to show progressive narrowing. For mucus, employ a viscous, irregular yellow-green shape clinging to the airway walls, extending into the lumen with ragged edges to convey obstruction.

Incorporate directional arrows to demonstrate airflow resistance. Position black arrows of equal length on the outside of the airway, then drastically shorten them as they approach the narrowed lumen, changing to dashed lines where airflow is blocked. Add turbulence markers–small, curved arrows or zigzag lines–near mucus plugs to indicate disrupted airflow dynamics. Use a bold exclamation mark adjacent to critical blockages to draw attention to severe obstructions.

Highlight cellular changes with microscopic insert diagrams alongside the main airway illustration. Show enlarged goblet cells in a bright green, bulging into the lumen, alongside hyperplastic smooth muscle cells in deep red. Annotate with labels like “↑ Goblet Cell Proliferation” and “×3 Smooth Muscle Mass” to quantify pathological changes. For inflammatory cell infiltration, scatter small purple and orange dots along the submucosa, with a legend specifying eosinophils and neutrophils.

Use comparative scales for clarity. Place a healthy airway segment next to the obstructed one, labeling lumen diameters (e.g., “2.5 mm → 0.8 mm”). Apply a color-coded severity gradient–light orange for mild, deep orange for moderate, and dark red for severe obstruction–along the bottom of the visual. Include a small icon of a stethoscope next to the most obstructed areas to link anatomy to clinical findings like wheezing.

Maintain anatomical accuracy by referencing CT scans or bronchial biopsies for textures. Apply a stippled effect on the epithelial layer to suggest fragility and erosion, while using solid fills for intact muscle. For mucus, vary opacity to suggest layers: opaque at the core for thick secretions, fading toward the edges to imply thinner, more mobile mucus. Avoid schematic oversimplification by including minor details like cilia displacement beneath mucus plaques, depicted as faint, interrupted lines.
