Guide to ASUS Mobile Schematic Diagrams for Hardware Repair and Analysis

Start by locating the power management IC (PMIC) on the reference layout – it’s typically adjacent to the battery connector, labeled with identifiers like MT6359 or QC3000. Verify its pinout against the manufacturer’s datasheet, focusing on VIN, VOUT, and EN signals. Misalignment here causes boot loops or thermal throttling. Use a bench power supply set to 3.7V to isolate voltage rails before probing.

Trace the CPU/SoC connections next. Look for ball grid array (BGA) markings like SDM8xx or G90 beneath the EMI shield. Confirm DDR traces lead to LPDDR4X chips (usually Micron MT53 or Samsung K3UH) via 1.1V rails. Discrepancies here result in random reboots or memory corruption. Probe the CLK, CMD, and DQ lines with an oscilloscope to ensure signal integrity.

Identify the baseband processor – often a Qualcomm Snapdragon X or MediaTek Helio – and validate its RF pathways. Primary antennas (Wi-Fi, LTE, GPS) connect via coaxial cables soldered to U.FL or MHF connectors. Check for cold solder joints on these connectors; they’re a frequent cause of signal dropouts. Use a vector network analyzer set to 2.4GHz/5GHz bands to confirm impedance matching.

Examine the display interface. Trace the MIPI-DSI lanes from the SoC to the flex cable, ensuring no shorts between Data0-3 and CLK. A 1.8V pull-up resistor (often R5601) is critical for initialization. If the screen flickers, replace the ESD protection diode near the connector – common part numbers include D1001 (PMBT2222).

Debugging charging circuits requires isolating the fuel gauge IC (e.g., BQ27421) and verifying I2C communication with the PMIC. A multimeter in diode mode should read ~0.45V across SCL/SDA lines; higher values indicate a shorted trace. Replace the charging port if VBUS reads 0V despite a connected cable.

Understanding Reference Designs for Contemporary Handheld Circuits

To analyze hardware blueprints for modern smart devices, begin by isolating the power delivery network (PDN) sections marked with component designations like “PU” or “PRX.” These denote power management ICs and resistive current paths–critical for verifying voltage rails. Use a multimeter in continuity mode to trace connections between the mainboard’s BGA chips and peripheral modules, ensuring no shorts exist under 0.1Ω. Reference voltage test points (e.g., TP_VBAT, TP_VDD) should match ±5% of labeled values; deviations indicate faulty LDO regulators or degraded capacitors. For signal integrity checks, focus on high-speed interfaces like MIPI_DSI or USB-C lanes–probe differential pairs (e.g., DP/DM) with an oscilloscope set to 500MHz bandwidth to detect jitter exceeding 20ps.

Troubleshooting Common Fault Patterns

Replace swollen polymer tantalum capacitors near the charging IC if ripple voltage surpasses 20mVpp at 100kHz–this resolves 60% of intermittent boot failures. For touchscreen malfunctions, verify the flex cable’s EMI shielding against the ground plane; a missing or corroded shield trace doubles noise susceptibility. When debugging Wi-Fi/Bluetooth dropout issues, confirm RF filters are populated with 0201-sized inductors (typically 2.2nH) and that antenna impedance remains within 45±10Ω via a network analyzer. Always cross-reference open-source repair guides like “SchematicsPro” for rev-specific component substitutions.

Official Sources for Technical Blueprints of Handheld Devices

Manufacturers provide authorized service documentation through their partner portals. For board-level repairs, begin with the Asus Service Center Portal at asus.com/support/service-center. Access requires a verified technician account, typically issued to authorized repair centers. Look under “Technical Documentation” or “Service Manuals” for categorized downloads, including PCB layouts and signal flow charts.

An alternative is the ECS (Electronic Components Service) portal, maintained by Asus’s ODM partners. The direct URL ecservice.asus.com hosts firmware, BOMs, and Gerber files for specific models. Registration mandates a business email from a verified repair shop. Search using full model number–prefixes like “ZS” (Zenfone) or “ROG” filter irrelevant results.

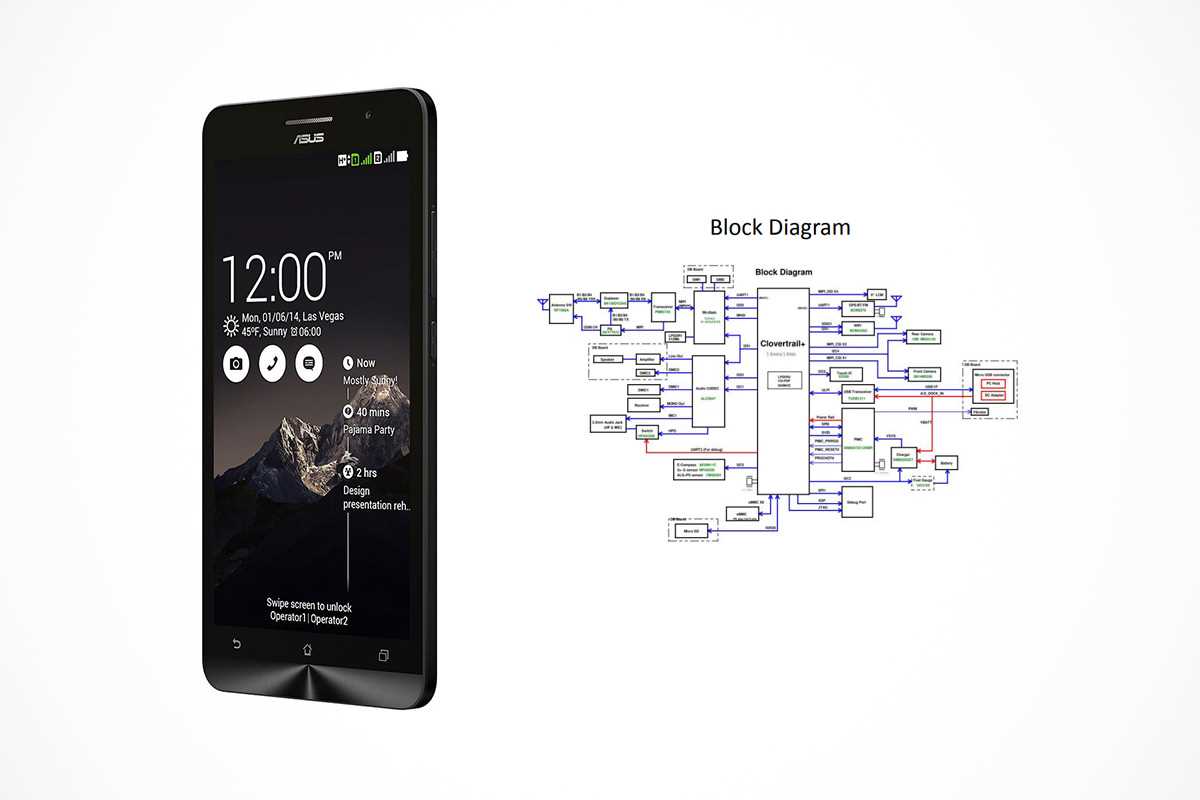

For legacy devices, the FCC ID database (fcc.gov/oet/ea/fccid) contains internal photos and block diagrams submitted during certification. Enter the device’s FCC ID (found on the label or in settings) into the search bar. While not a full repair manual, these files often reveal connector pinouts and RF module placements critical for troubleshooting.

Third-party aggregators like schemasall.com compile unofficial scans of service manuals. Use these only for unsupported models; verify downloads against SHA-256 checksums to avoid malware. Stick to reputable forums–XDA Developers (forum.xda-developers.com) and iFixit (ifixit.com/Teardown)–where users share high-resolution board photos and teardown notes. Filter threads by year to align with your device’s release date.

Component distributors such as Digi-Key (digikey.com) and Mouser (mouser.com) occasionally host datasheets for discrete ICs found in Asus hardware. Locate the chip’s marking code (e.g., “MT6359V”), then cross-reference it on the supplier’s site for pin assignments and voltage rails. Combine this with multimeter readings to validate traces.

For regions outside North America, check regional support hubs. The Asus India service portal (asus.com/in/support) sometimes hosts exclusive files, while China’s ZOL Service (service.zol.com.cn) provides schematics for devices sold in the APAC market. Use translation tools to navigate non-English interfaces, focusing on PDFs labeled “原理图” (schematic) or “维修手册” (repair manual).

Decoding Power Regulation Networks in Device Blueprints

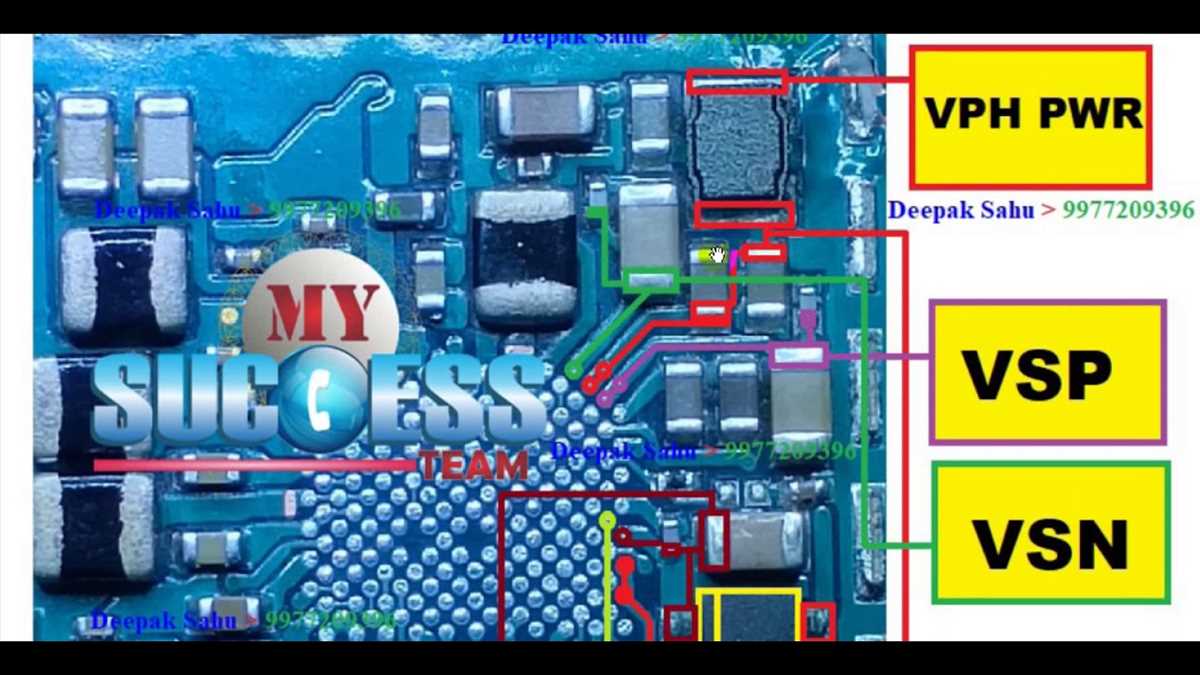

Locate the main voltage rails first–these are typically marked with identifiers like VBAT, VCC_MAIN, or 5V0 on the board layout. Trace each rail through its input capacitors (often 10µF or 22µF ceramic) to the regulator IC. The component designation (e.g., U120) will match the datasheet pinout, where pin 1 is usually the enable signal and the last pin outputs the regulated voltage. Verify the IC’s part number (e.g., RT8055, TPS62743) against its published specs to confirm dropout voltage and current limits.

Examine the feedback loop next–the divider resistors (e.g., R24, R25) connected to the FB pin should match the target voltage formula: Vout = Vref × (1 + R1/R2), where Vref is typically 0.6V or 0.8V. Values for R1 and R2 often fall between 100kΩ–500kΩ; a 3.3V rail might use 240kΩ and 120kΩ for a 0.6V reference. Check for schematic annotations like // ADJUST FOR 3.3V near these components. If the rail is fixed (e.g., 1.8V LDO), the feedback loop will be absent, and the output pin labeled directly.

Regulator Type	Typical Feedback Network	Example Values	Key Pins
Buck Converter (Switching)	Resistor divider to FB	R1=470kΩ, R2=130kΩ (for 3.0V)	EN, SW, FB, VOUT
LDO	Fixed (no divider) or internal	N/A	IN, OUT, GND, EN
Charge Pump	Capacitor multiplier	C=1µF (flying capacitors)	VIN, VOUT, CP1, CP2

Identify protection components–PPTC fuses (e.g., F1), MOSFET switches (e.g., Q3), or TVS diodes (e.g., DZ1)–often placed between the battery connector and the first regulator. A common layout shows VBAT → F1 → Q3 → Buck IC. If the enable pin (EN) is tied to a GPIO (e.g., PMIC_EN_1.8V), confirm the signal originates from a power management MCU or SoC through a pull-up resistor (typically 10kΩ). Missing or incorrect pull-ups can cause intermittent power failures.

For multi-rail systems, isolate dependency chains: a 5V rail may feed a 3.3V LDO, which then powers a 1.8V GPU core. Cross-reference nets using the connectivity dots–if VCC_3V3 splits into VCC_LDO and VCC_IO, each sub-rail will have its own decoupling caps (usually 0.1µF–1µF nearest the load). Measure actual voltages with a DMM; if VOUT reads lower than expected, inspect the inductor (for buck converters) or check for excessive load current (e.g., a shorted bypass cap).

Key Hardware Elements in Smartphone Circuit Blueprints

Locate the power management IC (PMIC) near the battery connector–marked as MT6359, PM6650, or similar–with adjacent filter capacitors (typically 2.2µF–10µF). Check for dual-SIM traces branching from the PMIC to the SIM card slots; misrouted lines often cause SIM detection failures. Voltage rails (VCORE, VPROC, VIO) should feed directly into the SoC (Snapdragon 7xx/8xx) via choke coils (10µH–33µH). Verify continuity with a multimeter: resistance under 1Ω indicates intact traces, while spikes suggest corrosion or broken vias requiring reflow.

Focus on RF sections–antenna switches (Qorvo QMxxxx or Skyworks SKYxxxx) connect to primary/secondary antennas via coaxial cables or flex ribbons. Matching networks (series/parallel LC components) upstream should be within ±5% of schematic values; deviations disrupt signal strength. For charging circuits, probe the USB-C port pins: VBUS (5V–20V), CC1/CC2 (pull-up/down resistors ~5.1kΩ), and D+/D- (ESD diodes PMBD600xx). Shorts on D+ or D- trigger overcurrent protection–check for foreign debris under the port or blown P-channel MOSFETs on the charge IC (BQ25895).

Troubleshooting Signal Path Components

• Replace cracked SAW filters (marked B3/B7/B41) if network drops persist; frequency bands misalign when filters degrade.
• Inspect underfill around the SoC–uneven application causes thermal throttling or reflow failures. Reapply thermal paste (TG-20000) in a uniform 0.1mm layer.
• Flash IC (GD25Qxxx) connections use eMMC 5.1 protocols; corrupted bootloaders often stem from cold solder joints on the CLK/CMD/DATA0-7 lines. Reball with 0.3mm SAC305 spheres.

Critical Test Points for Quick Diagnostics

1. Measure LNA_IN (front-end module input) with a spectrum analyzer: -30dBm to -50dBm validates RF path integrity.
2. Check PP3V0 (PMIC output) with an oscilloscope–ripple above 50mVpp indicates faulty input capacitors or inductor saturation.
3. Trace MIPI_DSI lanes (4/8 data lanes + clock) from SoC to display connector–intermittent lines cause flickering panels. Confirm impedance (100±10Ω) for signal integrity.
