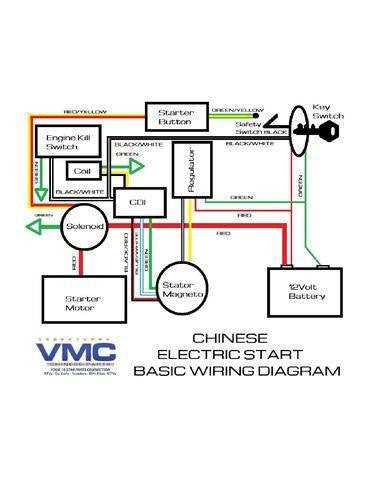

Complete ATV 110cc Electrical System Wiring Schematic Guide

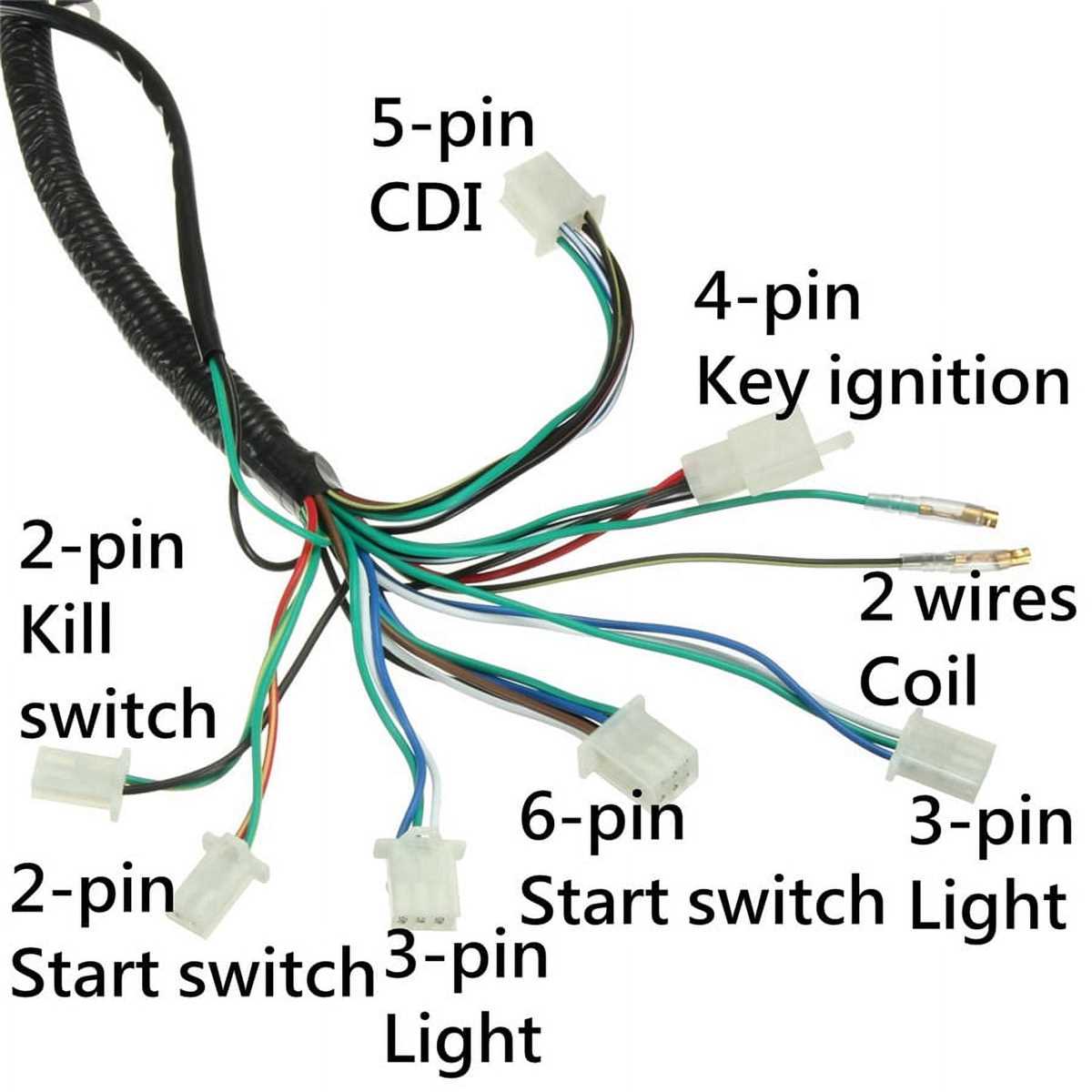

Identify the main harness connectors first–locate the 6-pin white plug near the battery tray and the 4-pin rectangular connector adjacent to the ignition coil. These two junctions control all power distribution and signal routing for the engine management, lighting, and charging circuits. Trace the red wire from the battery positive terminal to the fuse block; this feeds the entire system. A 10A fuse at this point protects against overcurrent conditions.
Connect the kill switch directly to the CDI unit using the black wire with a yellow stripe–this is the ground reference for the ignition system. Failure to secure this connection results in intermittent spark loss. The CDI receives a trigger pulse from the stator’s white wire, which carries a 50V AC signal at 5,000 RPM. Verify this voltage with a multimeter before proceeding; readings below 45V indicate stator wear.
Route the headlight circuit through the 3-pin gray connector. The high-beam filament draws 55W at 12V, while the low-beam operates at 35W. Ensure the brown wire (ground) is tightly secured to the frame–loose grounds cause flickering. The taillight/brake light shares a common ground via a single blue wire; polarity is marked on the bulb socket. Swap bulbs if dimming occurs at idle.
Examine the charging circuit next. The stator’s yellow wire outputs 14V DC at 3,000 RPM under load. Connect this to the rectifier’s input side–reverse polarity will destroy the diode bridge. The output (red wire) feeds the battery; measure voltage here to confirm charging. Readings below 13.2V suggest rectifier failure. Replace the entire unit if diodes test shorted.
For the electric start system, observe the solenoid’s two large terminals–connect the battery cable to the terminal closest to the mounting bracket. The smaller terminal receives a 12V trigger from the starter button. If engagement is sluggish, check the solenoid’s internal contact resistance with an ohmmeter; values above 0.5Ω indicate internal degradation. Lubricate the bendix gear annually to prevent seizing.
Practical Steps for Quad Bike Electrical System Troubleshooting
Start by disconnecting the battery terminals to prevent accidental shorts–this isolates the system for safer inspection. Use a multimeter set to 20V DC to test each wire connection against the vehicle’s schematic; probe the ignition switch output (typically 12V) at the kill switch when turned on. If voltage is absent, check the ignition coil and stator output, which should read between 100–150V AC at high revs.
Common failure points include corroded ground points and loose connectors–clean terminals with a wire brush and apply dielectric grease to prevent oxidation. The CDI box often fails silently; swap it with a known-good unit if spark is inconsistent. For lighting circuits, verify the flasher relay clicks audibly; if not, bypass it temporarily with a jumper wire to test bulb functionality.
Key Measurements Reference
| Component | Expected Reading | Probe Points |
|---|---|---|
| Stator (AC) | 50–150V AC | Yellow wires at plug |
| Regulator (DC) | 13.8–14.5V DC | Red battery wire |
| Ignition Coil | 5–12kΩ (primary), 10–25kΩ (secondary) | Coil terminals |
When reassembling, route wires away from moving parts and hot surfaces; secure them with zip ties every 4–6 inches. Label each connector with masking tape before disconnecting to avoid mixing up small pins–especially critical for the CDI and stator plugs. If headlights dim at idle but brighten under throttle, the stator is weak; replace it if output drops below 40V AC.
For persistent issues, create a simplified test circuit using a 12V battery and jumper wires to isolate faulty components: attach the positive lead directly to the ignition coil’s trigger wire while grounding the coil’s negative–spark at the plug confirms coil/ignition health. Always test with the engine grounded to the frame to rule out poor chassis connections.
Locating Critical Elements in Off-Road Vehicle Electrical Bundles
Begin by isolating the ignition switch connector–typically a four-to-six terminal plug housing red (power), black (ground), and igniter signal lines. Verify continuity between the switch and the engine control module using a multimeter set to ohms; resistance above 0.5Ω indicates corrosion or loose crimps requiring retermination.
Trace the lighting circuit starting at the headlight bulb socket. The compatible harness includes three wires: high-beam (white or yellow stripe), low-beam (plain yellow), and common ground (black or green). Absence of voltage on high/low terminals during activation suggests a faulty relay or blown fuse located inside the main fuse block beneath the dashboard panel.
Examine the charging system by identifying the stator leads–three thick wires emerging from the engine casing, often color-coded yellow or white. Measure AC voltage across any two pairs while cranking; readings below 12VAC at 2000 RPM signal stator failure or rectifier burnout. Replace the rectifier if DC output remains below 13.5V at idle.
Check the kill switch circuit connected to the handlebar-mounted button. A normally-open configuration should show infinite resistance when unpressed and near-zero resistance when engaged. If readings deviate, clean the switch contacts with electrical cleaner or replace the switch assembly.
Inspect the starter solenoid wires–thick red (battery positive) and thinner purple or brown (starter signal from ignition). Ensure the solenoid engages audibly when the starter button is pressed; absence of click indicates solenoid failure or voltage drop across connections. Secure battery terminals with dielectric grease to prevent oxidation.
Validate the throttle position sensor connectivity by locating its three-wire harness: 5V reference (usually orange), signal return (green or blue), and ground (black). Probe the signal wire with a voltmeter at closed throttle (0.8–1.2V) and wide-open (4.5–4.8V); readings outside tolerance require sensor adjustment or replacement.
Confirm ground paths by testing continuity from engine mounts and frame bolts to the negative battery terminal. Corroded or paint-coated bolts introduce resistance; remove coatings and apply star washers for reliable contact. Replace any frayed ground straps connecting discrete components to the frame.
Step-by-Step Color Coding for Off-Road Vehicle Electrical Hookups
Begin by isolating the ignition system wires. The primary ignition lead is typically red–connect it directly to the positive terminal of the battery or ignition switch. A black wire with a yellow stripe usually grounds the ignition coil; secure this to the chassis or engine block using a 10mm bolt for optimal conductivity. Verify continuity with a multimeter before finalizing.
Next, handle the lighting circuit. Headlights often use a yellow wire for the low beam and a white wire for high beams–both require a fused connection to the main power source. For turn signals, locate the green (left) and brown (right) wires; connect these to the flasher relay output, ensuring the relay’s input wire (dark blue) ties back to the ignition switch.
- Brake lights: The light blue wire activates when the brake lever is engaged–pair it with a black ground wire.
- Taillight: A gray wire powers the running light; merge it with the brake light circuit via a diode to prevent feedback.
For the charging system, trace the yellow stator wire to the regulator-rectifier. The orange and white stator wires should route to alternating current inputs. Confirm rectifier output by checking for 13.5–14.5V DC across the battery terminals at 3000 RPM. If voltage drops below 13V, inspect stator resistance (
Test all connections under load. Activate each circuit individually while monitoring for voltage drops or flickering lights. If a wire overheats, upsize to 14-gauge silicone-coated cable. For the CDI unit, ensure the white/red trigger wire aligns with the pulse generator (
Secure all harnesses with nylon zip ties every 6 inches, avoiding sharp edges or moving parts. Coat terminal connections with dielectric grease to prevent corrosion. Label each wire with heat-shrink tubing for future troubleshooting, noting any deviations from standard color codes–aftermarket components may use pink or purple for custom functions.
Diagnosing Electrical Problems in Small Off-Road Vehicles
Check the ignition switch connections first–corrosion here mimics dead battery symptoms. Use a multimeter set to continuity mode; probe the terminals with the switch turned on. If resistance exceeds 0.5 ohms, clean contacts with 600-grit sandpaper or replace the switch if pitting is visible.
Inspect the CDI unit’s ground wire. A loose or oxidized ground causes random misfires or stalling. Secure the wire to a bare metal frame point using a star washer and M6 bolt torqued to 12 Nm. Apply dielectric grease to prevent future oxidation.
When lights flicker or dim at idle, focus on the stator’s yellow output wires. Measure AC voltage between each pair at 5,000 RPM; readings should match within 0.3V. If one leg reads lower, replace the stator–the internal windings degrade unevenly under vibration.
Faulty kill switch behavior often traces to melted internal contacts. Remove the switch housing and check for melted plastic near the microswitch. If present, solder a new 3A microswitch rated for 125°C. Bypass the switch temporarily with a jumper wire to confirm the fix before reassembly.
Voltage Drop Testing Under Load
Load-test the main harness at the fuse block. With all accessories on, voltage at the battery terminals should stay above 11.5V. If it drops below, use a thermal camera to locate hotspots–chafed wires or loose crimps create resistance. Repair by soldering and heat-shrinking the affected section with adhesive-lined tubing.
Examine the rectifier-regulator’s heat sink. Burnt silicone smell or discolored fins indicate overheating. Test diode conductivity in both directions using a digital multimeter’s diode setting–forward bias should read 0.5-0.7V, reverse bias open. Replace the unit if readings are outside tolerance.
Intermittent cranking issues often stem from a failing solenoid. Tap the solenoid lightly while engaging the starter–if the engine cranks, replace the solenoid. If not, measure voltage at the small trigger terminal during key-on; less than 9V suggests a bad ignition relay or corroded harness connector.
For parasitic battery drain, disconnect the negative terminal and place a multimeter in series. Current draw should not exceed 50mA. If higher, isolate circuits by pulling fuses one by one–accessory circuits (radios, alarms) are common culprits. Once found, trace the circuit with a tone generator to locate the short.
