Detailed Audi A4 Wiring Schematic Layout and Component Guide

Start by securing factory wiring charts for the 2017–2023 2.0T quattro model directly from the manufacturer’s repair portal. These sheets break down power, ground, CAN bus, and sensor circuits across 17 individual modules, including the J285 instrument cluster, J533 data gateway, and J623 engine ECU. Each module is color-coded: red for fused ignition feed, brown for chassis ground, green for CAN-High, and yellow for CAN-Low. Print or load the PDF onto a tablet with at least 10-inch screen to avoid constant zooming.

Pin assignments matter. In the J533 gateway diagram, pin 30 carries permanent 12 V from the battery, while pins 15 and 75 switch with the ignition. Misreading this sequence will trigger false fault codes U1123 and B200A. Always cross-reference the pinout with a multimeter set to DC voltage; expected values are 11.8–12.6 V on pin 30 and 0 V on all others with the key off.

Use the left-side index on each diagram page: page 1–8 covers front lighting, 9–15 the engine bay, and 16–24 the infotainment harness. The B9 variant simplifies harness routing by integrating LIN sub-buses into CAN chains–look for “LIN” labels in grey boxes. These require 1 kOhm termination resistors at both ends; bypassing the resistor test will prevent the rearview camera and rain-light sensor from initializing.

For aftermarket upgrades, isolate circuits with relays KOEO (Key On Engine Off). Measure voltage drop across splices: a 0.3 V drop on a 12 V line indicates corrosion; replace the splice crimp at the T17 connector beneath the passenger kick panel. Third-party diagnostic software compatible with this generation includes ODIS 11.3.0 and VCDS 23.3+; both read live data but ODIS also flashes firmware. Flash files occupy 60–90 MB; ensure battery voltage stays above 12.2 V throughout the process.

Understanding the Wiring Blueprint for the B9 Platform

Start by locating the central electrical distribution box in the driver’s footwell–X83 beneath the dashboard cover. This hub connects to 32 fuse modules, with F5 through F12 dedicated to powertrain control (PCM) and F28-F31 reserved for infotainment (MMI). Disconnect the battery before probing terminals to avoid short circuits: negative lead first, then positive. Verify voltage drops across wire gauges; 0.5V or less confirms integrity. For BNS (Body Network System) diagnostics, use a pinout adapter (VAS 6150B) on the T32a connector–pins 5 (CAN-H) and 8 (CAN-L) must show 2.5V nominal resistance.

Trace the engine bay harness from the J623 control unit to the N247 fuel quantity adjustment sensor. The purple/yellow stripe (T30 purple) delivers 5V reference voltage, while the brown/red stripe (T30 brown) carries ground. Corrosion on these leads–common near the coolant expansion tank–causes fuel level inaccuracies. Clean terminals with DeoxIT D5 and apply dielectric grease. Replace any wire showing frayed insulation within 10cm of junction points; the B9’s aluminum shielding degrades faster than copper counterparts.

For climate control circuits (J255), focus on the T16 connector behind the glovebox. Key wires include:

• Pin 14: 12V via F43 (constant feed to blower motor)
• Pin 6: PWM signal from J255 to N79 compressor clutch
• Pin 9: Ground path for ambient temperature sensor

Use a multimeter set to diode mode to check for shorts between adjacent pins–readings below 0.3V indicate internal failure. The J255 unit itself fails if the cabin air filter hasn’t been replaced within 30,000 miles; debris clogs the internal pressure sensors.

Diagnosing the 8-speed ZF transmission (0BZ) requires monitoring the TCM (J217) at connector T32, pins 1-4. The TSG (torque converter clutch) solenoid (N91) receives 12V pulsed signals via pin 27 (red/white stripe). Voltage should spike from 2V to 9V during engagement. If erratic, inspect the transmission fluid pan ground strap–oxidation here mimics solenoid failure. For shift solenoids N88-N94, use a scan tool to log PID 0x3003 live data; values above 800mA indicate stuck valves.

Lighting systems demand attention to the BCM (J519). The LED headlight modules (L1/L2) require 0.5A draw per side; exceeding 1.2A signals internal driver IC failure (replace entire unit–no component-level repairs). For rear taillights, check the T10 connector at the hatch: pins 2 and 5 carry 12V switched, while pin 8 (yellow/green) delivers CAN signals. Moisture ingress here triggers false “bulb out” warnings–seal the connector with 3M 4200 marine adhesive. Always cross-reference wire colors with the ETKA dataset (e.g., V.A.G number 4H0 971 065) before splicing repairs.

Locating Core Electrical Blueprints for B6, B7, B8, and B9 Platforms

For B6 (2001–2005) and B7 (2004–2008) models, the primary wiring charts reside in ErWin under the “Wiring” subfolder within the model-specific section. Filter by the “8E” (B6) or “8EC” (B7) chassis codes to narrow results. Offline alternatives include the ELSA Win disc suite–look for the “Electrical System” tab where diagrams are grouped by system (e.g., powertrain, lighting, HVAC). Physical manuals like Haynes Workshop or Bentley Publishers often include condensed versions, though they omit fuse box pinouts and connector layouts found in OEM documentation.

B8 (2008–2016) and B9 (2016–2023) generations transition to digital-first formats. Start with VAG’s official repair portal (service.audiusa.com for U.S. markets, erwin.vw.com for EU), requiring a subscription. Select the “Schematics” or “Current Flow Diagrams” link–these files are labeled with component IDs (e.g., “SB18” for the central convenience module). For B9, note the shift to Ethernet-based networks (e.g., Audi Connect wiring), which splits into separate “Infotainment” and “Vehicle Electrical” charts.

• B6/B7: Prioritize ErWin’s “Wiring Harness Repair” PDFs–these include assembly illustrations missing from ELSA. Critical connectors (e.g., T32 at the dash panel) appear only in OEM sources.
• B8/B9: Use VCDS autoscan exports to cross-reference control modules with diagram numbers (e.g., “1J0 907 530” corresponds to the instrument cluster wiring). Free alternatives like Ross-Tech Wiki host partial schematics, but lack CAN bus pin assignments.
• Version control: Diagrams for 2012+ B8 and B9 facelifts (2019 onward) often split into “pre-FL” and “FL” revisions–match the production date to avoid misrouting.

Locating Critical Elements in the A4 Wiring Blueprint

Begin with the fuse panel–typically positioned under the dashboard on the driver’s side or inside the engine bay. Reference the legend on the panel cover to match numbered slots with their corresponding circuits. Memorize symbols for relays, fuses, and bus connectors: relays appear as rectangles with internal coils, fuses as narrow rectangles with a zigzag line, and bus connectors as thick horizontal lines linking multiple modules. Trace power distribution from the battery positive terminal (marked “30”) through main cables to junction boxes, then to individual consumer lines.

Focus on ground points next. These clusters–often near the battery tray, firewall, or rear suspension–are marked with “G” followed by a dash and number (e.g., G-103). Corrosion here disrupts signal integrity; clean mating surfaces with a wire brush and apply dielectric grease. Verify continuity with a multimeter across suspected grounds and the negative battery post. Common failure zones include the trunk module ground (G-403) and the engine control unit reference (G-201).

Scan for CAN bus junctions–identified by twisted-pair wiring in green/orange or yellow/red insulation–terminating at circular connectors with silver-plated pins. The main gateway module (address 19) and instrument cluster (address 17) serve as primary nodes. Measure voltage between CAN-High (2.5–3.5V) and CAN-Low (1.5–2.5V) with the ignition on. Deviations outside these ranges indicate damaged transceivers or shorted terminators.

Isolate sensor circuits by following color-coded feeds: engine sensors use black/gray wires, ABS sensors use blue/red, and interior components use brown/yellow. Use a wiring index manual to cross-reference pin assignments on ECM, BCM, and TPM connectors. Probe connector pins with a back-probe tool while monitoring live data on a scan tool to confirm signal integrity without damaging terminals.

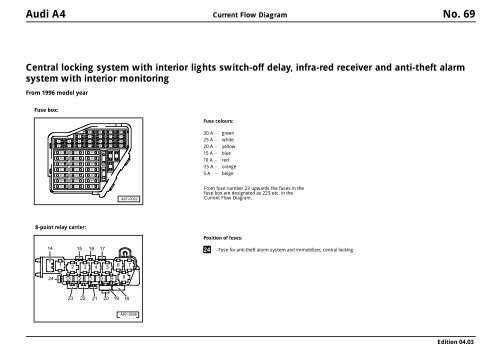

Interpreting Electrical Layouts for A4 Fuse Panels and Relay Pathways

Locate the vehicle’s primary power distribution module under the dashboard or hood–usually marked by a white or gray lid. Use the fuse chart printed inside the cover as a baseline, but cross-reference it with a factory wiring manual for hidden deviations in model years 2009-2016, where circuits for the rain sensor, central locking actuators, and horn often share a 10A fuse despite separate listings. Check for corrosion at relay socket terminals 30 and 87; a thin layer of dielectric grease applied post-cleaning prevents voltage drop in high-current paths like the cooling fan and fuel pump.

Trace relay coil activation through the ignition switch or comfort module using a multimeter set to continuity mode. For example, the rear window defogger relay (position 8 in most post-2012 variants) relies on a signal from the instrument cluster–verify this by probing pin 86 while engaging the defogger switch; a missing 12V pulse indicates a broken wire or failed cluster output. Similarly, the X-contact relay feeding the radio and interior lights may stall if pin 85 loses ground due to a corroded chassis connection near the battery tray.

Prioritize fuse ratings and relay coil resistance when troubleshooting intermittent faults. Replace blade-type fuses only with matching amperage–never bypass a 15A fuse with a 20A one in circuits like the ABS module or headlight washers, as excess current risks melting insulation on wiring harnesses near the firewall grommet. Measure relay coil resistance between pins 85 and 86; values below 50 ohms or above 120 ohms suggest internal failure, while silent operation at ignition-on confirms a dead coil or missing trigger signal from the gateway module.
