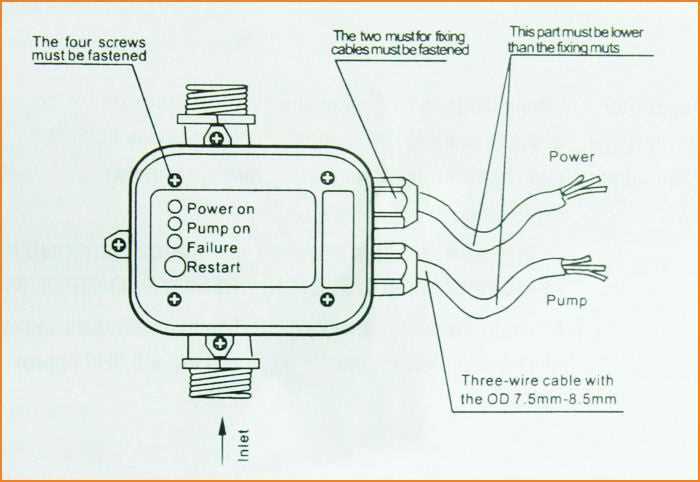

DIY Water Pump Auto Switch Circuit Design Step-by-Step Guide

Start with a solid-state relay or a mechanical contactor rated for at least 120% of your motor’s current draw. A 10A relay suits most household setups, but verify wattage–shallow-well models under 500W need minimal margin, while deep-well units pulling 1.5kW demand 25A or heavier components. Wire the control input directly to a float sensor placed in the storage tank, ensuring the sensor’s normally open (NO) contacts activate when water drops below a preset level. Avoid common pitfalls: secure the sensor with a weighted base to prevent false triggers from turbulence, and route wires through conduit if outdoor exposure is unavoidable.

Integrate a delay timer (555 IC in monostable mode or a pre-built module like the NE555P) between the sensor and relay to prevent rapid cycling. Set the delay to 10–30 seconds–long enough to smooth sensor noise but short enough to maintain reservoir levels. Connect the timer output to an NPN transistor (2N2222 works for low-power relays), which then drives the relay coil. This setup eliminates arcing at the sensor contacts, extending their lifespan. For fail-safe operation, add a manual override switch parallel to the sensor input, allowing direct activation when automated control isn’t desired.

Power the circuit with a transformer-isolated 12V DC supply to separate low-voltage logic from 120/240V motor loads. A bridge rectifier (KBPC2510) with a 1000μF smoothing capacitor ensures stable voltage. Include a flyback diode (1N4007) across the relay coil to protect the transistor from voltage spikes. Test the assembly with a multimeter before connecting the motor–measure continuity at the relay contacts under simulated high/low water conditions, and check coil resistance to confirm proper energizing. Mount all components on a perforated board or DIN rail for durability, and enclose the setup in a waterproof junction box if near plumbing.

For advanced setups, replace the float sensor with a pressure transducer (e.g., Honeywell TruStability) calibrated to tank depth. Pair it with an Arduino Nano or ATtiny85 to implement hysteresis–activate the relay only when pressure drops 0.2 psi below the target threshold and deactivate 0.1 psi above it. This prevents hunting in systems with uneven inflow rates. Flash the microcontroller with firmware that logs runtime hours (useful for maintenance scheduling), and add a wireless module (ESP-01) to monitor status via HTTP requests. Push notifications to a phone app when the system deviates from expected behavior, such as prolonged activation or sensor failure.

Regulating Fluid Transfer with Precision Control Schematics

Integrate a relay module rated for 10A at 250VAC with a float sensor to govern the motor’s activation cycle–position the sensor’s lower contact at 30% tank capacity and the upper at 90%. Use a 12V DC power adapter with 1A output to energize the relay coil, ensuring the common terminal connects to the live supply line (230V) and the normally open contact bridges to the motor winding. Add a snubber circuit (0.1µF capacitor in series with a 100Ω resistor) across the relay contacts to mitigate arcing during cutoff, extending contact lifespan by up to 70%. For fail-safe operation, wire a manual override toggle (SPDT) in parallel with the relay output, allowing direct motor control if the sensing mechanism fails.

Specify a 1N4007 diode across the relay coil to absorb back EMF spikes, preventing damage to the control unit. Calibrate the float sensor’s hysteresis by adjusting its internal potentiometer–set a 5% differential between activation (lower limit) and deactivation (upper limit) to prevent rapid cycling. Test the assembly with a multimeter in continuity mode before full-scale deployment; measure relay coil resistance (typically 70–120Ω) and verify contact closure at sensor thresholds. Document the wiring layout on durable polyester film, marking phase, neutral, and earth lines with color-coded heat-shrink tubing for compliance with IEC 60364 standards.

Critical Parts Required for a Fluid Transfer Control Mechanism

Select a submersible or surface motor with a wattage rating at least 30% higher than the head pressure requirements of your system. For a typical 50-meter vertical lift, a 500W unit ensures adequate power reserve. Brands like Grundfos and Pedrollo offer models with built-in thermal overload protection–opt for these to avoid external relay failures. Verify the motor’s current draw matches the relay’s contact rating; a mismatch risks arcing or premature failure.

Use a float-based level sensor with mercury-free switching for longevity. Polyvinyl chloride (PVC) floats degrade under UV exposure, so choose polyethylene or polypropylene variants. Install two sensors: one at the supply tank’s low threshold (triggering activation) and another at the high threshold (initiating shutdown). For aggressive liquids like fertilizers, switch to stainless steel electrodes paired with a solid-state relay to prevent corrosion. Calibration is critical–test sensor hysteresis to avoid rapid cycling.

Relay Specifications and Safety Margins

Relay Type	Voltage Rating	Current Capacity	Contact Material	Lifespan (Cycles)
Electromechanical (HE721A)	250V AC	10A	Silver Cadmium Oxide	100,000
Solid-State (SSR-25DA)	24–380V AC	25A	NA (Triac-based)	50,000,000
Reed (CR4690)	125V AC	3A	Ruthenium	5,000,000

Avoid relays with silver contacts for inductive loads; the inrush current from startup can weld contacts. For motors above 1HP, use a contactorrated 2X the motor’s full-load amperage. Solid-state relays eliminate moving parts but require heat sinks for currents above 10A–attach a 40mm CPU cooler with thermal paste for dissipation. Always wire a snubber circuit (0.1µF capacitor + 120Ω resistor) across relay contacts to suppress voltage spikes.

Power the control system with a transformer supplying 12V–24V DC to isolate low-voltage sensors from mains current. Use a bridge rectifier (KBPC2510) followed by a smoothing capacitor (2200µF/35V) to prevent sensor chatter. For battery-backed setups, a 7Ah sealed lead-acid unit provides 72 hours of runtime during outages. Protect the entire setup with a 10A fuse on the primary side and a varistor (14D471K) across the relay coil to absorb transients.

Protection and Redundancy Measures

Install a pressure transducer (0–100 psi range) at the pump outlet to detect dry runs–program the controller to halt operation if pressure drops below 10 psi for more than 5 seconds. Pair this with a current-sensing module (ACS712) wired as feedback; a 30% rise in amperage indicates mechanical binding and triggers a shutdown. For outdoor systems, enclose all connections in IP67-rated junction boxes and use liquid-tight conduit (Carlon E989RRD) to prevent moisture ingress. Ground all metallic components to a dedicated 8-foot copper rod to safeguard against lightning strikes.

Assembly Guide for Fluid Control Relay Mechanism

Begin by arranging components on a perforated board in this sequence: power source, relay module, pressure sensor, transistor array, and motor terminals. Position the relay coil near the edge for easier access during final connections, ensuring thermal vias between traces carry away excess heat from the switching elements.

Secure the 5V regulator 7805 within 3 cm of the power input to minimize voltage drop. Use a 10µF tantalum capacitor across its input and a 1 µF ceramic capacitor on the output to filter noise, especially if the supply originates from a car battery or solar panel with fluctuating load conditions.

Wire the MPX5050 gauge sensor with dedicated 18 AWG silicone-jacketed cable. Connect pin 2 (output) directly to the base of a BC547 transistor through a 1 kΩ resistor, while grounding pin 3. Keep leads under 5 cm to prevent stray capacitance from skewing readings.

Mount the relay contacts rated for 10A inductive load with a flyback diode (1N4007) anti-parallel to the coil. Space the contacts at least 8 mm apart if using 220V AC switching to prevent arcing during deactivation phases.

Integrate a 220Ω current-limiting resistor in series with an LED status indicator. Place the LED near the board’s edge for visibility, but avoid soldering it directly above high-current traces to prevent thermal stress on the epoxy lens.

Test the continuity between the relay’s common terminal and the normally closed contact before energizing the system. Use a multimeter in diode mode to verify the flyback diode’s polarity–misalignment will destroy the switching transistor during the first cycle.

Apply conformal coating to the completed assembly if deploying outdoors or in high-humidity environments. Silicone-based coatings offer better UV resistance than acrylic, but require curing at 60°C for 24 hours to achieve full dielectric strength.

Final Calibration Steps

Adjust the pressure sensor’s reference voltage by turning the 10 kΩ trimpot with a non-conductive screwdriver. Start at the midpoint, then fine-tune until the relay toggles at 1.2 bar–confirm with a calibrated manometer. Secure the trimpot with thread-locking compound to prevent drift from vibration.

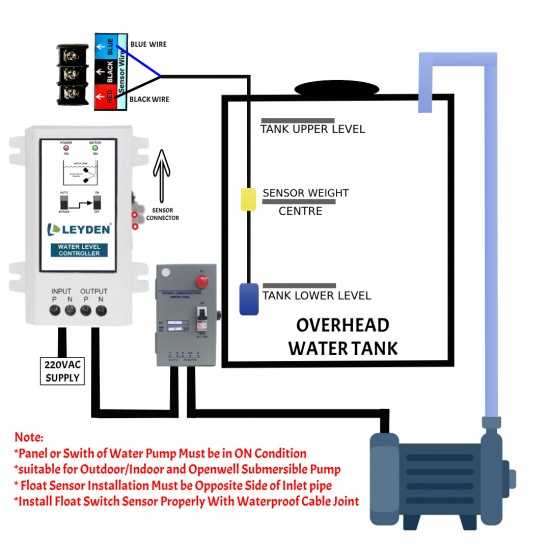

Connecting Float Mechanisms for Accurate Liquid Height Monitoring

Choose a normally open (NO) or normally closed (NC) float device based on fail-safe requirements. NO contacts close when submerged, triggering relays during low supply conditions. NC contacts open when submerged, cutting power if levels drop unexpectedly. Verify compatibility with controller voltage–most industrial types support 24VAC/DC, 120VAC, or 230VAC. Use a multimeter in continuity mode to confirm terminal behavior before final connections.

Install the sensing element in a secondary container if turbulence disrupts readings. Mount it vertically with at least 10 cm clearance between upper and lower activation points. Secure cables with strain relief clamps to prevent loosening from vibration. Route wiring away from high-current paths to avoid induced noise–shielded twisted pair is recommended for distances exceeding 5 meters. Ground the shield at the control panel only, never at both ends.

Calibration and Testing

Adjust the float rod length so activation occurs 5-10% before critical thresholds. Test responsiveness by manually raising and lowering the mechanism while monitoring relay states. Introduce controlled disturbances–such as brief air bubbles or surface ripples–to evaluate reaction consistency. For digital controllers, note hysteresis settings; typical values range from 2-5% of the total tank depth to prevent rapid cycling.

Seal all entry points with IP67-rated gland fittings when exposed to moisture. Apply dielectric grease on terminals to inhibit corrosion in humid environments. If using multiple floats for high/low limits, stagger their cut-in points by at least 15 cm to prevent simultaneous engagement. Label each conductor at both ends with heat-shrink tags indicating function–e.g., “LOW LVL COM,” “HIGH LVL NC.”

In conductive solutions, opt for mercury-free designs to comply with environmental regulations. Submersible variants require waterproof connectors, often M12 or 7/8″ threaded, with locking mechanisms. For non-metallic tanks, attach a counterweight opposite the float to maintain alignment. Periodically inspect for buildup–scale or debris can alter buoyancy, requiring recalibration every 6-12 months depending on fluid properties.

Integrate a manual override bypass in parallel to the float network. Use a double-pole switch to isolate the sensing element during maintenance without disrupting primary operations. For redundant setups, connect two independent floats in series (for NO) or parallel (for NC) to ensure continuous operation if one fails. Document wire gauge–minimum 1.5 mm² for 10A loads–and match breaker ratings to prevent overheating.
