Complete Guide to Understanding and Reading Car Electrical Schematics

Start by isolating the fuse box location–often found under the dashboard, beneath the hood, or behind a kick panel–to trace power sources. Use a multimeter set to 20V DC to test voltage at each terminal; a reading below 12.6V signals corrosion, loose connections, or parasitic drain. Sketch a rough layout of circuits before disconnecting anything, labeling each wire with masking tape to avoid cross-wiring during reassembly.

For ground circuits, check spots like the chassis, engine block, or firewall where wires terminate. A faulty ground creates erratic behavior in lights, sensors, or ignition systems. Scrape paint or rust from the grounding point with a wire brush, then apply dielectric grease to prevent future oxidation. Verify continuity by probing from the component’s ground wire to the grounding point–resistance above 0.2 ohms requires repair.

Color codes vary by manufacturer, but common standards include red (constant power), yellow (switched power), black (ground), and blue (high-beam signals). Cross-reference the vehicle’s repair manual for exact codes–aftermarket manuals often omit critical details like splice points or hidden relays. For hybrid or electric models, high-voltage cables (orange) demand specialized gloves (Class 0, 1000V-rated) and a non-contact voltage tester before handling.

Relays hide in obscure locations–test them by swapping with a known-good relay of the same type. A clicking sound confirms the coil works, but no power at output terminals means internal failure. Replace relays with sealed units for moisture-prone areas like the engine bay. Solder and heat-shrink splice connections for durability; crimp connectors corrode over time, especially in undercarriage or exterior circuits.

Scan tools reveal fault codes, but real-time data pinpoints failures. Monitor PID values like vehicle speed, throttle position, or oxygen sensor readings while reproducing symptoms. For intermittent issues, shake wires while observing the scanner–voltage fluctuations or code reappearances locate the faulty section. Always disconnect the battery’s negative terminal before working on circuits to prevent shorts or airbag deployment.

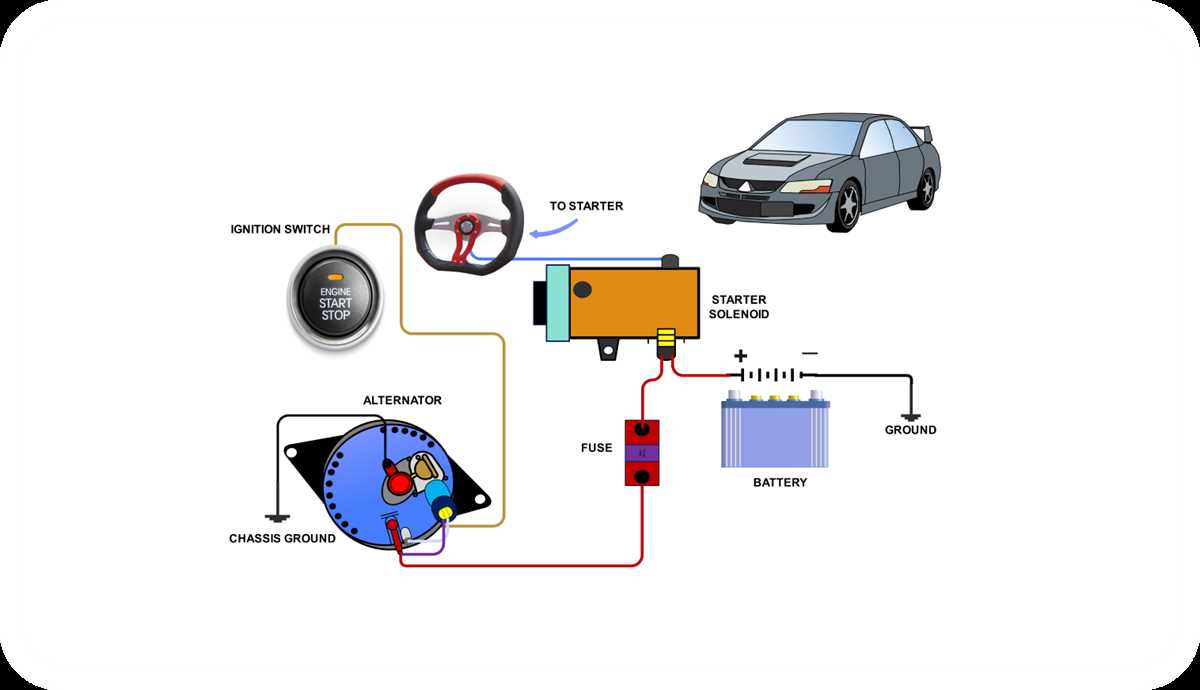

Understanding Vehicle Electrical Schematics

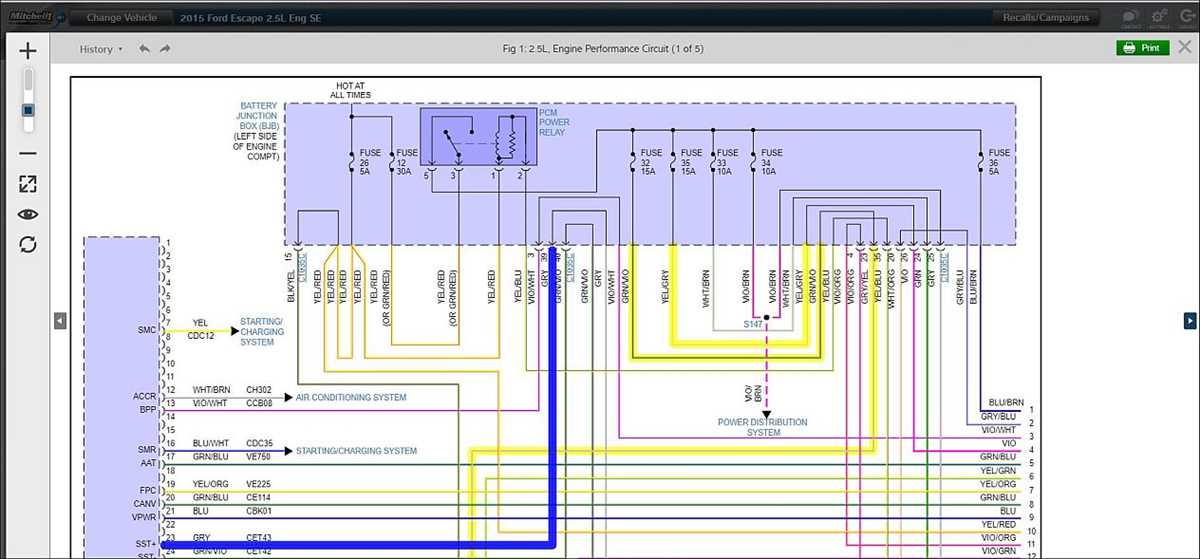

Begin by identifying the power distribution block–typically labeled in bold at the top of most schematics. Trace thick red lines first, as these represent high-current paths supplying the ignition, lights, and auxiliary systems. Verify fuse ratings directly on the chart; a 15A fuse should correlate with yellow or orange conductors, never blue.

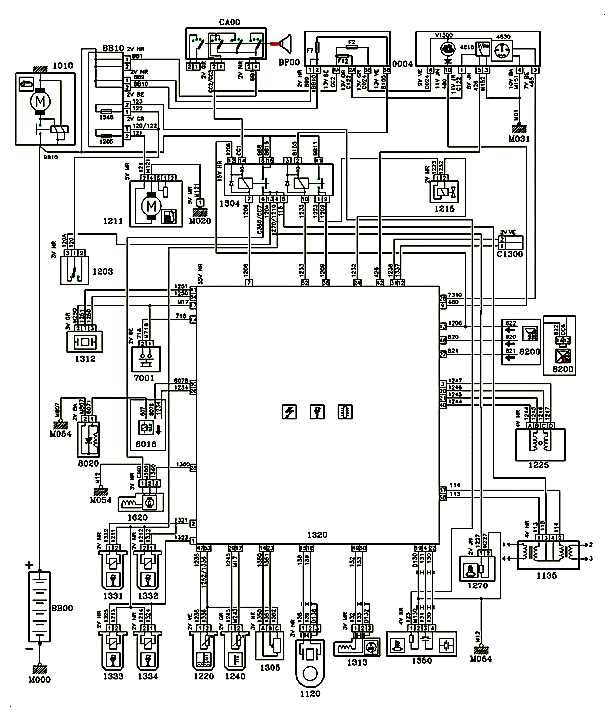

Avoid guessing pinouts for sensors or modules. Manufacturers group input/output signals on the left and right edges of ECU symbols, with ground points clearly marked at the bottom. Swap multimeter probes to negative polarity if readings fluctuate beyond ±0.5V; this confirms unstable grounds often hidden under dash panels.

Color codes shift across models–German marques use brown for permanent 12V, while Japanese schematics invert this to black. Cross-reference wire gauges: 18AWG handles 10A max, 12AWG supports 20A continuous. Use heat-shrink tubing on splices; electrical tape degrades under hood temps exceeding 85°C.

Relays follow a standard numbering sequence: terminal 30 for power input, 87 for output, 86 for control, 85 for ground. Test by jumping 30 to 87; if the component activates, suspect coil failure in the relay. Keep a 20W soldering iron for harness repairs; higher wattage melts insulation prematurely.

Scan tools read fault codes, but schematics reveal actual circuit paths. Locate the CAN bus lines–twisted pairs shielded in foil–between the OBD port and gateway module. Resistance between CAN-H and CAN-L should measure 60Ω; deviations indicate corroded connectors or broken shield continuity.

Label every disconnect with masking tape before disassembly. Use a digital caliper to measure terminal depths; improper crimping causes voltage drops detectable only at 100x magnification. Replace burnt traces on PCB-backed modules with 22-gauge tinned wire, secured with flux-cored solder.

For hybrid systems, isolate high-voltage cables (orange) before probing low-voltage circuits. Capacitors in DC-DC converters retain charge–discharge with a 1kΩ resistor before servicing. Store schematics on a ruggedized tablet; paper prints fade under UV exposure within 6 months.

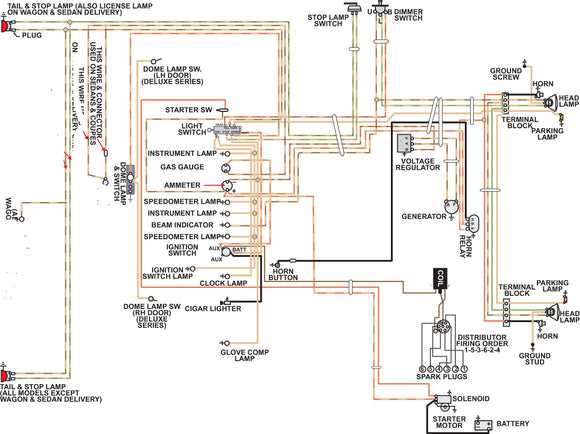

Decoding Color Standards in Vehicle Circuit Blueprints

Locate the legend in the upper corner of the schematic–most manufacturers list color abbreviations there. German-built models use WS for white, SW for black, and RT for red, while Japanese designs opt for W, B, and R. Trace the line from the fuse box outward; a 0.75 mm² brown line (BN) typically grounds auxiliary modules, whereas a 1.5 mm² yellow (YE) feeds headlamp relays.

Common Dual-Color Markings and Their Purposes

Base	Stripe	Function	Wire Gauge (mm²)
Blue (BU)	Red (RD)	Parking light positive	0.5
Green (GN)	Yellow (YE)	Engine coolant sensor	0.35
Black (BK)	Orange (OG)	ECU constant power	2.0
Purple (PL)	White (WH)	Fuel pump trigger	1.0

Verify factory documentation: U.S. legacy models label high-beam circuits L-BU, but contemporary FCA designs swap to D-BU. Heat-shrink connectors preserve integrity–match the original color code to avoid misfiring modules. If the relay socket shows corrosion, replace with gold-plated terminals; cheap tin coatings oxidize within 18 months under 12V loads.

Step-by-Step Guide to Tracing Ground Paths in a Vehicle Electrical System

Locate the battery’s negative terminal first–it serves as the primary reference point for all circuit returns. Use a multimeter set to continuity mode or low-voltage DC to verify connections without powering the system.

Identify common grounding points near the engine block, chassis, or firewall. These junctions often cluster around high-current devices like starters or alternators. Mark them with tape or a non-permanent marker to track progress.

Tools Required

• Digital multimeter (with continuity and voltage modes)
• 12V test light (for quick voltage checks)
• Basic hand tools (wrenches, screwdrivers)
• Wire strippers and crimp connectors for repairs
• Vehicle service manual (for model-specific ground locations)

Disconnect the battery’s negative cable before probing any returns to avoid short circuits or accidental load activation. Trace each path from the component to its termination–look for corrosion, frayed strands, or loose fasteners.

Test continuity between the component’s housing and the chassis using the multimeter. A reading below 0.2 ohms indicates a solid connection; higher resistance suggests corrosion or a poor bond. Clean surfaces with a wire brush and dielectric grease if needed.

1. Start with the easiest accessible returns–those connected directly to the chassis near the component.
2. Follow the return cable visually or by gently pulling it to reveal hidden routing behind panels or under carpet.
3. Check for intermediary connections, such as bolted joints or crimped splices, which may introduce resistance.
4. Re-test after cleaning or securing any suspect connections to confirm improved conductivity.

Inspect sensitive systems like ECUs or lighting separately–these often use dedicated returns to the battery or a central ground distribution block. Verify their paths independently, as shared returns can cause interference or erratic behavior.

Common Pitfalls

• Painted or coated mounting surfaces–scrape clean to bare metal.
• Loose or missing bolts–replace with stainless steel hardware to prevent future corrosion.
• Aftermarket modifications–ensure added components (audio systems, lights) have proper returns.
• Poorly routed cables–avoid bundling returns with signal lines to prevent voltage drops.

Document each ground’s location and condition with notes or photos. Reconnect the battery last, then re-test all components to confirm proper operation. If issues persist, re-examine splices, connectors, and the integrity of the cable itself.

Key Symbols in Vehicle Circuit Schematics and Their Functions

Mastering schematic symbols accelerates troubleshooting and repairs. Start by memorizing these core elements found in most electrical blueprints:

• Battery: Depicted as a pair of parallel lines–one longer (positive) and one shorter (negative). Represents the power source; verify connections if voltage drops below 12.6V when the engine is off.
• Ground: A downward-pointing triangle or the letter “G.” Ensures circuit completion; poor grounds cause intermittent faults–test resistance with a multimeter (should read <0.5 ohms).
• Fuse: A rectangle with a diagonal line. Replace if blown; check amperage ratings–using a higher-rated fuse risks wire melting or component damage.
• Relay: A square with internal coils and contacts. Use a relay tester to confirm operation; failed relays often mimic sensor failures.
• Switch: Two circles connected by a line (open/closed states). Operate switches manually while measuring continuity; worn switches cause flickering or non-responsive circuits.

Component-Specific Symbols

Symbols vary by manufacturer but follow these patterns:

• Lamp/LED: Circle with a wavy line (filament) or arrows (LED). Dim output? Test voltage at the socket–corrosion or loose terminals reduce brightness.
• Motor: Circle with an “M” or winding symbol. Unusual noise? Check brush wear and current draw (stalled motors pull excessive amps).
• Sensor: Zigzag line (thermistor) or labeled box (oxygen sensor). Failed sensors trigger codes–P0130 (O2 sensor) often stems from contaminated or loose connectors.
• Solenoid: Rectangle with a diagonal coil. Engage while monitoring voltage; weak solenoids (e.g., starter) fail under load.
• Resistor: Straight or zigzag line. Aftermarket components may alter resistance–compare with OEM specs to avoid overloading.

Always cross-reference symbols with the legend–German schematics (e.g., Bosch) use numbered pins, while Asian models group connectors by color codes. For example, Toyota’s “W” wire is white; Hyundai’s “BL” is blue. Trace wires physically if symbols conflict with the harness layout. Use a tone generator or continuity tester for hidden splices, especially in bundled circuits where chafing occurs.

Advanced Symbols and Diagnostic Tips

Complex systems rely on these:

1. Transistor: Three-terminal symbol (emitter, base, collector). Test with a diode check mode–shorts mimic shorted modules.
2. Capacitor: Two parallel lines (polarized/non-polarized). Measure capacitance with a meter; degraded capacitors cause sporadic failures in ECU circuits.
3. CAN Bus: Two twisted lines with terminating resistors. Signal loss? Verify 60 ohms resistance between CAN-H and CAN-L; improper termination disrupts communication.
4. Diode: Arrow-shaped symbol (directional). Block reverse current–failed diodes allow voltage spikes, damaging sensitive electronics.

For hybrid/electric systems, note high-voltage symbols (orange cables, ⚡ icon). Use a CAT-III rated multimeter for HV circuits–standard tools risk electrocution. Ford’s schematics separate “chassis ground” from “signal ground”; mix-ups fry communication modules. Track power after ignition: “15” (ignition on), “30” (constant), and “X” (delayed) terminals feed distinct circuits–verify feeds with a test light before swapping components.
