Understanding Key Components in a Simple Computer Circuit Layout

Begin by isolating key functional units: the central processing core, memory storage, input/output interfaces, and energy regulation. Each segment requires precise notation–use standardized symbols for transistors, resistors, capacitors, and integrated logic gates. Label connections with resistance values, voltage thresholds, and signal flow direction to eliminate ambiguity.

Prioritize clarity over density. Group related circuits (e.g., clock generation, interrupt handling) into distinct subsections, ensuring no single block exceeds 7-8 symbols. Mark critical paths–such as data buses and reset lines–in bold or italicized strokes to highlight their operational significance. Avoid crossing lines; reroute or use designated jumpers when necessary.

Incorporate test points at intermediate stages. Designate specific nodes for debugging (e.g., address bus line A3, clock pulse output) to simplify diagnostics. Add brief annotations for component roles: “U5 – NOR gate (4-input, open-collector)” instead of generic labels. For power distribution, differentiate slew rates–separate analog and digital ground planes to minimize noise interference.

Validate the design by cross-referencing signal timing. Propagation delays (nanosecond precision) must align with logical transitions; document clock skew if asynchronous components are present. Use software tools sparingly–manual verification uncovers errors automated checks miss, like floating pins or incorrect gate polarities.

Fundamental Block Representation of a Computing System

Begin by isolating the primary processing core–place it centrally and connect it directly to a high-speed memory module rated for at least 3200 MT/s to prevent latency-induced bottlenecks. Use 8-layer PCBs for signal integrity when routing traces between the core and memory; shorter paths (under 5 cm) reduce parasitic capacitance. Include decoupling capacitors (0.1 µF ceramic) adjacent to each power pin to filter noise–this stabilizes operation at clock speeds above 3 GHz.

Separate power delivery into distinct rails: one for the logic blocks (1.2V), another for I/O (3.3V), and a third for peripherals (5V). Use buck converters with efficiency exceeding 90% and input ripple below 50 mVpp. Ground planes must be uninterrupted; stitch vias every 5 mm around critical components to minimize return path impedance. For thermal management, attach copper pours (minimum 2 oz thickness) to heat-generating ICs, linking them to a heatsink via thermal vias (0.3 mm diameter).

Critical Signal Path Requirements

Trace Type	Width (µm)	Spacing (µm)	Impedance (Ω)	Termination
DDR4 Data	120	150	40	On-die ODT
PCIe Gen3	180	200	85	AC coupling (0.1 µF)
USB 3.0	150	200	90	Series 27 Ω
HDMI	200	300	50	None (direct)

Label all data buses with their bit width (e.g., “A[31:0]”) and prefix control signals with active-low indicators (e.g., “_CS”) to clarify logic levels. Reserve a dedicated layer for clock distribution; route the main oscillator signal as a differential pair to minimize skew, using matched lengths (tolerance: ±5 mil). Add pull-up resistors (4.7 kΩ) to open-drain outputs like I2C SDA/SCL to ensure defined logic states during idle periods.

Implement watchdog timer circuitry with a timeout period 1.5× the longest expected processing cycle. Select a timer IC with independent power-on reset capability to handle brownout conditions. For storage interfaces, prefer NVMe over SATA where bandwidth exceeds 2 GB/s–optimize layout with length-matched traces (error margin: ≤25 ps skew). Include test points for all critical nets (0.5 mm diameter) for post-assembly validation, prioritizing high-speed signals first.

Peripheral Integration Checklist

Verify USB ports for ESD protection via bidirectional TVS diodes (clamping voltage

Core Elements of a System Architecture Layout

Start by identifying the central processing unit (CPU) as the primary control hub–it executes instructions and manages data flow between other modules. Select a CPU with a clock speed matching computational demands, typically ranging from 1 GHz for embedded systems to 5 GHz for high-performance workstations. Ensure the chosen chip supports multi-threading if parallel task execution is required, reducing latency in real-time applications.

The memory hierarchy determines system responsiveness and efficiency. Prioritize volatile storage (RAM) with low-latency access, ideally DDR5 with sub-30ns response times for intensive workloads. Include non-volatile options (SSD/NVMe) for persistent data, aiming for read/write speeds exceeding 3,000 MB/s to minimize boot and load delays. For large datasets, add optical or magnetic storage, balancing cost and retrieval speed.

Data buses interconnect all components, so optimize bandwidth and protocol selection. Use PCIe 5.0 for peripheral expansion (x16 lanes for GPUs, x4 for storage) to eliminate bottlenecks. Implement SATA III for legacy devices at 6 Gb/s or USB4 for external connections with 40 Gb/s throughput. Avoid mixing protocols with incompatible voltage levels, as this causes signal degradation or outright failure.

Power delivery must account for peak currents and thermal dissipation. Design a multiphase voltage regulator module (VRM) with at least 12 phases for CPUs drawing over 150W, ensuring stable 0.8–1.4V core supply with

Input/output interfaces define usability and expandability. Integrate at least four USB-A ports (10 Gb/s) for peripherals, supplementing with USB-C for power delivery and video output via DisplayPort alt mode. For industrial applications, add isolated I2C/SPI buses for sensor integration and RS-232/RS-485 for long-range communication. Ensure driver support across target operating systems to avoid device incompatibility.

Security modules protect against unauthorized access and tampering. Embed a TPM 2.0 chip for cryptographic operations, enabling disk encryption and secure boot processes. For networked systems, include a dedicated hardware firewall with DPI capabilities, blocking malicious traffic at the packet level. Isolate sensitive components on separate power rails to thwart side-channel attacks, using ferrite beads to suppress high-frequency noise.

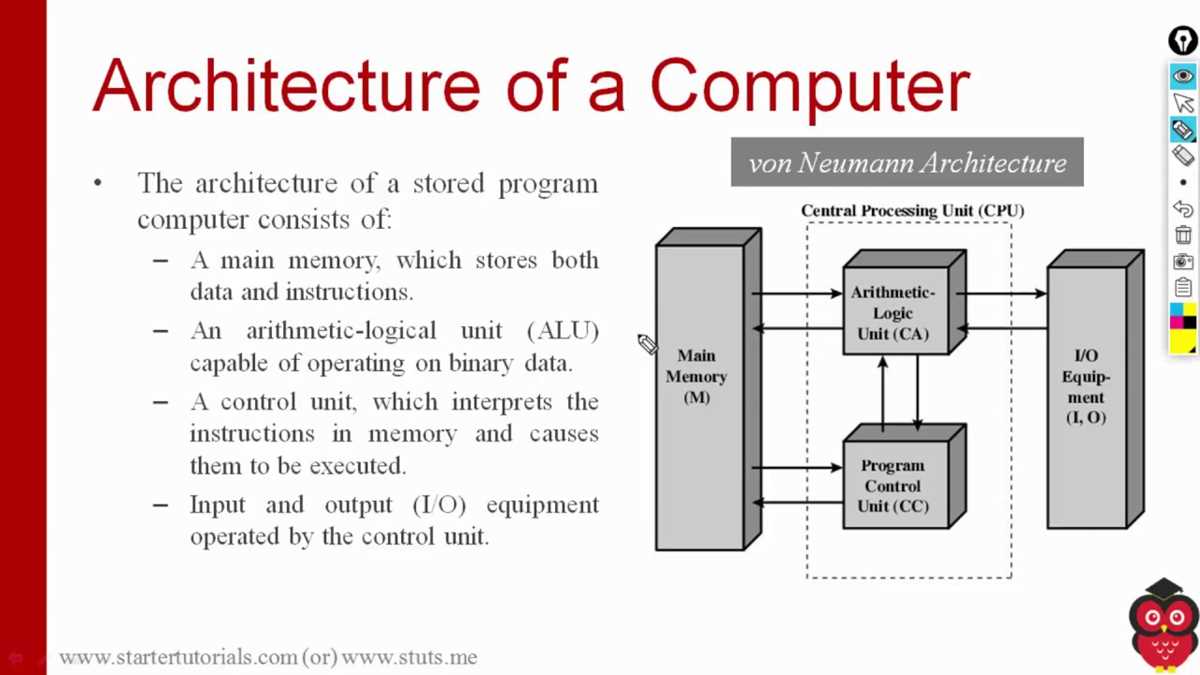

How to Draw a Functional CPU Architecture Layout

Begin by isolating the core components: the arithmetic logic unit (ALU), control unit (CU), register file, cache hierarchy, and system bus. Use rectangular blocks for each module, ensuring the ALU and CU are visually dominant–place them centrally with proportional spacing. Label each block concisely (e.g., “ALU” instead of “Arithmetic Logic Unit”) to reduce clutter while maintaining clarity. Connect the ALU to the register file with bidirectional arrows, indicating operand in/out flows, and draw a unidirectional arrow from the CU to the ALU to denote instruction dispatch.

Implement a tiered cache structure (L1, L2, L3) as nested rectangles, with L1 closest to the core. Use dashed lines for L3 boundaries to suggest its shared nature in multi-core designs. Link each cache level to the system bus via distinct lines: solid for data, dotted for address transfers. For multi-core layouts, mirror this structure horizontally, ensuring bus arbitration logic sits between cores as a trapezoid or diamond shape to denote its mediation role.

Standardize signal paths: clock lines (thin, continuous), data (medium, solid), control (thick, dashed), and power/ground (thick, red/black). Avoid diagonal lines–orthogonal routing minimizes ambiguity. For pipelined architectures, segment the ALU and CU into stages (fetch, decode, execute, memory, writeback) using vertical dividers, labeling each stage’s inputs/outputs. Include a small “hazard unit” adjacent to the pipeline to illustrate branch prediction and dependency resolution.

Validate the layout by tracing a simple instruction (e.g., `ADD R1, R2, R3`): verify operand paths from registers to ALU, ALU to writeback, and memory accesses if applicable. For superscalar designs, duplicate functional units (ALUs, load/store queues) side-by-side, connecting them to a shared register file with multiple read/write ports. Add a legend for colors/line styles if the diagram exceeds six components, but prioritize self-explanatory design over annotations.

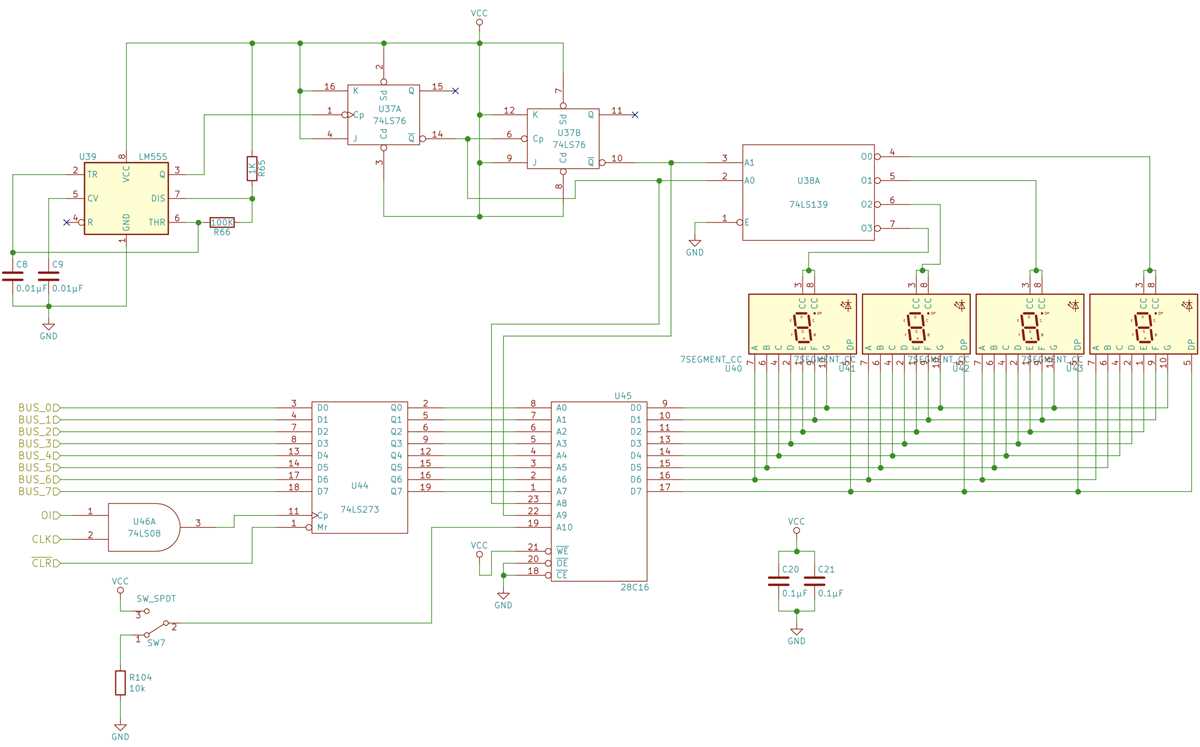

Integrating RAM and ROM into Circuit Layouts

Place volatile memory chips (DRAM/SRAM) adjacent to the CPU with dedicated address and data buses directly tracing to the processor’s memory controller. Use a 64-bit data bus for RAM modules in modern designs; 32-bit buses halve bandwidth. ROM (typically NOR flash or EEPROM) connects via a separate 16- or 32-bit bus to avoid contention. Ensure pull-up resistors (4.7kΩ–10kΩ) are present on unused ROM lines to prevent floating inputs.

Decoupling capacitors (0.1µF ceramic) must be soldered within 1mm of every RAM chip’s power pins. For ROM, add a 10µF tantalum cap near the supply to handle inrush currents during writes. Trace impedance for high-speed memory should match 50Ω (±10%) with controlled layer transitions in multilayer boards–violate this, and signal integrity collapses at clock speeds above 100MHz.

Address Bus Routing Constraints

Split address lines into row/column decoders early: route high-order bits (A10–A13 for 1MiB ROM) to ROM first, then fan out lower bits (A0–A9) to RAM. Use serpentine traces to equalize propagation delays on differential pairs. If multiplexing is unavoidable, implement glueless logic with a 74LVC138 decoder–cheaper than FPGA but adds 2–3ns latency.

ROM selection lines require active-low logic; tie CE̅ (chip enable) to a static GPIO or a decoded address output. RAM’s CS̅ (chip select) demands precise timing: launch it on the falling edge of CLK, not the rising edge, to avoid metastability. For SDRAM, adhere to JEDEC’s tRCD (RAS-to-CAS delay) specs–violating this by even 1ns causes silent data corruption.

Power Distribution and Frequency Pitfalls

Isolate RAM and ROM VCC planes; merge grounds only at a single star point near the regulator. ROM draws 20–50mA during writes but enters deep sleep at 10µA–design regulators accordingly or brownouts brick firmware. For DDR3/4, terminate command/address lines with series resistors (22Ω) and parallel terminators (56Ω to VTT) to prevent ringback.

Clock signals must be shielded; run CLK traces between ground planes with 3W spacing to adjacent traces. DDR memory requires VREF at 0.5×VCC; use a low-noise adjustable LDO or precision resistor divider–no switching regulators. Route byte lanes (DQ0–DQ7) as matched-length pairs; mismatch >5ps introduces bit errors on writes.

Test layouts with an oscilloscope before fabrication: probe DQS (data strobe) on RAM and SCK (serial clock) on SPI ROM. Valid eye diagrams have 300mV swing. If ROM fails to boot, check MISO/MOSI pull-ups; floating lines cause infinite loops in initialization code. For embedded systems, reserve a 1KiB bootloader section at the lowest ROM addresses–hardware often enforces this via base address mapping.
