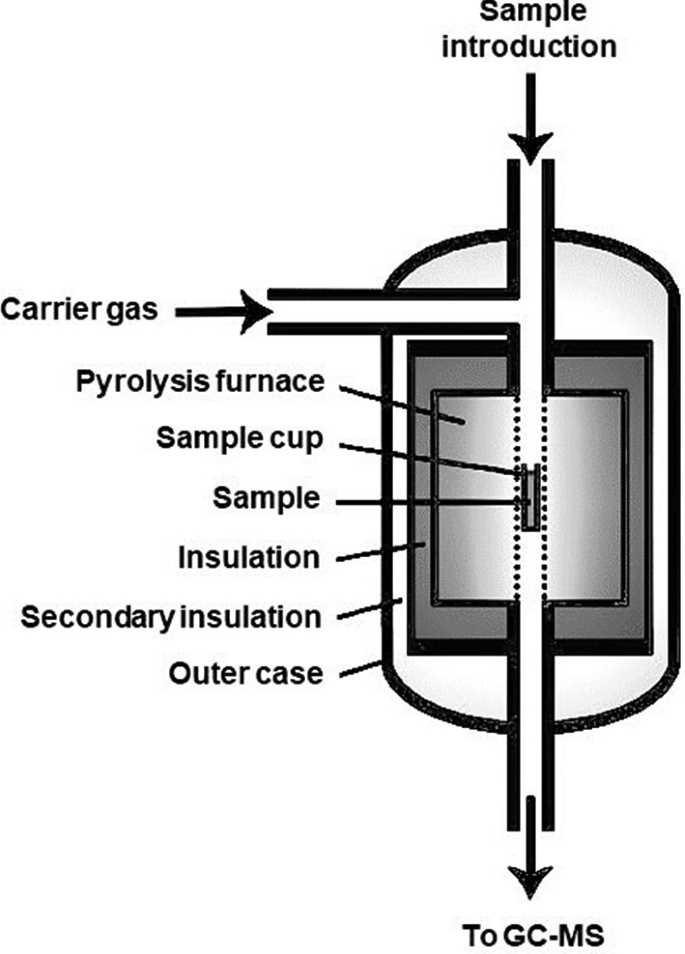

Understanding the Fundamental GC-MS Schematic and Its Core Components

To interpret or design a gas chromatography-mass spectrometry system, begin with the carrier gas inlet. Use helium (He) or hydrogen (H₂) at a purity of 99.999% to avoid column degradation. Install a molecular sieve trap upstream to remove residual moisture and hydrocarbons. Set the inlet pressure between 5–50 psi (35–345 kPa), adjusting based on column length–longer columns require higher pressures for optimal linear velocity.

The sample injector should be a split/splitless inlet maintained at 250–300°C. For split mode, use a split ratio of 10:1 to 100:1 to prevent column overload. In splitless mode, extend the purge time to 30–90 seconds to ensure complete sample transfer. Verify the septum material–high-temperature silicone is critical to avoid leaks or bleeding.

Select the chromatographic column based on target analytes. For non-polar compounds, use a 5% phenyl-methylpolysiloxane column (e.g., DB-5) with dimensions 30 m × 0.25 mm × 0.25 µm. Polar analytes require wax or polyethylene glycol phases (e.g., DB-WAX). Maintain the oven temperature program at 50–300°C with ramp rates of 5–20°C/min–faster ramps reduce analysis time but may sacrifice resolution.

The transfer line from the GC to the MS must be deactivated fused silica and heated to 280–300°C to prevent cold spots. Connect it directly to the ion source, typically an electron impact (EI) or chemical ionization (CI) source. For EI, set the electron energy to 70 eV for consistent fragmentation patterns. In CI mode, use methane (CH₄) or isobutane (C₄H₁₀) as reagent gases at 1–2 mL/min.

Position the mass analyzer–commonly a quadrupole or ion trap–immediately downstream. Set the scan range from 40–500 m/z for broad-spectrum analysis, or selected ion monitoring (SIM) for targeted compounds. Maintain vacuum levels below 1 × 10⁻⁵ Torr using a turbomolecular pump backed by a rotary vane pump. Replace pump oil every 3–6 months to ensure stable pressure.

For data interpretation, use NIST or Wiley spectral libraries for compound identification. Calibrate the system weekly with perfluorotributylamine (PFTBA) or decane standards to verify mass accuracy and sensitivity. If retention times drift, check column age–replace if efficiency drops below 80% of original performance.

Typical GC-MS Flow System Layout

Begin by placing the sample injector upstream of the gas chromatograph inlet–ensure it’s a split/splitless model with temperature control (±0.1°C) to prevent solvent flooding. Connect the injector directly to a deactivated fused silica guard column (1–2 m × 0.1 mm ID) before the analytical capillary. This reduces active site interactions and extends column lifespan by 30–40%.

Select a mid-polarity stationary phase for the main column (e.g., 5% phenyl-methylpolysiloxane, 30 m × 0.25 mm × 0.25 μm) if analyzing semi-volatile compounds; for high-boilers (>300°C), switch to a thermally stable phase like 6% cyanopropylphenyl-dimethylpolysiloxane. Maintain helium carrier gas at a linear velocity of 30–40 cm/s, verified via methane injections–deviations outside ±5 cm/s degrade peak symmetry.

Interface and Detector Integration

Position the transfer line from the column outlet to the mass spectrometer interface no longer than 1 m; use a 0.1 mm ID uncoated deactivated silica segment if unavoidable, but trim excess to avoid cold spots. Set the MS ion source temperature 20–30°C above the column’s maximum program (e.g., 280°C for a 250°C oven) to prevent analyte condensation–confirmed via signal-to-noise ratio (>10:1 for quant ions).

For electron ionization, keep the electron energy at 70 eV; lower values (e.g., 50 eV) reduce fragmentation but sacrifice library match accuracy (typical Δ >15% for NIST scores). Quadrupole mass analyzers should operate in SIM mode for targeted analysis, scanning 3–5 ions per compound with dwell times of 50–100 ms–longer dwell times improve detection limits (LOD ~1–5 pg) but increase cycle time. Calibrate the MS daily with perfluorotributylamine (PFTBA), ensuring mass accuracy ±0.1 Da for ions 69, 219, and 502.

Locate the vacuum pump (turbomolecular, ≥250 L/s) as close to the MS as possible, with a foreline trap containing activated carbon (replaced every 3,000 hours) to prevent oil backstreaming. Use a membrane separator or open-split interface if coupling to additional detectors; for open-split, maintain a purge flow of 2–5 mL/min to avoid atmospheric contamination–validate with blank injections showing

Ground all conductive components (injector, column, transfer line) to a single earth point using 12-gauge copper wire–differential grounding induces baseline drift (>0.5 mVpp) and ghost peaks. For data acquisition, set acquisition rates proportional to peak width: 20 Hz for 1-second peaks, 5 Hz for 5-second peaks. Store raw files in centroid mode for quantitative work, 5–10 scans/peak minimum; profile mode reserves only for identification via library searches.

Key Components of a GC-MS System and Their Functions

Select a high-purity carrier gas–helium or hydrogen–to minimize background noise and ensure analyte separation efficiency. Flow rates between 1–2 mL/min optimize peak resolution while preventing column overload. Pre-filter gases with molecular sieve traps to remove moisture and hydrocarbons, extending column lifespan by 30–40%.

The injector port must maintain a precisely controlled temperature (±0.5°C) to prevent thermal degradation of labile compounds. Split/splitless injectors offer flexibility: use split mode for concentrated samples (>100 ng/μL) to avoid column saturation, or splitless for trace analysis (

Capillary columns demand rigorous selection criteria: stationary phase polarity should match analyte chemistry. For example, 5% phenyl-methylpolysiloxane excels with hydrocarbons, while polyethylene glycol suits alcohols and acids. Column length (15–60 m) balances resolution and run time–longer columns improve separation but increase analysis time by 2–3x. Maintain constant pressure using electronic pressure control (EPC) to stabilize retention times across batches.

The mass spectrometer’s ion source must be tuned weekly to sustain sensitivity. Electron ionization (EI) at 70 eV provides reproducible fragmentation patterns, essential for library matching (e.g., NIST). Chemical ionization (CI) preserves molecular ions for unstable compounds, improving detection limits by 5–10x. Clean the source monthly to prevent signal suppression from accumulated contaminants like column bleed.

Quadrupole mass analyzers require consistent calibration with perfluorotributylamine (PFTBA) to ensure mass accuracy within ±0.1 Da. For targeted analysis, use selected ion monitoring (SIM) to enhance sensitivity by 100x over full-scan mode. Time-of-flight (TOF) analyzers excel for complex mixtures, offering resolution >50,000 FWHM, but demand temperature-stabilized (±0.01°C) environments to prevent drift.

Vacuum systems must reach

Data acquisition software should incorporate automated peak integration with baseline correction to reduce human error. Set scan rates at 5–10 scans/sec for narrow peaks (

Detectors like electron multipliers degrade with exposure–replace dynodes when gain drops below 10⁴ to restore sensitivity. Microchannel plate (MCP) detectors offer faster response times but require shielding from magnetic fields (>5 Gauss), which distort ion trajectories. For quantitative work, use multiple reaction monitoring (MRM) on triple quadrupole systems to eliminate matrix interferences, achieving detection limits below 1 fg/μL.

How to Interpret a GC-MS Flow Path Diagram

Begin by identifying the carrier gas inlet–typically marked as He, H₂, or N₂–and trace its path to the injector port. Note pressure regulators, filters, and split/splitless valves; their symbols (e.g., dashed lines for split flow, arrows for backpressure) reveal operating modes. For example, a 30 m × 0.25 mm ID capillary column should connect directly to the injector, while a pre-column or guard column may appear as a shorter segment upstream.

Key Components to Decode

Locate the ion source (EI or CI)–usually a box labeled with filament voltage (70 eV for EI) and annotated with electron trajectory paths. The quadrupole or ion trap follows, schematic symbols often resembling parallel rods or a circular array. Check for interface heating zones (≥250°C) between the column exit and mass analyzer; these prevent condensation of high-boiling analytes. Verify detector placement (e.g., electron multiplier) and any post-column vents or divert valves, which route unwanted solvent peaks away from the MS.

Cross-reference symbols with instrument manuals: triple-union crosses denote flow restrictors, T-junctions indicate split points, and colored lines (red/hot, blue/cold) map temperature gradients. For method validation, confirm that the GC oven’s temperature ramp (50°C to 300°C at 15°C/min) aligns with the column’s thermal limits and that pressure units (psi, bar, Pa) are consistent. Misinterpreted split ratios (e.g., 1:50 vs. 1:100) can skew peak resolution by orders of magnitude.

Step-by-Step Assembly of a Simplified GC-MS Flow Layout

Begin by securing a high-purity helium or hydrogen carrier gas source at a regulated pressure of 30–50 psi. Connect the gas cylinder to a moisture trap (e.g., molecular sieve 3Å) followed by an oxygen trap (copper-based) using 1/16″ stainless steel tubing. Ensure all fittings are VCR or Swagelok with graphite ferrules to prevent leaks–leak-test each joint with snoop solution or an electronic leak detector. The carrier gas line should then split into two paths: one leading to the injector port (250–300°C) and the other to the mass spectrometer via a makeup gas adapter if using splitless injection.

Assemble the capillary column (e.g., DB-5ms, 30m × 0.25mm × 0.25μm) inside a temperature-programmable oven, securing both ends with graphite or vespel ferrules. Connect the inlet side to the split/splitless injector using a zero-dead-volume union; the outlet should terminate at the MS ion source via a deactivated fused silica transfer line (heated to 280°C to prevent condensation). Use a restrictor (e.g., 0.1mm ID uncoated capillary) between the column and MS if vacuum compensation is required. Set oven parameters as follows:

Stage	Temperature (°C)	Ramp Rate (°C/min)	Hold Time (min)
Initial	50	–	2
Ramp 1	200	10	0
Ramp 2	300	25	5

Connect the MS detector (quadrupole or TOF) to the transfer line outlet, ensuring the ion source is aligned with the column effluent path. Apply 10–70 eV electron ionization and set the mass analyzer to scan m/z 35–500 with a dwell time of 50ms/amu. Configure the vacuum system: the turbo pump (e.g., 60 L/s) should achieve <1e-5 Torr, with the rough pump (e.g., rotary vane) maintaining <0.1 Torr at the foreline. Calibrate the system using PFTBA (perfluorotributylamine) daily–adjust the filament emission current (typically 35–100 μA) until the m/z 69 ion reaches 50–60% relative abundance. For liquid samples, use a 1μL syringe with a 26-gauge needle to inject into the splitless injector (purge valve closed for 0.5–1.0 min post-injection).
