How to Build a Simple LED Circuit Step-by-Step Guide
Start with a current-limiting resistor–never connect a light-emitting component directly to a power supply. A 220Ω to 1kΩ resistor works for most standard 5mm indicators; adjust based on voltage and forward current specs. For a 3V source, 330Ω is optimal; for 5V, 470Ω suffices. Check the datasheet: a typical low-power element draws 20mA, but high-efficiency variants may need only 2–5mA.
Polarity matters–reverse connection yields no illumination. Identify the anode (longer leg) and cathode (shorter leg with flat side on the housing). Mark the cathode with a dot or cut the leg shorter for quick identification in assembled units. Use a multimeter in diode test mode to verify; forward voltage typically reads 1.8V–3.3V depending on color and composition.
Power supply selection: avoid unregulated adapters–voltage spikes degrade performance. A linear regulator (LM7805) ensures stable 5V; for battery-powered setups, a single AA cell (1.5V) works with low-forward-voltage types like infrared emitters. For logic-level signals, pair with a transistor (2N2222) to handle higher currents without overloading controller pins. Connect ground first, then active lines to prevent accidental shorts.
Test configurations on a breadboard before soldering. Use a 9V battery with a 1kΩ resistor for rapid prototyping–brightness indicates correct polarity. For series arrays, sum forward voltages; for parallel, ensure matched elements to prevent current imbalance. Add a bypass capacitor (0.1µF) near the power input to filter noise, especially in pulse-width modulated applications.
Assembling a Simple Light-Emitting Component Setup
Select a resistor with a value between 220Ω and 470Ω for a typical 5V power supply to prevent the semiconductor from drawing excessive current and burning out. Match the resistor’s power rating to the expected load–1/4W is sufficient for most low-power applications, but upgrade to 1/2W if driving multiple components in series.
Orient the glowing element correctly: the anode (longer leg) connects to the positive side of the power source, while the cathode (shorter leg) links to the resistor or ground. Reversing this polarity will block current flow and render the setup nonfunctional.
Test continuity and voltage drop before finalizing connections. A forward voltage of 1.8V–3.3V (depending on color–red: ~1.8V; blue/white: ~3.3V) should register across the component when powered. Measure at the resistor’s leads to confirm the remaining voltage aligns with Ohm’s Law calculations.
Troubleshooting Common Pitfalls
Avoid breadboard-related faults by ensuring jumper wires clamp into sockets fully–loose connections create intermittent failures. If the element fails to illuminate, swap the component or verify resistor values with a multimeter; even small deviations (±5%) can disrupt performance.
For paralled arrangements, calculate total current draw to prevent power supply overload. A single 5mm device draws ~20mA, so a 500mA power source can safely drive up to 25 components in parallel, assuming uniform voltage distribution.
Encapsulate soldered joints with heat-shrink tubing or electrical tape to prevent short circuits from stray wires. Exposed leads corrode quickly and may cause voltage leaks, especially in humid environments.
Scaling the Design
For high-brightness applications, replace the series resistor with a constant-current driver (e.g., LM317). Set the driver’s output to 20mA using a 62Ω resistor between ADJ and OUT pins; this maintains consistent luminance across temperature fluctuations.
How to Select the Optimal Current-Limiting Component for Your Light-Emitting Semiconductor
Start by determining the forward voltage (Vf) of your semiconductor from its datasheet–this value varies widely between colors and material compositions. Common silicon-doped devices show 1.8–2.2 V for red, 3.0–3.4 V for blue, and up to 3.6 V for white variations. Use a multimeter in diode-test mode if datasheet values are unavailable.
Identify the target current (If) based on brightness and longevity requirements. Standard low-power indicators typically operate at 5–20 mA, while high-intensity emitters may need 50–100 mA. Exceeding the maximum continuous current rating will degrade performance and shorten lifespan disproportionately.
Conversion Factors for Rapid Estimation
| Color | Typical Vf (V) | Current Range (mA) | Suggested Resistor Power (mW) |
|---|---|---|---|
| Red/Amber | 1.8–2.2 | 5–25 | 1/8–1/4 |
| Green/Yellow | 2.0–2.4 | 10–30 | 1/4–1/2 |
| Blue/White | 3.0–3.6 | 15–50 | 1/2–1 |
Calculate the required resistance using Ohm’s law: R = (Vs – Vf) / If. For a 12 V source driving a 2.1 V emitter at 15 mA, R = (12 – 2.1) / 0.015 = 660 Ω. Round up to the nearest standard value (680 Ω) to ensure current doesn’t exceed specifications.
Account for supply voltage fluctuations by selecting a resistor with a tolerance of 1% for precision applications or 5% for general use. Use thick-film or metal-film resistors for high-frequency or low-noise environments; carbon-film types suffice for static indicators. Verify power dissipation: (Vs – Vf) × If should not exceed the resistor’s rating–upgrade to a higher-wattage component if calculations approach limits.
For pulsed or multiplexed applications, choose resistors with a low temperature coefficient (
Common Pitfalls to Avoid
- Ignoring Vf temperature dependence–cold environments increase Vf by ~2 mV/°C, altering current if unaccounted for.
- Parallel emitter strings require individual resistors to prevent current hogging.
- Series-connected emitters sum Vf values before resistor calculation.
- Bypass resistors with ceramic capacitors (10–100 nF) in fast-switching designs to suppress voltage spikes.
Test the configuration with a current meter before permanent installation. Adjust resistance incrementally if the emitter appears dim or overly bright–visible spectrum devices often reveal performance nuances through direct observation more reliably than electrical measurements alone.
Step-by-Step Wiring of a Single Illumination Source with a Power Cell

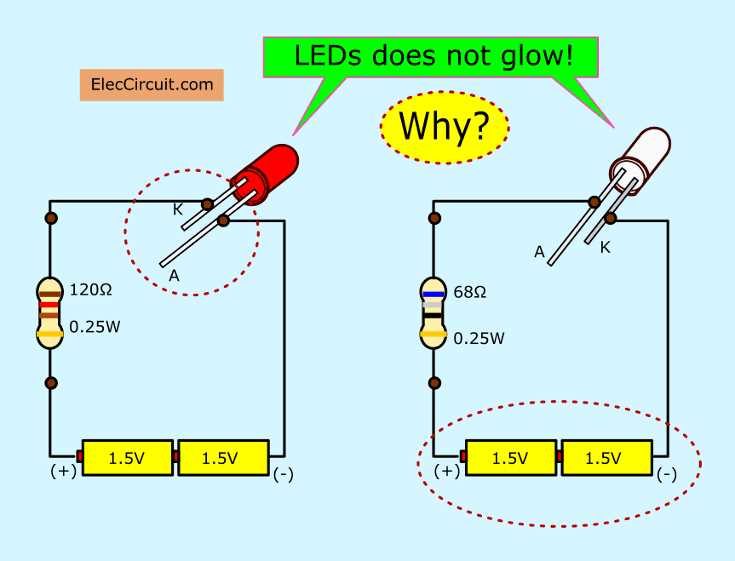

Select a 5mm or 3mm indicator with a forward voltage of 1.8–3.3V and a current rating of 20mA. Pair it with a AA or AAA alkaline cell (1.5V) or a CR2032 lithium cell (3V), ensuring the voltage exceeds the component’s forward voltage by 0.2–0.5V. Calculate the series resistor using R = (Vpower – Vindicator) / Irated. For a 3V cell and 2V indicator at 20mA, use R = (3V – 2V) / 0.02A = 50Ω. Round up to the nearest standard value (e.g., 56Ω) to avoid exceeding the current limit. Double-check polarity: the cathode (shorter leg) connects to the negative terminal, the anode (longer leg) to the positive via the resistor.
- Cut a 10cm length of 22-gauge solid wire for connections.
- Use a multimeter to verify the resistor’s value before insertion.
- Solder joints at 300°C for ≤2 seconds to prevent heat damage to the semiconductor.
- Test continuity with the multimeter in diode mode: a lit path confirms correct polarity.
- Avoid reversing polarity; it risks permanent failure of the component.
- For prolonged use, substitute a 1.5V AA cell with a rechargeable NiMH (1.2V) and recalculate resistor values for
I = 15mA.
Common Mistakes When Wiring Multiple Light Sources in Series
Ignoring voltage drop across each emitter leads to dim or non-functional segments. A single 3mm indicator typically requires 2.0–2.2V forward voltage; connecting five in series demands at least 11V from the supply. Omitting this calculation guarantees some components will fail to illuminate, especially with lower input voltages or batteries nearing depletion.
Overloading the driver by neglecting current requirements causes premature burnout. Even if the supply can deliver sufficient voltage, exceeding the constant current limit of 20mA for most small emitters generates excess heat, degrading performance within hours. Use a multimeter to verify steady-state current before finalizing connections.
Skipping resistor calculations creates unpredictable brightness disparities. Without a series resistor, minor variations in forward voltage–even 0.1V–cause uneven lighting, with some elements glowing brighter or dimmer. Always determine resistance using Ohm’s Law: *R = (Supply Voltage – Total Forward Voltage) / Desired Current*, rounding up to the nearest standard value.
Mixing emitter types compounds errors. Combining low-power and high-power elements in the same string forces inconsistent current flow, as their voltage thresholds differ significantly. Stick to identical models or separate strings with dedicated current limiting for each type.
Failing to account for temperature effects introduces long-term instability. Forward voltage decreases as temperature rises, altering current through the string. In outdoor or enclosed applications, thermal fluctuations can shift characteristics enough to extinguish weaker segments. Test configurations across expected temperature ranges before deployment.
Disregarding polarity during assembly renders the entire string non-operational. Reversing even one emitter breaks continuity, as series chains depend on correct anode-to-cathode sequencing. Mark terminals with a permanent marker or use color-coded wires to prevent misalignment during soldering or breadboarding.
Calculating Energy Use in Light-Emitting Component Setups
Measure the forward voltage (Vf) and current (If) of your semiconductor radiator using a multimeter–these values define power draw directly. Multiply both figures (Vf × If) to obtain wattage per unit; for arrays, sum identical emitters’ consumption. Example: a 3V solid-state light source at 20mA consumes 60mW–scaling to 10 lamps yields 600mW total dissipation. Always verify datasheet specs, as real-world readings may deviate ±5–10% from nominal.
- Low-power emitters (e.g., 5mm packages): 2–20mA, 1.8–3.3Vf
- High-brightness variants (e.g., 1W+ modules): 350mA–2A, 2.8–4.2Vf
- Pulse-width modulation (PWM) dimming: Average current drops proportionally–calculate RMS values for accuracy
Adjusting for Series-Parallel Configurations
In serial chains, sum forward voltages while current remains constant–for three 2.1V diodes at 15mA, total voltage equals 6.3V (3 × 2.1V), power dissipation 94.5mW. Parallel branches distribute current; divide total amperage by branch count. Example: dual parallel 20mA paths with 3.2Vf each consume 128mW (3.2V × 40mA). Include 5–10% overhead for wiring loss and driver inefficiencies when sizing power supplies–undersized adapters risk thermal runaway or flickering. Resistance-based circuits require Ohm’s law recalibration: R = (Vsource − Vf) / Itarget–balancing precision avoids inefficient power burning.
