Simple Power Supply Circuit Design and Diagram Guide
Start with a linear regulator circuit for low-noise applications demanding under 5W output. Use a transformer rated at 120VAC input with a 12V secondary winding, followed by a bridge rectifier (KBPC2510 or equivalent) to convert AC to pulsating DC. Add a filter capacitor (minimum 1000µF, 25V) immediately after the rectifier to smooth voltage ripples–calculate capacitance using C = I_load / (2 × f × V_pp), where f is the ripple frequency (100Hz for full-wave) and V_pp is the acceptable peak-to-peak ripple (typically 0.5V).

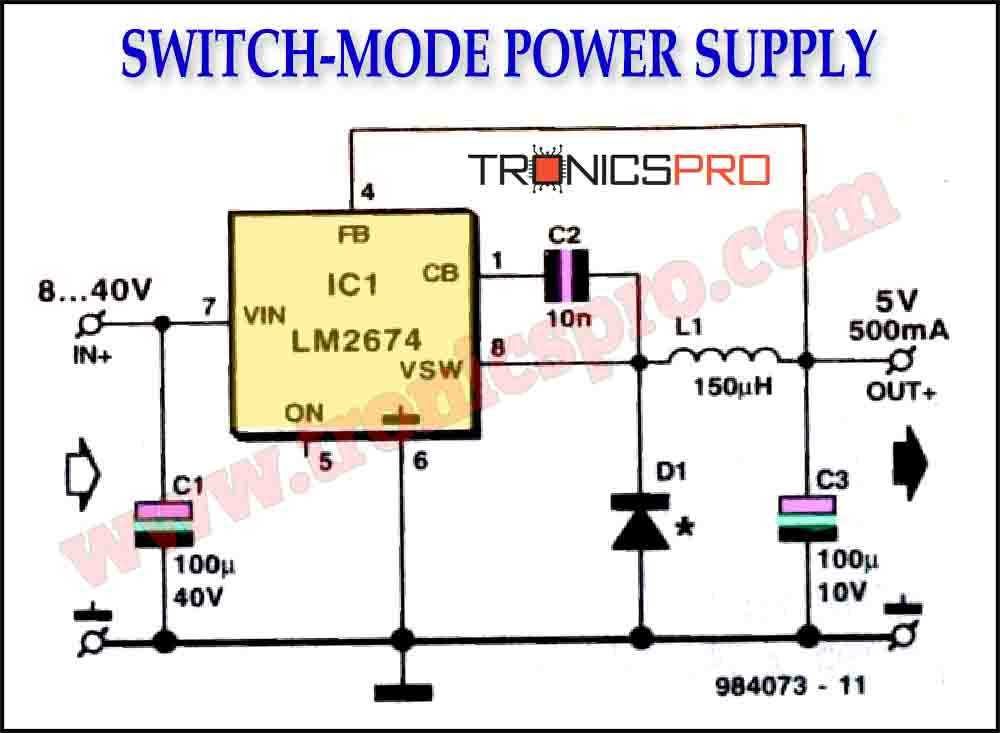

For higher efficiency in 5–50W applications, replace the linear stage with a buck converter. Use an integrated switching regulator (e.g., LM2596) with an inductor (68µH for 1A output) and a Schottky diode (1N5822) to minimize switching losses. Place a feedback loop with a 10kΩ resistor and 1.24kΩ trimpot to adjust output voltage. Verify stability with a 0.01µF ceramic capacitor across the feedback divider to suppress high-frequency noise.
Include overload protection by adding a fuse (500mA slow-blow) on the AC input and a polyfuse (e.g., PTC resettable fuse) on the DC output. For transient suppression, use a varistor (14D471K) across the transformer primary to clamp voltage spikes exceeding 350V. Ground the circuit at a single point near the output capacitor to prevent ground loops, and route high-current traces (>1A) with at least 2oz copper thickness.
Test the assembled layout with an oscilloscope to measure ripple (<50mV at full load) and a multimeter to confirm voltage regulation (±2% tolerance). If output drifts, replace the filter capacitor or recalculate ESR values–electrolytic caps degrade with time, causing increased ripple. For adjustable outputs, use a precision reference IC (e.g., TL431) instead of resistor dividers to maintain accuracy across temperature variations.
Designing a Reliable Electrical Conversion Circuit
Select a transformer with a secondary winding rated 20-30% above your target voltage to account for diode drops and component tolerances. For example, if your load requires 12V, choose a 15V AC transformer to ensure stable rectification. Verify the transformer’s current rating matches or exceeds the maximum load demand–undersized units overheat and degrade capacitor lifespan.
Bridge rectifiers simplify AC-to-DC conversion by eliminating the need for center-tapped transformers while reducing ripple voltage. Install a 1N4007 diode configuration for currents up to 1A; use Schottky diodes (e.g., 1N5822) for high-frequency applications due to their lower forward voltage drop (~0.2V vs. 0.7V). Ensure the diodes’ peak reverse voltage exceeds twice the AC input peak to prevent breakdown.
Filter capacitors smooth rectified voltage; their value determines ripple magnitude. The formula C = I_load / (2 × f × V_ripple) calculates minimum capacitance, where f is mains frequency (50/60Hz), I_load is maximum current, and V_ripple is acceptable ripple (typically ≤1V for digital circuits). Electrolytic capacitors (e.g., 2200µF 25V) suit most designs, but film types (polypropylene) offer better performance in noise-sensitive loads.
Add a linear regulator (e.g., LM7805) for fixed 5V outputs or LM317 for adjustable ranges–these reject ripple but waste energy as heat. For efficiency, switch-mode ICs (e.g., LM2596) handle wider input ranges (4.5-40V) with 90%+ efficiency, requiring an inductor (100µH) and faster diodes (e.g., 1N4148). Ground planes reduce noise; decouple regulator inputs/outputs with 0.1µF ceramic capacitors placed within 1cm of the device.
Test under full load with an oscilloscope: ripple should not exceed 100mVpp, and transient response should stabilize within 50ms. Over-current protection (e.g., fuse or resettable PTC) prevents fire hazards–size it at 150% of maximum expected current. Thermal management dictates reliability; ensure regulators and transistors have heatsinks with θJA
Key Components of a Linear Regulation Circuit
Select a transformer with a secondary voltage rating 1.5–2× higher than the target DC output to accommodate voltage drops across rectifiers and regulators. For a 12V output, use an 18–24VAC transformer; margins below 1.3× risk insufficient headroom during load transients. Toroidal designs minimize EMI and reduce core losses by 15–20% compared to EI types.
Bridge rectifiers handle higher currents than center-tap configurations, eliminating the need for a secondary winding split. Use Schottky diodes (e.g., 1N5822) for outputs below 15VDC–their 0.3V forward drop improves efficiency by 3–5% over standard silicon diodes (1N4007). For 5A loads, mount diodes on a heatsink with thermal resistance below 10°C/W.
Filter capacitance determines ripple rejection. Apply C = (I_load × Δt) / ΔV, where Δt is half the AC period (8.3ms for 60Hz) and ΔV is target ripple (≤1% of output). For 1A load and 1% ripple at 12VDC, C = (1 × 0.0083) / 0.12 ≈ 69,000µF. Use low-ESR electrolytics (Nichicon LXV, Rubycon ZLH) to limit ESR-generated ripple to
| Capacitor Type | ESR (mΩ) | Ripple Current (A) | Lifetime (h @ 105°C) |
|---|---|---|---|
| Nichicon LXV | 25 | 3.5 | 5,000 |
| Rubycon ZLH | 20 | 4.2 | 8,000 |
| Panasonic FR | 30 | 2.8 | 6,000 |
Linear regulators require proper thermal management. TO-220 packages (e.g., LM7812) need a heatsink with θJA ≤ (Tj_max – Tambient) / Pdiss. For 25W dissipation at 50°C ambient, θJA ≤ (125 – 50) / 25 = 3°C/W. Apply thermal paste (e.g., Arctic MX-6) to reduce interface resistance by 20%.
Input and output decoupling capacitors stabilize regulator performance. Place a 0.33µF ceramic (X7R) within 5mm of the regulator’s input pin to suppress high-frequency noise. At the output, use a 10–100µF tantalum or polymer capacitor to improve transient response; avoid aluminum electrolytics here due to their poor high-frequency characteristics.
Foldback current limiting protects regulators from short circuits. Set the limit at 120–130% of maximum load current. For example, pair an LM317 with a 0.1Ω sense resistor (Rs) and adjust Radj to achieve cutoff at 1.1A: Ilimit = Vref / Rs × (1 + R2/R1). Test under worst-case conditions (e.g., 50°C ambient, 10% high-line input).
Step-by-Step Transformer and Rectifier Connection
Choose a toroidal transformer with a secondary winding voltage 10-15% higher than your target DC output to account for diode voltage drops and AC fluctuation margins. For example, if the required output is 12V DC, select a transformer with an 18V AC secondary rating. Verify the current handling capacity matches your load’s peak demand, adding a 30% safety factor to prevent overheating.
Solder the transformer’s secondary leads directly to the AC terminals of a bridge rectifier module, ensuring correct polarity–marked by AC symbols or ~ on the component. Alternately, use four discrete diodes (1N4007 for low-current applications) arranged in a full-wave configuration, with cathode-to-cathode connections forming the positive output and anode-to-anode links creating the negative node. Secure joints with heat-shrink tubing to prevent shorts.
Securing Stable Voltage Output
Attach a smoothing capacitor–typically 2,200µF to 4,700µF per ampere of load current–across the rectifier’s DC output terminals. For 1A loads, use a 4,700µF electrolytic capacitor, observing polarity to avoid catastrophic failure. This reduces ripple voltage to approximately 0.5V peak-to-peak for 50Hz mains; for 60Hz, increase capacitance by 20% to maintain the same ripple suppression.
Install a fast-acting fuse rated at 1.5x the transformer’s primary current on the input side of the primary winding. For a 100VA transformer (0.45A at 220V), use a 630mA fuse. This protects against overcurrent from shorted windings or rectifier failures. Add a varistor (56V for 220V mains) across the primary to clamp transient spikes exceeding 1.5kV, preventing insulation breakdown.

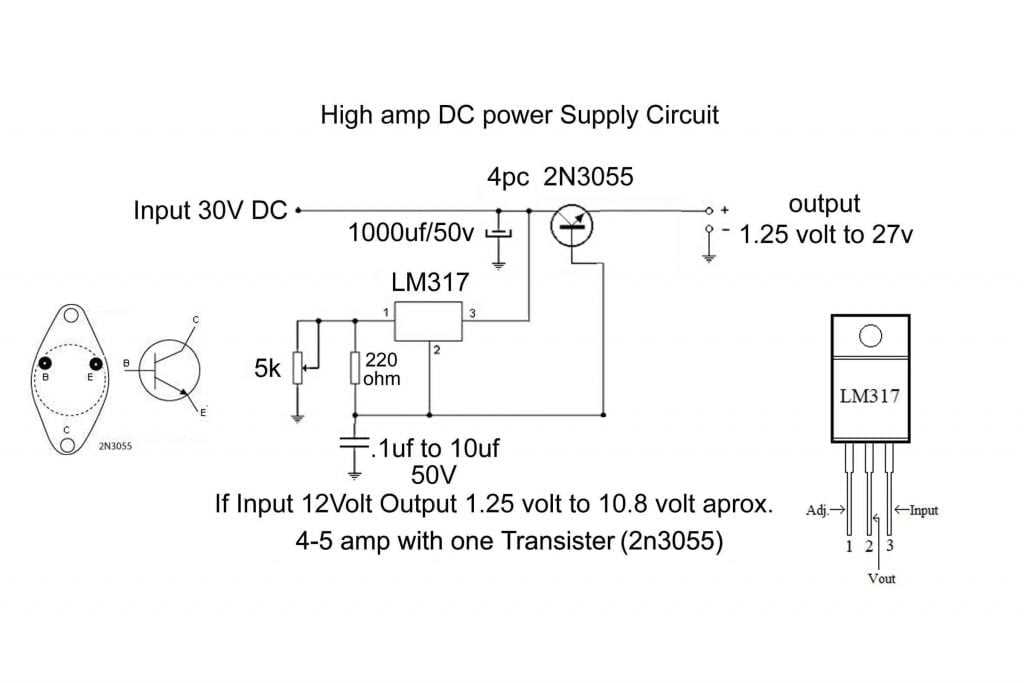

Test the assembly with an oscilloscope before connecting the load. Probe the rectifier output; expect a DC waveform with ≤1V ripple at full load. If ripple exceeds this threshold, parallel an additional capacitor or add a linear regulator downstream. For precise regulation, use an LM317 with a 240Ω resistor between the ADJ pin and output, plus a 5kΩ trimpot to set the exact voltage.
Final Checks and Load Testing
Measure the DC output under no-load and full-load conditions. A properly configured system should show ≤5% voltage drop between states. If the drop exceeds this, check for undersized transformer windings, high series resistance in connections, or insufficient capacitance. Replace the transformer if its rated VA is below 1.2x the load’s required power.
Enclose the assembly in a ventilated metal chassis, grounding the chassis to the negative DC rail. Route AC mains wiring away from DC output traces to minimize electromagnetic interference. Label all terminals clearly–”AC Input,” “DC Output,” and “Ground”–to prevent misconnection during maintenance.
Voltage Regulation with Zener Diodes and Integrated Circuits
Select a Zener diode with a breakdown rating 5–10% above the target output to compensate for load variations without excessive dissipation. For example, a 5.1V Zener paired with a 220Ω series resistor stabilizes a 5V rail under 20mA loads, dropping
Calculate the series resistor using R = (Vin – Vz) / Iload(max). A 12V source feeding a 6.2V Zener with 50mA max load requires R = (12 – 6.2) / 0.05 = 116Ω; round to 120Ω for standard values. Use 1% tolerance resistors to minimize drift.
IC regulators outperform Zener circuits in efficiency and load handling. A 7805 three-terminal IC operates at 78% efficiency with 1A loads, compared to 30–40% for a Zener-based circuit under the same conditions. For adjustable needs, LM317 tolerates ±37V inputs while maintaining 1.5% accuracy with a 1.25V reference.
- LM78xx: Fixed output (5V, 9V, 12V), max 1A, requires
- LM337: Negative rail equivalent, handles –1.25V to –37V, 1.5A capacity.

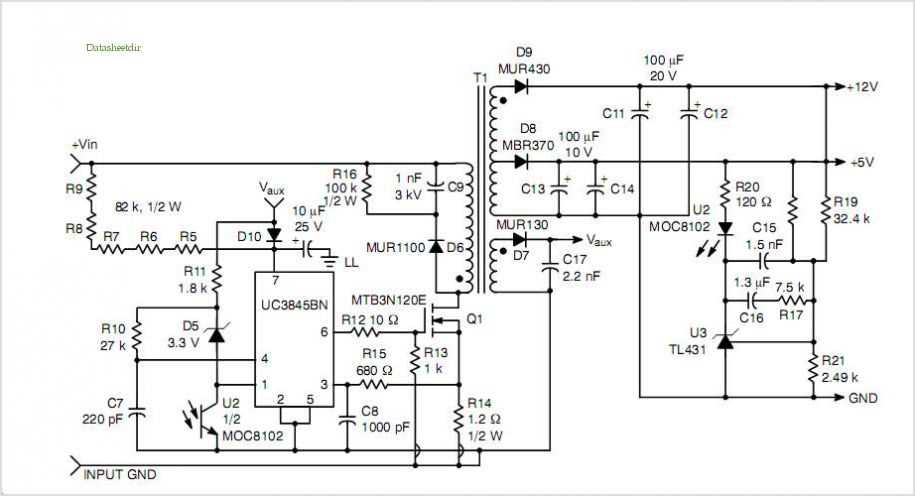

- TL431: Shunt regulator, 2.5V reference, 1–100mA, Often paired with optocouplers for isolated feedback.
Mount a 1N4744A (15V Zener) on a TO-220 heatsink if dissipation exceeds 500mW. Thermal resistance (Zener to ambient) drops from 200°C/W to
Implement overcurrent protection by adding a 0.1Ω sense resistor in series with the Zener anode. At 1A, the resistor drops 100mV, sufficient to trigger a PNP transistor (e.g., 2N3906) in common-base configuration, diverting base current from a pass transistor (TIP31C) to limit output.
For low-noise applications, combine a TL431 with a MOSFET (IRF540). The TL431 sinks 1mA from the gate, pulling it to –5V to fully enhance the MOSFET, reducing dropout to
Fault Tolerance and Component Selection
Replace small-signal Zeners (≤500mW) with avalanche-rated types (1N59xx) if input transients exceed 50V. Avalanche Zeners clamp spikes via impact ionization, surviving 200μs pulses 5× above Ptot. Verify junction capacitance; 1N4733A (5.1V) measures 150pF, unsuitable for >1MHz switching converters.
- Input voltage range: LM317 tolerates 3–40V; for 48V rails, use LT1083 (60V max).
- Quiescent current: LM7805 draws 5mA; for battery-powered circuits, choose MIC29302 (1μA IQ).
- Thermal shutdown: Most IC regulators trip at 125°C–150°C; ensure heat sinks allow
