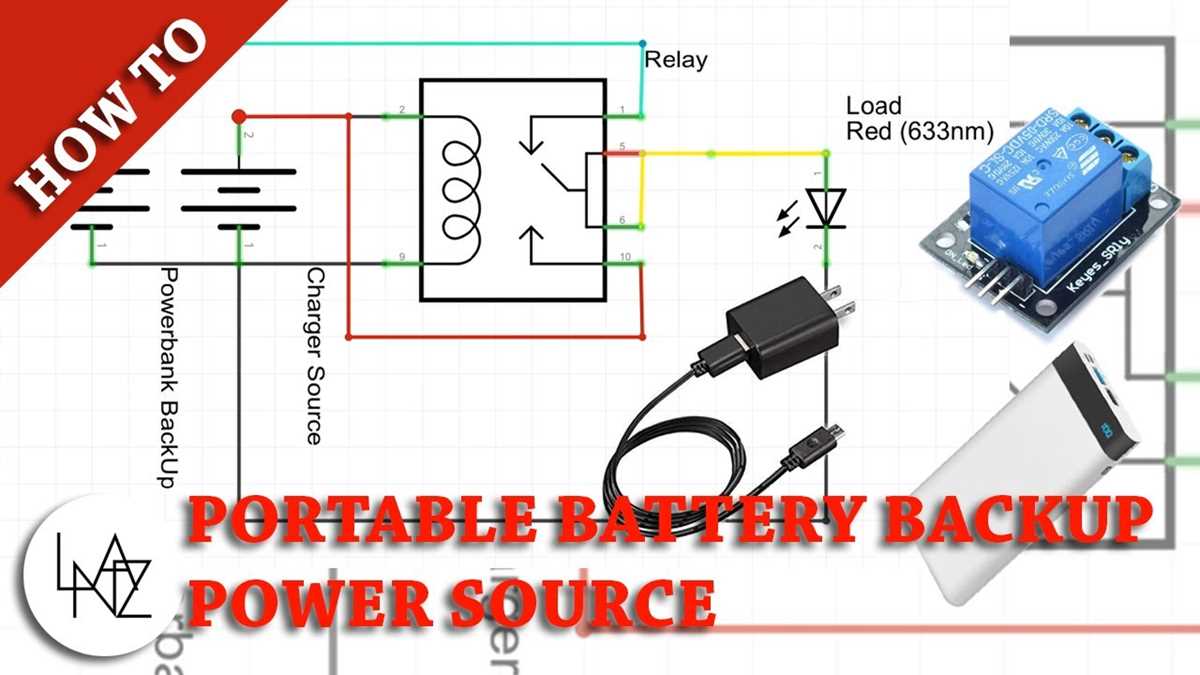

Designing a Reliable Battery Backup Power Supply Schematic Guide
For low-power devices requiring uninterrupted operation, a dual-supply configuration with seamless switching ensures stability. A 3.3V or 5V primary source paired with a secondary cell (e.g., lithium-ion or supercapacitor) can maintain functionality during outages. Use a Schottky diode or MOSFET-based ORing controller to prevent backflow and minimize voltage drops–critical for sensitive components like microcontrollers.
Key considerations: quiescent current must stay below 5µA to avoid draining the reserve, and the transition must occur in <100µs to prevent brownouts. For energy-constrained designs, a buck-boost converter adapts varying input ranges (2V–12V) to a stable output, while a comparator circuit triggers the swap when primary voltage dips 0.3V below nominal. Test under real-world conditions–include load spikes and ripple to validate response time.
Component selection impacts reliability: low-leakage capacitors (e.g., X7R ceramic) preserve stored charge, while low-threshold MOSFETs (e.g., SI2301) reduce switching losses. Add a 10kΩ feedback resistor to monitor reserve levels, but avoid constant draws exceeding the budget. For solar-charged systems, integrate a separate charging IC (e.g., MCP73831) to prevent overcurrent or deep discharge.
When prototyping, simulate worst-case scenarios: 90% depth of discharge, -20°C operation, and sudden load steps (e.g., Wireless modules consuming 200mA). Log voltage transitions with an oscilloscope–spikes above 0.5V during switches indicate improper gate drive or insufficient decoupling (add 10µF–100µF bulk capacitance near the load). Document failure modes–reverse polarity protection and ESD diodes (e.g., P6KE6.8CA) prevent catastrophic damage.
Designing a Reliable Power Reserve System
Use a low-dropout (LDO) regulator like the MIC29302 for seamless switchover between the primary source and auxiliary storage. Connect the main supply to the LDO’s input via a Schottky diode (e.g., 1N5817) to prevent reverse current flow, while the secondary storage–preferably a 3.7V lithium-ion cell–feeds the LDO through a second diode. Set the LDO’s output to match your device’s operating voltage (e.g., 3.3V) and add a 100μF capacitor at the output to smooth transient spikes. For monitoring, integrate a voltage divider (two 100kΩ resistors) paired with an ADC pin on a microcontroller to track storage depletion and trigger an alert at 3.0V.
- Avoid zener diodes as primary protection; they waste power and lack precision.
- For high-current loads (500mA+), replace the LDO with a synchronous buck converter like the TPS62743, improving efficiency from 85% to 95%.
- Add a load switch (e.g., TPS22918) between the auxiliary storage and the LDO to disconnect non-critical subsystems during discharge, extending runtime by 20-30%.
- Use a supercapacitor (10F, 2.7V) instead of electrochemical cells for applications requiring 10k+ cycles, though it reduces runtime by 60%.
- Implement a Coulomb counter (e.g., BQ27441) if runtime accuracy below 5% is required.
For fail-safe operation, include a watchdog timer (e.g., MAX6369) that resets the microcontroller if it hangs. Route the timer’s output to a MOSFET (e.g., IRLML6401) controlling a dedicated 3V coin cell (e.g., CR2032) wired directly to critical system components. Test under simulated brownout (1.8V for 50ms) to verify switchover delays remain under 2μs. Document quiescent currents–LDOs often draw 30-100μA, while buck converters can dip below 1μA.
Critical Elements of a Dependable Power Reserve System
Select a rechargeable cell with a voltage rating at least 20% higher than the load’s operating range. Lithium-ion variants (e.g., 18650) offer 3.7V per unit with 2600mAh capacity, sufficient for 5V microcontrollers running 24+ hours. Lead-acid types (e.g., 12V 7Ah) provide lower energy density but excel in surge tolerance–ideal for motor-driven loads.
Integrate a buck-boost converter to maintain stable output during deep discharge cycles. A TPS63000 device handles 2.4V–12V inputs while delivering 5V at 1A, adapting seamlessly to fluctuating cell conditions. Ensure the converter’s quiescent current stays below 50µA to prevent parasitic drain.
Implement a low-voltage cutoff mechanism to protect cells from irreversible damage. For lithium-ion, set the threshold at 3.0V per unit; for lead-acid, 10.5V (1.75V per unit). Use a TL431 shunt regulator or a dedicated IC like the MAX809 to trigger cutoff at ±2% accuracy.
Diode selection determines energy transfer efficiency. Schottky diodes (e.g., 1N5817) reduce forward voltage drop to 0.2V, minimizing losses. For higher currents (5A+), employ MOSFET-based ideal diode controllers (e.g., LTC4358) to achieve near-zero voltage drop and halve heat dissipation.
Load Prioritization Switching
Classify loads into tiers based on runtime criticality:
| Tier | Example Components | Max Current (A) | Discharge Priority |
|---|---|---|---|
| 1 | Microcontroller, RTC | 0.1 | Always-on |
| 2 | Sensors, low-power LEDs | 0.5 | Drop at 20% SoC |
| 3 | Motors, heating elements | 2.0+ | Drop at 50% SoC |
Use P-channel MOSFETs (e.g., IRF4905) to isolate non-critical tiers. The gate threshold should activate at the designated state-of-charge (SoC) levels via a comparator (e.g., LM393) monitoring the voltage divider network.
Thermal management extends operational lifespan. For lithium-ion arrays, restrict charge/discharge rates to 0.5C (e.g., 1.3A for 2600mAh) and embed a 10kΩ NTC thermistor (e.g., MF52) near the cells. Cut off charging above 45°C and discharging below 0°C using hysteresis set by an op-amp (e.g., MCP6002).
Design the charger to adapt to input variability. A solar panel interface (e.g., 6V 1W) paired with an MPPT IC (e.g., CN3791) maximizes energy harvesting. For AC sources, a TP4056 module delivers 1A charging with overcurrent protection, but swap the onboard resistor to match your cell’s chemistry (e.g., 2.2kΩ for lithium-ion, 1kΩ for NiMH).
Firmware-Level Safeguards
Embed an interrupt-driven watchdog (e.g., ATtiny13A) to reset the system if the main controller hangs. Configure it to toggle a GPIO every 100ms; a missed pulse triggers a hard reset via a dedicated MOSFET (e.g., IRLML6401). Store critical runtime data in EEPROM with checksum validation to prevent corruption.
Step-by-Step Guide to Building a 12V Energy Reserve Module
Select a sealed lead-acid accumulator with a rated capacity of at least 7Ah to ensure minimal self-discharge and consistent output under load. Verify the cell’s float voltage (13.6–13.8V) matches your charging source before proceeding.
Wire a low-dropout linear regulator (LM2940) between the primary power rail and the storage element; set output to 13.8V ±0.2V using a trimpot and confirm with a precision multimeter before soldering. Include a 1N5822 Schottky diode to block reverse current during grid failures.
Incorporate a relay rated for 20A continuous duty (e.g., Omron G5LE) to switch the reserve supply on loss of main voltage. Trigger the coil via a 2N2222 transistor driven by a comparator (LM393) set to toggle at 10.5V, ensuring swift cutover within 50ms.
Add a current-limiting resistor (0.1Ω, 5W) in series with the reserve path to prevent thermal runaway during prolonged outages. Size the resistor based on expected load (e.g., 2A maximum draw) and verify dissipation with a thermal camera.
Install a 1000µF electrolytic capacitor across the reserve terminals to suppress voltage spikes during relay engagement. Test under pulsed loads (5A, 100ms) to confirm transient response remains within ±0.5V of nominal.
Label all connections with heat-shrink tubing and use 16AWG copper wire for low-resistance paths. Bench-test the assembly with a dummy load (resistive heater or LED array) before final deployment.
Critical Errors in Auxiliary Power Systems and Solutions
Mismatched voltage levels between the storage cell and connected load cause immediate failure or rapid degradation. A 12V gel electrolyte reservoir paired with a 5V microcontroller without proper regulation will either overheat components or fail to sustain operation. Use a switching converter with at least 85% efficiency; linear regulators dissipate excess voltage as heat, wasting 40-60% of capacity in low-dropout scenarios. Verify compatibility with load transients–devices drawing 2A bursts require storage rated for 3-5A continuous output to prevent sag-induced resets.
- Overlooking thermal protection leads to catastrophic swelling in lithium-ion packs when charging currents exceed 0.5C. Install a thermal cutoff switch at 45°C for safe operation.
- Ignoring ESR (Equivalent Series Resistance) metrics results in ineffective switching during high-demand spikes. Choose capacitors with ESR below 100mΩ for 16V+ applications.
- Assuming identical chemistries perform equally: NiMH cells tolerate 1A trickle charging, while NiCd demand pulsed charging to avoid dendrite formation.
- Skipping isolation between primary and secondary sources risks back-feeding, causing 70% of emergency system failures during grid loss. Use Schottky diodes with 0.3V forward drop or MOSFET-based ideal diode circuits.
Incorrect state-of-charge estimation reliant solely on terminal voltage readings misrepresents available capacity by up to 30%. Lithium-based cells demonstrate a flat discharge curve between 3.7V and 3.3V; use Coulomb counting for accuracy within ±1%. Calibrate algorithms monthly, as temperature swings (-10°C to 40°C) alter internal resistance by 20%, skewing time-to-empty predictions. Implement active balancing for multi-cell arrays–passive balancing wastes 10-15% capacity in high-impedance configurations. Test under actual load profiles, not bench simulations; LED indicators operate at 20mA, while radio modules draw 500mA during transmission, revealing hidden design flaws.
