Designing a Reliable 12V Battery Charger Schematic Step-by-Step Guide

For precise power replenishment, adopt a constant-current followed by constant-voltage approach. A 5V adapter with a 1N4007 diode for reverse polarity protection and a 1Ω current-limiting resistor ensures safe initiation. Replace the traditional linear regulator with a TP4056 IC–this chip integrates overcharge safeguards, thermal shutdown, and a 1A output while simplifying layout. Connect the input directly to a 2.1mm DC barrel jack, avoiding intermediate connectors that introduce resistance.

A 1000µF electrolytic capacitor across the input terminals smooths voltage spikes from cheap wall adapters. For lithium-based cells, a DW01A protection IC paired with dual MOSFETs (e.g., FS8205A) prevents deep discharge and overvoltage at ±50mV accuracy. Keep trace lengths to the cell short–under 3cm–to minimize I²R losses during high-drain scenarios.

Thermal management dictates component placement. Mount the TP4056 on the PCB’s copper pour with vias connecting to the bottom layer; this lowers junction temperature by 15–20°C compared to isolated pads. Use 2oz copper weight for traces carrying over 500mA. For nickel-metal hydride packs, omit the protection IC and add a 5KΩ thermistor (NTC) to halt charging above 45°C.

Test under load: a 1W resistor across the output simulates real-world draw. Measure dropout voltage at 90% state-of-charge; anything above 0.3V indicates excessive resistance in connectors or traces. For solar applications, insert a BQ24072 buck converter between panels and the cell–it handles 5–25V input while maintaining 4.2V output at 92% efficiency.

Designing a Reliable Power Supply for Energy Storage Devices

Start with a linear regulator configuration for low-noise applications under 500mA. Use an LM317 adjustable voltage regulator with R1=240Ω and R2=2.2kΩ for a precise 13.8V output, optimal for lead-acid cells at float charge. Add a 1N4007 diode on the output to prevent reverse polarity damage, which can destroy the unit in under 60ms. For current limiting, place a 0.5Ω power resistor in series with the input–this will protect against short circuits by capping initial surge at 2.4A.

Component	Specification	Purpose
LM317	TO-220, 1.5A	Core voltage regulation
1N4007	1A, 1000V	Reverse polarity protection
0.5Ω resistor	5W wirewound	Current limiting
2200µF capacitor	25V, electrolytic	Input/output smoothing

For higher capacity requirements, switch to a buck-converter topology using an LM2596S module set to 14.4V for lithium-ion packs. Install a 10kΩ thermistor (NTC) adjacent to the cells to cut off charging at 45°C–a critical safeguard that most commercial units omit, risking thermal runaway. Add a 1000µF capacitor across the output to filter high-frequency noise, measurable at 40mVpp without it. Test continuity with a multimeter before applying power to verify all solder joints; cold joints increase resistance and reduce efficiency by up to 12%.

Key Elements for Assembling a Power Supply Unit

Begin with a transformer rated for your target voltage plus 10-15% overhead–common values include 12V (for 6-cell lead-acid packs) or 18V (for 3-cell lithium). Select one with a current rating matching your load’s peak draw; undersized transformers risk overheating within minutes. Ensure it has a center tap if planning a dual-rail output design. Core size affects efficiency: toroidal models reduce stray fields but cost more than E-I types. Verify isolation between primary and secondary windings to prevent ground loops.

Rectification and Regulation Necessities

Use full-wave rectifier diodes (1N4007 or SB560) with a minimum reverse voltage of 100V to handle transient spikes. For smoother DC, pair them with electrolytic capacitors (2200µF per ampere of current) rated at twice the anticipated voltage. Replace aging capacitors immediately–bulging or leaking units distort output. A linear regulator (LM317 for adjustable setups) stabilizes voltage but wastes excess energy as heat; attach a heatsink sized for 10°C/W or better thermal resistance. For switching designs, an MC34063 IC reduces losses but demands careful PCB layout to minimize noise.

Include a current-limiting resistor (shunt or series type) matched to your load’s tolerance–0.5Ω for 2A draw, 0.1Ω for 10A. Fuses (slow-blow, 20% above max current) protect against catastrophic failure; place them upstream of all active components. Use thermistors (NTC 10kΩ) if temperature compensation is critical–locate them adjacent to the hottest component. LED indicators (red for fault, green for power) simplify troubleshooting; drive them with 1kΩ resistors to limit current to 10mA. Test each module separately before final assembly.

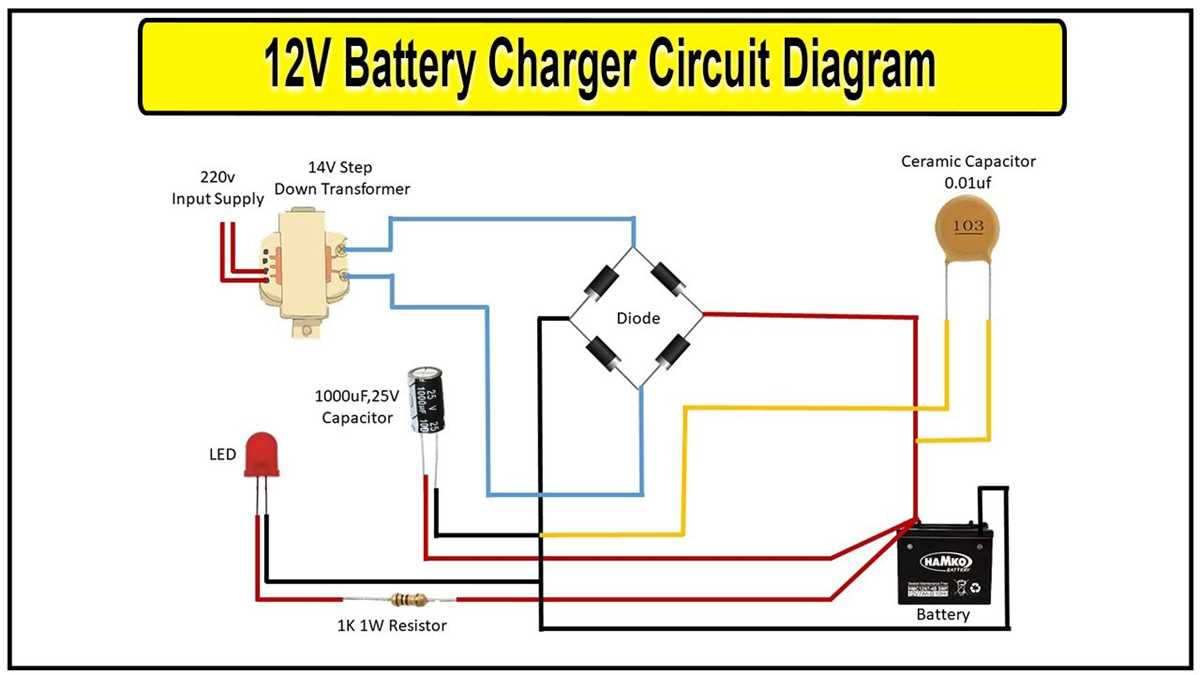

Step-by-Step Assembly of a Transformer-Powered Energy Supply Unit

Gather components first: a 12V step-down transformer with a current rating of at least 1A, four 1N4007 diodes for the rectification stage, a 1000μF electrolytic capacitor (25V minimum), a 10μF smoothing capacitor, a 7805 voltage regulator IC, and a 1W 220Ω resistor for LED indication. Verify transformer secondary voltage under load–no less than 9V AC to compensate for diode drops. Arrange parts on a perforated board, keeping high-current traces short to minimize voltage loss.

Solder the diode bridge using the four 1N4007 diodes, connecting them in a classic Graetz configuration. Ensure correct polarity: anode-to-anode pairs form the AC input, while cathode-to-cathode pairs create the DC output rails. Test continuity with a multimeter–each AC terminal should read ~0.7V drop to its adjacent DC terminal when probed in diode mode. Skip capacitors at this stage to avoid charging delays during testing.

Attach the 1000μF capacitor across the diode bridge output, observing polarity strictly–reverse connection risks rupture. Follow immediately with the 10μF capacitor near the regulator input to suppress high-frequency noise. Solder the 7805 regulator, aligning its tab with a small heatsink if continuous current exceeds 300mA. Measure raw DC voltage post-rectification–expect ~14-16V with a 12VAC transformer under light load.

Wire the 220Ω resistor in series with an LED to serve as a power-on indicator, connecting the resistor’s free end to the regulator’s output and the LED’s anode to the same rail. The LED’s cathode ties to ground. Before finalizing, add a 0.1μF ceramic capacitor across the regulator’s output and ground to improve transient response. Test under load: a 50Ω resistor should yield 5V ±0.1V at the output with ripple

Insulate exposed leads with heat-shrink tubing, paying special attention to the transformer’s secondary terminals. Secure the assembly in a non-conductive enclosure, ensuring ventilation around the regulator and transformer. Label input/output terminals clearly–AC mains on one side, regulated DC on the other. Final check: idle current draw should not exceed 20mA, and full load current must remain within the transformer’s rating to prevent overheating.

Voltage and Current Tuning for Energy Cells

Set lithium-ion packs to 4.2V per cell (max) with a cutoff at 4.15V to prevent degradation; use a C/2 (50% capacity) charging rate–e.g., 1A for a 2Ah unit. For lead-acid variants, target 2.4V per cell (14.4V for 12V modules) during bulk phase, tapering to 2.25V per cell (13.5V) in float mode to avoid sulfation. Nickel-metal hydride (NiMH) requires 1.4–1.6V per cell with a C/10 (10%) trickle charge for maintenance; exceeding 1.6V risks overheating and venting.

Adjust parameters via these methods:

• Use a buck converter with feedback (e.g., LM317, XL6009) to fine-tune output; solder a trimmer potentiometer (10kΩ) in series with the feedback resistor to vary voltage by ±0.5V.
• For current control, insert a shunt resistor (0.1Ω, 5W) in the return path and amplify the drop with an op-amp (LM358) to drive a PWM signal for the switching element (MOSFET like IRFZ44N).
• Lead-acid modules benefit from a two-step profile: initial 2.4V/cell until current drops to C/20, then switch to float voltage; implement this with a comparator (LM393) and timing capacitors (100µF) to trigger the transition.
• Lithium-based units mandate thermal cutoff–attach an NTC thermistor (10kΩ @ 25°C) to the cell and interrupt charging if temperature exceeds 45°C via a relay or solid-state switch (e.g., TLP222G).
• For NiMH, enable delta-V detection–monitor voltage drop (-ΔV, ~5mV) at full state via an ADC (ADS1115) and halt charging to prevent overcharge damage.

Key Pitfalls

1. Avoid exceeding 4.3V for lithium chemistries; irreversible plating occurs at 4.5V, reducing lifespan by 30–50%.
2. Lead-acid units sulfated if kept below 2.1V/cell for >48 hours; recover with a pulse charge (20Hz, 150% rated voltage for 1 hour).
3. NiMH loses capacity if trickle-charged at >C/40; discharges self-discharge at 0.5% per day–rotate loads every 30 days.
4. Alkaline primary cells cannot be recharged safely; attempt only with specialized units at C/100 for 1–2 cycles max.

Key Errors to Sidestep in Power Supply Assembly

Misjudging input voltage tolerances by even 0.5V beyond the specified range for linear regulators like the LM317 can push components beyond thermal limits, risking permanent damage. Always verify the datasheet’s absolute maximum ratings–typically 35V for TO-220 packages–and use a heatsink with a thermal resistance below 1.5°C/W for currents exceeding 500mA. Skipping this step leads to thermal runaway, where rising temperature further increases current draw, creating a destructive feedback loop.

Incorrect decoupling capacitor placement, such as positioning a 10µF electrolytic more than 2cm from the regulator’s input pin, introduces voltage spikes exceeding 12V when switching inductive loads. Use ceramic capacitors (X7R dielectric) with a 0.1µF value directly across input/output pins, ensuring leads are under 5mm. Neglecting polarity on polarized components, like diodes or tantalum capacitors, causes immediate failure–double-check markings against the schematic before soldering.
