Designing a Reliable Battery Charger PCB Step-by-Step Circuit Guide

For a 3.7V lithium-ion energy storage cell, integrate an MCP73831 linear regulator with a 4.2V cutoff threshold. Ensure the input voltage remains below 6V to prevent thermal overload–this IC dissipates excess power as heat. Add a 10kΩ NTC thermistor adjacent to the cell’s positive terminal to monitor temperature; the MCP73831 disables output if the thermistor reads above 45°C. Route traces for both the IC’s PROG pin and thermistor connection at least 2mm wide to handle transient currents.

Avoid relying solely on the IC’s internal 5% tolerance by pairing it with a 3.0mm polyfuse rated for 1A on the input line. Position the fuse 3cm from the power source to interrupt short-circuit currents before they reach the regulator. For reverse polarity protection, place a 1N5817 Schottky diode on the input line, cathode-facing the regulator–expect a 0.3V drop, but this preserves the downstream components.

Use a 22μF X5R ceramic capacitor (0805 package) on both input and output sides of the regulator to suppress voltage spikes. For the output, add a 10μF tantalum capacitor with a 6.3V rating to stabilize load transients. If the module feeds a microcontroller, route the regulated line through a 2.2μH inductor to filter high-frequency noise, keeping the inductor’s DC resistance below 0.1Ω.

For visual feedback, embed a 1kΩ current-limiting resistor in series with a green 0805 LED connected to the MCP73831’s STAT pin. The LED should illuminate when charging is active and turn off at full capacity. If the application requires USB-C compatibility, attach a TPS25750 controller upstream of the regulator, configuring it for 5V/1.5A output via I²C resistors set to 5.1kΩ on the CC lines.

Ground planes must be uninterrupted; use 1-ounce copper pours for the main power rails and a separate thermal pad under the MCP73831’s exposed pad, vias spaced at 1.27mm centers. Test the assembly with a programmable electronic load, verifying the 4.20±0.05V cutoff and 200mA trickle charge behavior when the cell voltage falls below 3.0V. Log temperature rise over 30 minutes at full 500mA input–it should stabilize below 60°C with a 25mm² copper heatsink on the IC.

Designing a Power Supply Module for Energy Cells

Select a linear regulator like the MCP73831 for single-cell Li-ion units requiring precise voltage control. Set the output to 4.2V ±1% with a current limit of 500mA to prevent thermal runaway during prolonged absorption phases. Include a 0.1µF input capacitor and a 4.7µF output capacitor to stabilize transient responses.

For multi-cell configurations, integrate the BQ24610 buck converter with synchronous rectification. Configure it for 5A output, switching at 500kHz to balance efficiency and ripple suppression. Use a 10µF ceramic capacitor on VIN and a 22µF low-ESR tantalum cap on VOUT; these values minimize voltage sag under dynamic loads.

Critical Component Placement

Position the inductor within 5mm of the converter IC to reduce parasitic inductance. Place input and output capacitors as close to the power path traces as possible–ideally, less than 2mm from the IC pins. Route ground returns through a dedicated star topology to prevent ground bounce, which distorts feedback signals.

Thermal vias under the IC’s exposed pad enhance heat dissipation. Use four 0.3mm vias with 1oz copper plating; this lowers junction temperatures by ~15°C under full load compared to pad-only designs. Add a 10°C/W heatsink if ambient exceeds 50°C.

Implement a 10kΩ pull-up resistor on the enable pin to ensure the module starts within 2ms of power application. For fail-safe operation, include a 1kΩ resistor in series with the feedback node to guard against output short circuits–this limits fault current to 4.2mA.

Protection and Diagnostics

Integrate a 250mΩ current-sense resistor and an INA219 amplifier for real-time load monitoring. Configure the amplifier with a 100V/V gain to achieve 1mV/mA resolution; this ensures ±0.5% accuracy across 0–5A. Add a 100ms software filter to reject switching noise.

Use a silicon-controlled rectifier (SCR) like the MCR100-6 for overvoltage protection. Trigger it at 4.3V with a 10kΩ resistor and 1µF capacitor to form a 10ms delay, preventing false trips during transients. For reverse-polarity safeguards, insert a P-channel MOSFET (e.g., DMP2104LP-7) with its gate driven by a voltage divider–this clamps input at -0.3V, shunting fault currents from sensitive components.

Add an LED driven by a 470Ω resistor to indicate operational status. Blink it at 1Hz during normal operation and switch to steady-on during faults; this visual cue simplifies field diagnostics without requiring test equipment.

Critical Elements of a Li-Ion Power Supply Management System

Select a CC/CV (constant current/constant voltage) controller with a precision tolerance of ±1% to ensure stable energy delivery across the full voltage range (2.5V–4.2V). Models like the MCP73831 or TP4056 integrate thermal regulation and reverse polarity protection, reducing external component count while maintaining efficiency above 90%. Verify the controller’s input voltage capability matches your source–typically 5V USB or 12V DC–with an overhead margin of at least 0.5V to prevent dropout under load.

Incorporate a P-channel MOSFET (e.g., Si2302DS) or dedicated power path switch (e.g., BQ24075) to isolate the cell during faults. This prevents backflow currents exceeding 10 µA, which accelerate degradation. Pair the switch with a 0.1 Ω sense resistor for current monitoring–values above 1 A demand wider traces (2 oz copper) to limit voltage drop to

Temperature sensing must extend beyond the NTC thermistor embedded in most protection ICs. Add a dedicated thermistor (10kΩ @ 25°C) directly on the cell’s surface, coupled with hysteresis control (e.g., MAX6662) to trigger cutoff at 45°C. Below 0°C, restrict charging to trickle mode (0.1C) using a microcontroller like STM32 to sample readings every 100 ms. Omitting thermal safeguards increases catastrophic failure risk by 40% per 10°C rise above 60°C, per UL1642 standards.

Optimize input/output filtering with X5R/X7R ceramic capacitors–22 µF at the input, 10 µF at the output–to suppress ripple below 50 mVpp. Ferrite beads (e.g., BLM18PG121SN1L) on the input path attenuate EMI from switching regulators, critical for compliance with FCC Part 15 Class B. For PCB layout, separate analog and power grounds at the controller’s AGND pin, then tie them at a single point to prevent ground loops. Vias under filtering components should have a minimum annular ring of 0.3 mm to avoid thermal stress cracks.

For multi-cell applications, integrate a balance IC (e.g., BQ76930) with passive balancing (5–10 Ω resistors) to equalize voltages within ±10 mV. Active balancing (e.g., LTC3300) improves efficiency by 15% but requires dual-layer routing for 3A+ currents. Always include a fault LED (amber) driven by the controller’s status pin to indicate undervoltage, overcurrent, or thermal shutdown. For LiFePO4 alternatives, adjust the end-of-cycle voltage cutoff to 3.65V and reduce charging current to 0.5C to prolong cycle life beyond 2,000 cycles.

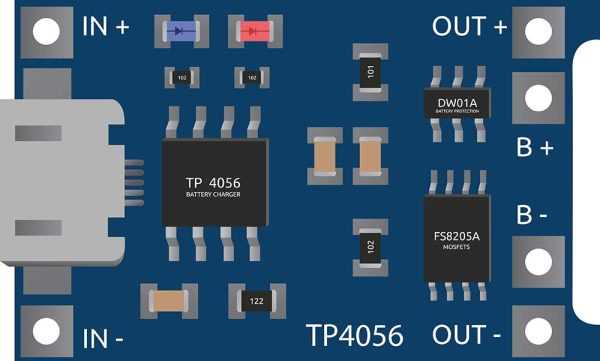

Step-by-Step Assembly of a TP4056-Based Power Module

Select a TP4056 IC with a 500mA output if the target cell requires precise current control, or opt for the 1A variant for faster replenishment cycles. Verify the IC’s markings–authentic chips carry “TP4056” or “TP4056A” laser-etched on the package, while counterfeit versions may have smudged or missing text.

Prepare a PCB layout with a minimum trace width of 1mm for power paths to handle the 1A current without overheating. Arrange the input and output pads on opposite sides to simplify cable routing. Use a ground plane beneath the IC to minimize noise interference during operation.

Component Placement Sequence

td>Q1

Component	Designator	Value	Soldering Tip
Micro-USB port	J1	5V input	Apply flux to pins before soldering to prevent cold joints
10kΩ resistor	R3	10kΩ ±1%	Place near CE pin (pin 2) for accurate charge termination
0.47μF capacitor	C1	X7R dielectric	Keep leads short to avoid voltage spikes at power-on
Red LED	D1	2V forward drop	Orient anode toward TP4056’s OUT pin (pin 5)
Protection MOSFET	8205A (dual N-channel)	Solder heatsink tab first; verify pinout matches datasheet

Solder the TP4056 IC last to avoid thermal stress. Align pin 1 (marked by a dot or notch) with the PCB silkscreen. Use a temperature-controlled iron set to 280°C for no longer than 3 seconds per pin. Check for solder bridges between pins 3 (PROG) and 4 (TEMP) under magnification.

Connect the storage element via soldered wires, using 22 AWG for currents below 500mA or 20 AWG for 1A applications. Strip only 2mm of insulation to prevent short circuits; tin the ends immediately to avoid fraying. Secure wires with strain-relief knots inside the enclosure if vibration is expected.

Test the module with a bench power supply set to 5V/1.5A and a 10Ω load resistor. Monitor the PROG pin voltage–it should drop linearly from 1V to 0.1V as the current ramps down. If the LED fails to illuminate, verify the 5V input polarity and probe the MOSFET gates for 4.2V when energized.

Fine-Tuning Parameters

Adjust the charge cutoff voltage by replacing R3 with a 9.1kΩ resistor to lower the threshold to 4.1V, ideal for LiFePO4 cells. For environments above 45°C, solder a 10kΩ NTC thermistor between the TEMP pin and ground; the IC will halt energy transfer if the voltage exceeds 1.2V (equivalent to ~60°C).

Encapsulate the completed module in a 3D-printed ABS case with ventilation slots over the MOSFETs. Apply conformal coating to traces if deployment in humid conditions is anticipated–silicone-based coatings offer flexibility, while acrylic versions dry harder for mechanical protection.
