Basic Home Electrical Wiring Guide for Beginners Step-by-Step
Start by mapping out circuits before connecting any wires. Use a graph paper or digital tool to mark the locations of outlets, switches, and fixtures in each room. Label each circuit with its intended purpose–lighting, appliances, or general use–and assign a unique identifier (e.g., “Kitchen Outlets – Circuit A”). This prevents overloads and simplifies troubleshooting later.
For safety, limit each circuit to 12-15 outlets or a maximum load of 15 amps (1800 watts) for 14-gauge wire and 20 amps (2400 watts) for 12-gauge. Higher-wattage devices like ovens or dryers require dedicated circuits with thicker wire (10-gauge or heavier). Always consult local codes–some regions mandate GFCI protection for outlets near water sources (kitchens, bathrooms, garages) and AF/GF outlets in living spaces.
Wire color codes are non-negotiable: black for hot, white for neutral, green or bare copper for ground. Use red wires for switched legs (e.g., a light controlled by two switches). Strip wires to 5/8 inch (16 mm) of exposed copper, twist clockwise, and secure with a wire nut before wrapping with electrical tape. Never splice wires outside a junction box–exposed connections risk shorts and fires.
Mount breaker panels in dry, accessible areas (garages, utility rooms). Leave 3 feet (1 meter) of clear space in front for safety. Label each breaker with its corresponding circuit during installation to avoid confusion. Test every circuit with a multimeter before finalizing–voltage should read 110-120V (US/Canada) or 220-240V (Europe/Australia) depending on the system.
For three-way switches (hallways, staircases), connect the common terminal of the first switch to the power source and the common terminal of the second switch to the fixture. The traveler wires (red or black) link the switches. Mistakes here often cause flickering lights or dead circuits–verify connections with a continuity tester before closing walls.
Avoid mixing wire gauges in a single circuit. Thinner wires (14-gauge) in a 20-amp circuit can overheat. Use cable staples every 4.5 feet (1.4 meters) and within 12 inches (30 cm) of junction boxes to secure cables. Leave 6 inches (15 cm) of slack at each box for future repairs. If drilling through studs, protect wires with plastic bushings to prevent nail or screw damage during later construction.
Understanding Basic Electrical Layouts for Novices
Start by mapping each circuit on graph paper with a scale of 1:20 (5cm = 1m). Draw walls as double lines 5mm apart, outlets 10mm circles, and switches 8mm squares. Label all connection points alphabetically (A1, A2, B1, etc.) to track wire runs before installation.
Limit circuit length to 40 meters from the distribution board to avoid voltage drop. Copper conductors should follow these cross-sections: 1.5mm² for lighting, 2.5mm² for sockets, and 4mm² for appliances above 2kW. Use a color-coding system: red (live), black (neutral), green/yellow (earth).
| Appliance Wattage | Minimum Conductor Size | Recommended Circuit Breaker |
|---|---|---|
| Up to 720W | 1.5mm² | 6A |
| 721W–2300W | 2.5mm² | 10A |
| 2301W–3680W | 4mm² | 16A |
Separate high-load devices–water heaters, ovens–onto dedicated circuits with 6mm² wiring. Install RCDs (residual current devices) rated at 30mA for all outlets in kitchens, bathrooms, and outdoor spaces. Calculate total load by summing appliance wattage; divide by voltage (230V) to determine minimum main breaker size.
Run cables inside 20mm conduit for walls or beneath floors, maintaining 30cm spacing from plumbing. Secure wires every 25cm with insulated clips. For junctions, use IP54-rated boxes in damp areas; elsewhere, IP20 suffices. Avoid tight bends–keep radii above 4x cable diameter to prevent damage.
Test continuity with a multimeter before energizing. Probe live-to-neutral (230V expected), live-to-earth (
Grounding rods should be 1.2m copper-clad steel, spaced 1.8m apart, buried vertically. Bond rods to the main earth bar with 10mm² copper wire. Verify resistance under 25Ω; if higher, drive additional rods or add rock salt to reduce soil resistance.
Label every switch and outlet with its circuit number (e.g., “C5: Downstairs Hall”) using a label maker. Keep a master schematic updated in a sealed plastic sleeve near the distribution board for future troubleshooting.
Essential Gear and Supplies for Electrical Setup
Choose a voltage tester with both non-contact and probe capabilities. Models like the Klein NCVT-3 or Fluke 1AC detect live circuits without physical contact, reducing risk. Verify the tester works on both standard and tamper-resistant outlets before purchase.
Insulated screwdrivers with a VDE certification ensure safety when adjusting terminals. Opt for magnetic tips in sizes #1 and #2 Phillips, plus 3/16″ and 1/4″ flatheads. Werkzeug and Wera manufacture tools that resist slips in tight junction boxes.
Wire strippers must match the gauge of your conductors. Ideal models, such as the Ideal T-Stripper, handle 10-18 AWG solid and stranded copper. Check the stripping holes align with the cables you’re using–most residential circuits use 12 or 14 AWG.
Use fish tape to route conductors through walls or conduit. Flexible steel or fiberglass tapes work best for long pulls. Apply lubricant like Gardner Bender Yellow 77 for smoother threading. Avoid using non-conductive tapes near live circuits.
Junction boxes must meet NEC standards. Plastic boxes (4″ square or 3.5″ octagonal) are common for retrofits; metal boxes provide grounding. Ensure depth accommodates wiring volume–minimum 3.5″ for 12 AWG with multiple splices.
Select cable that complies with local codes. Non-metallic sheathed (NM-B) 12/2 with ground suits most outlets; 14/2 suffices for lighting circuits. Always confirm ampacity ratings–12 AWG handles 20A, 14 AWG is rated for 15A.
Grounding screws and pigtails are mandatory for safety. Green-colored #10-32 screws secure ground wires to metal boxes. Pre-made copper pigtails simplify connections when multiple grounds converge.
Circuit breakers must match the panel brand–Square D QO differs from Homeline. Verify trip curve (type B or C) for standard loads. Avoid using wire nuts for grounds; use set-screw or push-in connectors rated for copper conductors.
Decoding Electrical Schematics for Residential Circuits

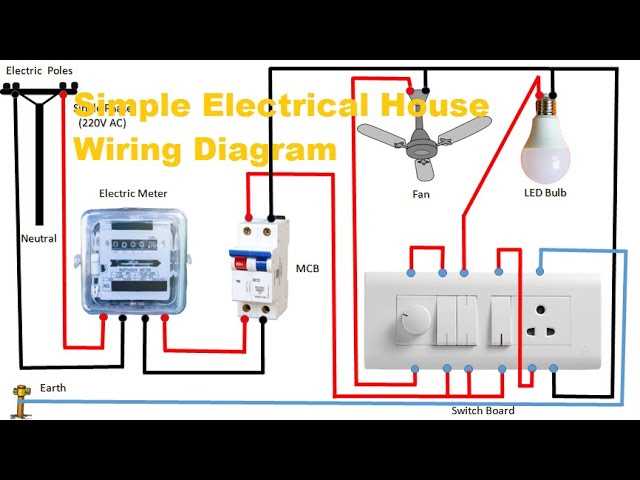

Start by locating the main service panel–the metal box where the utility feed connects. Identify the two thick black or red cables entering the box; these are the hot legs delivering 240 volts. Each leg pairs with the neutral (white) and ground (bare or green) wires to form complete circuits. Note the voltage between the legs (240V) versus each leg to neutral (120V)–this dictates appliance compatibility.
Symbols matter more than colors. A dashed line indicates a switch loop, while zigzag resistors represent lighting loads. Outlets appear as rectangles with a T-shape inside; GFCI variants add a small “test” and “reset” label. Breakers are drawn as squares or rectangles with a number inside–match this to the amperage rating listed elsewhere in the schematic.
- Black or red wires: Hot conductors (120V or 240V)
- White wires: Neutral return path
- Bare/green wires: Safety ground
- Solid lines: Permanent connections
- Dashed lines: Switched or future circuits
Trace each circuit path. Begin at the breaker and follow the line to devices–outlets, fixtures, appliances–in sequence. Junction boxes appear as circles with multiple lines converging. Verify wire gauge matches ampacity: 14 AWG for 15-amp circuits, 12 AWG for 20-amp. Larger appliances may need 10 AWG or thicker.
Common pitfalls include mismatched neutrals and grounds. Neutrals should never be shared across different circuits unless using a multi-wire branch circuit with handle ties. Ground wires must bond to the panel’s ground bar, not the neutral bar, except in main bonded neutral systems. Double-check continuity with a multimeter before energizing.
- Label every circuit at the panel with a short description.
- Mark each device on the schematic with its physical location.
- Compare theoretical amp loads with actual breaker ratings.
- Test polarity of outlets with a plug-in tester.
- Document any deviations from standard conventions.

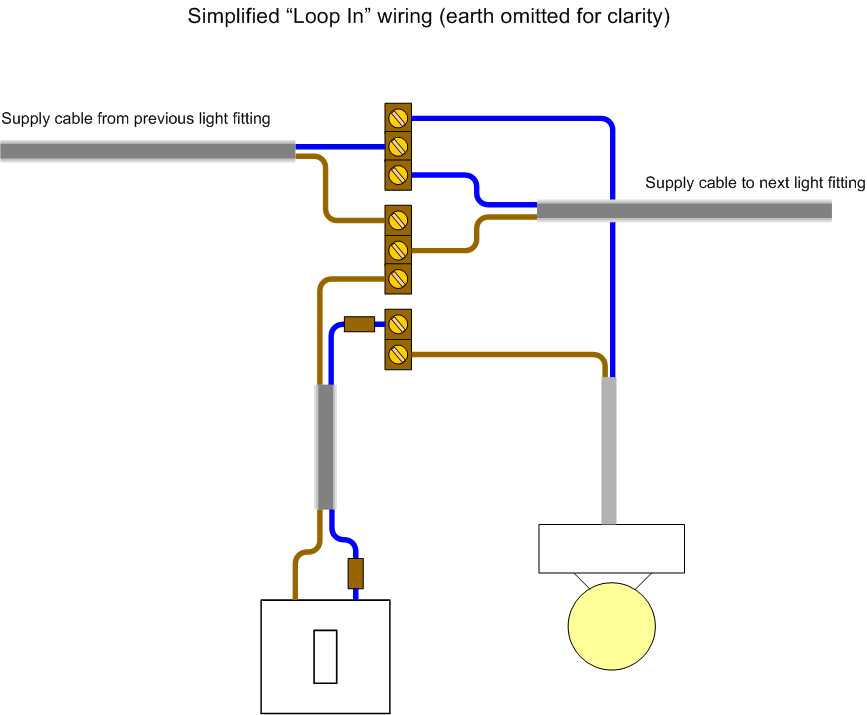

Step-by-Step Guide to Connecting a Basic Light Control
Turn off the circuit breaker supplying power to the circuit you’ll modify. Use a non-contact voltage tester to confirm the absence of live current at the switch box before proceeding. Failure to verify this step risks electric shock.
Remove the existing wall plate by unscrewing the mounting screws. If replacing an old toggle, disconnect the wires by loosening the terminal screws–identify the black (hot), white (neutral), and bare/green (ground) conductors based on insulation color codes.
For a standard single-pole installation, attach the black wire from the power source to the brass terminal screw on the new switch. Connect the black wire leading to the fixture to the remaining brass screw. Twist wire ends clockwise to prevent fraying when tightening.
Secure the bare or green ground wire to the green grounding screw on the switch. If the switch lacks a grounding terminal, use a pigtail spliced to the metal box’s grounding point with a wire nut–never omit this safety measure.
Testing and Securing Connections
Affix the switch to the electrical box by aligning the mounting holes and fastening the screws until snug–avoid overtightening to prevent cracking the device. Reinstall the wall plate to protect exposed terminals from accidental contact.
Restore power at the circuit breaker and operate the switch to verify function. If the light fails to activate, immediately cut power and recheck all connections for loose wires or incorrect polarity. Miswired neutrals can create hazardous conditions.
Final Safety Checks
Inspect the installation for exposed copper, stray strands, or tools left inside the box. Use electrical tape to wrap terminal screws if insulation appears compromised, reducing short-circuit risks. Properly sized wire nuts prevent vibration-induced loosening over time.
Label the circuit breaker with the controlled load’s location for future reference. Maintain at least 3 mm of clearance between conductors and metal surfaces to meet code spacing requirements, ensuring long-term reliability and safety compliance.
