Complete Bennett Hydraulic Trim Tab Wiring Guide with Circuit Diagrams

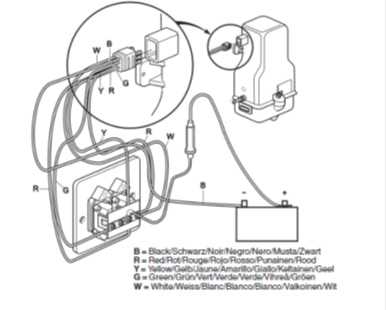

To ensure reliable operation, connect the actuator motor’s red wire to a dedicated 16–20A circuit breaker, then route it directly to the control switch’s positive terminal. The black wire should terminate at the vessel’s common ground bus, avoiding daisy-chaining through other devices. Use 12-gauge tinned copper wire for runs under 10 feet; increase to 10-gauge for longer distances to prevent voltage drop.
Install a double-pole, single-throw switch with a rated capacity of 30A to handle inductive loads from the motor. Place it within 6 feet of the helm for quick access. The white wire (if present) acts as a sensor return; splice it into the system’s ignition-controlled circuit to enable automatic retraction when the engine shuts down, preventing unintended deployment.
For fault protection, integrate a 25A slow-blow fuse inline with the red wire, positioned no further than 7 inches from the power source. Test continuity between the actuator casing and ground bus; resistance should not exceed 0.5 ohms. If multiple plates are used, dedicate separate wires for each to avoid parasitic current draw and ensure proportional response.
Label all connections with heat-shrink tubing marked “UP/STBD” or “DN/PORT” for future troubleshooting. Verify polarity before energizing: reversing leads will cause erratic movement or motor burnout. On vessels with 24V systems, use a step-down converter rated for continuous 30A output, not a voltage divider, to maintain consistent performance under load.
Installation Guide for Marine Adjustable Plane Electrical Layout
Start by identifying the power source for your boat’s stabilizer system. Use a dedicated 12V deep-cycle battery or connect directly to the vessel’s main power bus, ensuring the circuit includes a 10-amp fuse or circuit breaker within 7 inches of the battery terminal. Label each wire with heat-shrink tubing–black for ground, red for positive, and yellow for control signals–to prevent misconnection during maintenance.
Mount the actuator pump near the plane assembly, keeping hydraulic lines as short as possible to reduce pressure loss. Route wiring through conduit or loom to protect against abrasion, moisture, and UV exposure. Secure connections with waterproof butt connectors or soldered joints sealed with adhesive-lined heat shrink. Avoid running wires parallel to engine ignition systems or high-current cables to minimize interference.
Troubleshooting Common Electrical Issues
If the plane fails to respond, first check the fuse and voltage at the actuator with a multimeter–readings should match the battery’s output (±0.5V). Inspect all terminals for corrosion, tightening loose connections with a torque wrench to 3-4 in-lbs. Test the control switch by bypassing it with a jumper wire; if the system activates, replace the switch. For erratic movement, verify the ground connection’s integrity, ensuring it terminates directly to the engine block or a clean metal surface, not through painted or coated surfaces.
When calibrating the system, adjust the mechanical stops on the plane assembly first, then fine-tune the electrical limits using the manufacturer’s handheld controller. For boats with multiple planes, wire each actuator to independent circuits to prevent a single failure from disabling the entire system. Store spare fuses, connectors, and a wiring schematic onboard for quick repairs at sea.
Locating Critical Elements in the Electrical Schematic
Start by tracing the primary power feed–typically a red or yellow conductor, often 10-12 AWG–from the battery’s positive terminal to the control switch. Verify the inline fuse, usually rated between 10-20 amps, positioned within 7 inches of the battery connection. Without this fuse, short circuits can bypass circuit protection entirely, risking catastrophic component failure.
Isolate the actuator motor connections in the layout. Two heavy-gauge leads (often black and green) link directly to the motor’s solenoid. Confirm polarity match between the schematic and physical terminals; reversing these will invert mechanically driven adjustments, leading to erratic performance or immediate damage to feedback sensors. Check for a third, thinner wire–this carries the feedback signal to the helm indicator, critical for precise calibration.
Identify relay contacts if present. Activating coils should demonstrate clear normally open (NO) and normally closed (NC) markings; any deviation suggests corrosion or incorrect assembly. Test resistance across relay terminals–expect 50-150 ohms for operational coils. Higher readings indicate burnt windings, while readings under 30 ohms point to potential shorting.
Ensure grounding integrity. All negative returns consolidate at a single bus bar or chassis point. Verify all ground connections measure near-zero resistance to the battery’s negative post–any resistance above 0.1 ohms necessitates cleaning or replacement of terminals. Mismatched grounding creates voltage drops, causing intermittent malfunctions in automated control units.
Step-by-Step Guide to Connecting the Adjustable Plane Control Pump Circuits

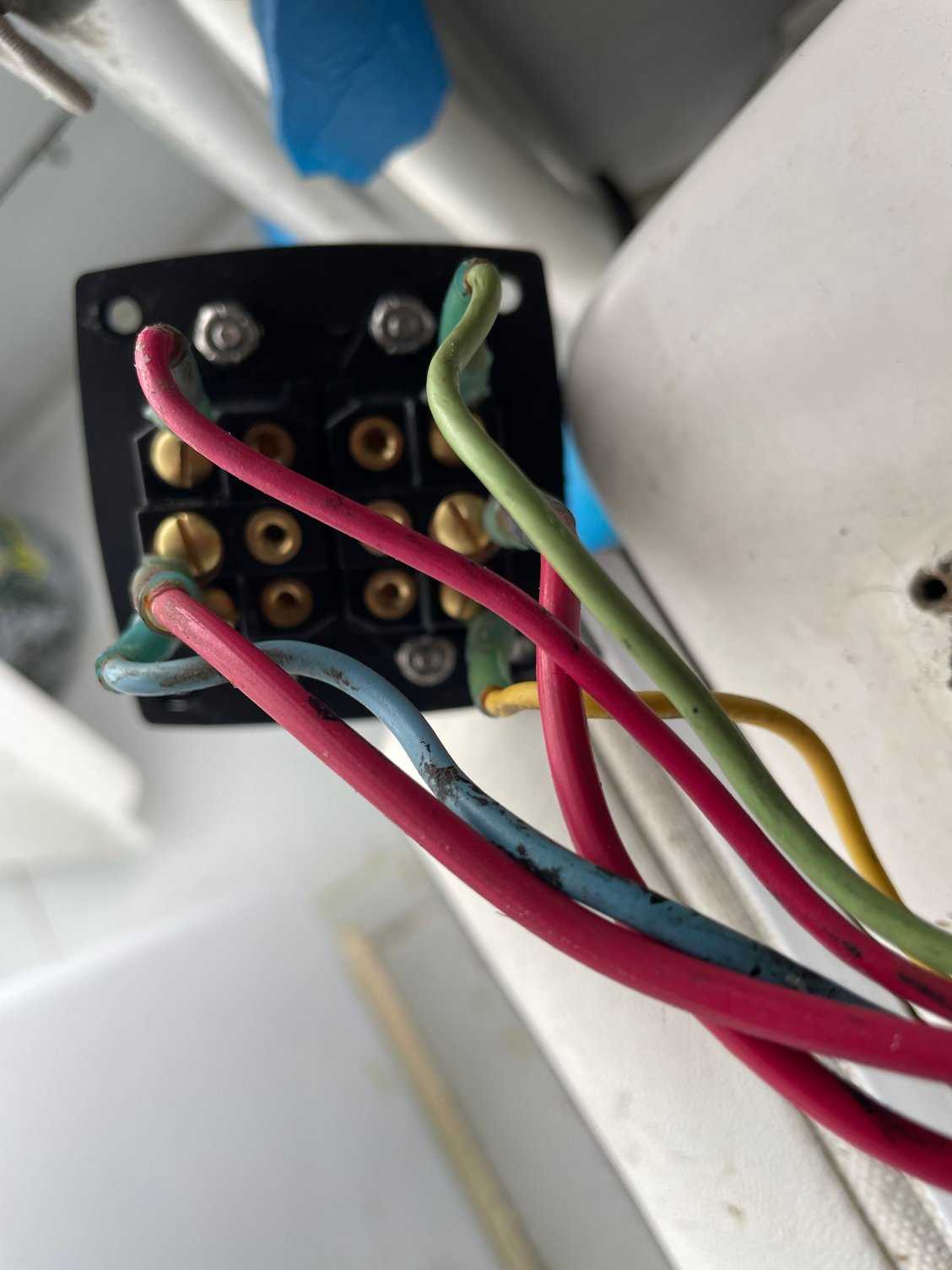

Locate the power source terminals on the actuator unit–typically marked with red (+) and black (-) indicators–and verify voltage compatibility with a multimeter (12V or 24V DC systems). Strip 6–8 mm of insulation from each lead, then secure connections using crimp connectors or solder for stranded copper wire (18–14 AWG). Route cables away from moving parts and heat sources, bundling with nylon ties every 15 cm to prevent chafing. Connect the ground wire directly to the boat’s common grounding point, ensuring a resistance under 1 ohm for stable operation.
| Wire Color | Function | Terminal Type | Torque (Nm) |
|---|---|---|---|
| Red | Positive (12V/24V) | Ring terminal | 1.5–2.0 |
| Black | Ground | Stud terminal | 1.8–2.2 |
| Green/Yellow | Pressure switch | Spade connector | 0.8–1.2 |
Test the system by cycling the control lever through its full range while monitoring for smooth actuation and listening for unusual noises. If the pump stalls, check for reversed polarity or loose fittings–correct immediately to avoid solenoid damage. For boats operating in saltwater environments, apply dielectric grease to connections and inspect annually for corrosion. Store spare wires in a sealed conduit with desiccant packets to mitigate moisture ingress.
Diagnosing Electrical Failures in Marine Adjustment Plate Control Circuits
Check the actuator’s limit switches first. Corrosion on the switch contacts disrupts signal flow, causing intermittent or total failure. Use a multimeter in continuity mode to test each switch: probe both terminals while cycling the control lever. A readable resistance shift confirms functionality; absence means replacement is necessary. Verify the switch mounting screws are tightened–loose hardware can create false readings.
Inspect the feedback potentiometer if the system mispositions or drifts. Remove the control panel cover and locate the variable resistor behind the adjustment knob. Measure voltage across its terminals: a steady change in reading from 0.5V to 4.5V as the lever moves indicates proper operation. A sudden voltage drop or erratic fluctuations require cleaning the wiper track with contact cleaner or replacing the component entirely.
Common power supply faults include blown fuses or corroded terminal blocks. Trace the circuit’s entry point: begin at the fuse holder, test for 12VDC output, then proceed to each connection point using a voltmeter. Clean oxidation from terminals with a wire brush; apply dielectric grease to prevent recurrence. Replace fuses only after confirming the absence of shorts–repeated blowouts suggest a deeper circuit fault.
Ground path integrity is critical. Locate the ground point on the transom plate near the actuator; corrosion here replicates symptoms of broken wiring. Scrape the mounting area clean, reattach the ground wire with a star washer to ensure a solid connection. Test ground continuity from the switch to the battery negative–readings above 0.1 ohms indicate compromised conductivity requiring retermination.
Key Diagnostic Checks:
- Verify actuator plunger movement matches lever input–mechanical binding indicates internal piston failure.
- Disconnect the feedback harness and measure each wire’s voltage drop under load–readings exceeding 0.3V suggest undersized wiring needing upgrade.
- Test control box relays: remove the cover, manually trigger each relay–audible clicks confirm coil function; erratic operation warrants replacement.
- Examine harness connectors for water ingress: discoloration or salt deposits mean resealing is necessary.
Intermittent control issues often trace to chafed harness sleeves. Visually scan the entire cable run from console to transom, focusing on sharp bends or areas exposed to hardware edges. Repair breaches with heat-shrink tubing; secure loose sections to prevent future wear. If continuity tests reveal broken conductors, replace the entire harness–partial splices introduce failure points.
Recommended Tools and Materials for Installation
Begin with a multimeter (minimum 600V AC/DC, CAT III-rated) to verify circuit integrity before connecting any components. Avoid cheap variants–they skew readings under load, risking false diagnoses. Pair it with needle-nose pliers (4–6″ insulated handles) for precision work in tight compartments where standard tools fail. Include a crimping tool with ratcheting action (Ideal Industries or equivalent) to ensure gas-tight connections on 18–10 AWG terminals–don’t substitute with generic pliers.
Use tinned copper marine-grade wire (16–12 AWG for power, 18 AWG for signals) with 105°C insulation and UL-1426 certification. Avoid automotive wire–it degrades rapidly in saltwater environments. For terminations, select heat-shrink butt connectors (3:1 shrink ratio) pre-filled with adhesive sealant; standard crimps corrode within months. Include a heat gun (minimum 500°C) for professional-grade seals–lighter flames cause uneven shrinkage.
Stock marine-grade circuit breakers (manual reset, 20–50A) sized 125% above the system’s continuous draw. Fuses are temporary fixes–breakers provide surge protection and easier troubleshooting. For panel integration, use waterproof momentary toggle switches (rated IP67) with silver contacts; avoid plastic actuators–they crack under UV exposure. Secure wires with stainless steel P-clamps (1/4″–1/2″ diameter) spaced every 18″ to prevent chafe against fiberglass.
Add dielectric grease (Dow Corning 4 or similar) to every connection point to repel moisture–skipping this step guarantees corrosion within a season. For grounding, use bronze or monel straps (minimum 1″ wide) bolted directly to the engine block or hull; tin-plated braid deteriorates in wet bilges. Keep a wire stripper (Klein Tools or Greenlee) with calibrated notches for 16–10 AWG–incorrect sizing strips strands, reducing current capacity.
